Pressure Filter Dealers in Surat

Avail from us, quality Industrial Bag Filter, which is highly acclaimed for their qualitative features such as durable and high performance. Our range of Industrial Bag Filters can be availed in various sizes to meet the requirement of various industries. These Industrial Bag Filters are offered at market leading prices. Features Accurate designDurableHigh performanceEconomical price Applications Chemical industryTextile industry

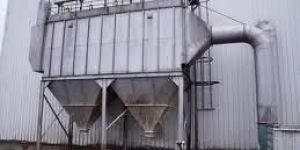

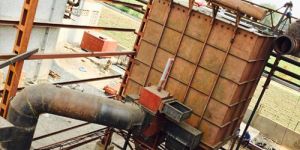

Bag filter system is designed for optimum filtration performance. Its range provides filtration solution for a broad variety of fluid applications in the process industry. They are particularly useful for filtering large volumes of high viscosity liquids. Bag filter is constructed of filter housing, filter bags, internal cage to support bags, positive sealing arrangement & choice of end connections. The internal support ensures bags will not burst as high differential pressures build up during operation. FEATURES   High flow rates and low pressure drop. High dirt holding capacities. Efficiency as high as 98% and dust emission as low as 5 mg/Nm3. Easy to operate and low maintenance. Large area & heavy duty baskets. Housing made from stainless steel are mirror polished to resist adhesion of dirt and scale. Carbon steel housing are sand blasted, epoxy coated & finally painted with two coats of synthetic enamel. Multiple bag filter / Duplex bag filter / Jacketed bag filter unit designs.

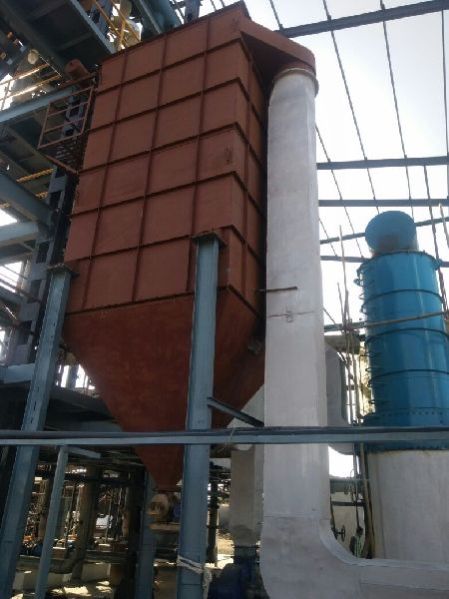

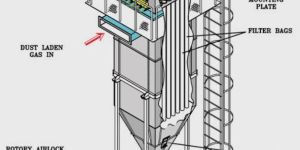

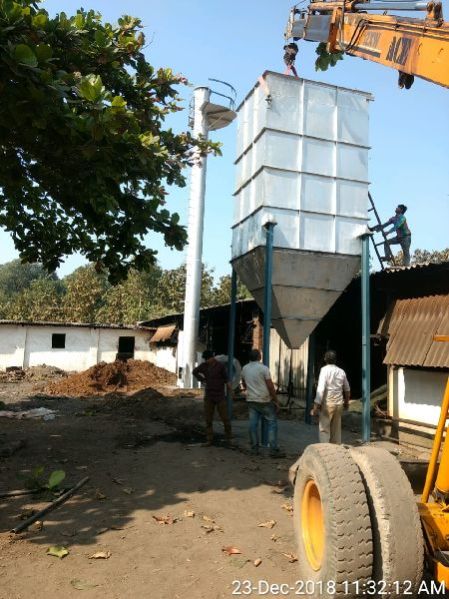

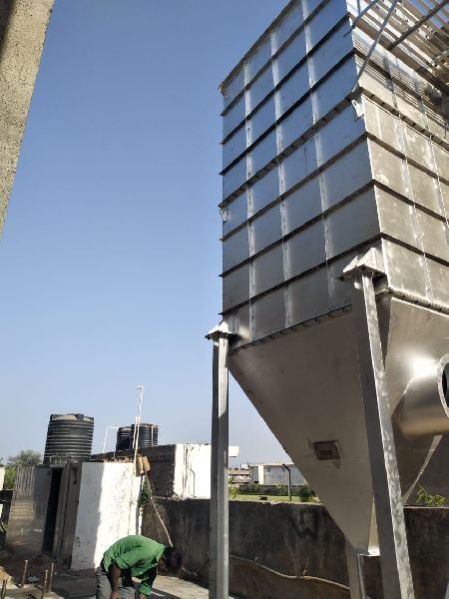

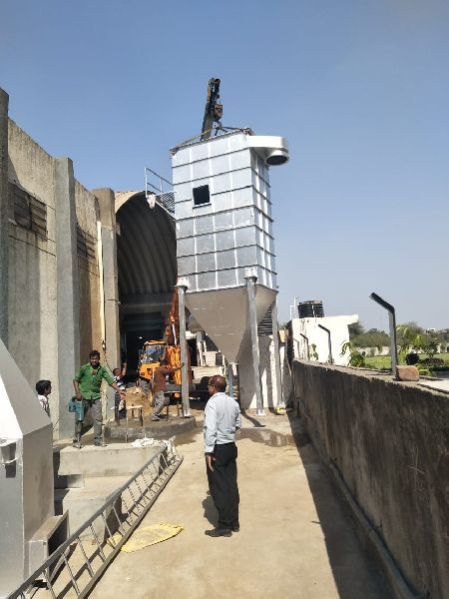

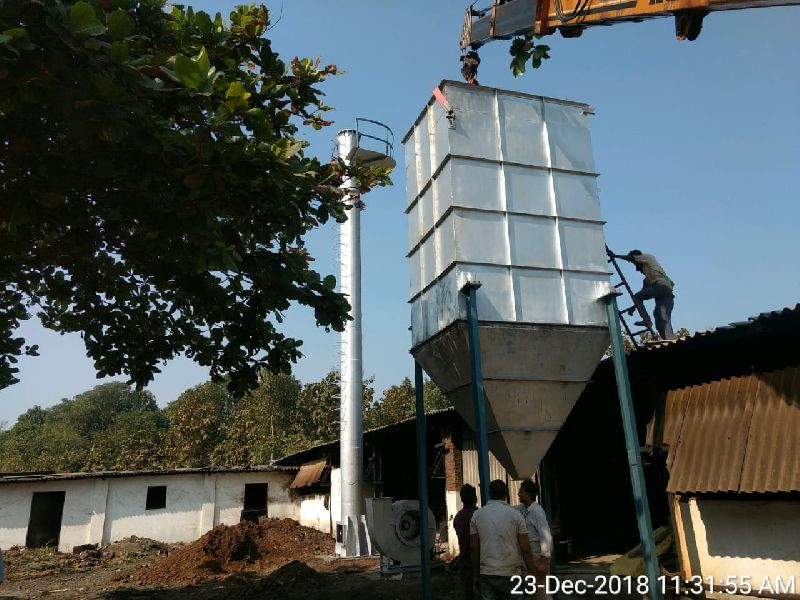

We are a prominent manufacturer and exporter of Pulse Jet Bag Filter based in india. the pulsejet bag fitter that we offer consists of filter cylinders (bags) enfolded in a metal housing. in operation, dust-laden air enters through the center of bag filter. either pressure or suction delivers the dirty air to the hopper. the fine particles travel upward and collect on the filter bags. the clean air passes through the bag and vents in to the atmosphere. a high-pressure jet of compressed air, which is directed through the bag, removes the dust, which is deposited in the hopper and is easily collected for disposal or recovered for use at timed intervals. anatomy of the pulsejet bag filter : the dust-tight pulsejet bag filter has three sections : a plenum at the top, a collector housing in the center, and a hopper at the bottom. a plenum (q) houses the blowtubes and supports for the solenoid valves. clean air or gas is released through the exhaust outlet ® in the plenum. the housing (m) contains the filter bag assemblies. below the housing is the hopper (o) which contains the inlet (n). a diffuser (t) in the hopper, adjacent to the inlet absorbs the impact of the high velocity dust particles and distributes the incoming air. pressure drop, that measures collector performance, is indicated by a d.p.gauge (s) connected at one end to the filter bag section and to the clean air plenum at the other end. a gujtex rotary airlock (p) is recommended as a discharge valve to handle the collected dust. filter cylinder assembly : the filter cylinders (bags) (a) slip over wire retainers (b). a bag clamp secures the bag-retainer assembly to the collar (c) of the venture nozzles (e), which are attached to a tube sheet (d). blowpipes (f) with orifice nozzles (g) are located above each row of filter bags so that the orifice nozzles are directly above the throat of each venture. the cleaning cycle : a signal from a remote sequence timer (h) actuates the opening of the normally closed solenoid or pilot valve (j). the opening of the solenoid valve decreases the pressure in the tube connecting the solenoid to the right angle diaphragm valve (k) causing the diaphragm valve to open. this permits a momentary jet of 100-psig air to flow from the air supply pipe (l) to blow tube, down each venture, and to each filter bag. all bags in a row are cleaned simultaneously.

Leaf Filters, Belt Filters, Disc Filters, Drum Filters, Filter Bag

Horizontal Leaf Filter, Agitate Machined Nutsche Filter Drye

Membrane Filters, Pest Control Service, RO Antiscalant Balls, Water Filter

Cellulose Filters, Waste Reduction, Electrodeionization, Uf Membrane

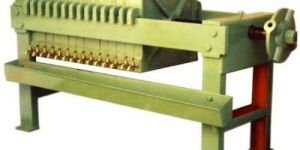

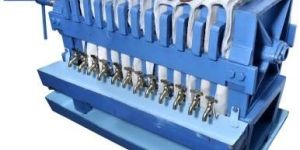

Filter Press, P.P Sandwich Flange, Filter Press PP Nozzle

Membrane Filter, 100 GPD MEMBRANE, Textile

Pressure Sand Filters, Reverse Osmosis System, Effluent Treatment Plan

Cyclonic Bag Filter, Water Scrubber, Electric Power Supply Service

Bag Filters, Thermal Fluid Vaporizer, Bi Drum Boiler

Membrane Filter, RO Water System, Reverse Osmosis Equipmen

Pulse Jet Bag Filter, Self Supported Chimne

Bag Filters, Chimney, Heat Exchangers, Pollution Control Equipment

OIL MAKER MACHINE, COMMERCIAL OIL MAKER MACHIN
