Qube Earth Electrode Udhna, Surat, Gujarat

Guaranteed for 2 Years unconditionally from the date of installation Range from 5 Kvar to 25Kvar Self Healing Type(IS13585) Voltage:440/480/525 volts.   Heavy Edge Metalised Polypropylene film. High Inrush Current Withstanding Capacity. Compact Design, Easy Mounting in APFC Panel. Suitable to work in Harmonic.

Hot DIp GI Earthing Electrodes is the process of creating alternative path for the flow of fault/excessive current safety into the ground in the presence of minimal resistance or impedance our GI Earthing system offers superior product life, cost effective, maintenance free as well as reduces the maintenance cost.

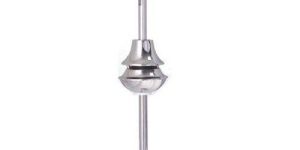

patrons can avail from us a wide assortment of ese lightning protection system to our deemed patrons. offered range can be availed from us in variety of sizes, grades and dimensions as per the detailed specifications of the patrons. these spike type lightning arrestor are manufactured under the strict compliance of industry laid parameter that ensure in delivering an error free range. features: active ese early streamer emission air terminal sabo liva lap cx-070 in accordance with nfc 17-102 2011 standard. shaft gi/frp/ss for raising air terminal minimum 3 m above the top of the structure to be protected down conductor > 30*2 mm copper strip lightning counter 6 digits ip65 test clamp for disconnecting the down conductor and testing the earthing earthing should be maintenance free tripod type of copper bonded steel rod specifications: very high grade stainless steel material body, 700 mm long and 2.4 kg nett weight with pointed tip based on active early streamer emission principle and consists of ion generator early streamer warning time of 31µsec protection radius at 4 m height in level i, ii, iii & iv area are 48 m, 55 m, 64m and 72 m respectively metu electrical & electronics test report as per nfc 17-102 standard in each lightning conductor serial number, model no., ce mark, hologram & manufacturer name is available packed inside printed carton for each piece every lightning conductor carry 30 years warranty. certificate is issued from the manufacturer internal last inspection report of manufacturer will be provided with every serial numbered lightning arrester, if required sigma test report qa technical conformity certificate ts en iso 9001:2008 certificate bs en iso 14001:2004 certificate certificate of registration from world intellectual property organization ce certification testable by means of external lightning tester. designed as per nfc17-102 standard which meets all lightning conductor standards suitable for all types of lightning discharges (negative, positive or lateral) suitable for all whether and climatic conditions and can be used in any terrain no use of battery or power source is required tested for 115 ka short circuit in hv test lab, triggering time and temperature -40ºc to +120ºc

Diameter 14.2,16,17.2,19,20,24,25,32,38,48,50,77,80,88,90,100,110 mm Length of Rod 1,2,3 meters Material Galvanized Iron (GI), Zinc, Copper, 100 micron and 250 micron copper and hot dip GI

Owing to our vast experience Pure Copper Bonded Electrode, we are engaged in providing excellent quality range of chemical earthing electrode to our reputed clients. This is tested by our quality controllers in order to dispatch flawless range at client's. Copper Bonded Electrode provides a low-impedance ground in locations of high soil resistivity.we provides 100 & 250 micron 99.99% molecularly Copper bonded Earthing Electrodes.

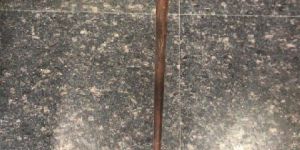

We are among the recognized names in the industry for manufacturing and trading Spike Conventional Lightning Protection System. The offered arrester is made from high-grade materials for ensuring the industry standards. This spike lightning arrester is durable, latest in design and is used for arresting lightning for providing protection against fire breakouts and leakage of current through electric circuits.

Country of Origin : India

Size : Standard Size

Number Of Flower : Lightning Arrestor

Material : Copper, Stainless Steel

Application : Buildings, Electrical Use, Factories, Solar

Feature : Bonded Steel Construction, High Grade Copper, Optional Fully Copper

Frequency Range : 800 MHz -2.5 GHz.

Plating : Nickel Plated

The latest addition to earth specific range of BFC(s), TerraIon is an electrolyte based Back Fill Compound which is powered by neutralizing and diffusing agents. The formula has been designed keeping in mind the harsh conditions faced by Earthing systems around the world. It helps in reducing the soil resistivity and normalizing the soil conditions. It forms a bulk aqueous solution on addition of water and creates conductive roots in the immediate environment of the Earthing system. The Back filling Compound(BFC) are available in 15 & 25 kgs Packaging. APP Type Subodhan Capacitor(APP-SL) Guaranteed for 3 Years unconditionally from the date of installation Range from 5 Kvar to 25Kvar Non Self Healing Type(IS13585) Voltage:440/480/525 volts. Aluminum Foil +Polypropylene film Design with extended foil design ensuring low losses.

guaranteed for 2 years unconditionally from the date of installation range from 5 kvar to 25kvar self healing type(is13585) voltage:440/480/525 volts.   heavy edge metalised polypropylene film. high inrush current withstanding capacity. compact design, easy mounting in apfc panel. suitable to work in harmonic.
