Shine Technologies Varachha, Surat, Gujarat

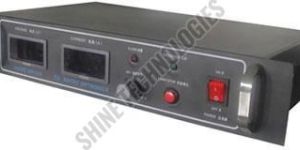

We are a reputed Manufacturer and Exporter of impeccable Single Phase Driver. We design Single Phase Driver using high quality material under the strict vigil of our experts. Our Single Phase Driver is easy to use and highly reliable in operation. We make Single Phase Driver available at market leading prices. Available In 24amp 25voltage 24amp 30voltage Highlights Good current soft increasing /decreasing function efficiently avoid laser diode being damaged by inrush current. Extremely small ripple noise effectively protects laser diode from inrush current even when current increase or decrease. Excellent anti-static function efficiently avoids laser diode being damaged by static electricity. Very good efficiency and perfect open circuit, over current protection and over load protection, which pave way for reliable performance. Sensitive water detection and water temperature detection keep laser diode in good condition. Instant voltage/current digital indication makes the monitoring of voltage/current very easy. Internal/external control easily converses internal control of power supply and external control of computer. Standard 2U cabinet helps in easy installation.

Country of Origin : 24amp 25voltage , 24amp 30voltage

Total Carbohydrate : 2 years

We are widely acclaimed for providing Motion Control Card to our clients. We make available 2 Axis Motion Control Card, 4 Axis Motion Control Card and 8 Axis Motion Control Card to meet the diversified demands of the customers. Our Motion Control Card is reckoned for its performance and quality amidst our clients. 4 Axis Motion Control Card, provided by us, offers better linear and circular interpolated moves. The continuous contouring performance of 8 Axis Motion Control Card makes it ideal for advanced pulse train motion. We also offer customized Motion Control Card and have priced them reasonably. Features 32-bit PCI bus, Rev. 2.2, 33MHz Pulse output rate up to 6.55MHz Pulse output options : OUT/DIR, CW/CCW, AB Phase 2~4 axes linear interpolation 2 axes circular interpolation Multi-axis continuous interpolation Position/Speed change on-the-fly 13 home return modes and auto home search Hardware position compare and trigger with auto-loading FIFO as buffer High speed position latch function Programmable acceleration and deceleration time Trapezoidal and S-curve velocity profiles 28-bit up/down counter for incremental encoder Multi-axis Simultaneous start/stop Programmable interrupt sources Support up to 12 cards in one system Hardware backlash compensator Software limit function Easy interface to any stepping motors, AC or DC servo, linear or rotary motors All digital inputs and outputs are 2500VRMS isolated Manual pulser input interface More than 250 thread safe API functions Software Support OF AXIS CONTROL CARD SUPPLIER Available for Windows XP/Vista32/XP/2000,WIN7 VB/VC++/BCB/Delphi are recommended programming environment Various sample programs with source codes Customized API functions are possible RTX ( Windows Real Time Extension) RTX 5.x/6.x MotionCreatorPro-assists the motion system developer to debug any cabling problem, and solve the difficulty of system configuration before programming Linux Platform. Applications Axis Control Card Supplier Semiconductor front & back end equipment TFT/LCD manufacturing equipment Electronic Assembly and Testing equipment Automatic Optical Inspection Equipment Flight/Vehicle Simulator in military and video game Dispenser Machinery Precision motion axis control machines.

Number Of Flower : Motion Control Card

Application : Electronic Use

Feature : Accuracy

Frequency : 50Hz

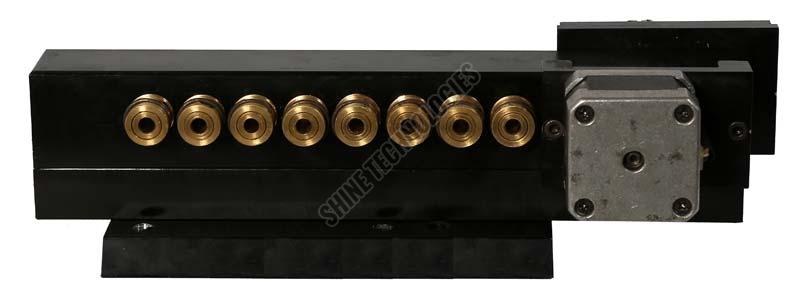

we are manufacturing linear axis x-y and z axis. We are using very good company ball screw and ball bearing. So it is working very smooth with pulse to pulse moving. It is attached with servo motor and amplifier as well as we developing rail mount with rail it is very high accurate.

Number Of Flower : Axis Linear Machines

Availability : 100-500kg

Country of Origin : 220V

Automatic Grade : Automatic

Driven Type : Electric

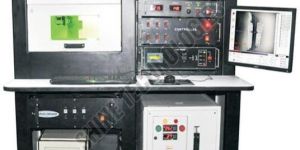

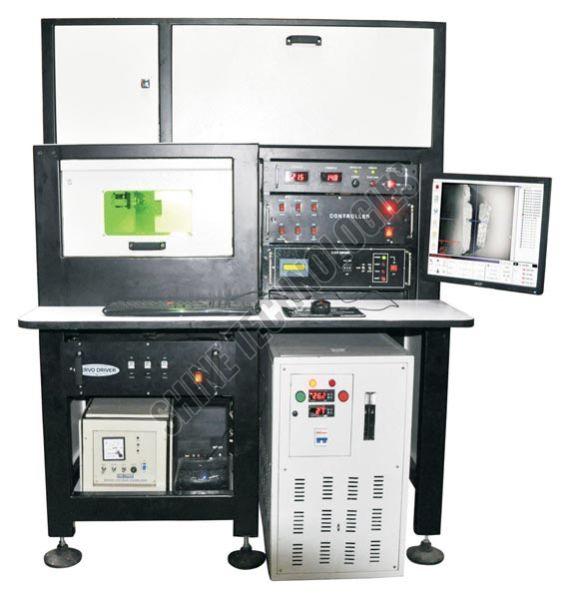

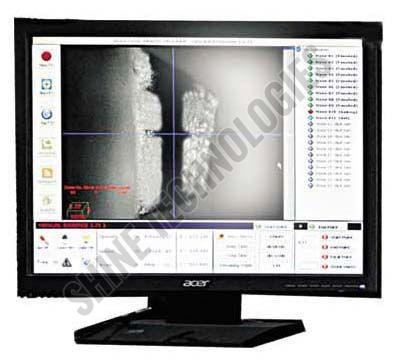

Buyers can contact us for obtaining Lasermax Sawing Diamond Cutting Machine at market leading prices! The company is involved in the business of manufacturing and exporting high performance Lasermax Sawing Diamond Cutting Machine. Superb performance, sturdy construction, low maintenance, etc., are some of the highlighting features of our machine owing to which it is widely in demand. We are capable of meeting bulk orders with ease.   Technical Specification : Laser System : DPSS (ND YAG Diode Pumped) Diode Module : Northrop, Premium, Premium Plus 1064nm Wavelength Tem00 Mode 24watt Q-switched Output @ 10 KHz 1 to 25 KHz Pulse Repetition Rate CNC System : 135×135×75mm Axis Travel 6250 Steps/mm Resolution 2µ Accuracy Repeatability 3µ/25µ Bidirectional AC Servo Driver of  standard company like Panasonic, Fuji Computer System : Intel Pentium Core Processor CPU 2GB RAM 80GB Hard Disk Keyboard- Mouse 17" LCD Screen Monitor Electrical Supply: Single Phase 230V AC Room Temperature : 18° to 30° C Dimension : 4ft Length × 3ft Width × 5ft Height Electronics : RF Driver Single Phase Power Supply Common Controller Cooling System : 230V Single Phase   Software Features :Sawing Program Facilities : Parameter wise Auto Frequency set for Good Quality Fully automization of light, Air, Laser Beam Control, Ampere Setting and auto frequency Cutting time Spacebar to Focus up and Down for checking Diamond Save current cutting stone and give choice name Cutting time edit stone depth When Power failure then after by restarting  PC software automatically restore last cutting data Separate saw file for particular watt Cutting time to stroke length short and long Very Easy to Operate Software by operator Single side and two side sawing facility available Other Features : Good Quality and stability of the Laser beam throughout working range from 8 to 16 watt Very low breakage Lowest weight loss Power saving compared to 3 phase Lamp Pump Laser Machine Chiller with inbuilt Compressor Highly accurate X-Y-Z Axis Servo motor of standard company like Panasonic, Fuji Very low cost operating   Sawing Fixture’s Features : 180° Fixture : Stepper motor’s resolution is 1.8° Single side and two side both designs available Highly accurate design 180° movement  possible for examine diamonds

Usage/Application : Cutting Use

Country of Origin : 220V

Automatic Grade : Automatic

Driven Type : Electric

we are the leading manufacturers, exporters and supplier of this products..

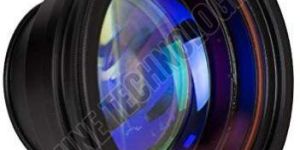

is available I all size. So as per your requirement we will give all size lens available for marking, engraving and cutting

Shape : Round

Frequency : 150 mm - As per requirement

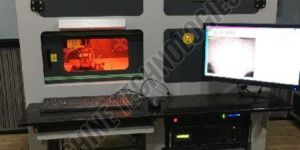

Auto pi green laser machine is advance machine. There are many facilities available. We can also update any thing as per customer requirement. So customer can call us for this machine facilities and specification.   Specifications : - Laser System : DPSS (nd:yag diode pumped) Diode module : northrop RBT 50 watt 532 mm wavelength TEMoo mode 1 to 25khz pulse repetition rate   Computer System : Intel pentium core processor cpu 2 GB ram  80 GB hard disk Keyboard / mouse 17" lcd screen monitor   CNC System : 132 x 132 x 70mm axis travel 6250 steps/mm resolution 2µ accuracy Repeatability 3µ / 25µ bidirectional Panasonic servo drive   Dimension : 4ft length x 3ft width x sft height   Electronics : RF driver Single phase power supply Common controller   Cooling system : 230v single phase   Sawing Features  Good quality and stability of the laser beam throughout working range from 8 to 16 watt. very low breakage. Lowest weight loss. Maximum 20 to 22 watt output. Chiller with inbuilt compressor Highly accurate x-y-z axis servo motor. Sawing with bending pie sawing facility available with 360 degree fixture. Parameter wise auto frequency set for good quality. Auto start light and air it's operate by software key. Cutting time spacebar to focus up and down for checking diamond. Save current cutting stone and give choice name. Cutting time edit stone depth. Power failure, restart to pc automatically software restore last cutting data. Separates saw file for particular watt.

Special Features: Low Weightloss. Multitop Cutting in Only One Set-up. Next to "Nil” Breakage Ratio. Smooth Cutting Surface. Easy and Smart Program. High Production. Auto Image Capture. Advance Software Feature. 70% less Electricity bill compare to any other Green Machine.

Dimension : 1270 mm*620 mm*1380 mm

Electrical Requirment : Ac 208-230v, 60 Hz, 5 Amps.

Chiller : Requirement of External Chiller.

Special Features: Low Weightloss. Multitop Cutting in Only One Set-up. Next to “Nil” Breakage Ratio. Smooth Cutting Surface. Easy and Smart Program. High Production. Galvo + Axis Cutting. Diode, Fiber.   Software Features: Single and Two Side Cutting Facecut Step Banding, Focal Banding, Auto Banding Auto Image Capture. Auto Stroke Length User Friendly Software Auto Power, Auto Frequency Advance Software Feature.

Dimension : 1270 mm*615 mm*1480 mm

Electrical Requirment : AC 208-230V, 60 Hz, 5 Amps.

Chiller : Requirement of External Chiller.

it’s galvo laser marking lens we will also provide to as per you requirement. It’s also available with red pointer.

Frequency : 20 khz

Country of Origin : 100 - 250 V

Power : Electric

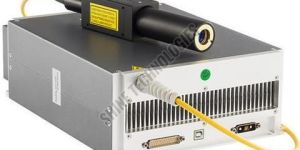

we are selling different type of fiber laser like marking , diamond , engraving, cutting etc. Party can contact anytime. We will give best support to customer.

Fiber Length : 1.9-3 M

Polarization : Random

Single Pulse Energy : 0.5

Nominal output power : 20 , 30 , 50 W

Central Emission Wavelength : 1064+-4 Nm

Beam Diameter : 6

Power : 50 w

Our company is a distinguished manufacturer & exporter of diamond cutting lasermax green based in gujarat, india. The Fancy Shape 4P machine we offer is widely acclaimed for its smooth performance, durability and long service life. Owing to our efficient logistic network, customers can rely on us for delivering any order of diamond cutting lasermax green within the postulated time.   Technical Specification : Laser System  DPSSL (nd: yag diode pumped) Diode Module: northrop, premium, premium plus 532nm wavelength Tem00 mode 24watt q-switched output @ 10 khz 1 to 25 khz pulse repetition rate   CNC System : 135×135×75mm axis travel 6250 steps/mm resolution 1µ accuracy Repeatability 3µ/25µ bidirectional AC servo driver of  standard company like panasonic, fuji   Computer System : Intel pentium core processor cpu 2GB Ram 80GB hard disk Keyboard- mouse 17" lcd screen monitor   Electrical Supply : Single phase 230v ac Room temperature : 18° to 30° c Dimension : 4ft length × 3ft width × 5ft height Electronics : RF driver Single phase power supply Common controller Cooling system : 230v single phase   Software Features : Sawing program facilities : Parameter wise auto frequency set for good quality Fully automization of light, air, laser beam control, ampere setting and auto frequency Cutting time spacebar to focus up and down for checking diamond Save current cutting stone and give choice name Cutting time edit stone depth When power failure then after by restarting  pc software automatically restore last cutting data Separate saw file for particular watt Cutting time to stroke length short and long Very easy to operate software by operator Single side and two side sawing facility available Bending can be possible   Other Features : Good quality and stability of the laser beam throughout working range from 8 to 16 watt very low breakage Lowest weight loss Power saving compared to 3 phase lamp pump laser machine Chiller with inbuilt compressor Highly accurate x-y-z axis servo motor of standard company like panasonic, fuji Very low cost operating   Sawing fixture’s features : 360° fixture : Stepper motor’s resolution is 1.8° Highly accurate design 180° and 360°  movement  possible for examine diamonds   Single degree movement possible

Country of Origin : India

Number Of Flower : Fancy Shape 4P Machine

Chiller : Requirement of External Chiller.

Material : Various Minerals Like Quartz, Diamond, Ruby

Packaging Type : Assorted Colors

Packaging Type : Individual Packaging

Usage : Jewelry Making, Crafts

Finishing : Polished

We are pioneers in making available Diode Module. The Diode Module that we offer is made using side-pumping geometry with 808nm laser diode arrays and Nd:YAG rods. Our Diode Module is widely used in various industries for applications such as laser marking, engraving, welding, cutting, drilling and etc. We have priced Diode Module fairly. Features CW Output power from 10W up to 500W per module High beam quality & low-rank Gaussian beam profile Long life time > 10,000 hours None-microchannel and low requirement for cooling water Support custom package design

Number Of Flower : Laser Diode Module, Diode Module

Availability : 0-50gm

Country of Origin : 220V

Power Type : AC, DC

Frequency : 50Hz

Special Features: Low Weightloss. CVD Slice & CVD Coring Next to "Nil” Breakage Ratio. Smooth Cutting Surface. Easy and Smart Program. High Production. Auto Image Capture. Advance Software Feature.

Dimension : 1315 mm*665 mm*1480 mm

Electrical Requirment : AC 208-230V, 60 Hz, 5 Amps.

Chiller : Requirement of External Chiller.

Our company is a distinguished manufacturer & exporter of diamond cutting lasermax green based in gujarat, india. The diamond cutting machine we offer is widely acclaimed for its smooth performance, durability and long service life. Owing to our efficient logistic network, customers can rely on us for delivering any order of diamond cutting lasermax green within the postulated time.   Technical Specification : Laser System : DPSSL (nd: yag diode pumped) Diode Module: northrop, premium, premium plus 532nm wavelength Tem00 mode 24watt q-switched output @ 10 khz 1 to 25 khz pulse repetition rate   CNC System : 135×135×75mm axis travel 6250 steps/mm resolution 1µ accuracy Repeatability 3µ/25µ bidirectional AC servo driver of  standard company like panasonic, fuji   Computer System : Intel pentium core processor cpu 2GB Ram 80GB hard disk Keyboard- mouse 17" lcd screen monitor   Electrical Supply : Single phase 230v ac Room temperature : 18° to 30° c Dimension : 4ft length × 3ft width × 5ft height Electronics : RF driver Single phase power supply Common controller Cooling system : 230v single phase   Software Features : Sawing program facilities : Parameter wise auto frequency set for good quality Fully automization of light, air, laser beam control, ampere setting and auto frequency Cutting time spacebar to focus up and down for checking diamond Save current cutting stone and give choice name Cutting time edit stone depth When power failure then after by restarting  pc software automatically restore last cutting data Separate saw file for particular watt Cutting time to stroke length short and long Very easy to operate software by operator Single side and two side sawing facility available Bending can be possible   Other Features : Good quality and stability of the laser beam throughout working range from 8 to 16 watt very low breakage Lowest weight loss Power saving compared to 3 phase lamp pump laser machine Chiller with inbuilt compressor Highly accurate x-y-z axis servo motor of standard company like panasonic, fuji Very low cost operating   Sawing fixture’s features : 360° fixture : Stepper motor’s resolution is 1.8° Highly accurate design 180° and 360°  movement  possible for examine diamonds Single degree movement possible

Usage/Application : Cutting Use

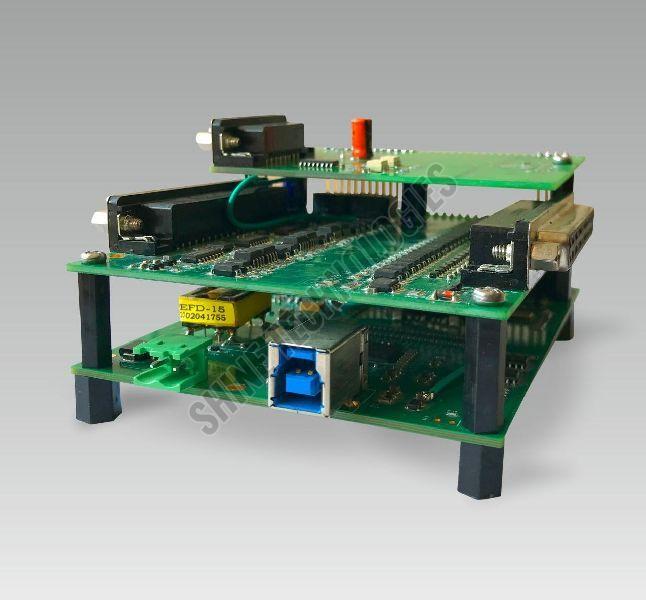

GENERAL FACILITIES  Super Speed USB3.0 Connection  Transfer Data Rate up to 5 Gbit/s (625 MB/s)  Xilinx Spartan- 6 FPGA  Individual Pulse, Direction, Home Sense, Alarm Sense, End Limit Positive, End Limit Negative, Software Limits, High Speed Limit  All Sensors and Limits Logic can be changed through Programming  All Sensors and Limits can be Enable or Disable.  8 Digital Inputs  8 Digital Outputs  1 Analog Output ( 0 to 10 V)  1 PWM Output  2 Axis and 3 Axis Interpolation  Buffer Run Command for, Axis Movement, Delay, Digital Output, Digital Input, Analog Output, PWM  DLL for Windows 7 32bit / 64bit, Windows 10 32bit / 64bit for user Application.    GALVO  Supports XY2-100 Protocol  Interpolation in Galvo Possible  Speed Control of Galvo Speed  Run in Buffer Command  Read the Galvo Movement Status  Control Through 15pin D-sub Connector    FIBER CONTROL  Supports Industries Most Fiber  Control Through External 25pin D- Sub Connector  Frequency Setting  Power Setting  Emergency Stop / Release  MO On/Off  Laser On / Off  Red Beam On / Off

Number Of Flower : Motion Control Card

Details : Super Speed USB3.0 Connection  Transfer Data Rate up to 5 Gbit/s (625 MB/s)  Xilinx Spartan- 6 FPGA  Individual Pulse, Direction, Home Sense, Alarm Sense, End Limit Positive, End Limit Negative, Software Limits, High Speed Limit  All Sensors and Limits Logic can be changed through Programming  All Sensors and Limits can be Enable or Disable.  8 Digital Inputs  8 Digital Outputs  1 Analog Output ( 0 to 10 V)  1 PWM Output  2 Axis and 3 Axis Interpolation  Buffer Run Command for, Axis Movement, Delay, Digital Output, Digital Input, Analog Output, PWM  DLL for Windows 7 32bit / 64bit, Windows 10 32bit / 64bit for user Application.

Number Of Flower : Motion Control Card

Application : Electronic Use

Feature : Windows 10 32bit / 64bit For User Application.

Country of Origin : 24W DC

The company is the noted Manufacturer & Exporter of highly efficient 4P Diamond Bruiting Lasermax Machine. We make use of high-grade parts and components for the manufacturing of the machine. The entire production process is carried out under the supervision of experts, thus there are minimal chances of defects at buyer’s end. Owing to attributes like excellent performance, sturdy construction, low maintenance, etc. our 4P Diamond Bruiting Lasermax Machine is widely in demand.   Features: Area Cover 14mm*14mm Fancy 4P Shape as per Heart, Pear, Oval, Marquise, Princess, Trillion, Emerald, Cushion, Taper, Tapered Baguette, etc. Also Custom Create Shape Like Half Moon, Hexagonal, Star 34+ Shapes Support Full 4P    Technical Specification : Laser System : DPSS (ND: YAG Diode Pumped) Diode Module: Northrop, Premium, Premium Plus 1064nm Wavelength Tem00 Mode 24watt Q-switched Output @ 10 KHz 1 to 25 KHz Pulse Repetition Rate CNC System : 135×135×75mm Axis Travel 6250 Steps/mm Resolution 2µ Accuracy Repeatability 3µ/25µ Bidirectional AC Servo Driver of  standard company like Panasonic, Fuji Computer System : Intel Pentium Core Processor CPU 2GB RAM 80GB Hard Disk Keyboard- Mouse 17" LCD Screen Monitor Electrical Supply : Single Phase 230V AC Room Temperature : 18° to 30° C Dimension : 4ft Length × 3ft Width × 5ft Height Electronics : RF Driver Single Phase Power Supply Common Controller Cooling System: 230V Single Phase Software Features :4 Process Program Facilities : Parameter wise Auto Frequency set for Good Quality  Fully automization of light, Air, Laser Beam Control, Ampere Setting and auto frequency Diameter wise setting of  margin in Table Diameter wise setting of  Parameter and current Separate saw file for range of diameter of diamonds Separate parameter file for each application (Table, Crown, Bruiting, Cone) Diameter Increase & Decrease as per marking Very Easy to Operate Software by operator When Power failure then after by restarting  PC software automatically restore last cutting data Average 250 to 300 Diamond cut in 12 hours (it’s depend on size) Other Features : Good Quality and stability of the Laser beam throughout working range from 4 to 12 watt Very low breakage Power saving compared to 3 phase Lamp Pump Laser Machine Chiller with inbuilt Compressor Highly accurate X-Y-Z Axis Servo motor of standard company like Panasonic, Fuji USB based motion driver Very low cost operating 4Process Fixture’s Features : High Speed motor for good quality and Production Small in size Standard company’s motor is used(Mdrive23 Plus and Mdrive17) Few Specifications of Mdrive motors : Single Supply:from +12 up to +75VDC or 120 and 240 VAC 20 microstep resolutions up to 51200 steps Highly integrated microstepping drive and high torque 1.8° 2-phase stepper motor Graphical user interface provided for quick and easy parameter setup   we have recently launched Tiny 4P version of  4P Diamond Bruiting Lasermax Machine and you can check the Image below and has specification as earlier model but vary in size

Country of Origin : 220V

Details : Super Speed USB3.0 Connection  Transfer Data Rate up to 5 Gbit/s (625 MB/s)  Xilinx Spartan- 6 FPGA  Individual Pulse, Direction, Home Sense, Alarm Sense, End Limit Positive, End Limit Negative, Software Limits, High Speed Limit  All Sensors and Limits Logic can be changed through Programming  All Sensors and Limits can be Enable or Disable.  8 Digital Inputs  8 Digital Outputs  1 Analog Output ( 0 to 10 V)  1 PWM Output  Buffer Run Command for, Axis Movement, Delay, Digital Output, Digital Input, Analog Output, PWM  DLL for Windows 7 32bit / 64bit, Windows 10 32bit / 64bit for user Application.

Number Of Flower : Motion Control Card

Application : Electronic Use

Feature : Windows 10 32bit / 64bit For User Application

Country of Origin : India

Country of Origin : 5W DC

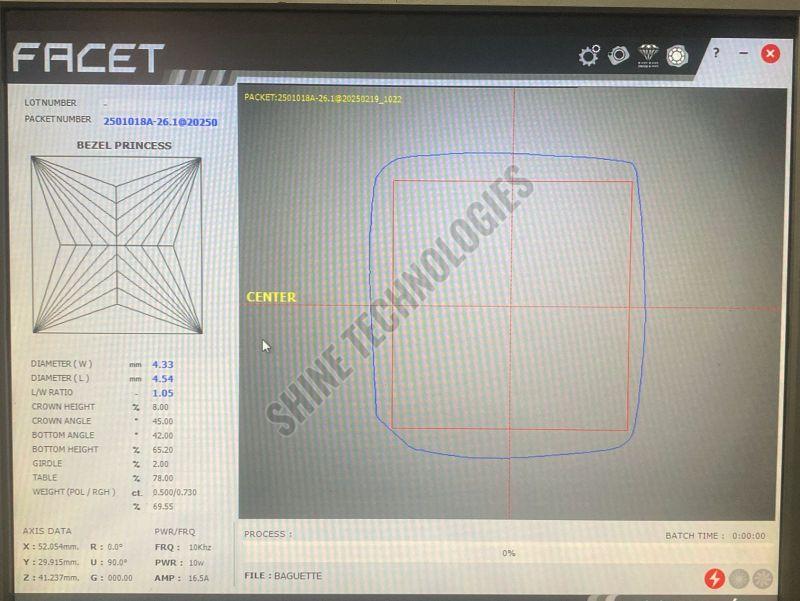

FEATURES  • 4 Process (Table, Crown, Girdle, Bottom)  • Improved / Easy Calibration Process  Force Calibration   Spot On Plus Shape Cutting Software is an advanced solution for precise and efficient shape cutting across various materials. Designed for jewelers and artisans, it features intelligent design tools, high-precision algorithms, and seamless machine integration. The software supports multiple file formats, ensuring compatibility with industry-standard cutting machines. With real-time previews and automated adjustments, users can optimize designs for minimal material wastage. Its user-friendly interface makes it ideal for both beginners and professionals. Spot On Plus enhances productivity, accuracy, and speed, making it the perfect choice for intricate shape cutting in jewelry, textiles, and other fine craftsmanship industries

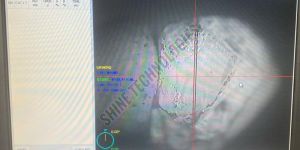

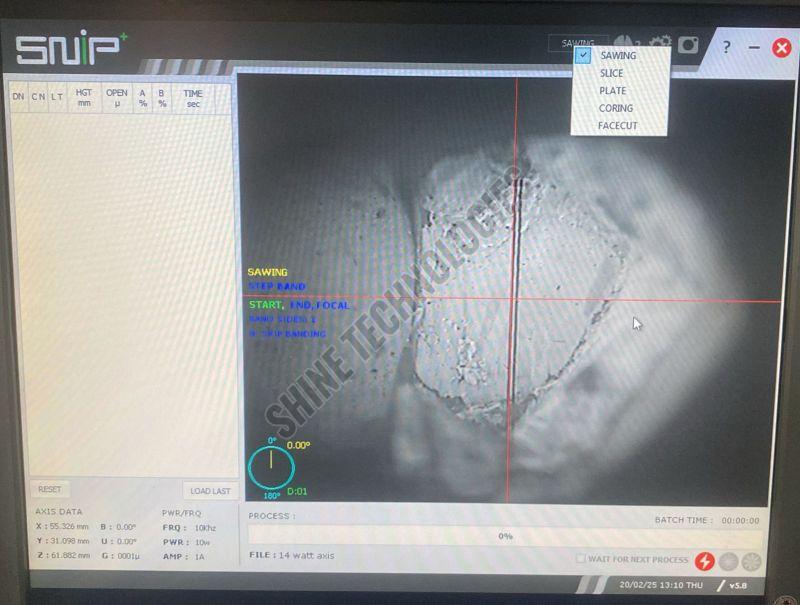

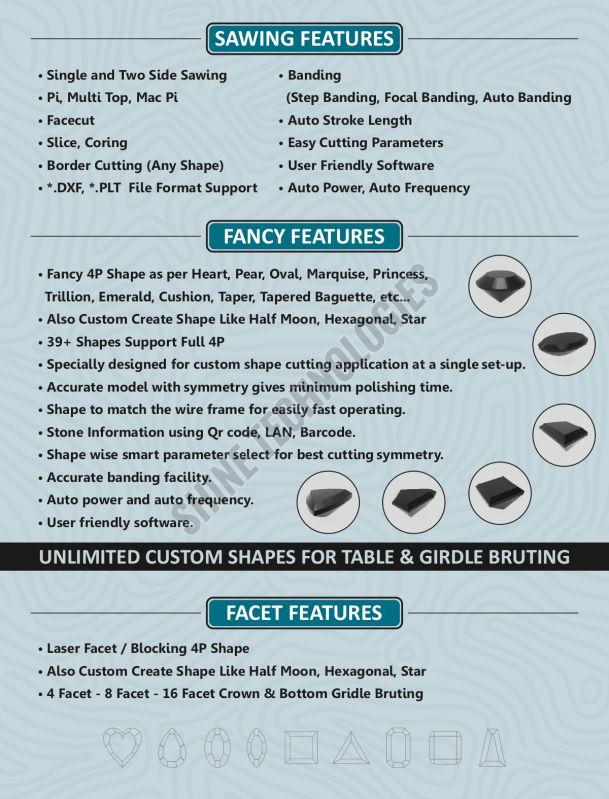

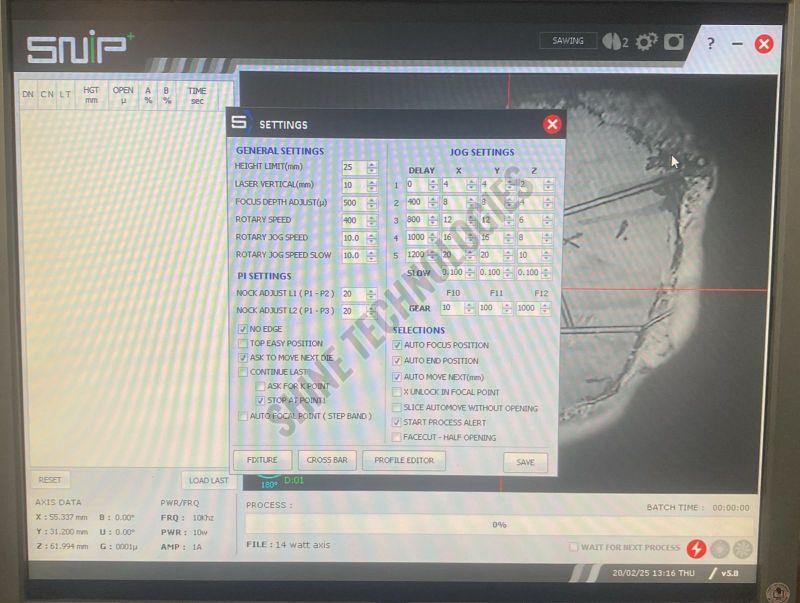

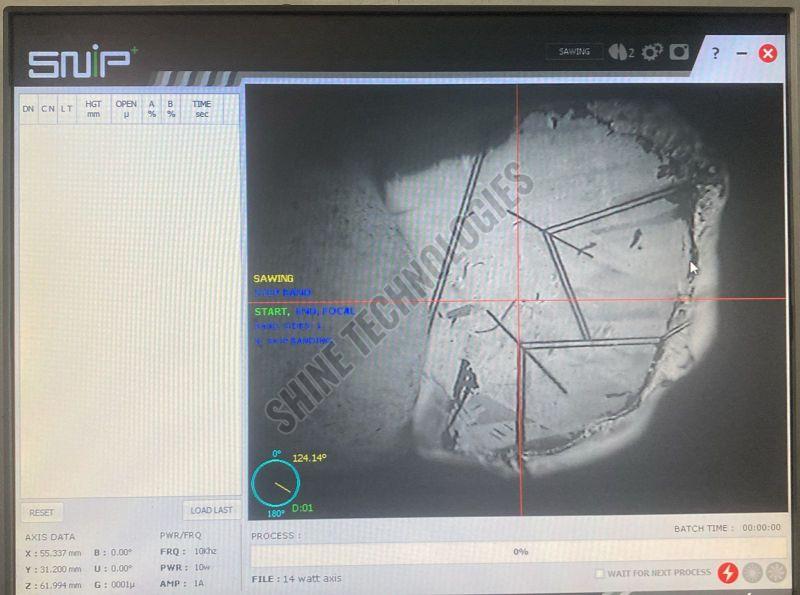

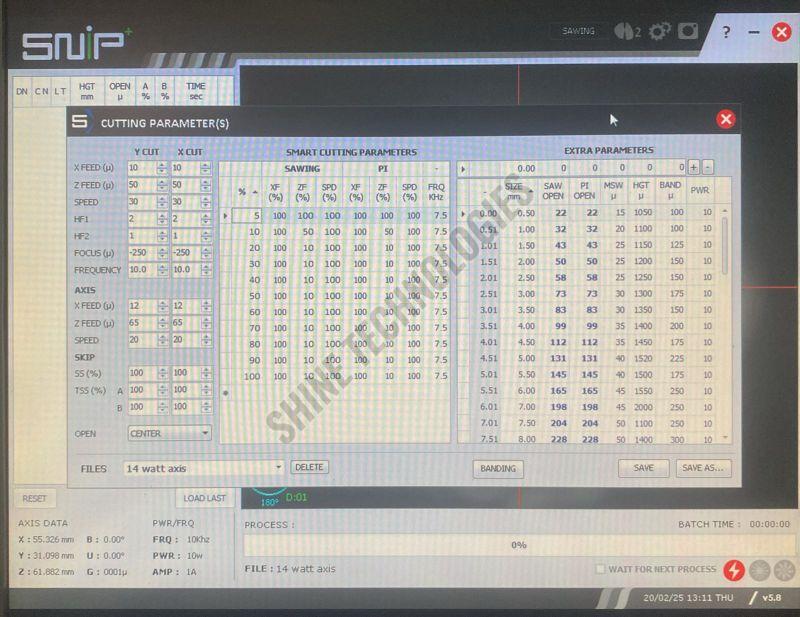

Features   • Single and Two Side Sawing  • Pi, Multi Top, Mac Pi  • Facecut  • Slice, Coring  Sawing  • Border Cutting (Any Shape)  • *.DXF, *.PLT File Format Support  • Banding  (Step Banding, Focal Banding, Auto  • Auto Stroke Length  • Easy Cutting Parameters  • User Friendly Software  Facecut  • Auto Power, Auto Frequency

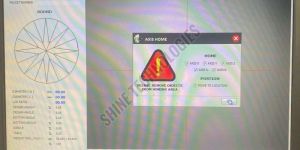

Laser Facet / Blocking 4P Shape  • Also Custom Create Shape Like Half Moon, Hexagonal, Star  • 4 Facet - 8 Facet 16 Facet Crown   Bottom Gridle Bruting

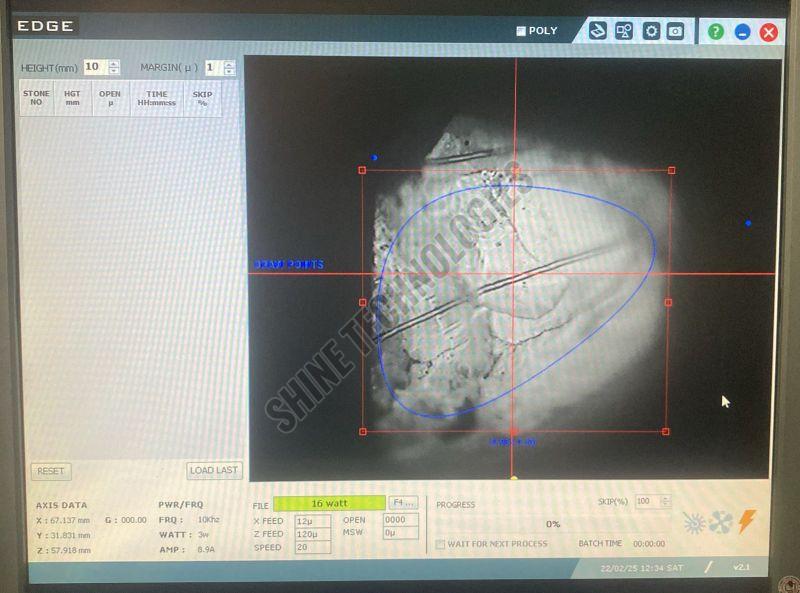

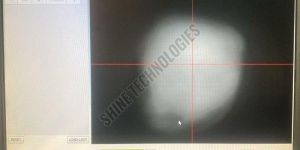

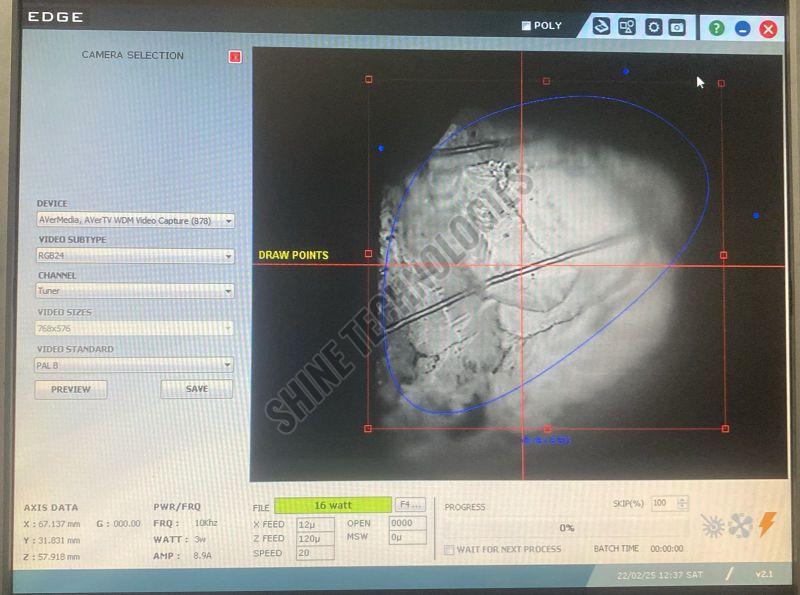

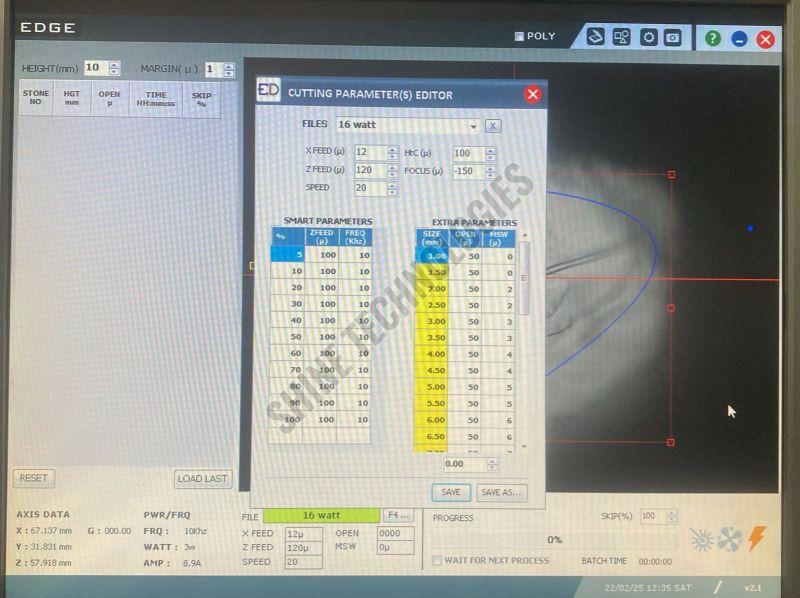

EDGE Polki Border Cutting Software is a powerful tool designed for precision cutting of intricate Polki jewelry borders. It offers advanced features like high-accuracy design mapping, automated pattern recognition, and seamless integration with cutting machines. The software enhances efficiency, minimizes material wastage, and ensures flawless execution of detailed patterns. With an intuitive user interface, it caters to both beginners and professionals. EDGE Polki Border Cutting Software supports various file formats and provides real-time previews, allowing users to perfect their designs before cutting. Ideal for jewelers and craftsmen, it revolutionizes the Polki jewelry-making process with speed and accuracy.

Country of Origin : India
