Shree Krishna Engineering Works, Surat Sahara Darwaja, Surat, Gujarat

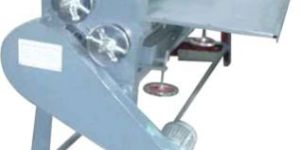

Krishna Sheet Pasting Machine is meant for gluing the fluted side of two ply board to make corrugated board of different ply. The rolls of the machine are evenly finished to ensure even gluing of the boards. The speed of machine is 150 meters/minute. The offered Sheet Pasting Machine are available in 3 rolls model, which are smoothly finished for ensuring even lamination of boards. We have provided hard chrome rollers with these machines for improving the quality, long life service of the machine and to ensure the gum crushing.   Sheet Pasting Machine Specification Rolls The machine consists of three rolls. All rolls are grinded, balanced, & hard chromed called glue pickup roll, pressure roll & doctor roll. All rolls are of M.S (Mild steel) are mounted with ball bearing for smooth running & longer life. Sheet Pasting Machine Features Durable & Efficient Low maintenance High operational fluency Hassle free operations Sturdy design High functionality Robust construction

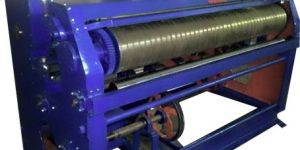

Krishna Reel to Sheet Cutter is designed for high production and straight cutting of sheet or two ply corrugated board without damaging flutes & linear paper. PIV chain gear box is provided for adjusting cutting length of sheet (18″ to 100″). This machine can also be synchronized directly with corrugation machine. While machine is in operation, it is easy to adjust the sheets with the help of a wheel. For stacking sheets a delivery conveyor is provided to carry the cut sheets.Approximate maximum speed is 200 feet per minute.     Features Highly power efficient Low Noise PIV Chain Gear Box Accurate cutting Reduces wastage

Krishna Shaftless reel stand is a heavy duty reel stand with a moving arms for holding paper reel. Special system is provided to align the paper reel while running the corrugator machine. Feeding paper quickly. The operations of lifting up or lowering down, clamping, loosening, moving and centering of raw paper are all electrically controlled. This machine applies manual braking for tension adjustment of raw paper with operational pneumatic braking.   Features Excellent Performance Highly Efficient Precisely Engineered Easy to Operate Accurate Dimension

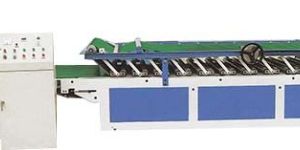

Krishna SKP 104 Semiautomatic Flute Laminator Machine is used to paste the color-printing surface paper together with the bottom paper, cardboard or corrugated sheet accurately. It is suitable for lamination of corrugated cardboard to paperboard, and paperboard to paperboard. It provides automatic feeding of bottom sheet and normal front feeding of top sheet with flexible front gauge positioning to control the laminating precision. Features Stepless timing High Lamination Precision. Makes the cardboard more striking Nice and High Intensity Easy operation Easy to Clean Novelty and beauty

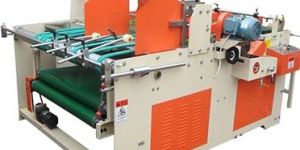

Krishna Semi auto flap gluing machine is very simple to operate, very suitable for small batch production, wide application scope, ordinary cardboard boxes, double carton and earth covered carton. It saves the glue, the glue quantity is only equivalent to manual gluing 1 / 3;The maximum speed of machine is 56 M / min, 3-4 times more efficiency than manual process; It Provides firm bonding, cleans overflow of glue, This machine adopts manual folding.     Features Easy Installation Provides firm bonding/li> Cleans overflow of glue Easy to operate Corrosion Resistance

Krishna Engineering manufactures Rotary Die Cutting & Creasing Machine with chain feeding system. Machine can do slitting, creasing, slotting & corner cutting jobs in single stroke as per design rotary die fitted on machine roll. Machine adopts electric & hydraulic part combination control for safe and high production.Main roll is made of high quality steel, thoroughly balanced and hard chrome plated. Soft coat automatic repair structure, could be repair 3-4 times, improve rubber mat work-life, Rubber roll sleeve is made of imported high quality, cutting time could be 8 million to 10 million time. Upper soft roll adopts mechanical or hydraulic control horizontal micro-swing, swing area within 40 cm to relieve wear of wrap and not influence die cutting precision. Die-cutting plate face adopts planetary gear structure, 360 degree electric adjustment.     Features Energy efficient High Precision die-cutting High in Speed Fully automatic Long Functional Life Minimum Maintenance

Krishna High Speed Oblique Type Paper Corrugating Machine is used for manufacturing corrugated papers. It is highly demanded for its high production capacity & increased efficiency as compared to other models. Rolls are mounted on roller bearing for smooth running & longer life. The machine is provided with gum tray movement device which becomes operational when gum unit is disengaged from rollers. The machine is recommended to be used on steam heating or thermic fluid or electrical heating. Approximate output of machine is 110rft/min. Also available with fingerless type attachment.     Features High Production Capacity Highly Efficient Smooth Running Longer Life Maximum Output

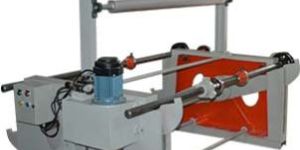

Krishna Reel stand is equipped with hydraulic lifting arrangement, twin shafts, limit switches and web tension control. Reel Stand is available in 1mtr or 1.5 mtr diameter. Reel clamping is done by adjustable cones, Reel lifting is perform by hydraulic as well as motorised arrangement and web tension is control by manual brake set. Extra heavy duty steel arms are provided for holding the paper reels. With heavy duty pipe line form power pack consisting hand lever to control the motion of lifting arms.   Features Durable Long service life High operational fluency User friendly design Easy operations Sturdy Construction

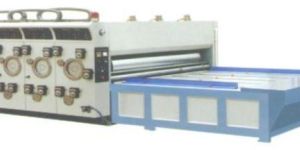

This machine can process printing, separate, slicing the corner, mark and groove, based on same kind of production. The printing grooving-separating units adopt the type of being electrically and separately locked tightly. Printing roller adopts 360 degree all new design for adopting phase functions. It can adjust the position of printing, slicing and grooving in length-way while revolving and this can save the time of adjustment, better the printing precision and increase production efficiency.

Krishna Engineering offers the heavy duty High Speed Fingerless Paper Corrugating Machine which is manufactured with vacuum suction technology, widely used for making corrugated boxes in varied dimensions. The machine has one set of flute rollers, pressure roll & glue applicator roll with pneumatic adjustment. Flute rolls are minutely finished and mounted on spherical bearings to give perfect impression on board. Vacuum system enable efficiency and provide rigidity to 2 ply board   Features : Vacuum suction system Wind Control System Adopts chain feeding system Pneumatic adjustment Corrosion resistance Easy installation Longer service life Sturdy construction Consistent Performance

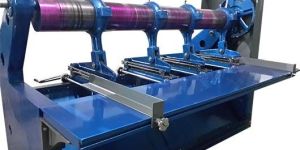

Krishna Eccentric Slotting Machine is used for slotting & corner cutting of the corrugated board simultaneously. It has comprises motorized construction finish featuring presence of 3 slotting dies and 1 corner cutting die that come fitted with racks for allowing easy and convenient movement support. The distance between two slots, slot depth and the side gauges as well as the gap between lower knives are adjustable with gear and rack mechanism provided with the machine. Two Side gauges are provided for accurate feeding. The upper dies move in an arc so that the board is slotted in a shearing manner. The system also comes with suitable locking support so as to ensure no change in size during involved production operations     Features Unique gear rack mechanism Arc shearing mechanism Easily adjustable Trouble free performance High precision cutting Less energy consumption

Krishna Engineering manufactures corrugated fluted rolls in variety of sizes such as “A”, “B”, “C”, “E”, “K” or micro flute. Flute size refers to the number of flutes per lineal foot. Measuring the number of flutes per lineal foot is a more reliable method of identifying flute size than measuring board thickness, which can vary due to manufacturing conditions. The most common flute size in corrugated boxes is “B” flute. We also manufacture pressure rolls of special graded material. Depending upon requirement its size and length varies. Best quality raw materials and the most sophisticated technologies are used to make these Corrugated Flute Rolls highly durable and more performance oriented.   Features Precisely designed Durable Robust Construction Excellent strength

Brand Name : Krishna

KRISHNA box stitching machine are most suitable for cardboard and corrugated boxes which are available in angular and straight model. They also have an adjustable feed up to 5/16 and 300 stitches per minute with a power back up of 1/2 H.P. electric motor. The machine is sturdy, compact in design and simple in operation and maintenance. The components are made of highest standard of appropriate metals. The machine is perfectly accurate, the parts are interchangeable.   Features: Highly durable Easy to operate Resistance to corrosion High operational fluency

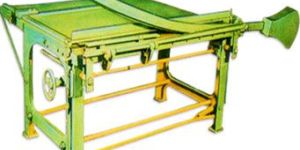

Krishna Board Cutter is manually operated and used for cutting of paper or corrugated board into sheets of required size. The paper of corrugated roll is mounted on reel stand and cut into sheets by unwinding it. It is heavy duty castled frame, & the black platform can be provided in the required length. Front & back guides are provided. The cutting arm is well balanced to enable free cutting with the slightest pressure. The cutting blades are of knife steel & precision ground.   Features Light in weight Sharp cut with slight pressure Flexible cutting arms Easy Operation Long working Life Less maintenance Sturdy Construction

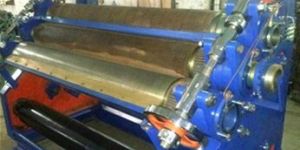

We can offer 3/5 PLY Corrugated cardboard production line consist of high quality mill roll stand, splicer, single facer, pre-heaters, overhead bridge, gluing unit, double facer, slitter scorer, cut-off and stacker. We offer standard model, deluxe model and export model with speed varying from 40 mtr/min to 250 mtr/min. For corrugators who want superior quality boards and higher production, on line 3/5 ply corrugated board making plants is the only solution. On line corrugated board making plants are ideal solution for achieving higher production capacity and superior board quality. Reduces production cost manifold.     5-Ply Corrugated Board Making Plant High speed Corrugation Machine with variable speed drive-2 nos. Drum type heaters-4 nos. Self loading reel stand-5 nos. Triplex heating unit before gluing On line duplex pasting unit Heating, cooling and drying chamber (consist of fourteen hot plates) Heavy duty pull unit On line creasing and slitting unit Heavy duty cut-off unit.
