Spinning Machinery Dealers in Gidc, Surat

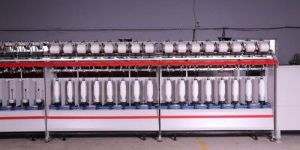

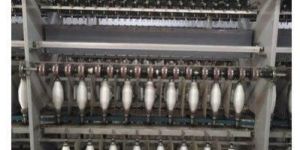

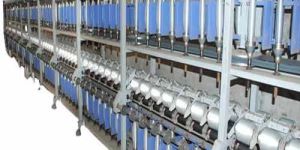

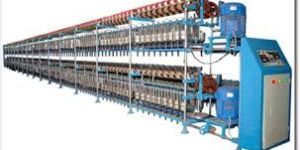

We are offering tfo twister for spun yarn double deck. salient features: frame structure powder coated sheet metal frame structure section 24 spindles per section drive motor pulley is being driving directly with nylon sandwich flat belts offers highest power transmission efficiency and starting and stopping of machine without twist faults ( tangential drive). Yarn path smooth operations with help of completely ceramic yarn path spindle ã� 110120130 m.m aluminum hard anodized spindle disk with ã� 25 mm ( 110 ) & ã� 28 mm (120 130) spindle & n.m.b brand 607 zz & 608 zz bearing provided and the lowest spindle height is adopted to greatly reduce the balloon size and low energy consumption and aluminum anodized container for long lasting low abrasive surface cam box cam box with oil bath clicks pattern breaking offered helps uniform density and easily unwinding of package gear end easily change gears for different t.p.i and all gears lubricated by an oil circulation system (oil bath) and increase life of m.s. Gear take up drum friction rubber ring (apron) is mounted for the stable transmission of take up. (supertex precitex brand or equivalent imported) cradle spring pressure is provided to avoid the seepage between drum and take up. (take up weight 1800 gms) tension device capsule tensioner and convenient adjustment of tension device suitable for all kinds of yarns display live display of spindle rpm, take up speed in mpm and tpi displayed in sequence motor any branded motor for trouble free running which is available at the time of delivery break common hand break provided.

Market Segment: Fancy fabrics producers for use in garments & upholstery where a core & effect yarn is required to bring our the design Application Single / Double covering of any core yarn including spun, filament, elastomer, technical yarns for use in weaving Technology Drive System: Independent Drive for Top & Bottom covering spindle, TakeUp drive, Elastomer feed drive with PLC & HMI control Frame : Heavy Duty Pre-Assembled frames with Top & Bottom covering spindle & single-takeup Denier Range: Core: Any combination of 3 yarns upto 1000 denier;  Covering: Any yarn upto 300 denier would on a D/F Bobbin Twist Range: 300-3000 TPM (programmable) Core Ply: upto 3 ply with Yarn Sensing & Cutter TakeUp Type: 170mm Parallel Tube TakeUp with Central BiConical Traverse Speeds: 22000 RPM & 60 mtrs/min (depending on yarn combination & parameters   Highlights Unlimited creativity with multiple combination of 5 yarns at different twist variations High Speed spindles for upto 22,000 RPM for high production Capability for upto 3-ply core yarn with missing-ply detection gives extremely high flexibility for creative yarns Lycra/Spandex/Elastomer feed drive with programmable stretch ratio & ply detection Yarn Path designed specifically for maintaining Tenacity & Strength of threads Large knotless package of upto 1.8 Kg & upto final 1200 denier

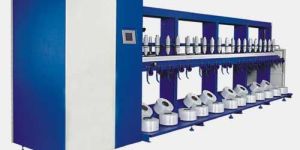

Servo Controlled Cop Winder Highly sophisticated servo controlled cop winder provides premium quality winding with its servomotor driven PLC system. The winding machine delivers uniform yarn speed without change in tension to ensure high quality winding. Features Servomotor driven with PLC system featuring the uniform yarn speed without the change in tension, so that it is possible to realize the high quality of Winding. Input & Output parameter can be set by touch screen control panel, so that it makes more convenient operation even for unskilled operator. The flexibility of its function allows the winding of all Pirn, Bottle and Spool Bobbins. Application Rewinder for Fileament Yarm from bigger cheese to small cop suitable for Twisting Machine. Cheese to Pim winding Bobbin winding Bottle winding Options Individual length counter Cop length up to 420 mm.

Features- Heavy-Duty C.I Gearbox with Traverse CAM & easy adjustment of Traverse Length. Rigid Modular Frame structure enables stable operations at high yarn speeds. Complete Ceramic Yarn path for abrasion free yarn handling at high yarn speeds. Dial-Type Spring loaded tensioners for uniform unwinding tension at high speeds. Constant Yarn speed with VF Inverter Drive System. Configurable Doff Cycle by Time-based calculation & VF Inverter Drive. Individual Breaks for every position. 'Memory Safe' protection during power-loss for WE & WM series.

Custom Cops Winding Machines with a wide variety of options in various parts of the machine are manufactured as per your requirements. We are highly appreciated for the Quality, Design, Robustness And Performance of our Cops Winding Machine.

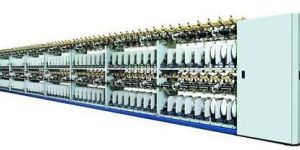

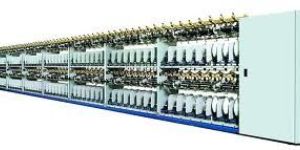

Power Saver & Totally Maintenance free. Dust Proof Self Lubrication Transmission. Variable Speed Self Lubricated Semi Automatic Traverse & Traverse Setting. (with oil bath) Saving of Electric Bill up to 20%.Zero defect yarn with uniform twist, unbroken filaments and without unwinding problem. Efficient Lubrication System. Designed for the best "ENERGY CONSERVATION. Both decks can independently work either in 'S' or `Z' direction. Highest TWIST ACCURACY within + 2% High operating efficiency, minimum maintenance, low energy, less labour and space requirements, results in substantially low operational costs. Prompt service after sales

Frame Single Deck Both Side Traverse System Servo Motor With Ball Screw & Plc. Winding Type Warp, Random, Compound, Bottle, Bobbin, Combination Along With Coil Bind Technology. Spindle Type Heavy Duty Yarn Lubrication By Oil Roller Optional 1. Length Measuring Device With Microprocessor.

We are global leaders with 25 years of experience in the supply of weaving machinery solutions to the world and the no.1 manufacturer of weaving in India

Poy Spinning Machine, PA Yarn Machine, Polyester Yarn Machin

Cop Winder, Cheese Winder, Fabrics Weaving Machines, Fibre Weaving Machine

Two for One Twister, Spindle Drive Tangential Type, Cotton Tfo Machin
