Testing Instruments Surat, Gujarat

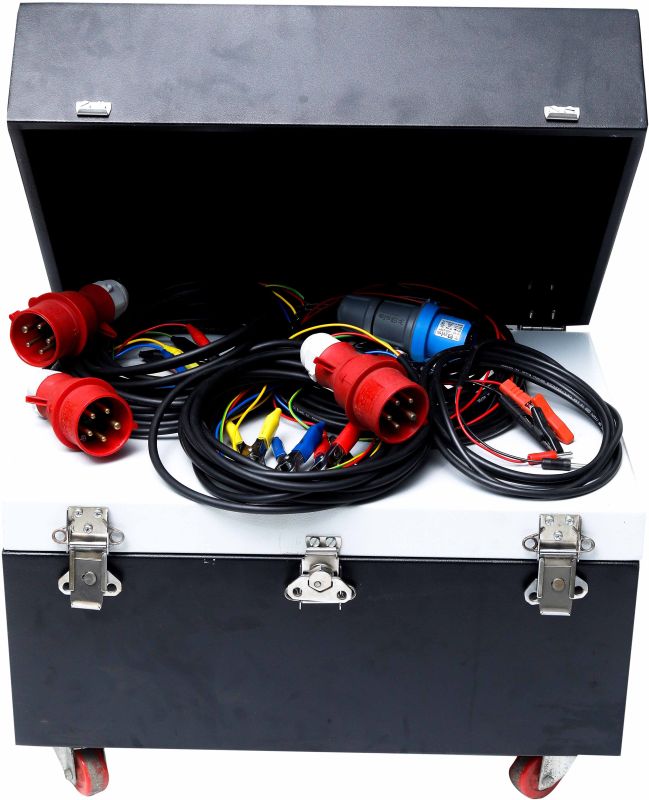

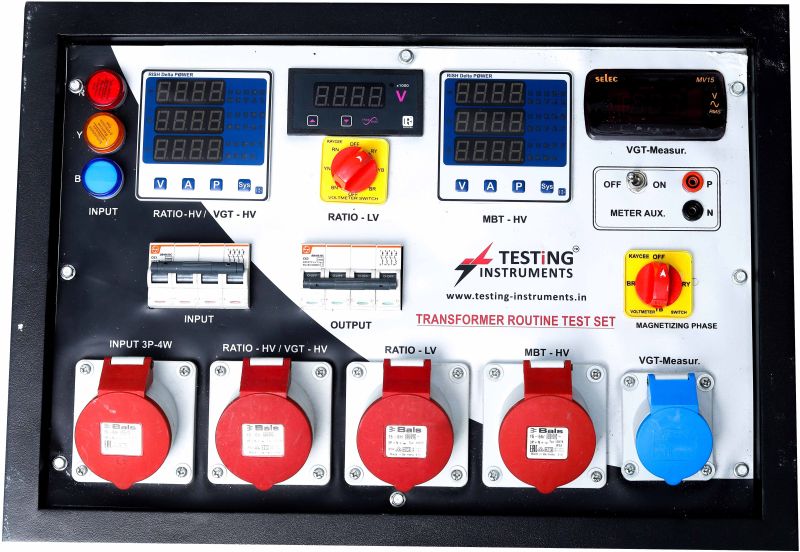

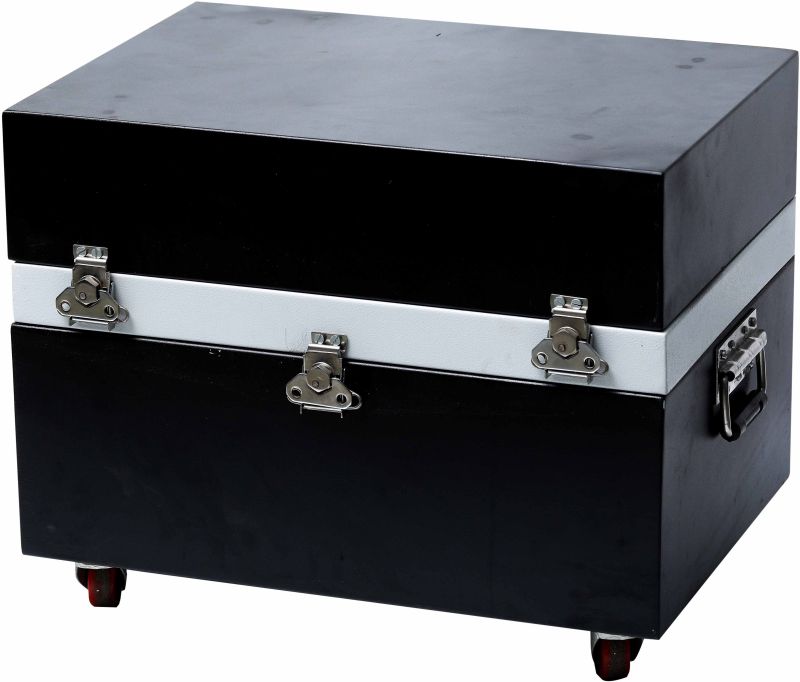

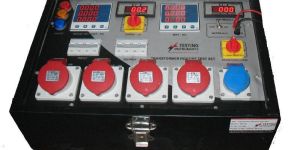

This kind of products are small in volume, light in weight, with compact structure and multiple function, general-purpose and easy to use. Routine Tests of Transformer is mainly for confirming operational performance of individual unit in a production lot. Routine tests are carried out on every unit manufactured as well maintenance.

Application : QC,Commissioning,Maintenance

Number Of Flower : Routine Test Set

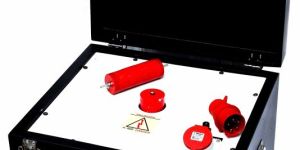

Material : Epoxy Cast

Accuracy : 1.00%

Frequency : 50 Hz

Input Voltage : 230V

Capacity : 60KV / 80KV / 100KV

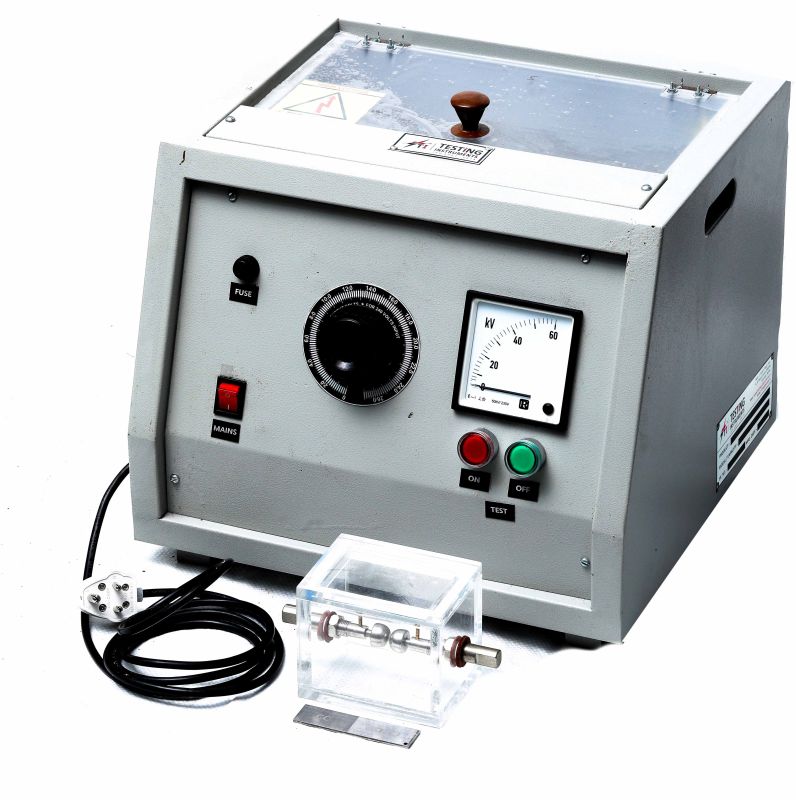

Application : Oil Testing

Display : Digital Or Analog Meter,Analog / Digital

Testing Instruments is one of the leading manufacturing & supplying company of high quality secondary injection kit from India.

Country of Origin : Surat,India

Brand : TI

Usage : Used In Test Labs For Insulation Testing

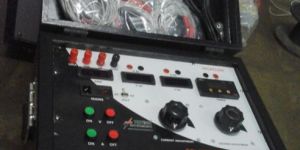

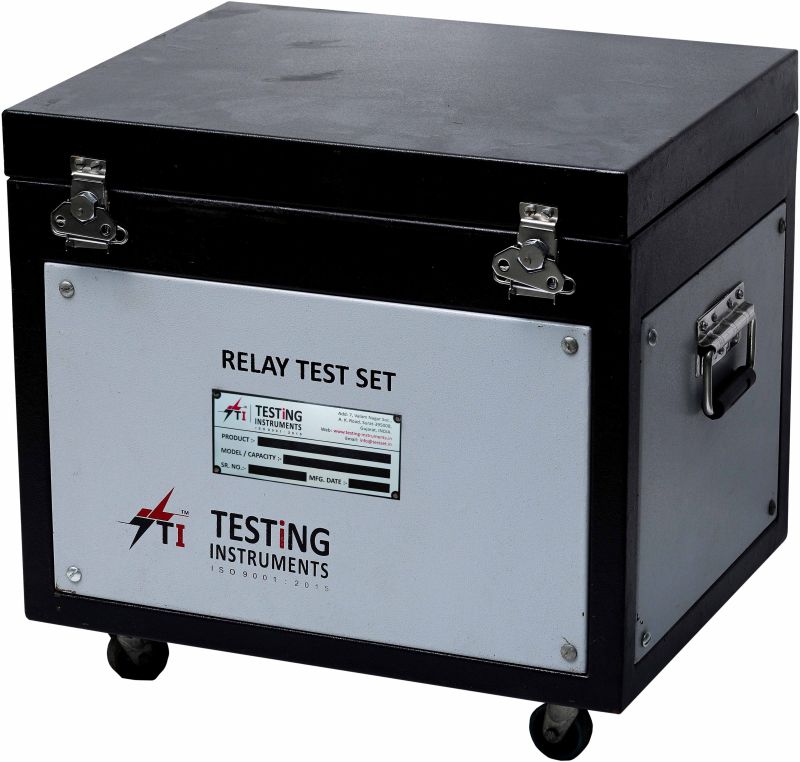

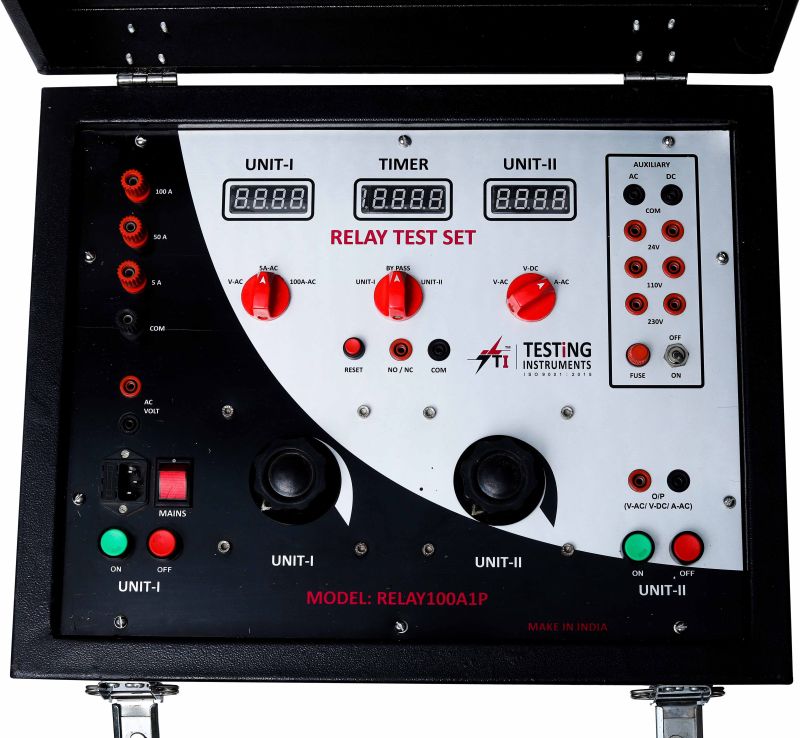

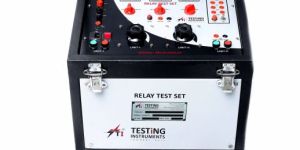

We provide the RELAY100A1P Secondary Injection Test Set, a versatile tool for testing protective relay performance. Featuring an integrated high-precision timer, adjustable current output up to 100A AC/DC, and variable voltage output options, this portable device offers digital readouts for accurate measurements. Ideal for commissioning and maintenance tasks, the RELAY100A1P is designed to meet the needs of manufacturers, exporters, suppliers, and retailers in the industry.

Feature : Integrated High-precision Timer

Application : Laboratory,Relay Testing,Commissioning And Maintenance

Feature : Integrated High-precision Timer

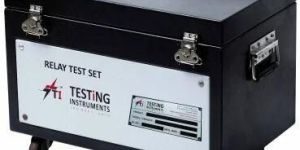

We Testing Instruments Offer Relay Test Set with the capability to test virtually any relay, from simple over current relays to complex three-phase, microprocessor-based relays requiring phase shifting capabilities. Secondary Injection Test Sets are used by utilities, manufactures and service companies to facilitate the periodic testing and maintenance of their protective relay test systems in all of the critical operational areas including transmission, distribution and generation.

Application : Substation Commissioning,Maintenance

Current Output : Up To 100A Or More

Feature : Integrated High-precision Timer.

Application : Simulates Grid Conditions For Device Testing.

Frequency : Adjustable Output Frequency.

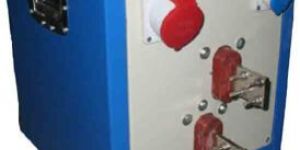

Primary Injection Test Sets Designed using the latest technology, these units combine a variable high current output with the appropriate controls and instrumentation. The test set is ideal for testing Current Transformers (CTs), High Current Panel, thermal, magnetic, and solid-state motor overload relays as well as moulded-case circuit breakers and ground fault trip devices.

Number Of Flower : Primary Kit

Power : 10KVA

Application : Testing

Country of Origin : India

Application : On-site Commissioning And Testing

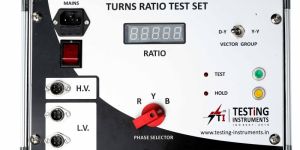

We provide the TTR 200 M Portable Transformer Turns Ratio Test Set, ideal for on-site commissioning and maintenance. This compact device accurately measures transformer turns ratio by comparing high and low voltage windings. Featuring a digital ratio readout, phase and vector group selector switches for precise controls. The set includes a full set of test leads and clamps for convenience. Perfect for manufacturers, exporters, suppliers, and retailers looking for a reliable testing solution. Enhance your transformer testing process with the TTR 200 M for efficient and accurate results.

Application : For On-site Commissioning And Maintenance.

Function : Measures Transformer Turns Ratio.

Model Number : TTR 200 M

Application : For On-site Commissioning And Maintenance.

Power Source : Operates On AC Mains Power

Usage/Application : For R&D, Quality Control, And Factory Testing.

Power Source : AC Mains Operated

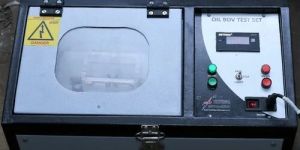

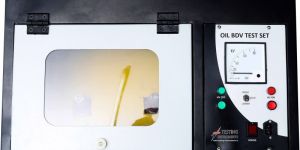

Application : Transformer Oil Quality Control

Application : Test Labs, Industrial Use

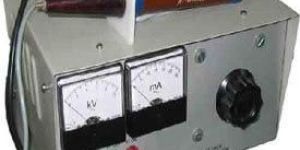

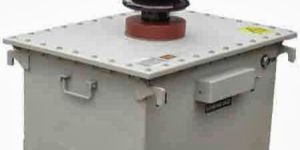

High Voltage applies to under test unit and result shown on HV & Leakage Current Meter on Panel. HV TEST SET has been designed to test the Cables, Cable Fittings and Motor, switchgears and high voltage installations and Transformers.

Application : For Cables, Transformers, Switchgear

We are supply Hipot Test Set with customer require tripping setting. Testing Instruments manufacturing as per Customer Specifications and their require Quality.

Application : QC, Production, And Maintenance

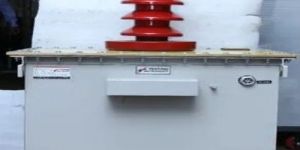

Part Number : TI_HV_230

Winding Material : Copper

Primary Voltage : 230/415 V

Usage : Industrial

Frequency : 50-60 Hz

Accuracy Class : 5

Phase : Single, Three

Power : 230 / 415

Material : CRGO

Cooling Type : Dry Type/Air Cooled, Oil Cooled

Secondary Voltage : 1-120KV

Mounting Type : Panel Mount / Out door

3 Phase Transformer Turns Ratio Test Set is designed to measure the Turns ratio of power, instrument, and Distribution Transformers in a Substation or manufacturing & Maintenance Environment. The turns ratio test is an AC low voltage test which determines the ratio of the Primary winding to all other Secondary windings at no-load. The Turns Ratio Test is performed on all taps of every winding.3 Phase TTR Highest Turns Ratio accuracy With ratio up to 200:1. TTR Tester is a lightweight and easy operated.

Application : Transformer Oil Quality Control

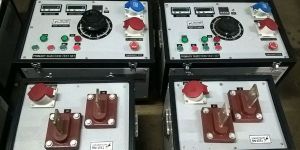

0-1000A, Continuous Duty Cycle. with Digital Control. Also manuafacturing as per customer requirement and technical detail. Its major application for Panel Testing, CT Testing and other protection of panel test, Cable Testing.

Application : Commissioning And Maintenance,Panel Testing,CT Testing,Cable Testing

Number Of Flower : High Current Injector

Testing Instruments, we are a prominent organization engaged in manufacturing and supplying a wide range of electrical parameter test equipment in INDIA.

Application : Health Assessment, Wellness Monitoring, Holistic Therapy

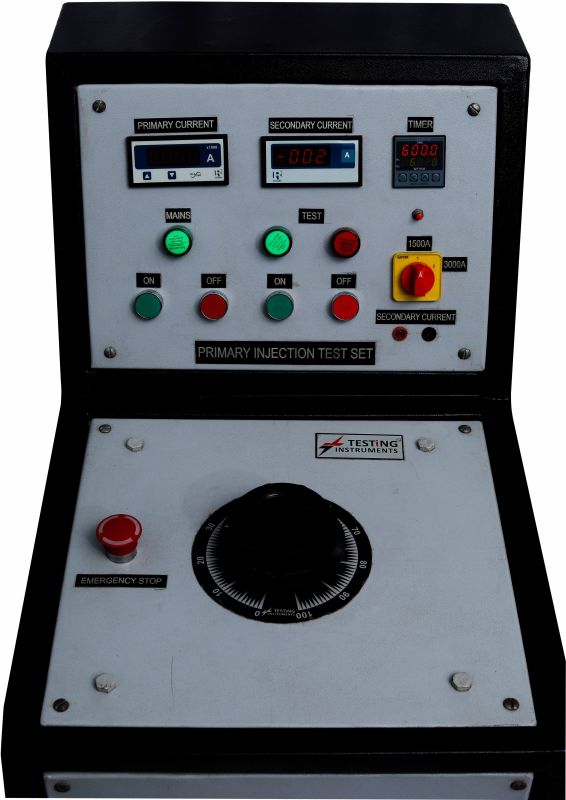

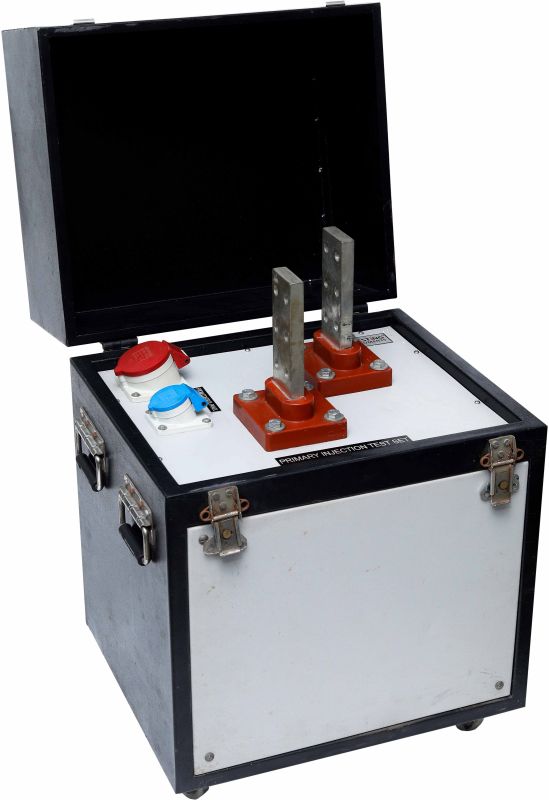

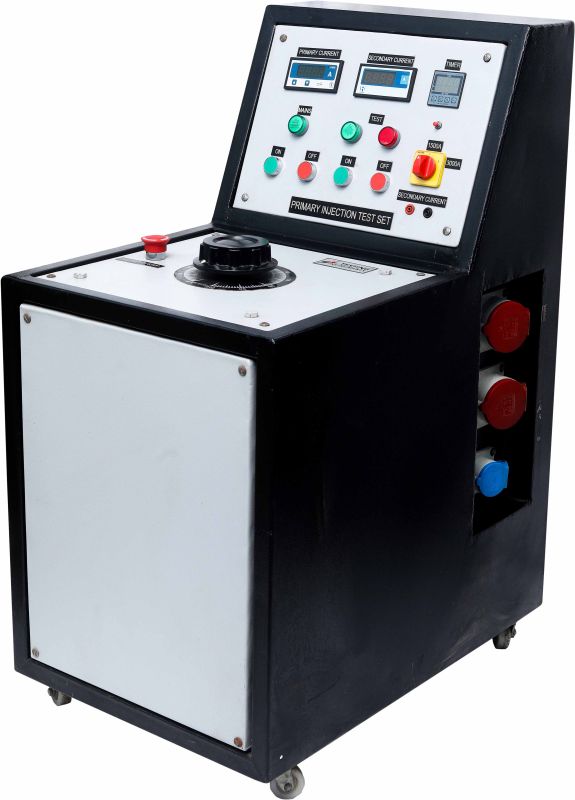

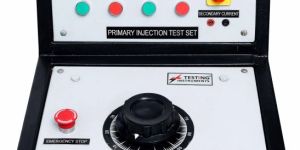

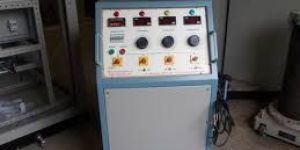

Primary Injection Test Sets useable for Protective devices such as relay, overload Coils, Circuit breakers and CTs etc. must be checked regularly to ensure that they are always ready to operate correctly, Routine current injection testing will quickly detect faulty or incorrectly adjusted protection circuits devices & will be possible to prevent serious damage to the system. Primary injection kit is designed to operate on single phase 230 Volts as well Two Phase 415V AC 50 HZ to develop smooth & continuous test current as for loading, calibrating, and testing of CTs, Bimetal Relays and Protection Relays etc. The test set gives high current output at low cost and with inherent safety. Secondary injection testing is undoubtedly valuable, but it does not check all of the components in the system. the heating effect of the primary current will not be present and, in some types of test, this can significantly affect the results obtained.

Application : Commissioning And Maintenance,Testing Protective Devices

Number Of Flower : Primary Injection Test Set

Country of Origin : 230 Volts Single Phase, 415V AC Two Phase

Frequency : 50 HZ

Power Source : Electricity

Feature : High Current Output, Inherent Safety
