Dgn Faser Pvt Ltd Lakhatar, Surendranagar, Gujarat

Our ceramic fiber board in market with the brand name “DSlat”, Board and Shape are made with Special Process from “DMat” Fiber. “DSlat” is in a solid shape as per customer requirements. Shape having various forms of outline to fulfill special requirements of customers. APPLICATION: Hot face lining in Furnace & kilns, back up insulations, shape to cover joints.etc.   SPECIFICATIONS OF STANDARD BOARDS: - STANDARD DENSITY (kg/m3): 256 - 320 -384 STANDARD THICKNESS: 10mm,12.5mm, 25mm, 38mm, 50mm STANDARD WIDTH: 500mm and 600mm. STANDARD PACKAGING: In plastic bags and then in cartons

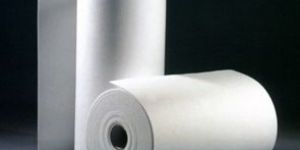

Dpap is our brand identity for fibre paper. Ceramic fiber paper from Ceramaterials consists primarily of high purity alumino-silicate fiber and is made through a fiber washing process. This process controls the content of unfiberized shots to a very minimal level within the paper. Our ceramic fiber paper features light weight, structure uniformity and low thermal conductivity, which serve as a perfect solution for high temperature insulation, chemical corrosion resistance, and thermal shock resistance. This ceramic fiber paper can be used in various types of refractory and sealing applications and is available in 3 grades with a variety of thicknesses, widths, and temperature ratings. Standard grade: maximum service temperature of 2300 °F (1260 °C) Premium grade: maximum service temperature of 2300°F (1260 °C) Zirconia grade: maximum service temperature of 2600°F (1430 °C) STANDARD THICKNESSES: 1/32", 1/16", 1/8", 1/4" STANDARD WIDTHS: 24" and 48" STANDARD PACKAGING: Approximately 25 lb / roll(special packaging is available per requests). Application: Appliance heat seals Parting plane in refractory linings Combustion chamber liners Backup lining for metal troughs Hot top linings Thermal and electrical insulation Refractory backup insulation Coke oven door shook absorption medium Kiln car deck covering

Module is made from”DMat“It is folding and compressed as per the required sizes and densities. APPLICATION: High temperature pipe and casting mold insulation. Repair, insulation and linings for furnaces, kilns, ovens, generators, reformers, boilers, Duct and turbine insulation- Forging furnaces linings- High-temperature seals and gasket Repair, insulation and linings for furnaces, kilns, ovens, generators, reformers, boilers, Furnace door seals -Glass furnace crown insulation -Heat processing equipments Car bottom furnace lining insulation -Fire protective, used in thermal insulation above 1000C. TYPE: RTZ Grade. Max. Serving Temp.Up to 1260C. HTZ Grade. Max. Serving Temp.Up to 1400C. FOLDED MODULE AVALABLE SIZES (mm/pc.) : a) 150 x 300 x300 b) 200 x 300 x300 c) 250 x 300 x300 d) 300 x 300 x300   VEER MODULE AVALABLE SIZES (mm/pc.) : a) 25 x 300 x300 b) 50 x 300 x300 c) 75 x 300 x300

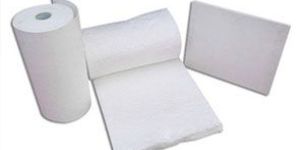

DMat” high temperature ceramic fiber blankets are made from high quality spun ceramic fiber, double sides mechanically needling makes it high strength and surface integrity. Ceramic fiber blanket have a good character of superior insulating performance, light weight, flexibility and chemical resistance, low thermal conductivity, low heat storage.Fiber blankets are ideally suited to individual customer applications and are available in a wide range of thicknesses and densities. The maximum continuous use temperature depends on the application. APPLICATION: High temperature pipe and casting mold insulation. Repair, insulation and linings for furnaces, kilns, ovens, generators, reformers, boilers, Duct and turbine insulation- Forging furnaces linings- High-temperature seals and gasket Furnace door seals -Glass furnace crown insulation -Heat processing equipments. Car bottom furnace lining insulation -Fire protective   TYPE: RTZ Grade. Max. Serving Temp.Up to 1260C. HTZ Grade. Max. Serving Temp.Up to 1400C. STANDARD DENSITY (kg/m3) : 64, 96, 128, 160 STANDARD THICKNESS: 10mm,12.5mm, 25mm, 38mm, 50mm STANDARD WIDTH: 24" and 48" (610mm and 1220mm) STANDARD PACKAGING: In plastic bags and then in cartons

DCord” is our brand identity for fiber rope. These products are made from our” DMat.” Grades : In RT & RTZ Grade. AVALABLE SIZES : - DIAMETER : 6 mm to 50 mm. And in any length as per request. PACKINGS : AS PER CUSTOMER REQUIREMENTS.
