Delco Fans Pvt. Ltd. Wagle Estate, Thane, Maharashtra

Construction Features: * Ball bearing to motor and Gear Box also    * Shaft dia(max. 15 mm) & length to suit Output shaft drive clockwise/ counter clockwise    * Motor-single phase capacitor run/Three phase 50 Hz Motor power 1/20 to 1/8 h.p.    * Out-put shaft perpendicular to Motor-Downward/upward or sideways    * Ratio's available -10 ,16,24,38,48    *  Torque max. - 150 kg. cm.Feature :* Low noise Gear design Compact size with strong output    * Wide variety available    * Long life expectancy* Many more products to come.

Delco offers Blowers using shaded pole Motors - A new product line particularly well suited to small systems, where concentrated air flow, space and noiselevels are serious consideration. They range in performance from 80 CFM to 150 CFM at zero static "1 pressure. This new delco centrifugal blower offer all the features of the most sophisticated fan technology. Driven by quality performed light weight shaded pole motor of 2880 RPM.

"DELCO" motors are designed specifically for custom design to your specifications. Complete engineering for just the right OEM motor for the exact torque and speed to fit your specific design need. After prolonged experiments tests & trials we have developed most ideal Prime over DELCO FRACTIONAL HORSE POWER SPECIAL PURPOSE ELECTRIC MOTORS to meet the strictest performance demands for long life and trouble free application for Original Equipment Manufacturers.

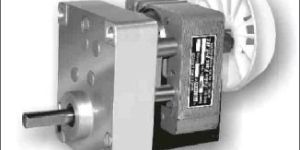

Application Areas : Business Equipment Appliances Pumps Automatic Merchantising Machines Diamond cutting /Polishing M/c. Vending M/c.      All Purpose Gear Motor : Delco's High quality & compact Gear Motors are a result of over 25 years manufacturing experience of wide variety and range. Gear motors are designed and built to meet the strictest performance demands for long life and trouble free application for original equipment manufacturers.      Engineering Design : "Delco" motors are designed specifically for customs design to your specification. Complete engineering for just the right OEM motor for the exact torque and speed to fit your specific design need.       Economical : Our improved tooling, production and rigid inspection at all stages assures your original equipment long life operation and at lowest cost possible.        Specification :      Motor 2 Pole shaded pole AC 12 to 240VAC, 50 Hz. Output fixed speeds 5 to 140 RPM. Input bearing-Self aligning sintered bronze / Ball Bearing can be offered on Request.        Gear Reducer : First stage with self lubricating delrin gear, helps to minimise noise level Hardened alloy steel wide-face gears for higher torque requirements Perfect alligned & matched gears on ground pins assembled in Aluminium die cast housing

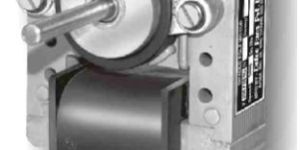

Application Areas * Instrument Fans       * Geared motors    * Medical equipment    * Stirrers    * Blowers   * Office equipments    * Appliances           * Pumps   Engineering Design "DELCO" motors are designed specifically for custom design to your specifications. Complete engineering for just the right OEM motor for the exact torque and speed to fit your specific design need.   Economical Our improved tooling, production and rigid inspection at all stages assures your original equipment long life operation and at lowest cost possible.   All purpose Motors After prolonged experiments tests & trials we have developed most ideal Prime over DELCO FRACTIONAL HORSE POWER SPECIAL PURPOSE ELECTRIC MOTORS to meet the strictest performance demands for long life and trouble free application for Original Equipment Manufacturers.   Specifications Motors Most compact in design to accommodate largest horsepower. Available in two pole, single phase design. Wide range of motors from 5 watts to 30 watts. Materials used are guaranteed for quality reliability. The temperature rise is limited to 40 Degree C. Single phase, 2 pole, skeleton type, 220/230 vac,2880 RPM   Salient Features Horizontal or vertical mounting to suit customer's needs. Self lubricating sintered bushing, motor lubricated for life. Mozac die-cast bearing arms at each end. Motor with Ball Bearing can be offered on request.   Optional Features Thermal protection. Stainless shafts. Cooling Fan. Lower Voltages of required.

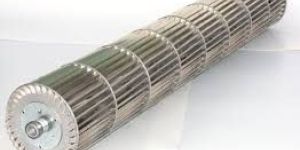

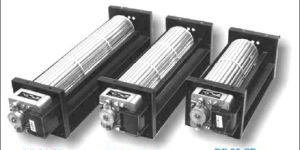

  Application Areas : * Business Machines * Photographic Machines * Wave Soldering Machines * Packing Machines     Delco offers Blowers using shaded pole Motors - A new product line particularly well suited to small systems, where concentrated air flow, space and noiselevels are serious consideration. They range in performance from 80 CFM to 150 CFM at zero static "1 pressure. This new delco centrifugal blower offer all the features of the most sophisticated fan technology. Driven by quality performed light weight shaded pole motor of 2880 RPM. Equipped with precision ball bearings on request. Plastic or metallic outer casing Impeller alluminium or S. S. Low power consumption. Long life expectancy. Air performance can be matched with cooling needs within wide limits. Light weight with high mechanical stability. Improved tooling, rigid inspection at all stages assure your original equipment long life operation. Vast experience enable us to offer you production and delivery usually within 2 weeks. Tangential/Radial - blowers can be developed as per technical specifications.

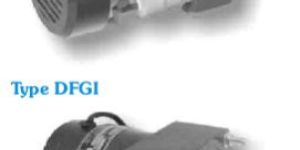

* Closed Aluninium cast housing       * Motor-single phase capacitor run/three phase & motor power- 1/20 to1/8 H.P.       * For typeDFGK ratio's available - 5.3,10,15.5,19,24       * For typeDFGI Ratio's available - 25,28,35.       * Torque max. 55kg. cm for type DFGK and 40 kg.cm. for type DFGI       * Available in 56 & 63 frame size.       * Out-put shaft drive-clockwise/counter clockwise

After prolonged experiments tests and trials, we have developed most ideal Primeover - 'DELCO' FRACTIONAL HORSE POWER ¬SPECIAL PURPOSE, CUSTOM BUILT ELECTRIC MOTORS, to meet individual requirements considering H.P. size, shape, shaft details, special mounting arrangement if any etc. Ideal for hundreds of air moving or light mechanical duty applications. Moisture resistant winding system & stator assembly are designed to provide more power in less space. Class of insulation 'B', 'E', 'F' or 'H'. Available in two, four & six pole, capacitor start & run single phase & three phase design 50 or 60 Hz. Shaft dia & extension either on one or both ends as per the requirement. Shaft of EN 8 or S.S. Motor totally enclosed in aluminum cast body & end shields

CONSTRUCTION FEATURES : Moisture resistant winding system & stator assembly are designed to provide more power in less space. Class of insulation 'B', 'E', 'F' or 'H'. Available in two, four & six pole, capacitor start & run single phase & three phase design 50 or 60 Hz. Shaft dia & extension either on one or both ends as per the requirement. Shaft of EN 8 or S.S. Motor totally enclosed in aluminum cast body & end shields Bearing - ball bearing. Protection class IP 44, when being installed. Built-in Thermocontact provide on request or Impedance protection.       MOUNTING TYPES : Rigid base - Motor solidly fastened through metal base. Face or Flange - As per customers requirement with apped holes for rigid Mounting.     Wide range of custom built motors available in 960, 1440 & 2800 RPM. Single/Three phase, from 1/50 H.P. to 1/4 H.P. For motors selection, customers are requested to furnish complete engineering data with electrical specification, which will help to design suitable motors for exact requirements.

fter prolonged experiments tests and trials, we have developed most ideal Prime over - 'DELCO' FRACTIONAL HORSE POWER - SPECIAL PURPOSE, CUSTOM BUILT ELECTRIC MOTORS, to meet individual requirements considering H.P., size, shape, shaft details, special mounting arrangement if any etc.       Construction Features Moisture resistant winding system & stator assembly are designed to provide more in less space. Class of insulation 'B', 'E', 'F' or 'H'. Available in two, four & six pole capacitor start & run single phase & three phase design. Shaft dia & extension either on one or both ends as per the requirements. Shaft of EN 8 or S.S. Motor totally covered in aluminum cast body & end shields. Bearing - ball bearing. Protection class IP44, when being installed Built in Thermocontact provided on request or Impedance protection       Mounting Types Rigid base - Motor solidly fastened to equipment through metal base screwed to motor shell. Face or Flange - As per customers requirement with tapped holes for rigid mounting.  For motors selection, customers are requested to furnish complete engineering data with electrical specification, which will help to design suitable motors for exact requirements. Many more custom built non-standard designs available.

  Salient Features: High efficiency resulting in energy saving. Compact design - High performance density Equipped with ground screw being compact fans Impellers are made of - Aluminum

After prolonged experiments tests and trials, we have developed most ideal Primeover - 'DELCO' FRACTIONAL HORSE POWER ¬SPECIAL PURPOSE, CUSTOM BUILT ELECTRIC MOTORS, to meet individual requirements considering H.P. size, shape, shaft details, special mounting arrangement if any etc. Ideal for hundreds of air moving or light mechanical duty applications. CONSTRUCTION FEATURES : Moisture resistant winding system & stator assembly are designed to provide more power in less space. Class of insulation 'B', 'E', 'F' or 'H'. Available in two, four & six pole, capacitor start & run single phase & three phase design 50 or 60 Hz. Shaft dia & extension either on one or both ends as per the requirement. Shaft of EN 8 or S.S. Motor totally enclosed in aluminum cast body & end shields Bearing - ball bearing. Protection class IP 44, when being installed. Built-in Thermocontact provide on request or Impedance protection.       MOUNTING TYPES : Rigid base - Motor solidly fastened through metal base. Face or Flange - As per customers requirement with apped holes for rigid Mounting.   Wide range of custom built motors available in 960, 1440 & 2800 RPM. Single/Three phase, from 1/50 H.P. to 1/4 H.P. For motors selection, customers are requested to furnish complete engineering data with electrical specification, which will help to design suitable motors for exact requirements.

Application Areas : Business Equipment Appliances Pumps Automatic Merchantising Machines Diamond cutting /Polishing M/c. Vending M/c.      All Purpose Gear Motor : Delco's High quality & compact Gear Motors are a result of over 25 years manufacturing experience of wide variety and range. Gear motors are designed and built to meet the strictest performance demands for long life and trouble free application for original equipment manufacturers.      Engineering Design : "Delco" motors are designed specifically for customs design to your specification. Complete engineering for just the right OEM motor for the exact torque and speed to fit your specific design need.       Economical : Our improved tooling, production and rigid inspection at all stages assures your original equipment long life operation and at lowest cost possible.        Specification :      Motor 2 Pole shaded pole AC 12 to 240VAC, 50 Hz. Output fixed speeds 5 to 140 RPM. Input bearing-Self aligning sintered bronze / Ball Bearing can be offered on Request.        Gear Reducer : First stage with self lubricating delrin gear, helps to minimise noise level Hardened alloy steel wide-face gears for higher torque requirements Perfect alligned & matched gears on ground pins assembled in Aluminium die cast housing

Application Areas Business Machines Ultrasonic Equipments Spark Erosion M/C Medical Application Water Coolers Visi Coolers Control Panels             Instrument Cooling Fans(Party enclosed) Proudly present their quality, Delco Instrument Fan, using latest technique in manufacturing & design technology, to ensure highest reliability & trouble free performance. These modern, low priced, compact, sturdy & handy instrument is being used to cooldown  overheated parts in innumerable Engineering fields.   Specifications :- Motor : Two pole, shade pole partly enclosed 220 / 230 VAC, 50 Hz, 2800 RPM.   Salient Features : Blade made out of Aluminium sheet dynamically Balanced. 100 & 150 mm Sweep. Nylon Blade also available. Fan is mounted on a compact and sturdy Aluminium / Plastic Bracket.
