Diaphragm Sealed Pressure Gauges Dealers in Thane

(5 products available)

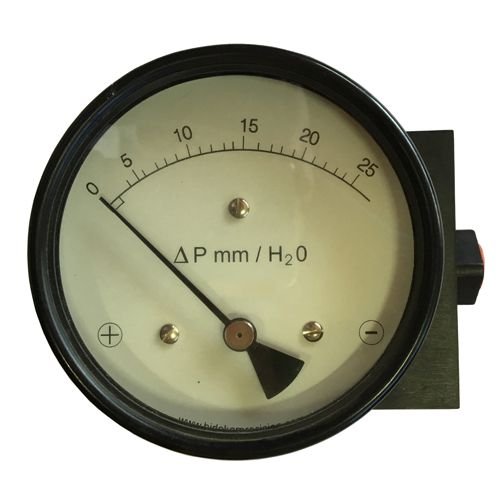

  • Diaphragm Operated Differential Pressure Gauge

    Diaphragm Operated Differential Pressure Gauge

    6,500 - 16,500 / Piece

    • CertificationCE
    • Connection1/4” NPT-F (Standard)
    • Accuracy+ / - 2% FSD (Ascending)
    • Rangesarious DP ranges from 15 mm Wc up to 7 bar , We can also offer Compound ranges
    • Working PressureVarious options up to 400 bar
    • PortingOptions like In – Line. Back or, Bottom
    • CalibrationNon-Linear, spread over 65 degrees to 75 degrees Arc
    • Sensing ElementSmall Convoluted Diaphragm
    • Wetted partsAluminium, Brass, SS 316, Inductrial Plastic, Buna N, Viton
    • Max. Working Temp.with Buna N as sealants Max. 60 degree C & with Viton max. 200 degree C..
    • EnclosureIP 65
    • We have Diaphragm operated Differential Pressure Gauges which do not have any bourden tube in it. These DP Gauges works on Magnetic Coupling principle. These gauges are suitable for Non-Magnetic Fluids only and more in demand for DP Measurement applications in HVAC / across Heat Exchangers / across Pumps / across Filters / across Strainers, Level Measurement in pressurized tanks, Flow Rate indication across Orifice plate etc.Sizes : Diaphragm & Piston type Gauges are available in options like 2 1/2”, 3 1/2”, 4”, 4 1/2”, 6” dia. Battery operated Digital DP Gauges are available in 4" dia. External powered Digital DP Gauges are available in Panel mounted or, Wall mounted versions.   Single or, Duel Reed Switch Contacts can be provided along with the Gauge, either in IP65 or, Flameproof enclosure.
    ...more
  • Diaphragm Sealed Pressure Gauge

    Diaphragm Sealed Pressure Gauge

    Get Price Quote

    Diaphragm sealed gauges are traditionally used when a standard measuring instrument should not be exposed to the process pressure directly, like viscous, corrosive gases and liquid media in corrosive environment. Diaphragm Sealed gauges typically protect the measuring instruments from one or more damaging aspects of the process media.   How to Order / Inquiry: Please advise the below Dial Size Connection Mounting Pressure range Application media Or Any other special requirement   Application: Sealed Diaphragm Gauges are suitable for Chemical, Pharmaceutical, Petrochemical, Oil & Gas, Refinery, Paper & Pulp, Sugar, Breweries, Food & Beverages.
    ...more

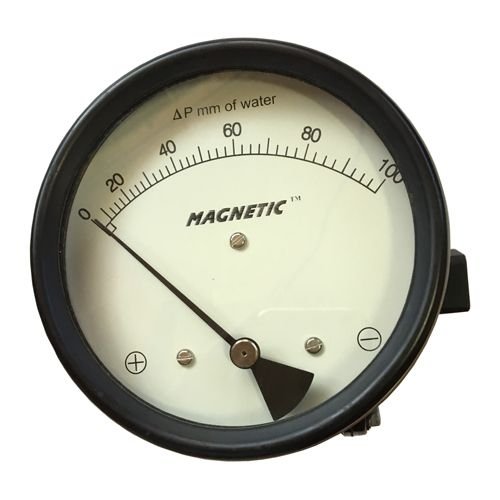

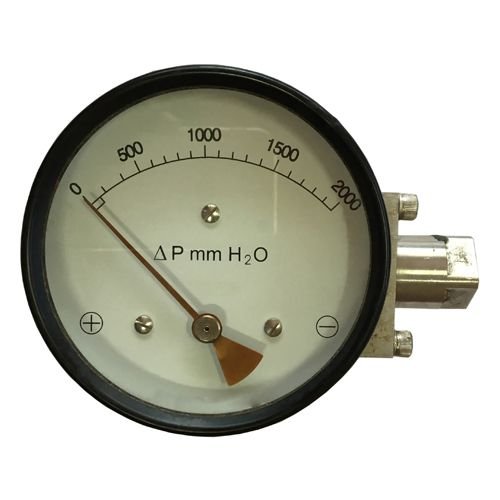

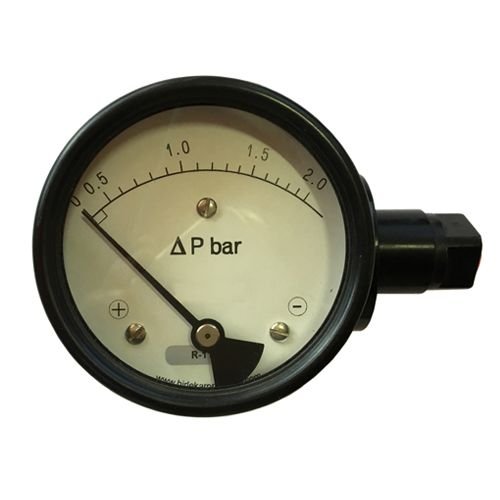

  • Diaphragm Differential Pressure Gauges

    Diaphragm Differential Pressure Gauges

    Get Price Quote

    We offer Diaphragm Type Differential Pressure Gauges. Dp gauge (magnetic coupling operated diaphragm type) differential range : 0 to 15 mm wc up to 0 to 7 bar (dp gauge with industrial polymer pressure housing available for range 15 to 1500mm wc)accuracy : +- 2 % assendingdial size : 65mm (2.12"), 80mm (3"), 100mm (4"), 112mm (4.12") & 150mm (6")migration : impossible casing : ss 304 o-rings and diaphragm : buna n, viton or, nitrile process connection threadedmounting styles : direct mounting or panel mountingporting styles : in line, back or bottom glycerin filled optional application : differential pressure indication across filters, heat exchangers also in hvac for air, gases, steam, oil etc. Services pressure housing in aluminium, brass, ss, industrial polymer (available only in 4.12" & 6") or, special on request
    ...more
  • Compact Sealed Diaphragm Gauges

    Compact Sealed Diaphragm Gauges

    Get Price Quote

    Compact Sealed Diaphragm Gauges, Draft Pressure Gauges, Oxygen Gauge
  • Diaphragm Seal Pressure Gauges

    Diaphragm Seal Pressure Gauges

    Get Price Quote

    Diaphragm Seal Pressure Gauges, Bimetal Temperature Gauge
