Fillpack Technology Wagle Estate, Thane, Maharashtra

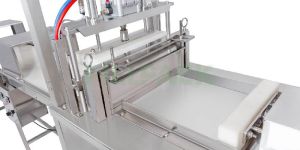

Paneer press machine Complete Machine Manufactured with S.S.304, Machine Dimension 2500(L) x 600(W) x 1600(H).

the machine is sturdy and compact in design and simple in operation. it consists of one horizontal blades frame and guided by uhmw bushes and connected to pneumatic cylinder for up and down operation. another horizontal actuator cylinder attached with uhmw pusher to index paneer accurately. all blades and structural frame are of s.s.304 poly carbonate doors are provided for visibility of cutting material. Air cleaning system provided with the machine.

Casing the machine & conveyor SS 304 Feeding roll unit – servo based Servo motor delta make Foil cutting unit Sealing head unit No bottles no foil systems Heater 2 k.w Sealing head 4 no. Conveyor 90mm (w)x8520 mm(H) x1800mm(L) Speed 40 bottles per minutes

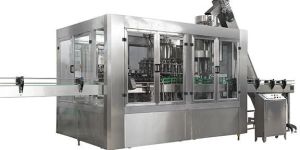

The turn table shall hold & guide the empty bottle to Filling Machine Conveyor.Glass bottle filling machines. Diameter of Turn table platform :- Dia 900mm.

Sturdy & compact design and simple in operation. Rotating disc with interchangeable sockets for different sizes. No Tube No Fill arrangement. S.S. Hopper of 25 kg capacity. 1st & 2nd station are for feeding of Tubes. 3rd station for vacuum cleaning (Optional). 4th station Empty 5th station for No Tube No Fill Process with filling. 6th station – Pre Blowing Tubes. 7th station - Sealing Unit. 8th station – Batch Coding. Tailing controlled pneumatically.

Sturdy & compact design and simple in operation.Rotating disc with interchangeable sockets for different sizes.No Tube No Fill arrangement.S.S. Hopper of 25 kg capacity.1st & 2nd station are for feeding of Tubes.3rd station for vacuum cleaning (Optional).5th station for No Tube No Fill Process with filling.

Automatic single head filling unit, single head foil pick-up and sealing unit with automatic ejection system.Curd packing machine, Cup filling machine is rotary cup filling machine for curd in plastic cups.

Curd filling machine Automatic single head filling unit, single head foil pick-up and sealing unit with automatic ejection system.SS.304SS.316 contact parts power 415v-3, phase-50hz, heater 600w Compact model.Cup filling machine is suitable for filling and lid sealing of cups.

Power : 415v-3, phase-50hz

Cup filling machine is rotary cup filling machine for curd in plastic cups.Cup filling machine is suitable for filling and lid sealing of cups.Rotary machine with 8-stational operation.Automatic single head filling unit, single head foil pick-up and sealing unit with automatic ejection system.

The filling machine will be operated automatic type with 2/4/6/8 heads preferably with diving nozzle type to avoid foaming during filling process. All the working parts of the machine coming in contact with the product are S.S.316 (filling cylinder & nozzle). Conveyor had inlet & outlet ends of the machine variable speed to synchronize with the filling the filling machine speed. The conveyor tailing width adjustable. Casing of the machine of S.S.304 Filling accuracy for various volumes within range of +-0.5% on volume Filling head height will be adjustable. Main motor 1 HP (Siemens, Hindustan, Bharat Bijlee). Conveyor Motor ½ HP. (Siemens, Hindustan, Bharat Bijlee).

Power Requirement : 5 KW.( Motor, Main Motor, Heaters etc.)
