Flameproof Instrumentation Ambernath East, Thane, Maharashtra

Accepts inputs such as RTD - PT 100 & Thermocouple - J, K, T ,R & S type. Temperature measuring & control range : - 150 Deg C to 750 Deg C Relay output - 1 / 2 nos @ 5 Amps capacity Designed for use in Hazardous area Gas group IIA , IIB, Zone 1 & 2 for indicating and controlling a wide temperature range.

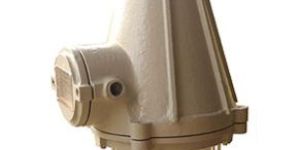

Designed to replace conventional HPMV and MH lamps Applicable for Hazardous area , Gas group IIA , IIB & IIC Light source - LED , cool white Available in 30 / 40 / 45 & 60 watts

It provides a positive verification/ inspection and offers a clear vision inside reactor/ vessel area giving complete coverage due to pure monochromatic white light. This equipment is specially designed in LEDs to offer a phenomenal power saving and Zero maintenance. Provided with an inbuilt timer, an essential part ensures prevention from unnecessary usage resulting into power wastage. Needless to mention its life, LEDs provide the best expectancy compared to any other light sources till date. Necessary certification permits installation in Zone 1 or 2 gas group IIA & IIB.

This is an extremely bright LED indication for use in hazardous areas. Housed in a robust IP65 enclosure it is also suitable for exterior mounting. Main application of this product is to provide a long distance visual warning in noisy areas where a buzzer/hooter may not be heard, or to supplement a buzzer/hooter warning. This product can also be provided in flashing version providing regular flash once per second and will attract attention in comparatively darker areas. Available in five different colours – Red, amber, green, blue & white. It may be switched directly by 230 VAC,110 VAC or 24 VDC. Necessary Flameproof safety certification permits installation in Zone 1 or 2 gas group IIA & IIB. IP 65 protection. Suitable for wall, ceiling & surface mounting.

This product is useful for maintenance and inspection of empty vessels for use in Hazardous area Gas group IIA & IIB , Zone 1 & 2 Its high bright cool white output enables conspicuous visibility of objects & surroundings Designed to enable easy handling even for longer period of time. Ideal to use where fixed lighting cannot reach out to specific locations, cervices and gaps Works on 24 VAC

Zener barrier is useful for powering Intrinsically safe field devices in Hazardous area. These barriers are specially designed to power field devices such as Intrinsically safe smoke detectors, Intrinsically safe heat detectors, Intrinsically safe strain guages for weighing machines, Intrinsically safe response indicators and Intrinsically safe alarm devices. Necessary certification permits installation in Zone 1 or 2 gas group IIA, IIB and IIC.

This product is a second generation field mounting device which produce a very loud audible warning signal along with flashing indication in hazardous area. It may be switched directly by 230 V AC, 110 VAC, 24 VDC. Optional audio acceptor / sound cancellation facility can be provided. Necessary flameproof certification permits installation in Zone 1 or 2 gas group IIA & IIB. IP 65 protection. Suitable for wall & surface mounting.

This is a bright flashing beacon for use in hazardous areas. Housed in a robust IP65 enclosure it is suitable for exterior mounting and it comes in glass cover dome to aid alarm identification. Main application of this product is to provide a visual warning in noisy areas where a buzzer /hooter may not be heard or to supplement a buzzer /hooter warning. The beacon produces a regular bright 60 flashes every minute in LED version and 30 flashes in xenon version and will attract attention in comparatively darker areas Available in five different colours – Red, amber, green, blue & white. It may be switched directly by 230 VAC, 110 VAC or 24 V DC. Necessary flameproof safety certification permits installation in Zone 1 or 2 gas group IIA & IIB. Suitable for wall & surface mounting.

This product can be used for all announcing and paging needs in a Hazardous area / explosive area. Its rugged construction and sturdy design enable installations even in harshest conditions. Available in 3 models viz: 15 watt watt , 25 watt & 40 watt .will suit any amplifier application. Necessary flameproof certification permits installation in Zone 1 or 2 gas group IIA & IIB. IP 65 protection except from the front. Suitable for wall & surface mounting.

Flameproof siren motorised type for use in hazardous area gas group IIA , IIB & IIC. Useful for long range warning in factory areas and plants. Unidirectional type - Horizontal & vertical mounting Bidirectional type - Horizontal mounting Range - 1 & 1.5 km

    Salient Features Suitable for use in Hazardous / Explosive areas Gas group IIA & IIB Available in 12 ,18 & 24 inch models Speed - 1440 RPM Cable entry - 3/ 4 " ET

Even simple electrical appliances or modules such as clocks have potential to generate sparks in explosive/ Hazardous areas. To ensure safety, these devices need to be designed as per flameproof construction. To achieve REAL TIME, digital clocks can be provided Operated by : 1.5 X 1 or 1.5 X 2, AA type dry cell/pencil cells commonly available. Necessary flameproof certification Permits installation in Zone 1 or 2 gas group IIA & IIB. IP 65 protection. Suitable for wall mounting.

This power supply is designed for use in hazardous / explosive areas to power Electrical instruments, transmitters,transducers,electrical devices &other suitable appliances. It is designed on PWM technology offering quality current output. Available in 5 variations.

Even simple electrical appliances or modules such as clocks have potential to generate sparks in explosive/ Hazardous areas To ensure safety, these devices need to be designed as per flameproof construction Operated by : 230 VAC Display size - 1.5 inch Visibility range - 18 meters Display colour - RED , LED Necessary flameproof certification Permits installation in Zone 1 or 2 gas group IIA & IIB IP 65 protection. Suitable for wall mounting

Second generation field mounting device which produces a loud & shrill audible warning beeping signal typical 95- 98 db in Hazardous area The Intrinsically safe buzzer is powered from a Zener barrier mounted inside the flameproof enclosure coupled to the main body of the buzzer Available operating voltage :- 24 VDC , 230 V AC & 110 V AC Necessary Intrinsic safety & flameproof certification permits the use of this Product in Zone 1 or Zone 2 , Gas group IIA , IIB & IIC Suitable for wall and surface mounting

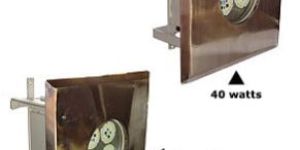

Available in two models: FL / CL /225  - 40 watts & FI / CL / 268 - 60 watts Designed for use in Hazardous area gas group IIA & IIB Specially designed to achieve significant power saving in comparison to conventional PL based clean room fittings Owing to LED's, maintenance becomes almost negligible thereby helping to reduce maintenance cost and downtime Easy to install, bottom open design and lesser weight in comparison with conventional PL based clean room fittings

A high frequency audio visual field mounting designed to produce a loud & shrill audible warning beeping signal typical 95- 98 db in hazardous area along with flashing indication through a dome flasher. The Intrinsically safe buzzer is powered from a Zener barrier mounted inside the flameproof enclosure coupled to the main body of the buzzer Available operating voltage :- 24 VDC , 230 V AC & 110 V AC Necessary Intrinsic safety & flameproof certification permits the use of this Product in Zone 1 or Zone 2 , Gas group IIA , IIB & IIC Suitable for wall and surface mounting

Flameproof Aviation light is designed for use in hazardous area location on high rise structures for gas group IIA & IIB. Designed as per aviation standards for intensity and spare circuitry Typical application : Low intensity ( Below 45 metes installation) Wattage - 12 watts, LED type Weather protection - IP 65

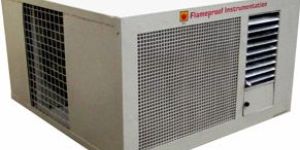

For the first time in India, unique AC's are available for direct installation in potentially explosive areas / hazardous areas. Easy to install & easy to service , "FI AC "will address all your cooling solutions that weren't possible due to non availability of such AC resulting into costly HVAC installations. Available in three different capacities 1.5 , 2 & 2.5 tons suited to your different cooling applications. It comes with a Flameproof control panel suitable for direct installation in hazardous area. Necessary certification permits installation in Zone 1 or 2 gas group IIA & IIB. Model – FI / HAZ / WIN / 1, FI / HAZ / WIN / 1.5 &FI / HAZ / WIN / 2
