Hyper Equipments Thane West, Maharashtra

Hydraulic upenders or tilters are used for tiling coils etc by 90 deg. To facilitate lifting by eot cranes etc. Capacities range form 1 ton to 20 tons. Tilting is by da hydraulic cylinders operated by hydraulic power pack & push button controls. these can be free standing or mounted on scissor lifts for tilt & lift operations. Accessories include v blocks or other customized applications.

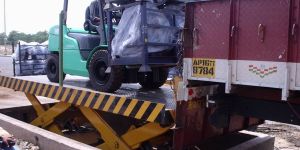

We are offering truck loading system. usha manufacture hydraulic lifting table from 100 kg capacity upto 10,000 kg capacity having various sizes of platforms, alongwith options such as hand operated lifting, power operated lifting and transporting attachment. the following system can be used for loading materials into trucks depending on individual requirements. type -i: using usha hydraulics hydraulic single scisors platforms available in various capacities as required having a platform size of about 2 x 1 m & height upto 1600 mm. These can be mobile or stationary type. Models upto 1000 kgs can be offered with hand/power operation, however scissors of a higher capacity have to be power operated for lifting movement. type -ii: this is an ideal truck loading system; for both palletised loads or otherwise, wherein one man can load the entire truck load of palletised load. this system consists of a) a usha scissors platform stationary type either pit mounted or kept on the floor with a small ramp. This is placed in the area where the truck will be parked for loading. b) pallet trucks (for pallet loads) or simple 4 wheeled trolleys/stackers (for non-palletised loads). these are used for bringing the materials to the scissors platform. A manual stacker (upto 500 kgs) can be used where loads are to be stacked on each other.

Usha have introduced a large range of hydraulic tables of scissors type construction upto 20 tons capacity including single, double, triple four & five scissors. the high rise platforms can have a work height of upto 12 meters. the company has envolved exhaustive computerised design techniques such that individual equipments are designed to suit the space & functions on one hand and optimise the use of resources on the other. all equipments are manufactured on jigs & fixtures & have high degree of reliability & repeatability. for single scissors closed height may be around 350 mm & open height upto 4000mm. the scissors are made out of m.s.flats or box sections. precision brass bushes & hard chrome plated pins are used. proper lubrication points are provided for long trouble free life. maintenance free bushings can also be fitted as optional. the source of power for hydraulic cylinders may be either hand pump or ac/dc operated hydraulic power pack. These tables can be used for a variety of applications such as mezznine lifts press-in-feed (sheets, components etc), build up pallets, drum handling, assembly stations,die feeding ,handling paper rolls, work positioning, turntable, dock levellers, servicing electronic consoles & for lorry loading and unloading etc.

We are offering goods lift. usha has introduced new kind of lifts ideally suited for handling of heavy goods. this new type of design using a hydraulic system is totally self contained unit & can be installed within a day. the equipment does not require any kind of special structure or columns in the building as required in conventional elevators since it does not have any machine room. however, it has a limitation that at present maximum height of 10 mtrs. Is only available. another advantage of this kind of elevator is that all the four sides of the elevator floor can be kept open to facilitate loading operation from all four directions. Hence in the closed position the elevator becomes a part of the floor & normally movement of men & material can be carried out as if elevator does not exist since there are no guides or columns supporting this structure. the entire mechanism is below the platform itself. a lighter design of such self support

we introduced hydraulically operated dock leveler which includes economically priced hydraulically dock leveler with manually operated lip and the deluxe model with hydraulically operated lip. in the standard design the dock has a travel of 300 mm above & 300 mm below horizontal level. The standard platform sizes are 2150 x 1800mm, 2150mm x 2100mm, 2750mm x 1800mm, 2750mm x 2100mm. usha self supporting dock leveler significantly improves your transport efficiency. It bridges the gap between loading platform & the different heights of lorries. A pit is made in loading dock in which dock leveler fits. Various loading capacities from 3 tons to 20 tons are available. dock leveler with 10 ton capacity can facilitate quick loading operations by allowing forklifts with materials to travel directly from loading platform into lorries / containers. the lifting operation is by single or double circuit 415 v ac hydraulic power pack fitted inside the leveler. The controls are by up/down push button pendant. while specifying dock leveler care should be taken regarding max gradient (slope) of the dock leveler. This should be suitable for the equipment e.g. hydraulic stacker which is to be used for loading operation. where gradients are not suitable too high, scissor type dock lifts will be more suitable. For our recommendation please send us the detailed application at the address below :-
