Mechanical Drives Dealers in Thane (5 products available)

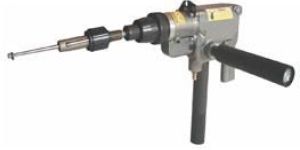

  We supply 6 different models of Pneumatic tube rolling drives. These will cover tubes from 1/4"OD up to 4.0" Boiler tubes. Two of the models are specifically designed for expanding boiler tubes in steam, mud drums, fire tube and related boiler equipment.

Right Angle Rolling Drives are specially designed for expanding boiler tubes in mud drums, fire tubes, steam & other boiler accessories Right Angle Rolling Drives FEATURES: 360 degree adjustable air exhaust. Easy adjustable torque. Angle head can be set up in numerous positions.. Both models equipped with roll throttle as standard. Level throttle optional Unique Head design consisting of fully enclosed bearing for long & trouble free life

• e.g.: RP100-3-120/1.8-EF-6: RP
• Parallet shaft indexer: 100
• Centre distance: 3
• No. of stops: 120
• Index angle: 1.8
• Input shaft projection Output shaft projection: EF
• Mounting hole face: 6

The RP series is the Parallel Shaft Indexer and Oscillator series comprising of conjugate disc cams with turret having yoke mounted cam followers. This series incorporates parallel input and output shafts and is most often used for low number of stops and conveyor applications.   Centre distance – 50 to 200mm Number of stops – 1, 2, 3, 4, 5, 6, & 8 Index angle – 90º to 330º Accuracy +/– 30 Arc seconds

Horizontal Drive Unit
