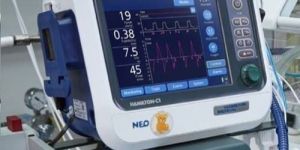

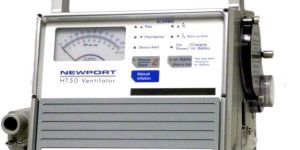

ICU Ventilator
Get Price Quote
We have our own storage unit wherein we keep a large stock for meeting urgent and massive requirements of the clients. Laced with modern amenities, this unit keeps the lot free from the damaging factors. The offered array of products is examined on the basis of quality of raw material and other inputs used for the manufacturing. Rest assured us for the raw material used, as we have most updated technologies to examine the quality.
Features :
Volume or Pressure Control Ventilation
Invasive or Non-Invasive Ventilation
Pressure Support
Peep/cpap, Built-in
Comprehensive Alarms/Monitoring
Internal Battery, long lasting with fast recharge
Unique Gas Delivery System Requires No External Air Compressor
Optional Air/Oxygen Mixer for high pressure 0.21-1.00
Optional Blending Bag for Low Flow Systems
Technical Specifications :
Dimensions :
Width - 10.63 in (27 cm) Depth - 7.87 in (20 cm)
Height - 10.24 in (26 cm)
Weight - 15lbs (6.8kg) (w/o humidifier)
Patient Range :
Pediatric(10 kg) - Adult
Control Settings :
Modes (Pressure or Volume) :
A/CMV SIMV
SPONT
Volume Control (Tidal volume): 100 to 2,200 mL
ƒ(Frequency) - 1 to 99b/min
tl (Inspiratory Time) - 0.1 to 3.0 sec
PEEP/CPAP - 0 to 30 cmH2O/0 to 30 mbar
Psupport (Pressure Support): 0 to 60 cmH2O/0 to 60 mbar
V (Flow) - 6 to 100 L/min
I:E Ratio - 1:99 to 3:1
Pressure Control (Target Pressure): 5 to 60 cmH2O/5 to 60 mbar
P trig (Sensitivity) - -9.9 to 0 cmH2O/-9.9 to 0 mbar
Panel Lock: ON/OFF
Manual Inflation - 3 sec maximum (single operator controlled breath)
FIO2 - .21 to 1.00
Monitor Parameters :
Paw (Peak, Mean, Base) - VT (insp. tidal volume)
Proximial Airway Temperature - (insp. minute volume)
Internal Battery - ƒ total (total frequency)
