R.K.DUTT CONCERNS Wagle Estate, Thane, Maharashtra

Connected on side of vessels, these gauges have liquid chamber made out of single piece rod or forging.Liquid level in the slotted chamber is seen through thermally prestressed, Temperature resistant heavy-duty glasses. These plate glasses are clamped firmly on the chamber using steel cover plates and nut bolts. Carefully machined seating surface for the glass, matching gasket - CAF / PTFE / Metallic and soft cushion ensure positive sealing between chamber and glass.   What’s Special * High Pressure, High Temperature application* Auto shut off ball check arrangement* Direct indicating gauge* Non frost extension for low temp, application* Borosilicate glass conforming to DIN 7081 for temperature up to 300° C* IBR gauge also available

Inclined / Single Limb : HP tapping connected to well, It pushes manometer fluid into capillary which is either kept open or connected to LP tapping. defference in pressure is directly read over engraved acrylic scale.U-Tube / Dual Limb : HP Tapping is connected to LH Limb. RH Limb is kept open or connected to LP tapping. Difference in level of two limbs shows differencial pressure over engraved acrylic scale.   What's Special   * Accuracy: Primary device for calibrating Transmitters, Pressure Guages & Switches. Measures process vacuum & pressure accurately * No Moving Parts: Liquid in Capillary design does not corrodelike gears and links of Bourdon typepressure guages. * Corrosion Resistant: Choice of - Stainless Steel/ Wooden/ Acrylic body,Stainless Steel / PP end connections * Zero Adjustment: Precision screw mechanism for Zero adjustment (in brass)

A horizontal Magnetic Float moves up and down, about a fulcrum with level, changing the contacts from NO to NC and vice versa.   What’s Special * Glandless * Compact and Rugged

Mounting : 40 - 200

A float containing magnets moves with changing liquid level, in a non-magnetic, non-fragile chamber. Magnetically coupled follower (Indicap) or bi-coloured Rotocylinders (Rotocyl), indicate the level externally on a calibrated scale.   What’s Special * Non fragile Metal Chamber* Rotocyl / Indicap Follower (Please select)* Magnatrans Add-On Transmitter - IS 5780 - Gr IIC* Magnalatch Steplessly Adjustable Add-On Limit Switches

Liquid from vessel enters through full bore lower connection into well protected Heavy Wall Borosilicate Glass. Level is easily seen through vertical gap between bilateral guard channels, against fully supported cm. scales.   What’s Special * Bolted Gland : Convenient, longer lasting compared to Gland nut.* Protection : Box guard made of bilateral steel channels enhances safety.* Light Weight : 70% Light compared to Reflex / Transparent Gauges, yet safe.* Full Visibility : Liquid and Level meniscus is seen easily without interruption.* Non choking : Full bore, without spindles & ball checks, which invariably choke.

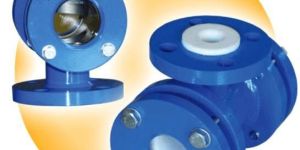

Safest of all. They are fabricated from pipes and flanges made of quality steel. Flow, colour and consistency of liquid, are seen through circular toughened glass disk, with full bore visibility.   Whats Special * View:Larger View Area* Drip Lip:Standard for all Metallic body* Indicator:Flapper or Rotary for invisible liquids or gases* Size:Wide range of sizes from 15 NB to 250 NB* Choice of Glass :Indian : Sodium silicate for 50°C to 120°CImported: Borosilicate DIN 7080 Std. for -50°C to 300°C* Choice of Material:SS, CS, A105, A182 F,Semi Welded, Seamless,PP, PTFE.   Features Size : 15 to 250 NB. MOC : CS, 304, 316, PP lined, PTFE lined. Gaskets : CAF, Graphoil, PTFE Hardware : CS, SS or ASTM specs .

Excellent 360 degrees Visibility. Flow, colour & consistency of liquid is seen through heavy wall cyindrical borosilicate glass. It is tapered and ground at both ends, for better strength and sealing. A steel rod cage and/or acrylic sleeve protect the glass from accidental damage.

Size : 15 to 80 NB

Ideal for tall Overground and Overhead Storage Tanks. Available in Magnetic Vapourseal and Standard Open-to-atmosphere Version.   What’s Special * Low Corrosion - Epoxy painted scale boards* Lifetime Lubricated - Nylon Roller Pointer* No Guide wires - Self Centering Float* Nonstretching - Multistrand SS/PP Rope* Dust Free Housing - for pulleys* Easy to install - Modular design* Vapourtight - version for HCI & Petrochems
