Rope Hoist Dealers in Thane (12 products available)

ELEPHANT BRAND" WIRE ROPE HOISTS ARE SUPERB COMBINATION OF MATERIAL AND LATEST TECHNOLOGY...SPECIAL FEATURES: HIGH EFFICIENCY:1) These are designed for high speed operation to increase productivity.2) Precision workmanship of all components minimises losses and increases efficiency. SHORT OPERATION:1) Smooth operation is ensured by gears having precision machine cut teeth subjected to heat treatment.2) Hoists are provided with antifrictional bearings on all high speed rotating parts.3) Machined component parts are checked by limit gauges. EASE OF MAINTENANCE:1) All parts of the Hoists requiring maintenance are made easily accessible. 2) Number of parts requiring frequent maintenance is kept minimum.3) Wearing parts can be easily removed and replaced thus reducing down time. RIGID INSPECTION:Stern inspection procedures at all stages of manufacture ensure unfailing dependability. SPECIFIC DESIGNADVANTAGES OF 'ELEPHANT BRAND' WIRE ROPE ELECTRIC HOIST: DESIGN:Hoists are designed for all classes of application as per IS-3938. Standard Design is for Class II. MODULAR CONSTRUCTION:Hoist is assembled from different independent units viz. Hoisting Gear Box, Hoisting Motor with brake, Rope Drum, Electric Control Panel and Travelling Trolley. All these units are separately accessible and promptly disassembled to simplify repairs, reduce maintenance cost and downtime. MAIN FRAME:M.S. Plates are fastened with number studs to withstand the load of the different independent units attached to it. WIRE ROPE:Hoisting rope comply with the Indian standards. The leading rope taken by the Drum, does not slip sideways when slack. The factor of safety, on the nominal breaking strength of the rope is six. ROPE DRUM:Grooved Drum, Seamless Pipe of adequate length to be wounded in one layer and to provide proper support for the rope to minimise abrasive wear is provided. Drum Shaft revolves on Ball Bearings for ensuring smooth running. ROPE GUIDE:Rope Guide is in two halves, ensuring easy accessibility. It encircles the Drum completely so that the rope may not uncoil even when the Hoist is in unloaded condition. MOTOR:Hoist Motor is an HTSC parallel rotor machine. Specially rated for Hoist duty, with minimum 40% CDF Rating and class B insulation. The unit is an IP 54 dust and damp proof enclosure, flange-mounted to the main frame of the Hoist. When creep speeds are required same is achieved by way of DC Clutch and Pony-Motor. GEAR BOX:Hoist Gear Box has specially treated gears for high wear resistance. Each Geared Shaft assembly is supported on bailor roller bearings, to ensure smooth, low-friction operation, the gear trains are greese lubricated. Also oil immersed Gear Box can be provided on request. BRAKE:Electromagnetic Fail-safe type brake mounted externally on the rear end of the Hoisting Motor ensuring easily accessibility. HOOK BLOCK:The Hook Block is tested to 150% of full load before assembly. The rope sheaves are fully guarded with protective steel castings. All sheaves rotate on Ball Bearings. TROLLEY:It consists of M.S. Plates forming side frame assembled with Runner-Wheels. Runner Wheels are mounted on Double sealed Ball Bearings. Trolley is adjustable for various I Beam sizes. LIMIT SWITCHES:A Limite Switch is built in as one of many safety features preventing accidental over-hoisting and over lowering of the hook block. The trip positions are adjustable to allow correct setting for installation. ELECTRIC CONTROL PANEL:Controls are mechanically and electrically interlocked to prevent inadvertent operation of opposite motions and are all housed in an IP 54 dust and damp proof enclosure. A low voltage control system of 110 Volts. Minimises electrical hazards for the operator. GUARANTEE:A Guarantee is provided for the repair and replacement, which proves defective material or workmanship within one year of the sale on Ex. Works Basis. However electrical appliances are not covered in this guarantee.NB:1) Microspeed arrangement, reducing normal speed by approx. 10% is provided on request at extra cost.2) Hoists are available in: - Power travel.- Hand operated travel.- Pull-Push travel.- Without travel (Fixed Mounting) with Higher Class Duty as per I.S. 3938.3) Every ELEPHANT Hoist is tested on 125% of its safe working load, before despatch and is issued with a Test Certificate.4) For full details of Hoist selection, Specifications, Dimensions and Performance Data, see overleaf.

Manufactured By Us is electric Wire Rope Hoist that is Used in Varied Applications. the Electric Wire Rope Hoist that We Supply is Fabricated to Perfection Using Advanced Technologies. Besides, We are One of the Reliable Manufacturers and Suppliers of Supreme Quality Electric Wire Rope Hoist. composition gearboxupper & Lower Limit Switchwire Rope- Din: 3066-72 (6x37)conical Rotor Motor capacity 1.0 Ton to 20 Tons.

We are supplier of this product. Wire rope electric hoist AS PER IS-3938 ELEPHANT BRAND" WIRE ROPE HOISTS ARE SUPERB COMBINATION OF MATERIAL AND LATEST TECHNOLOGY...SPECIAL FEATURES: HIGH EFFICIENCY: 1) These are designed for high speed operation to increase productivity. 2) Precision workmanship of all components minimises losses and increases efficiency. SHORT OPERATION: 1) Smooth operation is ensured by gears having precision machine cut teeth subjected to heat treatment. 2) Hoists are provided with antifrictional bearings on all high speed rotating parts. 3) Machined component parts are checked by limit gauges. EASE OF MAINTENANCE: 1) All parts of the Hoists requiring maintenance are made easily accessible. 2) Number of parts requiring frequent maintenance is kept minimum. 3) Wearing parts can be easily removed and replaced thus reducing down time. RIGID INSPECTION: Stern inspection procedures at all stages of manufacture ensure unfailing dependability. SPECIFIC DESIGN ADVANTAGES OF 'ELEPHANT BRAND' WIRE ROPE ELECTRIC HOIST: DESIGN: Hoists are designed for all classes of application as per IS-3938. Standard Design is for Class II. MODULAR CONSTRUCTION: Hoist is assembled from different independent units viz. Hoisting Gear Box, Hoisting Motor with brake, Rope Drum, Electric Control Panel and Travelling Trolley. All these units are separately accessible and promptly disassembled to simplify repairs, reduce maintenance cost and downtime. MAIN FRAME: M.S. Plates are fastened with number studs to withstand the load of the different independent units attached to it. WIRE ROPE: Hoisting rope comply with the Indian standards. The leading rope taken by the Drum, does not slip sideways when slack. The factor of safety, on the nominal breaking strength of the rope is six.

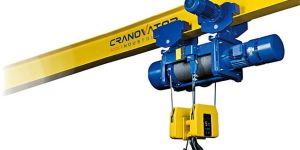

As one of the leading manufacturers and suppliers of industrial items, we also offer our valuable clients an array of Wire Rope Hoists. Our range is used for pulling heavy loads in various industries. These hoists are known for their durable performance and dimensional accuracy. The offered rope hoists are manufactured in our sophisticated infrastructure using best quality basic raw materials, sourced from the most dependable vendors of the market. In addition to this, the Wire Rope Hoists is available at the most affordable rates. Specifications: Cranovator Wire rope hoists are designed in modular construction which greatly simplifies repairs & cuts down time. The special features are low head – room, spur / helical gears running on antifriction ball bearings with oil bath lubrication, motors confirming to IS:325, “fail to safe” breaks which automatically operate in case of any power failure, tested wire rope confirming to IS:2266, forged hooks conforming to IS:3815 and push button stations operating at step down voltage of 110v, 42v or 24v. The hoist gear train is with precision hob cut helical / spur gears having hardness up to 250 to 300 BHN running on bearings housed in sheet metal cover with gasket & lubricated with oil bath lubrication. The rope drum is made from M.S. Seamless pipe having machined cut spiral grooves & mounted on self-aligning bearings. Rope guide will be provided for perfect sitting of rope in drum grooves. Electromagnetic FAIL to SAFE type brake is provided on hoisting motion which ensures perfect safety even in case of power failure. Limit switches are provided on hoisting & over lowering. To accommodate specific requirements, Cranovator hoists can also be built with micro speed arrangements (10% of normal hoisting speed), flexible trolleys to negotiate small radius; high speeds & high lifts; hoists suitable for steel mill duty; foundries & Chemical Plants. Range of Specifications: 1. Safe Working Load: 1 ton to 20 tons. 2. Heights of Lift: As per customer’s specifications. 3. Class of Duty / Standards: Equivalent to IS:3938. 4. Speeds: Selected depending on client specifications / applications / shed dimensions. 5. Hoist Control: From floor through pendant push buttons, optionally through radio remote control. 6. Drive System: Drive through squirrel cage induction geared motors with built-in fail safe brakes. 7. Motors: Squirrel cage induction hoisting motors with built-in fail safe brakes for hoisting. Insulation class for all motors b/f. 8. Brakes: Built-in brakes for hoisting, cross travel motions. 9. Power Supply System: To hoist and cross travel through trailing cables.

Voltage : 230V

Country of Origin : Made in India

Capacity : Upto 20

Usage/Application : Construction Industry, Warehouse

Trolley Option : Without Trolley

Chain Length : 4 m

Material : MS

Phase Type : Single

Lifting Height Single Hook : 30 Mtrs (600 Kgs)

Electric Wire Rope Hoists, electric cranes, Electric Hoists, Gantry Cranes

Wire Rope Hoists, Load ring, round slings, Web Sling Eye to Eye

Electric Wire Rope Hoists, Gantry Cranes, Jib Cranes

Wire Rope Hoists, Double Girder Overhead Cranes, Goods Lifts

Powered wire rope hoist, Chain Hoist, Hoist drums, Hand Hoists

Rope Hoist, automated storage system, Storage Systems, Roller Skids
