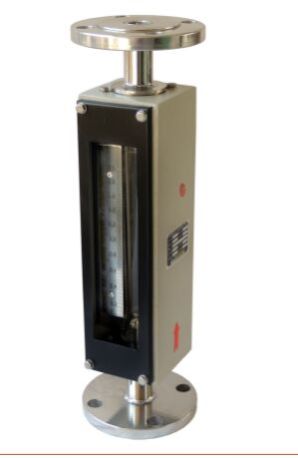

ApplicationMeasuring Flow Of Liquids And Gases In Pipelines
Principle Of OperationVariable Area
Indicator TypeAnalog And Digital
Power SupplyBattery Operated

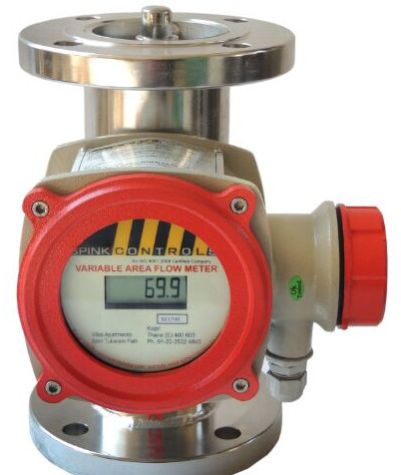

The Variable Area Flowmeter is an instrument for measuring the flow of liquids and gases in pipelines.It operates on the principle of Variable Area, the height of the float raised in the taper tube increasing the area of passage of fluid, which is transferred to the indicator by way of magnetic coupling.In case of Digital Indication, the inner float magnetic field is detected by the highly sensitive magnetic field detection sensor. This flowmeter operates on battery without any external power supply, this has an inbuilt transmitter of 4 – 20 mA.Categories: flow, RotameterRangeability : 10 : 1Accuracy : +/- 2 % of Full Flow for Analog Indication+/- 1.5 % of Full Flow for Digital IndicationRepeatability : 0.5 % of Full FlowPressure Rating : 80 Kg/cm², 250 Bar (Optional)Allowable Fluid Temp. : -20° to 250° C for Analog Indication-20° to 150° C for Digital IndicationConnection : Flanged, Threaded, Sanitary FittingMaterial Of Construction : SS316, SS316L, SS304 and other on request
The Variable Area Flowmeter is an instrument for measuring the flow of liquids and gases in pipelines.It operates on the principle of Variable Area, the height of the float raised in the taper tube increasing the area of passage of fluid, which is transferred to the indicator by way of magnetic coupling.In case of Digital Indication, the inner float magnetic field is detected by the highly sensitive magnetic field detection sensor. This flowmeter operates on battery without any external power supply, this has an inbuilt transmitter of 4 – 20 mA.Categories: flow, RotameterRangeability : 10 : 1Accuracy : +/- 2 % of Full Flow for Analog Indication+/- 1.5 % of Full Flow for Digital IndicationRepeatability : 0.5 % of Full FlowPressure Rating : 80 Kg/cm², 250 Bar (Optional)Allowable Fluid Temp. : -20° to 250° C for Analog Indication-20° to 150° C for Digital IndicationConnection : Flanged, Threaded, Sanitary FittingMaterial Of Construction : SS316, SS316L, SS304 and other on request
Number Of Flower : Variable Area Flowmeter
Application : Measuring Flow Of Liquids And Gases In Pipelines

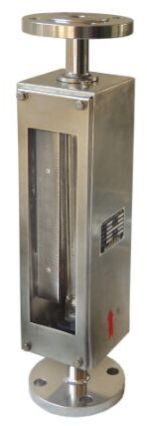

Float ResponseBuoyancy Of Liquid And Velocity Head Of Fluid
Float Behavior With GasesResponds To Velocity Head Alone
Spink Controls offer an Industrial flowmeter used to measure flowrate of liquids and gases. It operated on the Variable Area Principle, where the fluid flow raises a float in taper tube increasing the area of passage of fluid. The greater the flow, the higher the float is raised. The height of float is raised by a combination of the buoyance of the liquid and velocity head of the fluid. With gases, the buoyancy is negligible, and float responds to the velocity head alone.
Spink Controls offer an Industrial flowmeter used to measure flowrate of liquids and gases. It operated on the Variable Area Principle, where the fluid flow raises a float in taper tube increasing the area of passage of fluid. The greater the flow, the higher the float is raised. The height of float is raised by a combination of the buoyance of the liquid and velocity head of the fluid. With gases, the buoyancy is negligible, and float responds to the velocity head alone.
Application : Measure Flowrate Of Liquids And Gases
ApplicationMeasure Instant Flow Rate Of Liquids And Gases
CategoriesFlow, Rotameter

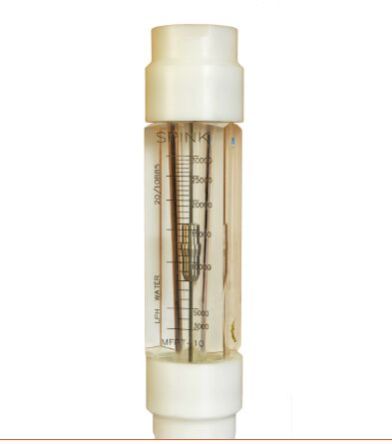

SERIE: SC / R – 500Acrylic Body Rotameter is an instrument used to measure instant flow rate of Liquids and Gases and are commonly used for flow measurement. We are leading manufacturer of Acrylic Body Rotameter, supplier of Acrylic Body Rotameter in Mumbai, India.Categories: flow, Rotameter
SERIE: SC / R – 500Acrylic Body Rotameter is an instrument used to measure instant flow rate of Liquids and Gases and are commonly used for flow measurement. We are leading manufacturer of Acrylic Body Rotameter, supplier of Acrylic Body Rotameter in Mumbai, India.Categories: flow, Rotameter

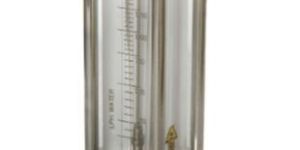

Number Of Flower : Metal Tube Rotameter
Material : Metal
Application : Measure Instant Flow Rate Of Liquids And Gases

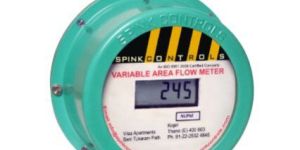

It operates on the principal of variable area; the fluid in the metal tube raised a float in the taper tube increasing the area of passage of fluid. The float moves up in proportion to the rate of flow of fluid and get stabilized, when the weight of the float is balanced by the upward hydraulic force. By a magnetic coupling the inner float moment through a series of linkages and counter weight.The tube and the float combination determine the FlowrateDigital Meter: The inner float magnetic field is detected by the high sensitive magnetic field detection sensor, enable us to show the digital readout As such this flowmeter does not require any electrical connection, since it operates on battery. It has an inbuilt two wire transmitter provide 24 VDC and take 4-20 mA Signal.Local indication without the need for auxillary power.Minimum pressure loss.Easy to read.Suitable for low flow (10LPH) and High Flow 150 m3/hrDefault inbuilt transmitter of 4 – 20mA (Loop Powered)No movement assembly reducing the maintenance.Technical Specification :Accuracy : +/- 1.5% of FSRRange ability : 10:1Repeatability : +/- 0.25% of FSRTemperature Rating : -50 to 120 ℃Pressure Rating : 80 kg/cm2Flow Direction : Bottom to Top
It operates on the principal of variable area; the fluid in the metal tube raised a float in the taper tube increasing the area of passage of fluid. The float moves up in proportion to the rate of flow of fluid and get stabilized, when the weight of the float is balanced by the upward hydraulic force. By a magnetic coupling the inner float moment through a series of linkages and counter weight.The tube and the float combination determine the FlowrateDigital Meter: The inner float magnetic field is detected by the high sensitive magnetic field detection sensor, enable us to show the digital readout As such this flowmeter does not require any electrical connection, since it operates on battery. It has an inbuilt two wire transmitter provide 24 VDC and take 4-20 mA Signal.Local indication without the need for auxillary power.Minimum pressure loss.Easy to read.Suitable for low flow (10LPH) and High Flow 150 m3/hrDefault inbuilt transmitter of 4 – 20mA (Loop Powered)No movement assembly reducing the maintenance.Technical Specification :Accuracy : +/- 1.5% of FSRRange ability : 10:1Repeatability : +/- 0.25% of FSRTemperature Rating : -50 to 120 ℃Pressure Rating : 80 kg/cm2Flow Direction : Bottom to Top
