Stamp 'IT Robotai & Solutions Pvt. Ltd Wagle Estate, Thane, Maharashtra

This Tailstock is employed along with the rotary fixtures especially to support long shafts. Alternatively, bottom support rollers are also provided depending on the actual geometry of the job.

Extend the reach of stylus with these incredible Extensions. Standard Extension length = 100mm. Maximum Length Extension possible: 300mm.

Sound Proof Cap. This Cap is a simple solution for partial reduction of air escapement sound.

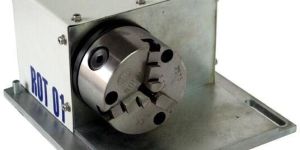

The Light Duty Rotary Attachment is the best 3 axis device for marking on small components upto the weight of 5 kg. The maximum Diameter possible to hold on this device is 80mm. This device is ideal for hexagonal components.

This is a standard accessory that comes with every machine. Available extra if required. Standard cable along with this device is 1m

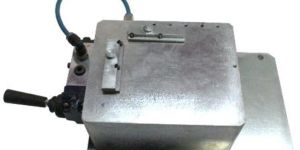

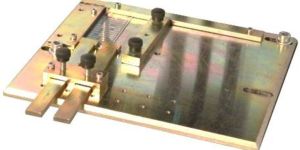

Most suitable for semi automatic working with nameplates and tags

World’s First Wif-Fi based Cordless Marking Machine Completely Designed and Developed in India Patent Pending Available in 3 Sizes 50X30mm, 100x30mm, 150X30mm Powerful Lithium Ion Battery for long working Linear Guide on both axes for uniform marking depth Operates on a Wi-Fi Hotspot of the Mobile Marker Control the marker from a Mobile or Tablet Create a program and transfer the marker Most User friendly & Simple to Understand Interface

Standard Stylus Fast Marking Marking on Steel Max Depth 0.3mm Std Pin Angle 90 Deg. Available Pin Angles: 60, 110, 120 deg

The Light Duty Rotary Attachment is the best 3 axis device for marking on small components upto the weight of 5 kg. The maximum Diameter possible to hold on this device is 80mm. This device is ideal for hexagonal components.

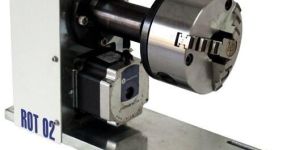

The Heavy Duty Rotary Attachment is ideal for large billets and flanges upto maximum weight of 15kg. Extra Heavy duty attachments are available with bigger capacity motors. The maximum diameter possible on this standard device is 300mm. Moreover, customised quick clamping and holding fixtures are provided instead of the standard chuck.

Foot Pedal Standard cable length along with the foot switch is 1m.

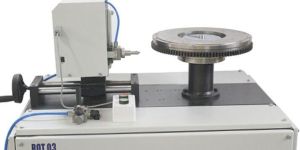

Extra Large Rotary Device Job Diameter of 500 mm . Weight of 80 kg with or without Pneumatic holding.

Dot Pin marking machine can never be used for superficial markings simply because it uses machine formation process as opposed to material burning or removal process.A Laser marking machine is a simple CNC marking machine where a laser beam is used for marking instead of a Pin. But it does not produce a deep marking. When you call it a marking machine it is not supposed to mark more than 100 microns. They are used for very superficial depth markings ranging between 10 to 50 microns. When you require marking deeper than 100 microns you need to use ‘Laser Engraving Application. These can be used only on functional components such as furniture or similar diameters where superficial marking is required.

A laser machine produces burning effect while the pin machines produces indent. A laser machine burns the materials to mark the information while the pin marking machine simply displaces the materials to in the area of marking. Even though both the technologies are used for marking, they are technically incomparable. A laser marking machine produces an ‘itching effect’ while pin marking machine produced a ‘punching’. Pin marking is a CNC alternative to the number punching machine which is standard types hammered on to the component. It is a CNC replacement to the punching process. Laser marking is a direct replacement to the chemical itching process.

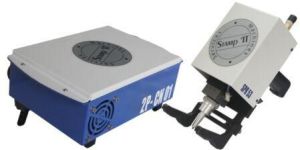

Standard Marking window: 50mm X 30mm Type Of Machine: Pneumatic Type Of Head: Poratble Head Material of Cons:Aluminium Sheet Metal Body Handles: Front support handle and rear Combo handle for manual holding & stand mtg. Weight:2.5 kg without front fixture Cable: 10m standard cable with head. Standard Stylus: LP‐10 for Steel OR LP‐06 for Al Marking (P) EM‐01 Stylus Color of Machine: Siemens Grey

    The automatic nameplate feeder is available with or without PLC Controls. Any level of automation upto manless operations are already executed with this nameplate feeder device.

Plug & play over ethernet port or wi-fi hot spot all electronics built into the marking head. 120mm x 100mm area to cover 95% of desktop marking applications. Metal bellows available to keep debris away. Hi performance electo-magnetic stylus for 24 x 7 working. Force of marking can be set using force codes. Stand with 400mm height adjustment. Robust construction for long use. 3axis system with rotary device or motorised z axis is also available. Machine also available in pneumatic version.

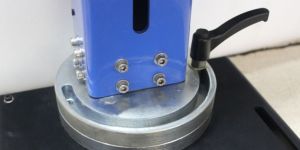

Where application involves taking care of very long or tall components, the rotating column frame comes handy.
