Trans Power Tech Bhiwandi, Thane, Maharashtra

A Servo Stabilizer is a Servo motor controlled stabilization system that performs optimum voltage supply using a Buck\Boost transformer booster that captures voltage fluctuations from input and regulates current to the correct output. An AC synchronous motor adjusts voltage in clockwise or anticlockwise direction and manages the output voltage with components like control card,dimmer,comparator, transistors, mocs, etc. Main Components & their Functioning There are seven main components in a servo voltage stabilizer:- 1. Dimmer (Variable Transformer) 2. Carbon Brush 3. Servomotor – Synchronizing Motors 4. Buck Boost Transformer (Series Transformer) 5. Contactor or Relay 6. MCB, MCCB 7. Electronic Circuit

Operating Frequency : 50 Hz ± 5%

Correction Rate : 25 V/ Sec -1

1.  Distribution Transformer:- TRANS-POWER TECH   ONAN transformers incorporate modern Engineering concepts and high quality materials processed under expert supervision and quality control. The factory is equipped with all required machinery and Testing Equipment to produce transformers for a variety of applications. Standard ratings from 15 KVA to 5 MVA in close steps as per IS 2026 for all Input  Voltages of 3.3, 6.6, 11, 22 & 33 kV and Out-put voltages of 380, 400, 415 or 433 Volts are available. Transformers manufactured by us conform to IS 2026 or IEC 60076.

Certification : ISO 9001:2008 Certified

Frequency : 50hz, 60hz, 50 / 60 Hz

Country of Origin : India

Insulation Class : A

Number Of Flower : Current Transformers

Certification : ISO 9001:2008 Certified

Usage : Control Panels, Industrial Use, Power Grade

Frequency : 0-50Hz

Brand Name : TRANS-POWER TECH

Country of Origin : India

System Voltage : 1.1 kV

Secondary Current : 1 A or 5 A

Standard : IS, IEC and Other Standard as per Customer’s requirement

Frequency : 50 / 60 Hz

1. Potential Transformers/ Voltage Transformer :- Low Tension VTs/PTs are of Single Phase and Three Phase type. VTs/PTs can be manufactured in Resin Cast and Tape Insulated. Burden up to 1000 VA. Resin cast type Tape wound type

Number Of Flower : High Voltage Transformers, Low Voltage Transformers, Voltage Transformers

Certification : ISO 9001:2008 Certified

Condition : New

Output Type : AC Single Phase, AC Three Phase

Frequency : 50hz, 60hz, High Frequency As Required

Cooling System : Air Cooling

Warrenty : 2years

Brand Name : Trans-Power Tech

Country of Origin : India

Insulation Class : Class A,E,B,F,H and higher.

Standard : IS, IEC and Other Standard with special enclosure available

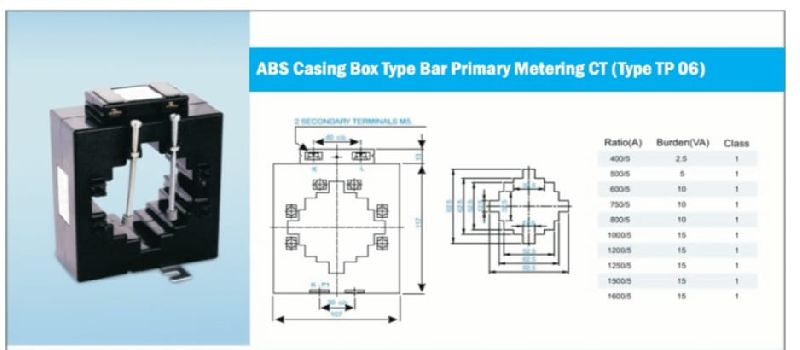

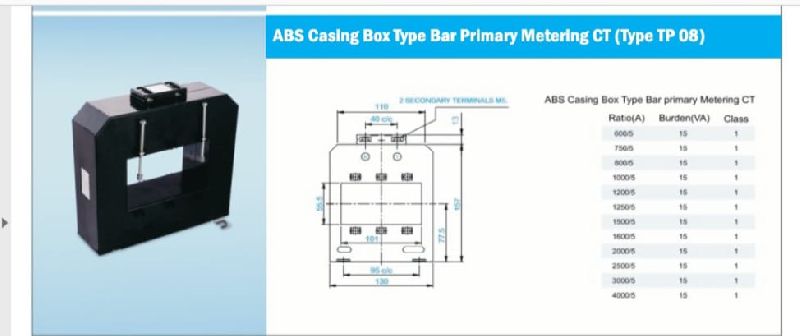

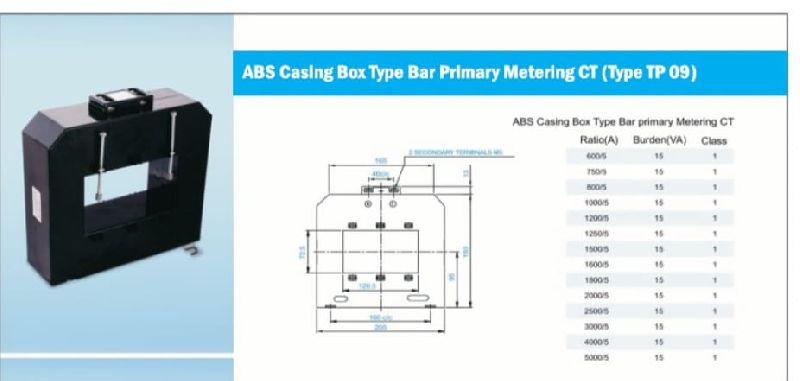

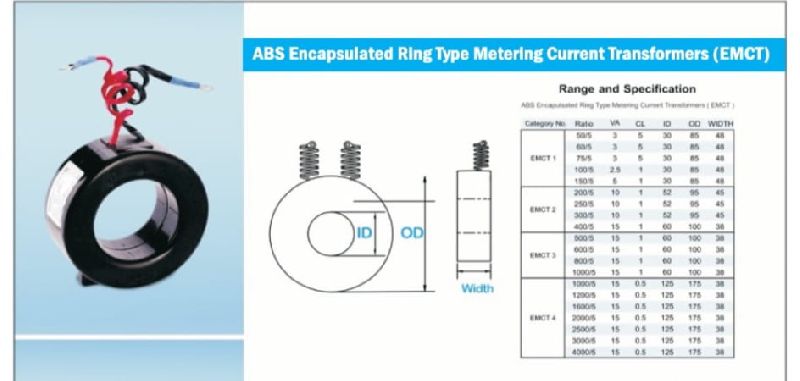

  Low Voltage Instrument Transformers 1. LT Current Transformer ‘TRANS-POWER’ Make, Low Tension Current Transformers, suitable for 690 Volts,  50 c/s. supply system, generally as per IS 2705.  Depending upon the requirement of Customer we manufacture special purpose transformers like Core Balance Current Transformer, Summation CT, Slip on CT etc. Resin cast type Tape wound type           1.Window type current transformer           2.Wound primary type (WPL) current            3.Bar primary type current transformer           4.Varnished Fiber glass type insulated current transformer ABS Moulded case type Core Balanced current transformer (CBCT) Summation Current Transformers:

Frequency : 50 / 60 Hz

System Voltage : 1.1 kV

Secondary Current : 1 A or 5 A

Standard : IS, IEC and Other Standard as per Customer’s requirement

The isolation transformers are used as instrument transformers when the high voltage should be measured. The high voltage is dangerous for the person who tries to measure high voltage but it can also harm the measurement circuits. In this case, the step-down isolation transformer is used to reduce the high voltage to the safe level and for measurement range.

Number Of Flower : Lighting Transformer

Certification : ISO 9001:2008 Certified

Total Carbohydrate : 2 Yrs

Brand Name : Trans-Power Tech

Country of Origin : India

1. LT Input & Output chokes & Reactors :- Our Input/Output chokes/Reactors are best-in class power quality units with a long history of proven performance. Rugged and robust, they are un-equaled in absorbing power line disturbances that can damage or shut down variable frequency drives (VFDs) and other Sensitive equipment. They work on both the line side and load side to give you an easy solution that reduces nuisance tripping, reduces harmonic distortion and minimizes long lead effects. Improved power quality, enhanced productivity and complete peace of mind are easy with Input/Output chokes/Reactors.

Number Of Flower : Input Output Cards, 1-Ph/2-Phase/Three Phase

Certification : CE Certified, ISO 9001:2008

Country of Origin : 12VDC, 24VDC

Driven Type : UPS

Total Carbohydrate : 2yrs

Country of Origin : India

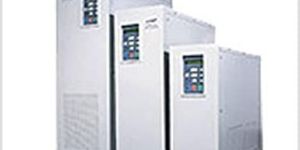

TRANS-POWER TECH UPS are based on IGBT PWM technology (pure sine wave) and offer high performance, high reliability and sophisticated control systems.   The salient features are : True ONLINE double conversion Power recreation. Sine weighted high frequency PWM Inverter using IGBTs. Galvanic Isolation between Mains and Load. Dual Step, Low ripple , CV / CC charging for extra long life of Batteries. Quiet Operation. High Overload Capacity and Crest Factor tolerence.

Relative Humidity : 10-95% RH non-condensing

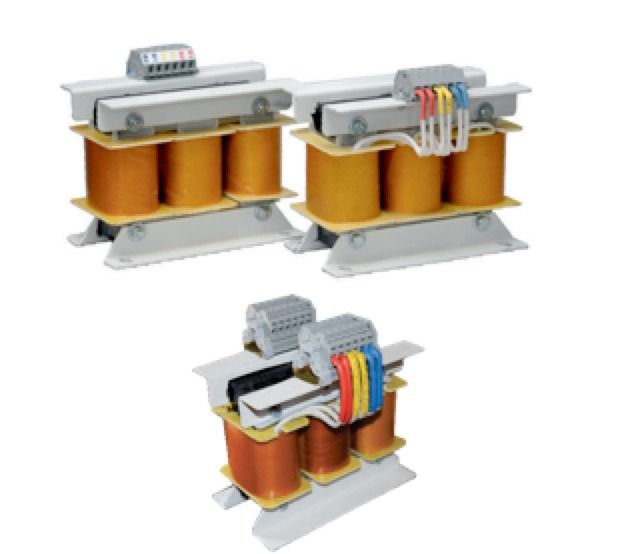

Low Tension range includes Control Transformers are specifically used to provide control supply voltage for the control circuits. It can be produced in Three Phase and Single Phase type with capacities up to 10 kVA. . •Resin cast type  •Tape wound type

Number Of Flower : Control Transformers

Country of Origin : India

Standard : IS, IEC and Other Standard with special enclosure available

1. WTI or Oil Immersed (Bushing) current transformer:- These Cts are used in distribution and power transformers upto 500MVA capacity and voltage class upto 400kv. Features:  Mounted inside the transformer tank It replaces the outdoor C.T. in the switchyard hence cost effective and maintenance free Used for protection of high value power transformers C.Ts. are manufactured in single as well as multi core, multi ratio. Details required for ordering the bushing C.Ts. Transformer Ratio Accuracy Class Rated Burden Knee point Voltage Excitation current i.e. imag at specified % of @vk, vk/2,vk/4 Secondary winding resistance C.T. dimensions on request Application: Used in distribution & power transformers, for metering & protective applications Our bushing C.Ts. are widely accepted by all reputed transformer manufacturers all over India

Number Of Flower : Transformer Bushing

Shape : Round

Thickness : 10-12mm, 12-14mm, 18-20mm

Certification : ISO 9001:2008

Application : Power Transformer

Feature : Durable, Good Quality

Country of Origin : India

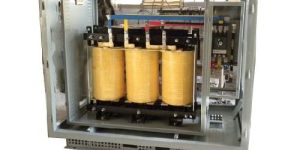

The Auxiliary Transformer is the Power Transformer that provides power to the auxiliary equipment of a power generating station during its normal operation. This transformer is connected directly to the generator out-put by a tap-off of the isolated phase bus duct and thus becomes cheapest source of power to the generating station.

Frequency : 50 / 60 Hz

Insulation Class : ‘B/F/H/C’
