Circuit Breaker Dealers in Udaipur

Electric ratings: AC5060Hz, AC220V~690V DC250V~500V, 16A~1250A; Application: for power distribution or protection of the circuits from over-load, short-circuit and under-voltage. In addition, the breaker could be applied to infrequently start the motor and the over-load, short-circuit and under-voltage protection of the motor, as well. Standard: IECEN 60947-2.

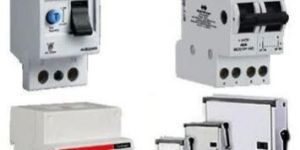

We are based in Udaipur, Rajastha and are one of the most recognized Authorised Distributor of L&T Switchgears. Our range of switchgear can be used in association with electrical disconnects, instrumentation and control equipment. Made of high quality components, these industrial switch gears also find application in various types of control equipment. These are known for their easy installation and longer functional life.

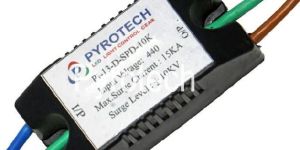

Only quality packing material has been used for the packing of the products. Customers can stay rest assured for the safe delivery of the orders as our experts keep a vigil eye on the entire procedure. As a high-flying name, we facilitate our clients with the methods like online payment gateway, bank deposits, cash, electronic funds transfer and various others. Also, we guarantee confidentiality and secure transactions.   Specifications Input Voltage - 440VAC Maximum Surge Current 15kA Surge Level - /-10K 440VAC Withstand Protection IP65 Casing 64.87(L)x44.5(W)x38(H) mm Series Configuration Power - 5W Input Voltage - 85-265VAC Output Voltage - 12VDC Output Current - 400mA 44(L)x23(W)x26(H)mm

Two of three phase motor currents are monitored by current transformers. The internal solid state circuitry compares with preset current level.When load currents exceeds the preset trip level,red LED iIIuminates,after the preset time, the device trips, and changes internal SPDT relaycontacts.Red LED remains illuminated indicating an overload trip has occurred. Until manual or remote electrical reset by interrupting supply,is initiated.If load current falls off below setpoint before preset delay, device resets trip timer. With the aid of LED flashing at 100% ofpreset load, actual load currents can be determined without the aid of Ammeter. Test button provides the means of testing service-worthinessand integrity of the device. Internal relay iS energized in normal operation condition(fail—safe) and will not become ready mode with eithersupply lost or own failure. *Starting delay range : O.2—30 seconds.*Trip delay time range:0.2-10 seconds.*May be used as electronic shearpin by setting trip time to minimum. Specifications:1.Phase Loss Protection2.Typical Wiring3.Compact Design4. Multiple Protection Functions5.Wide Current Adjustment Range (10: 1)6.Ammeter Function7.Trip Indication LED8.High Accuracy9.Manual Instantaneous Reset10.Electrical Remote Reset11.Test Function12.Ambient Insensitive13.Low Energy Consumption14. Fail-safe Operation (No Volt Release) Wide Adjustment Range:Has wide current adjustment range of over 10.1 .Current Setting:-*a)Type 05:0.5-6A*b)Type30:3-30A*c)Type60:5-60AControl Voltage(50/60Hz)*a)220:90-260VAC*b)440:320-480VAC Output Relaya)Mode: 1-SPDT(1C)*b)Rating:3A/250VAC Resistive*c)Status: Normally EnergizedTime-Current Characteristic:Definite;Operating (Trip) Indication:-2LED
