Flow Totalizers Dealers in Udaipur (1 products available)

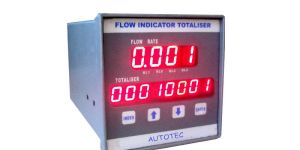

flow totalizers Type μC Based Input 1- 5V, 0 –5 V, 4 –20 mA, 0-20 mA DC Field selectable or Fixed Type Input ranges 0 to 9999 user programmable Display • 4 Digits 0.56” Red LED for Flow rate. • 6 Digit 0.39” Red LED for totaliser • Individual Discrete LEDs for Relay Status Time Unit Second, Minute and hour programmable Relay One relay per alarm with one change over contact rating 3A @230V Relay Action: On above set point or on below set point -selectable. Alarm (optional) Two alarm for flow rate and two alarm for batching operations Calibration Software calibration by front panel key board Transmitter Supply 24 VDC, 30 mA Retransmission Output (optional) 4-20 mA DC Retransmission Square root extraction Available Accuracy 0.25% of full scale 1 count throughout the range. Power Supply 230 VAC ±10%, 50 Hz Size 96 x 96 in mm Mounting Flush Panel
