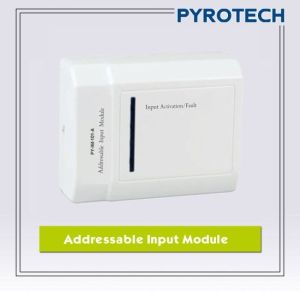

Addressable Input Module

Get Price Quote

Availability155g (with Base), 85g (without Base)
Dimension / LWH108 mm x 86 mm x 38 mm
Humidity0 to 95% Relative Humidity, Non condensing
Indicator StatusNormal: Single blink / Active: Steady / Fault: Double Blink
Ingress Protection RatingIP30
Input RelayNormally Open dry contact
Input Resistance5.1Kohms / ¼ W
Material / ColourABS / White Glossy finishing
Operating Temperature-10°C to +50°C
Protocol / AddressingPrivate, Value range from 1 to 254

The PY-IM-101-A Addressable Input Module is used to acknowledge normally open monitor signals from interface equipment and then send a communication signal to the control panel, ideally for monitoring sprinkler system, pressure switch, position switch, signal valves, and other third party equipment such as conventional panel. The unit is manufactured based on the requirement of EN 54 part 18, European Standard. The unit is aesthetically pleasing with an unobtrusive design that will complement modern building designs and its plug-in type assembles make installation and maintenance more convenient to the installer. The unit incorporates an intelligent processor that provides automatic monitoring for both open and short circuits of the input signal line. The PY-IM-101-A Input Module is compatible with the PY-CP-4A Analogue Intelligent Fire Alarm Control Panel, produced by single manufacturer PEPL, to avoid addressable communication compatibility problems. Features Loop powered device LED status indicator Input cable monitored Normally open configuration

...more
pyrotech electronics pvt ltd

madadi industrial area, Udaipur

7 yrs
Addressable Input Module

Get Price Quote

MOQ100 Piece
Country of OriginIndia
Availability155g (with Base), 85g (without Base)
Current Consumption Standby0.6mA, Alarm: 1.0mA
Input Voltage24 VDC [16V to 28V]
Dimension / LWH108 mm x 86 mm x 38 mm
Humidity0 to 95% Relative Humidity, Non condensing
Indicator StatusNormal: Single blink / Active: Steady / Fault: Double Blink
Ingress Protection RatingIP30
Input RelayNormally Open dry contact
Input Resistance5.1Kohms / ¼ W
Material / ColourABS / White Glossy finishing
Operating Temperature-10°C to +50°C
Protocol / AddressingPrivate, Value range from 1 to 254

The PY-IM-101-A Addressable Input Module is used to acknowledge normally open monitor signals from interface equipment and then send a communication signal to the control panel, ideally for monitoring sprinkler system, pressure switch, position switch, signal valves, and other third party equipment such as conventional panel. The unit is manufactured based on the requirement of EN 54 part 18, European Standard. The unit is aesthetically pleasing with an unobtrusive design that will complement modern building designs and its plug-in type assembles make installation and maintenance more convenient to the installer. The unit incorporates an intelligent processor that provides automatic monitoring for both open and short circuits of the input signal line. The PY-IM-101-A Input Module is compatible with the PY-CP-4A Analogue Intelligent Fire Alarm Control Panel, produced by single manufacturer PEPL, to avoid addressable communication compatibility problems. Features Loop powered device LED status indicator Input cable monitored Normally open configuration Aesthetically pleasing design Fire or Supervisory signal configuration Built-in MCU processor and digital addressing Surface mounting with fix base for simple installation

...more
PYROTECH ELECTRONICS PRIVATE LIMITED

Madri, Udaipur

GST 15 yrs
