Thickness0.056" standard, other thicknesses available
Maximum Temperature500 °F
Famously known as “flexible heaters”, silicone rubber heaters are composed of fiberglass reinforced silicone rubbers that are rugged, moisture and chemical resistant, flame retardant, have high dielectric strength and are non toxic. Wire or etched foil heating circuits are positioned between two “wafers” of silicone which provides flexibility and strength. Design versatility permits zones of higher or lower heat concentration as needed. They are capable of flexing and will conform to contoured surfaces. They can also be pre-formed to complex shapes and can withstand mechanical shock and vibration. Designed to meet the requirements of various low and medium temperature applications, they improve heat transfer; speed warm ups, and decrease wattage requirements. The silicone Fiberglass-reinforced silicone rubber gives the heater dimensional stability without sacrificing flexibility. Thermostats or RTD can be mounted for temperature control. Teflon lead wires can exit any location to make suitable connections. Different mounting methods such as pressure sensitive adhesive, field applied adhesive, Velcro etc. are available according to the requirement.
Famously known as “flexible heaters”, silicone rubber heaters are composed of fiberglass reinforced silicone rubbers that are rugged, moisture and chemical resistant, flame retardant, have high dielectric strength and are non toxic. Wire or etched foil heating circuits are positioned between two “wafers” of silicone which provides flexibility and strength. Design versatility permits zones of higher or lower heat concentration as needed. They are capable of flexing and will conform to contoured surfaces. They can also be pre-formed to complex shapes and can withstand mechanical shock and vibration. Designed to meet the requirements of various low and medium temperature applications, they improve heat transfer; speed warm ups, and decrease wattage requirements. The silicone Fiberglass-reinforced silicone rubber gives the heater dimensional stability without sacrificing flexibility. Thermostats or RTD can be mounted for temperature control. Teflon lead wires can exit any location to make suitable connections. Different mounting methods such as pressure sensitive adhesive, field applied adhesive, Velcro etc. are available according to the requirement.
Country of Origin : 12V to 600V AC or DC
Thickness : 0.056" standard, other thicknesses available

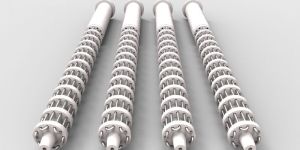

As the name suggests, bundle rod heater consists of circular ceramic beads that hold the heating elements. Also known as Tubothal Heating elements or Bayonets, they are designed for long life and maintenance free operation. The elements can be provided in almost any length but the standard dimensions available are 68 to 170 mm (2.6 to 6.6 inch). These heaters can be used as standalone elements or inside radiant tubes. Because of the ingenious design, Bundle rod heating elements deliver a much higher power (up to 45kW) than conventional cartridge heaters. In combination with the Kanthal APMKanthal APMT radiant tubes, a system is created which delivers high power, is rugged, versatile and needs low maintenance. Designed & manufactured in low voltages for faster heating in order to achieve temperatures quickly, these heaters can be mounted horizontally or vertically. Either NiCr alloy or FeCrAl alloy can be used as heating element. For temperatures up to 2100°F (1150°C), Austenitic (NiCr) alloy (8020 or 7030) and for temperatures up to 2597°F (1425°C), Ferritic (FeCrAl) alloy can be used. A comparison between bundle rod and cartridge heaters shows their effectiveness:
As the name suggests, bundle rod heater consists of circular ceramic beads that hold the heating elements. Also known as Tubothal Heating elements or Bayonets, they are designed for long life and maintenance free operation. The elements can be provided in almost any length but the standard dimensions available are 68 to 170 mm (2.6 to 6.6 inch). These heaters can be used as standalone elements or inside radiant tubes. Because of the ingenious design, Bundle rod heating elements deliver a much higher power (up to 45kW) than conventional cartridge heaters. In combination with the Kanthal APMKanthal APMT radiant tubes, a system is created which delivers high power, is rugged, versatile and needs low maintenance. Designed & manufactured in low voltages for faster heating in order to achieve temperatures quickly, these heaters can be mounted horizontally or vertically. Either NiCr alloy or FeCrAl alloy can be used as heating element. For temperatures up to 2100°F (1150°C), Austenitic (NiCr) alloy (8020 or 7030) and for temperatures up to 2597°F (1425°C), Ferritic (FeCrAl) alloy can be used. A comparison between bundle rod and cartridge heaters shows their effectiveness:

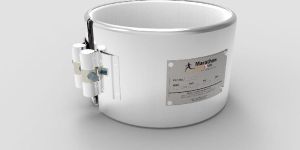

Mica band heaters offer efficient and economical heating solutions to pipes and tubes that require external indirect heating. These heaters are used to heat-up the external surface of drums or pipes for a gradual heat transfer. A mica core surrounds the precisely wound heating element, producing a thin, efficient heater. The mica core is enclosed in a continuous corrosion resistant sheath and formed. All full mica band heaters are designed with closed ends to protect against contamination. The maximum sheath temperature is 800°F and is used mainly in plastic industry. Terminal boxes can be provided that protect terminations and also have the option of temperature controllers to help regulate applied heat. Mica is used as it provides exceptional insulation, dielectric strength and heat transfer capability for long heater life. Insulation is required to direct the heat to the application, avoid heat loss and slow heat-up time. In order to maintain a balance between the insulating characteristics of mica and the ease of heat transfer from the heating core, the thickness of each mica layer is cautiously selected. Various terminations are available with mica band heaters keeping in mind the diameter, width, voltage, operating temperature and cost. Several types of dimension, wattage, voltages and material are available to suit different applications.
Mica band heaters offer efficient and economical heating solutions to pipes and tubes that require external indirect heating. These heaters are used to heat-up the external surface of drums or pipes for a gradual heat transfer. A mica core surrounds the precisely wound heating element, producing a thin, efficient heater. The mica core is enclosed in a continuous corrosion resistant sheath and formed. All full mica band heaters are designed with closed ends to protect against contamination. The maximum sheath temperature is 800°F and is used mainly in plastic industry. Terminal boxes can be provided that protect terminations and also have the option of temperature controllers to help regulate applied heat. Mica is used as it provides exceptional insulation, dielectric strength and heat transfer capability for long heater life. Insulation is required to direct the heat to the application, avoid heat loss and slow heat-up time. In order to maintain a balance between the insulating characteristics of mica and the ease of heat transfer from the heating core, the thickness of each mica layer is cautiously selected. Various terminations are available with mica band heaters keeping in mind the diameter, width, voltage, operating temperature and cost. Several types of dimension, wattage, voltages and material are available to suit different applications.
Mica band heater, Mica band heaters offer efficient and economical heating solutions to pipes and tubes that require external indirect heating. These heaters are used to heat-up the external surface of drums or pipes for a gradual heat transfer. A mica core surrounds the precisely wound heating element, producing a thin, efficient heater. The mica core is enclosed in a continuous corrosion resistant sheath and formed. All full mica band heaters are designed with closed ends to protect against contamination. The maximum sheath temperature is 800°F and is used mainly in plastic industry. Terminal boxes can be provided that protect terminations and also have the option of temperature controllers to help regulate applied heat. Mica is used as it provides exceptional insulation, dielectric strength and heat transfer capability for long heater life. Insulation is required to direct the heat to the application, avoid heat loss and slow heat-up time.
Mica band heater, Mica band heaters offer efficient and economical heating solutions to pipes and tubes that require external indirect heating. These heaters are used to heat-up the external surface of drums or pipes for a gradual heat transfer. A mica core surrounds the precisely wound heating element, producing a thin, efficient heater. The mica core is enclosed in a continuous corrosion resistant sheath and formed. All full mica band heaters are designed with closed ends to protect against contamination. The maximum sheath temperature is 800°F and is used mainly in plastic industry. Terminal boxes can be provided that protect terminations and also have the option of temperature controllers to help regulate applied heat. Mica is used as it provides exceptional insulation, dielectric strength and heat transfer capability for long heater life. Insulation is required to direct the heat to the application, avoid heat loss and slow heat-up time.
Strip heaters, commonly called component or clamp heaters, based on the principle of convection air heating, use surface area to transfer heat effectively. Using most advanced heat technologies, strip heaters are an outstanding industrial heating product. It comprises of a heating element, a protective sleeve or sheath, and mounting hardware and can be clamped or bolted onto objects or solid surfaces. A coiled nickel chromium element wire is placed in the center of the heater. The element wire is then embedded in magnesium oxide (MgO)-based insulation and compacted into a solid mass creating excellent heat conductivity and high dielectric strength. The heater is then enclosed in desired sheathing. Suitable to work in 500 degree F temperatures, magnesium oxide is used for increasing efficiency. Temperatures can be controlled by using a temperature controller such as a thermostat. When using strip heaters, proper sheath material for resisting rusting or oxidation and suitable watt density of the element should be selected keeping in mind the application. These can be shaped and sized according to the use. A moderately inexpensive way of heating, strip heater is a tremendous solution to meet any budget.
Strip heaters, commonly called component or clamp heaters, based on the principle of convection air heating, use surface area to transfer heat effectively. Using most advanced heat technologies, strip heaters are an outstanding industrial heating product. It comprises of a heating element, a protective sleeve or sheath, and mounting hardware and can be clamped or bolted onto objects or solid surfaces. A coiled nickel chromium element wire is placed in the center of the heater. The element wire is then embedded in magnesium oxide (MgO)-based insulation and compacted into a solid mass creating excellent heat conductivity and high dielectric strength. The heater is then enclosed in desired sheathing. Suitable to work in 500 degree F temperatures, magnesium oxide is used for increasing efficiency. Temperatures can be controlled by using a temperature controller such as a thermostat. When using strip heaters, proper sheath material for resisting rusting or oxidation and suitable watt density of the element should be selected keeping in mind the application. These can be shaped and sized according to the use. A moderately inexpensive way of heating, strip heater is a tremendous solution to meet any budget.

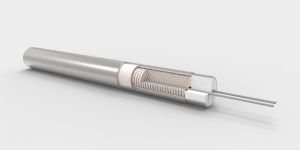

Industrial heaters, Cartridge heater often considered as component heater has a heating coil wound on a ceramic core and are cylindrical-shaped, heavy-duty Joule heating element. Electricity flows through coil when a two or three-phase voltage is applied. The electricity heats the coil and, subsequently, the cartridge sheath. The watt density (in Wattinch2) depends on the number of spirals or turns per inch. The sheath comes in contact with the surface being heated. Insulation in the cartridge heater ensures that the heating wire never comes in contact with the sheath and protects the sheath from melting in case of any mishap. The leads that come out of the heater terminal have metal conduit, or silicon sleeves to protect from high temperature. Lead wires are often fiberglass or silicon rubber.
Industrial heaters, Cartridge heater often considered as component heater has a heating coil wound on a ceramic core and are cylindrical-shaped, heavy-duty Joule heating element. Electricity flows through coil when a two or three-phase voltage is applied. The electricity heats the coil and, subsequently, the cartridge sheath. The watt density (in Wattinch2) depends on the number of spirals or turns per inch. The sheath comes in contact with the surface being heated. Insulation in the cartridge heater ensures that the heating wire never comes in contact with the sheath and protects the sheath from melting in case of any mishap. The leads that come out of the heater terminal have metal conduit, or silicon sleeves to protect from high temperature. Lead wires are often fiberglass or silicon rubber.
Diameter0.260”, 0.315”, 0.375”, 0.430” or 0.475”, 0.625”
Flanged industrial immersion heaters are amongst the most popular heaters owing to wide customization, easier installation and operations in stringent environment. Made by brazing or welding flange with several hairpin elements or bulge tubular elements, these are designed for heating chemical, petroleum and water based applications specially heat transfer fluids, medium and lightweight oils and water in tanks and pressure vessels. A thermocouple or RTD is often used within the bundle of elements to maintain the desired target temperature. Extra wiring boxes to make electrical connections are provided with it. Tubing known as a thermowell is used to protect thermocouples and heating elements. Temperature readings are then transmitted to a control unit that regulates power. Although, they occupy a small space, but have a large heating element which is perfect for applications which require high wattage heating. This is one of the most efficient forms of process heating with nearly 100 percent efficiency.
Flanged industrial immersion heaters are amongst the most popular heaters owing to wide customization, easier installation and operations in stringent environment. Made by brazing or welding flange with several hairpin elements or bulge tubular elements, these are designed for heating chemical, petroleum and water based applications specially heat transfer fluids, medium and lightweight oils and water in tanks and pressure vessels. A thermocouple or RTD is often used within the bundle of elements to maintain the desired target temperature. Extra wiring boxes to make electrical connections are provided with it. Tubing known as a thermowell is used to protect thermocouples and heating elements. Temperature readings are then transmitted to a control unit that regulates power. Although, they occupy a small space, but have a large heating element which is perfect for applications which require high wattage heating. This is one of the most efficient forms of process heating with nearly 100 percent efficiency.
Finned Strip Heaters are used for both forced and natural convection air heating. It is designed using a helically wound resistance coil placed on a ceramic insulator. Remaining voids are filled with high purity magnesium oxide to increase thermal conductivity and dielectric strength. Continuous spiral fins are permanently furnace brazed to the sheath.
Finned Strip Heaters are used for both forced and natural convection air heating. It is designed using a helically wound resistance coil placed on a ceramic insulator. Remaining voids are filled with high purity magnesium oxide to increase thermal conductivity and dielectric strength. Continuous spiral fins are permanently furnace brazed to the sheath.
