Metal Thermocouple Dealers in Madri, Udaipur

(4 products available)

All IndiaUdaipurBangalore Mumbai Noida Delhi Kolkata Ahmedabad Jaipur Vadodara Ajmer

Madri

Explore More

TTCS Noble Metal Master Thermocouple

49,000 / Piece

Temperature Range0 to 1500 °C
ModelTTCS
Element TypeS(Pt10%Rh/Pt)
No. of ElementSimplex
Sheath MaterialAlumina ( 99.7 % pure Al2O3)
Sheath Length450mm
Extension Cable1.5 mtr. Long Teflon insulated cable with male/female miniature connector
Sheath Diameter6mm
Calibrationat 5 points at Tempsens NABL Accredited Lab
AccuracySpecial Class (0.6 °C or 0.1 % of temperature whichever is greater)

Tempsens offers special Reference thermocouples for high temperatures up to 1500°C for highly accurate temperature measurement. These Thermocouples are offered in platinum / Rhodium (type R, S or B) elements with a high purity Alumina insulations and sheath materials.Thermocouples employing platinum in combination with platinum-rhodium alloys have been found to be the most reproducible of all the various types. They are resistant to oxidation in air and, because of their high melting points, can be used at very high temperatures. The best-known member of this group is the Type S (Pt10Rh/Pt) or Type R (Pt13Rh/Pt).It was long considered more accurate and has probably been studied more than any other thermocouple. The performance of Type R or Type S thermocouples depends strongly on the annealing process, materials used and other construction techniques.Key Features: Maximum Temperature up to 1500°C Thermocouple Types S High purity Alumina insulation and sheath materials Accuracy Special class of 0.6 °C or 0.1 % of temperature whichever is greater

...more
www

Tempsens Instruments (India) Limited

Madri, Udaipur

GST 9 yrs 4.5 (16)

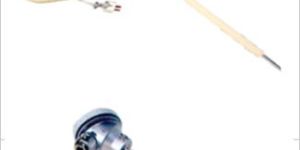

Noble Metal Thermocouples

Get Price Quote

Number Of FlowerR, S, B
Element Dia0.30, 0.35, 0.4, 0.45, 0.5 (mm) other Sizes on request
Protection Sheath MCeramic (C-799), 610, Inconel, Silicon carbide etc.
ConfigurationSimplex/Duplex/Multipoint

Noble Metal Thermocouples High accurate Noble Metal Thermocouple for variety of applications Special Hot Blast & Stove dome Thermocouples For Glass Industry Tri level Thermocouples Fore-hearth Thermocouples Furnace Bottom Thermocouples Distributor Thermocouples Furnace Crown Thermocouples Refiner Thermocouples Annealing Lehr Thermocouples Spout Bowl Thermocouples Glass Level Probes Fish-Hook Thermocouples

...more
TEMPSENS INSTRUMENTS (I) PVT. LTD

Madri, Udaipur

8 yrs

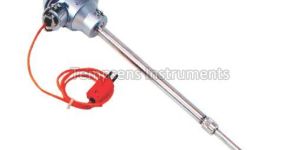

Noble Metal Thermocouples

Get Price Quote

Noble Metal Thermocouples High accurate Noble Metal Thermocouple for variety of applications Type R, S, B Element Dia 0.30, 0.35, 0.4, 0.45, 0.5 (mm) other Sizes on request Protection Sheath M Ceramic (C-799), 610, Inconel, Silicon carbide etc. Configuration Simplex/Duplex/Multipoint Special Hot Blast & Stove dome Thermocouples For Glass Industry Tri level Thermocouples Fore-hearth Thermocouples Furnace Bottom Thermocouples Distributor Thermocouples Furnace Crown Thermocouples Refiner Thermocouples Annealing Lehr Thermocouples Spout Bowl Thermocouples Glass Level Probes Fish-Hook Thermocouples
...more

Tempsens Instruments (I) Pvt. Ltd.

Madri, Udaipur

8 yrs
Noble Metal Thermocouples

Get Price Quote

Noble Metal Thermocouples, Thermocouples with Thermowells, Protection Tube

Tempsens Instrument india Pvt.Ltd

Madri, Udaipur

12 yrs
