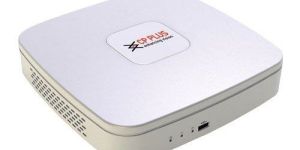

CP Plus 1-1.3 MP 8 Port HD DVR
5,900 / Piece
We take care of all the raw materials used in the product manufacturing and designing. The inputs (raw material) used are quality certified and are remarkable for the production. With our inventory management system, we are capable to undertake urgent and massive requirements of the buyers at a time.
Product Description :
Processor Embedded processor
Operating System Embedded LINUX
Two-way Talk Reuse audio input/output channel 1
User Interface GUI
Video Input 8 channel, BNC
Video Output 1 HDMI, 1 VGA
Video Standard Analog - NTSC(525Line, 60f/s), PAL(625Line, 50f/s), HDCVI: 720P HDCVI Camera, IP: 1080P/720P/D1/CIF IP Camera
Compression H.264 / G.711
Privacy Masking 4 rectangular zones (each camera)
Video Display Split1/4/8/9
Video Recording Main Stream - 720P(1~12/15fps)/960H/D1(1~25/30fps), Extra Stream: CIF/QCIF(1~25/30fps)
Video Resolution 1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768
Audio Input 1 channel, RCA
Audio Output 1 channel, RCA
Motion Detection Supports
Video Loss Supports
Camera Blank Supports
Hard Disk1 SATA port, up to 4TB
Recording Mode Manual, Schedule(Regular(Continuous), MD), Stop
Search Mode Time/Date, MD & Exact search (accurate to second)
Smart Phone iPhone, iPad, Android, Windows Phone
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips
Backup Mode USB Device/Internal SATA burner/Network
Interface Ports1 HDMI, 1 VGA, 2 USB2.0
Max User Account128 users
Playback Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file,Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom
Record Interval1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
EthernetRJ-45 port (10/100M)
Power SupplyDC12V/2A
ProtocolsHTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P, ONVIF Version 2.4 conformance
Power Consumption10W(without HDD)
Working Temp-10 ~+55oC / 10~90%RH / 86~106kpa
Dimensions205mm × 205mm × 40mm
Weight0.5KG(without HDD)
