A Square E Systems Manjalpur, Vadodara, Gujarat

VFD (Variable Frequency Drive) Panel are used to speed and motion control applications as well as to run industrial pumps and motors. VFD meant to save power distortion and regulate frequency to control motor speed. Also saves energy by means of electronic control and proper output control.The offered panel is manufactured using the best quality AC Drives an components and modern technology in synchronization with set industry standards. We guide customer in selection of best Drive match by reviewing system specification and/or requirement and process logic. VFD Panel Applications: Process control, machine control, fan, pumps, blower, boilers systems, water supply, transports, conveyors, hoist, crane/lift, material handling, HVAC etc.

Yaskawa J1000   Yaskawa Variable Frequecy Inverter Series J1000 is micro vfd, suitable up to 5.5kw motor rating; Salient Features & Functions: Small yet Reliable & Smart Compact Design | Side by Side mounting possible Environment Friendly: RoHS Compliant, uses Swing PWM function to suppress electromagnetic and audible motor noise, creating a more peaceful environment Starts Heavy Load effortlessly, powerful torque Enhanced braking with 50% faster Momentary Power loss ride thru function Motor Protective features RS485 Modbus option available Built In EMC Filter option Global Standard: CE, UL and cUL Applications: fan, pumps and small machines, packaging transport, food & beverages machines

We are reckoned supplier and dealer of all range of mitsuishi motion controller and automation products in india. q172ex is iq platform syncronous encoder interface module used with motion cpu q173cpun

We are reputed manufacturer of Substation Automation Control and SCADA System offering complete solution from estimation to commissioning. As per feeders Incomers and Outgoing Capacity, Specification, Feeders, Energy Metering devices, we offer comprehensive single stop Substation SCADA Software development and implementation on Turnkey Project basis. We have proven capabilities implementing xxKV, 66KV, 22KV, 11KV substation automation projects KEY Features of SCADA Software; SLD diagram for power flow; incomer line, and transformer feeders, and out going feeders Real Time Energy Monitoring Report Generation Data Acquisition Trend Graph.

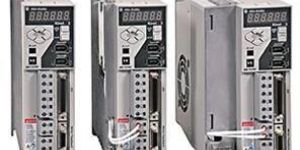

Kinetix 3- Single-Axis Component Servo Drives The Kinetix 3 line of servo drives can apply the appropriate level of control for the application without the added complexity. With its compact design, the drive is ideal for small machines requiring less than 1.5kW and up to 12.55 N-m of instantaneous torque. KEY FEATURES & BENEFITS:   Cost-effective solution that delivers ultimate simplicity to your servo application. Performs indexing on up • to 64 points, through serial communications or over digital I/O Includes two adaptive notch filters that can adjust automatically while the drive is online to remove harmful resonance and vibration Automatic motor recognition and gain setting Modbus-RTU serial communications. provides ability to make changes to any drive parameter through the controller or HMI during runtime Easily configure the drive and copy configurations with UltraWare, a free software tool. Power Rating:0.05W to 1.5KW single and three phase.

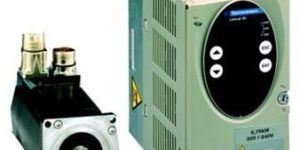

Lexium 05 Servo Drives & Motors The Schneider Lexium 05 offer integrates functions and components that are usually external, this saves space and easy to integrate the servo drive into enclosure or machines. The Lexium 05 offer can also be used with Lexium Controllers. This combination constitutes a simple, cost-effective solution that offers the exact level of performance for compact or modularmachines requiring axis synchronization. Lexium 05 Servo Drives LXM 05 Ratings:   200-240V single phase, 0.4 to 2.5kw 200-240V single phase, 0.4 to 2.5kw 200-240V single phase, 0.4 to 2.5kw Servo Motors:   BRH Servo Motors BSH Servo Motors Nominal Torque: 0.41 to 36 Nm Nominal Speed: 1500 to 6000 rpm Key Features:   EMC filter incorporated LXM 05A and LXM 05B servo incorporated with safety standard IEC/EN 61508 SIL and IEC/EN 61800-5-2 Breaking resistor integrated as standard Simply Start Menu Automatic Motor identification Auto Tuning Functions. Control & Interface Features:   Point to Point mode Motion sequence mode Electronic gear mode (pulse control) Instantaneous speed control Current Control Applications:   Material Handling, Printing & Packaging Applications, Winding & Unwinding, Small Machine Tools & Testing Machines, Automated Conveyors.

Micro & Nano Control Systems: Basic Controllers, low cost and stand alone applications || Micro800 series and MicroLogix Family; ML1000/1100/1200/1400/1500 ||PICO controllers.   AB Micro800 Series Programmable Logic Controller Systems are designed for nano systems up to larger stand-alone machine control applications that require flexible communications and greater I/O capabilities, with high performance compact systems. MicroLogix™ Programmable Logic Controller Systems are small enough to fit in tight spaces and powerful enough to accommodate a broad range of applications MicroLogix™ 1400 Programmable Logic Controller Systems build upon critical MicroLogix 1100 features: EtherNet/IP™, on-line editing and a built-in LCD panel. These controllers feature a higher I/O count, faster high-speed counter, pulse train output, enhanced network capabilities

We are renowned manufacturer and system integrator of ingenious PLC based Control Panels meeting variety of automation applications.These PLC Panel are built with reputed brand plc controller and i/o modules and designed as per client specifications and requirement.   Features:   High grade fabricated enclosure or NEMA/IP compliance Enclosures Rugged and high performance PLC CPU and I/Os Reputed switchgear components Power and Control wiring isolation and protection Tested accordingly FAT standard Long service life PLC based Control Panels customization to suite process-specific Control Logic needs. Designed to meet standalone as well as centralized control automation systems. PLCs Brand We Integrate: Allen Bradley, Schneider, Siemens, Mitsubishi, Delta Communication Protocols: RS232, RS485 Modbus, Ethernet, Profibus, ProfiNET, DeviceNET, CC-Link, CANopen, EtherNET/IP and Wireless protocol. Application Variants of PLC Panel:   Process Control Machine Automation Factory Automation Boiler/Heating & Cooling applications Water Treatment/ Sewage Treatment Plant Power Plant Automation Conveyor and material handling HVAC and Building Automation Data Logging and Acquisition Control etc.

We are renowned manufacturer and supplier of wide range of PCC Control Panel from 100A to 6000 Amp.The PCC panels are essential for electronically controller electric power system for efficient power distribution in industries and plants.   Key Features:   14/16 SWG CRCA material Compartmental structure Ensured desired breaking capacity Short Circuit protection up to 50kVA for 1 sec Isolated Incomer and outgoing feeders Isolated Cable Alley and termination High ventilated spaced designed Busbar support of reputed make Reliable and low maintenance

Mitsubishi motion cpu controls and synchronizes the servo drives and motors connected with it. The motion cpu q173cpun recommended for dynamic position control the q173cpun module can connect up to 32 axes control

Certification : CE

Application : servo amplifier and motor

Condition : new

Brand : Mitsubishi

Country of Origin : Japan

The motion cpu controls and synchronizes the servo drives and motors connected with it. The motion cpu q172cpun recommended for dynamic position control the q172cpun module can connect up to 8 axes control

Certification : ce

Application : servo drives and motor control

Condition : new

Brand : Mitsubishi

Country of Origin : Japan

We are reckoned supplier and dealer of all range of mitsuishi motion controller products in india. q172lx is iq platform servo interface module used with motion cpu q173cpun

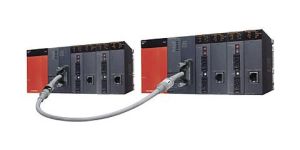

Mitsubishi redundant plc system setup two identically configured cpus that are automatically sync to provide "stand by" functionality. thus guaranteed fail safe process operation feature of melsec qiq redundant qnprhcpu; qnprh is based on standard components, so existing peripherals can be used complete integration in existing and non- redundant environment very short switching time automatic detection of the active system with mx components mx opc server communication the io level can be connected via melsecneth, cc-link, cc-link ie, ethernet or profibus

Number Of Flower : Redundant PLC CPU

Brand Name : Mitsubishi

Country of Origin : Japan

We are reputed supplier of mitsubishi programmable controllers all over india. The system-q plc system is mitsubishi's modular single automation platform for multiple and motion control solutions the systemq cpu can expansion up to 4096 local ios melsec q series plc controllers: - basic cpu (q00, q01) high performance cpu (q02, q02h, q12h) universal cpu (q01u, q02u, q03u etc) process cpu (q02ph, q06ph, q12ph) redundant cpu (q12prh, q25prh) motion cpu (q172cpun, q172hcpu, q173cpun, q173hcpu) cncnc cpu (q173nc, q172dr) pc cpu (ppc-cpu) melsec qs>> large scale safety controller melsec q ws >> small and mid scale safety controller key features of system q plc: multi cpu- one for most of applications most scalable & flexible multi network connectivity dual redundancy high speed system in its class most reliable module main cpu, nc cpu and io expansion

Number Of Flower : CPU

Brand Name : Mitsubishi

Certification : CE

Total Carbohydrate : 1 year

Country of Origin : Japan

These qnphc cpus include a wide variety of process control functions optimized to the task of controlling large scale, complex continuous processes where downtime is not an option. this allows a qiq series system to fully address the needs of users outside of the scope of traditional discrete control applications. Key features: 52 process control instructions added to standard instruction set floating point math co processor dedicated to floating point and process control operations auto tuning pid with 2 degrees of freedom (responds to both set value and disturbance) compensation functions to allow loop modeling closer to the actual process process alarm functions related to high, low and deviation process and manipulated variable values tracking functions to allow smooth transfer between manual and automated control hot swappable modules increased functionality in version c or later (sn 07032x) cpu part number range; q02phcpu q06phcpu q12phcpu q25phcpu

Number Of Flower : Process CPU Module

The melservo-je offers wide range driving control applications to all machines with reliable basic performance and advanced ease-of-use easy to use features: â�¢ advanced one-touch tuning: servo gains are adjusted with one-touch ease without a personal computer â�¢ tolerance against instantaneous power failure: instantanneous power failure ride through function reduce machine down time â�¢ large capacity drive recorder: servo data before and after the alarm occurs are stored in nv memory for quick and accurate analysis of the alarm occurrence. Â�¢ absolute position detection system: the new absolute position detection system can be easily configured with mr-je-b servo amplifier performance features: â�¢ sscnet iiih high speed optional network â�¢ fast and accurate: response speed frequency of 2khz shortening the tact time â�¢ high resolution encoder: the servo motor equipped with 131072 pulesrev â�¢ energy conservation: the large capacity main circuit capacitor allows the regenerative energy to be used effectively power rating: from 100w to 3kw. Rotary servo motors: hg-kn, hg-sn series.

Brand Name : Mitsubishi

Application : Industrial Motion Control

Country of Origin : 400V AC

Output Type : 3 Phase

Input Voltage : 400V AC

Phase : 3

Total Carbohydrate : 1

Country of Origin : Japan

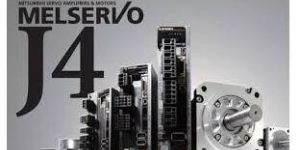

Melservo mr-j4 introduces the latest servo amplifiers to the market based on the concept of human (user friendly and safety function), machine (high performance) and environment (energy saving). Basic performance functions: â�¢ high speed servo control architecture is applied to dedicated execution. Speed frequency increased to 2.5khz is industryâ��s leading level of speed â�¢ improving machine performance with high performance motors â�¢ 1-axis2-axis3-axis servo amplifiers â�¢ compatible with fully closed loop control â�¢ wide range of power supplies and capacities â�¢ maximum command pulse frequency advanced servo functions: â�¢ advanced one touch tuning â�¢ advanced vibration suppression control ii â�¢ robust filter: the robust filter more gradually reduces the torque with wide frequency range and achieves more stability as compared to the prior model. Â�¢ expanded machine resonance suppression filter

Certification : CE

Frequency : 50-60Hz

Country of Origin : Japan

The new mr-j3 series is mitsubishiâ��s latest generation o servo amplifiers and motors for industrial automation applications. These series are small, precise and easy to integrate and offering new features salient features: â�¢ real time auto-tuning ; this ensures maximum precision control â�¢ advance vibration suppression â�¢ increased response speed: mr-j3 â��s 2100hz speed is over 70% faster than existing models â�¢ intelligent functions: mr-j3 is designed for performance and reliability from the intelligent drive electronics components. Â�¢ reduced component size â�¢ advanced networking: mr-j3-b: sscnet iii and mr-j3-t : cc-link and rs422 serial communication â�¢ safety functions: en iec 61800-5-2, sto and ss1, mr-j3-d05 safety card the mr-j3 â��a models are suitable for drive system with conventional control and are designed for regulating speed, torque and position the mr-j3-b models are specifically for complex, multi axis movement sequences and for networked automation systems. The mr-j3-t series is a compact and cost effective servo system solution with integrated positioning control functions and cc-link communication capability. Power rating: from 50w to 55kw. Rotary servo motors: hf-kpmpspjp, hc-lprpup, ha-lp series. Linear servo motors:: 4 motor series (lm-h2lm-u2lm-flm-k2) are available for a variety of applications.

Phase : 3

Country of Origin : Japan

The FR-F700 Series Frequency Invertors are Energy Saving Drive systems. Ideal for fan and pumps. Available FR-F700 VFD range from 1HP to 1000HP (up to 750KW) Key Features of FR-F700 AC Inverters are: NEMA 1 UL Type 1 Enclosure Designs: Drive can be mounted as a stand-alone unit where required. (Plenum rated) Energy Savings: Optimum Excitation Control Adjustable 5 Poits VF Control >> Possible to set the torque pattern that is optimum for the machine's characteristic PLC feature: Built-in PLC; programs using GX Developer Improved EMC filter :Because of the built-in EMC filter, the inverter itself can Comply with the EMC Directive

The fr-a700 series frequency inverters are equipped with rsv technology gives you class-leading power, control and flexibility. Suitable for high-performance inverter with advanced power control for fixed torque applications. available fr-a700 vfd range from 0.75hp to 800hp (up to 630kw)

We are dealing in wide assortment of Mitsubishi FR-E700 AC Drives . FR-E700 Series Frequency Drives are cost effective suitable for all general purpose applications. This series is all rounder performer of its class. Also Safety Inverter added to this line up Available FR-E700 VFD range from 0.25H to 20HP (15KW), 200V Single Phase, 200V Three Phase & 400V Three Phase

We are stockiest and supplier of Mitsbishi AC Drives FR-D700 Series Frequency Inverters are micro vfd suitable for wide range of applications. Available FR-D700 VFD range from 0.25H to 10HP (7.5KW) in volt rated Single phase and Three phase Key Features of FR-D700 AC Drives are: 150% at 1Hz high starting torque Enhanced Functions; regeneration avoidance fn; power failure protection fn; dancer control; traverse fn; safety stop function Long life design Most advanced life check The integrated digital setting dialwith display makes configuration fast and easy Modbus RTU included as standard via the RJ45 port Applications where these Variable Frequency Inverters used: fan, blower, pumps conveyor, traverse control, dancer control etc

Phase : Single and Three Phase

Mitsubishi melservo mr-jn amplifiers has simple operation functions such as one-touch tuning, built-in positioning with the point table and the programming. It has compact design yet high performance characteristics. power rating from 50w to 400w. Servo motors: hf-kn,hf-kp(with a reduction gear) series.

Melsec fx3u is mitsubishi’s most advanced plc in medium range. Key featurs: communications:- compatibility:- full compatibility available with fx2n and fx0n expansion blocks adaptability:- the fx3u is has adapter expansion bus on the left hand side of the fx3u cpu increased io capacity:- up to 384 ios 8 times more memory:- fx3u comes with a standard internal memory of 64k steps more data storage:- data register capacity has increased by a factor of 5 we offer fx3u cpu at low cost with performance guarantee

Number Of Flower : CPU

Brand Name : Mitsubishi

Application : process automation

Country of Origin : India

We offer scada (supervisory control and data acquisition) software development services. We have expert team of engineers catering needs and requirement of client. Our scada development cycle: define >> specifications design >> architecture & system layout execution >> application development commissioning scada system we supply; wonderware-schneider ni labview citect-vijeo wincc factorytalk scada system | vadodara | ahmedabad | vapi | suurat | gujarat | mumbai | india
