Agni Fiber Boards Pvt. Ltd. Makarpura, Vadodara, Gujarat

We are the main supplier of this product.

Operating Type : Automatic

Winding Material : MS

By using FRP Threaded Rod Nut, FRP flat strips are being used for covering copper wire leads which are fixed with FRP threaded rod nut.

Agni FRP Telescopic Operating Rod is made of epoxy resin and boron free fiberglass rovings pultrusion tubes, which are safe for exposing the worker to a large risk of electric shock. Hot sticks are manufactured from the highest grade electrical rated fiberglass and meet or exceed all applicable industry performance criteria including ASTM F711, ASTM F1826, and OSHA 1926.951(d).or IEC 60060 and IS 2071 part.

In today’s ever changing environment of electrical power distribution equipment and systems, safety and reliability are becoming the focal point of utility and industrial switchgear users. Extreme temperatures and pressures as well as electromagnetic radiation are all effects that need to be dealt with to provide optimum safety for plant operations personnel; the insulating FRP Epoxy Pultruded support bar, selector bar & Flats are use as selector & support bar.

Country of Origin : India

Number Of Flower : Industrial Switchgear

Certification : ISI Certified

Application : Control Panels, Industrial Use

Feature : Easy To Install, Electrical Porcelain, Proper Working

Stud FRP Epoxy Pultruded Studs are being use for electrical insulation in Switchgears, transformers.

FRP Epoxy Pultruded Flats are being used as a dovetail spacer in coil winding assembly in transformer and as well as terminal plate in Switchgear equipment.

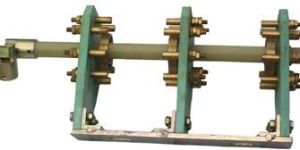

In Tap Changers, As electrical insulation FRP epoxy pultruded Rod are being used in place of bakelite rod for better mechanical strength as well as electrical insulation.

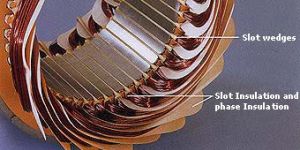

As shown in figure- FRP Wedges are to be place inside of Slots of Electric motor known as traction motor. Copper wires are wound in side Slots of motor & FRP Wedges are to be place over it because of electrical insulation properties.

Lighting arresters; FRP Tubes, Threaded Rods, Studs & Nuts are being used for better electrical insulations purpose

FRP epoxy pultruded tubes are being used for Protections of cables & MS tie- rod in electrical insustries.

FRP Epoxy Pultruded rods are being used as electrical insulation material in Off load tap changer off load tap changer, lighting arrestors.

FRP Hat Section FRP Epoxy Pultruded Hat Sections are being used in coil winding assembly of transformers.

FRP Epoxy Pultruded Dog bones are being used as a dovetail spacer in Coil winding assembly in Dry Type transformers.

FRP Corner Angles Epoxy Pultruded are being use in manufacturing Dry Type transformers in coil winding assembly

Radome is a protective housing for antenna made from dielectric material that is transparent to RF energy. Agni Fiber has developed Radomes of variable applications. A lightweight and different size and shape radome has been developed meeting stringent electromagnetic specifications.All the radomes have been cleared after full scale structural, lighting and electromagnetic tests. Agni Fiber offers a large number of fiberglass reinforced plastic products, our own company is a professional manufacturer in frp area which brings in advanced technology FRP radome is playing an outstanding role in modern communication.

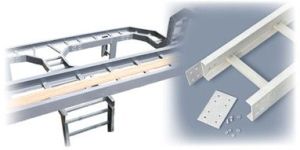

FRP Angle FRP Angle are being used in producing Cable trays and ladders, FRP Angle are joint with FRP Angle and Flats with FRP Fasteners.

FRP BEKELITE PERMALI Wood Strips used for covering Copper Wire leads are fixed by using FRP Threaded Rod & Nuts. Also FRP Epoxy Pultruded Tubes are used for covering M S Tie rods in order to have electrical Insulation.

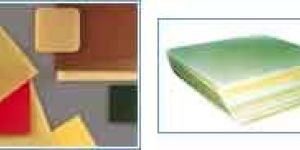

Based on epoxy resin and fiberglass reinforcement, various grades of laminates are manufactured to NEMA G-10 and G-11 standards. Also, with the stringent requirement of high tracking resistance (KA3C) and high di-electric strength in view, special type laminates are offered for MV Switchgear applications. Similarly, fire-retardant grade laminates are offered for specific applications. These are available in standard sizes, in the thickness range of 0.4 mm - 60 mm & above. Of course, extra - long Sheets strips of more than 2400 mm, without joints, are also offered for coil support in Generators. A wide range of Laminates made out of fiberglass CSM and woven fabric bonded with Epoxy or Polyester resins are offered for a variety of applications. These are made to EP2 EP3 and GPO1 GPO2 GPO3 as per Indian standard IS1O192-1982.

CompositePolymer Insulator Core Rod We, Agni Fiber Boards Pvt. Ltd. is an Indian origin company engaged in manufacturing Fiberglass Epoxy Pultruded sections used for electrical insulation in Electrical Transformers, Insulators, Lighting Arrestors, Drop out fuses, GOAB Switches, Heavy Motors and various other applications . We are situated at Vadodara, Gujarat in India and are a well known name in the electrical industry since 1998. As a new development, Agni Fiber Boards has introduced itself in the CompositePolymer insulator market with its new product, Fiberglass Epoxy Pultruded Composite Insulator Core Rod suitable for application in CompositePolymer Insulators and Lighting Arrestors. We manufacture a wide variety of FRP Epoxy Pultruded sections such as FRP Rods, FRP TubesPipes, Dog Bone, Corner Angle, Hat section, Threaded Rods, Studs, FRP StripsFlats, FRP Nuts and FRP Angles etc. We are supplying our products to major manufacturers in India and as well as other countries. It is the confidence and trust of our clients that has helped us to maintain the quality standards of our products.

Very favorable results have been demonstrated with our Cable Support Systems, emphasizing low installation costs, long service life and a minimum of maintenance.

FRP Epoxy Pultruded Flats are used between coils of induction furnaces as Coil Spacers. Coil Spacers provide better mechanical Strength & electrical Insulations..

To act as a electrical Insulation and to provide better air circulations, different varieties of corner angles are being used at four corners between stacked laminations & winding.

It is a structure Consisting of two LONGITUDINAL SIDE MEMBERS Connected by individual transverse members called Rung. The Longitudinal Members are C-Channel or C Channel with the extra rib on the fold of the channel.

Feature : Corrosion Resistant Excellent,Environmental Resistant,Rigid & Structurally Strong,High Impact Etc.

FRP Bolts are being used in FRP Cable trays joints, Ladders and FRP Cooling Tower as fasteners because of non-corrosive & non-metallic properties.
