ANNFLEX BELLOWS AND COMPENSETORS Sama, Vadodara, Gujarat

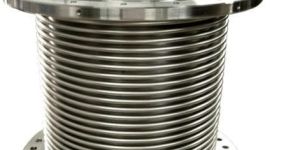

Guided or un guided with weldable pipe niples for axial deflections on a straight run of piping.

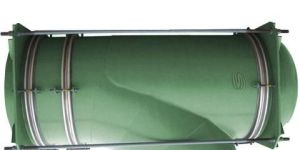

A pair of single axial bellows tied and blind flanged at one end and an elbow to change the pipe direction. This design is for a constant volume arrangement and eliminates flow turbulence and pressure thrust.

We offer expansion joints. We have a range of ss thin walled bellows and thick walled bellows for various applications.

Size : 100-1000mm, 1000-2000mm, 2000-3000mm, Any Size and Shape

Number Of Flower : Bellows

Material : Carbon Steel, SS and Inconel,Incolloy,Monel,Hastelloy,Nickel

Shape : Oval, Round, Any Shape and Size

Thickness : 1-5mm, Starting from .2 mm to 5 mm

Application : Air Ducting, Industrial Use, Water Ducting, All Piping Applications

Feature : Cost-effective, Durable, Flexible, Heat Resistant, High Performance

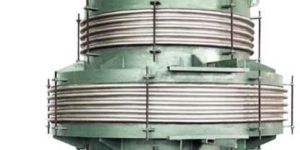

A constant volume arrangement in a high pressure turbulent piping system to avoid pressure thrust and flow turbulence. This is obtained by two balancing bellows whose total cross sectional area is equal to that of In-line bellow. This bellow is widely used in viscous liquid systems having turbulence.

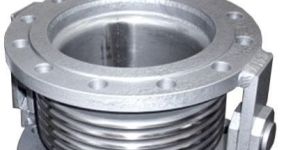

A single axial bellow is restricted using hinges & pins arrangement for a change in direction of piping at an angle.

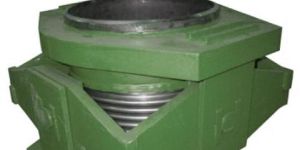

A single axial bellow is put to multi directional angular movement using a gimbal ring around the bellows.

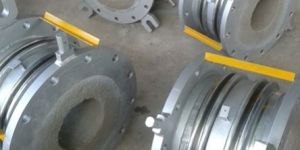

we offer Expansion Joints. These are Tuyer Stock Compensators Made for one the Reputed steel plants in India.These Compensators are designed for 1200 Geg.C Temperature and a Pressure of 4 Kgcm^2.

A pair of simple axial bellows at a specified distance functions as a universal movement absorber. This bellow is generally supplied with limit rods as guides. Another type is Tied lateral where tie rods at both ends are bolted using spherical nut and washer arrangement. This assembly is rigid axially but deflects in any lateral plane.

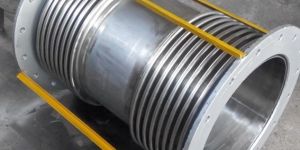

We are offering bellow expansion joint. Bellow type expansion joints are a simpler solutuion to piping mis alingment compensation.

Brand Name : Annflex

Material : Aliminum, Iron, Metal, Stailess Steel, Inconel,Incolloy,Nickel,Monel,Hastelloy

Finishing : Polished

Shape : Round, All Size and Shapes

Color : Metalic, Silver

Application : Hydrolic Pipe Use, Industrial Use, Machine Use, Pneumatic Connections, All high Temperature Pressure piping Applications

Size : 2inch, 3/4inch, 3inch, 4inch, All Sizes up to 10Mtr in Dia and No Limits for Other Profiles

Certification : ISO:9001 2008 Certified and recertified in 2015
