AP ELECTRONICS Karelibaug, Vadodara, Gujarat

computerized attendance recorder and access control system rf 105 uses contact less cards having card read range of 80mm to 100mm. User does not have to swipe or drop the card, just show the card. Can be use as slave reader or multiple reader connected in network for in / out / access control with multiple combination.   compact design, abs housing up to 12,500 punch storage capacity 512 employee database can be stored with employee name up to 8 digit card number 16 x 2 lcd display for date, time, employee name, card number, scrolling message etc. for access control - output for lock, external reader or switch for exit programmable in / out setting programmable 5 different reason cards networking through rs 485 / tcp/ip up to 32 terminal networking switch mode power supply (smps)

Smart FP Attendance & Access Control System works upon unique, permanent and scan able human characteristics, which cannot be shared with any other person. The fingerprint device digitally processes them into template. Template are then stored in the database associated with the device or in a smart card given to the individual known as an enrollment. In order to gain access, an individual scans a finger that is matched with the available template in device or in smart card.   Standalone Attendance & Access control System Identification by Finger, Mifare & EM card Large storage of FIngerprint template (9500) 22,500 Punch storage capacity (40,000 optional) 2,000 Employee database (4,000 optional) Easy function for finger registration Large display with date, time, name and scrolling message LED & sound for OK & Error message Keypad for easy operation Inbuilt TCP/IP & ISB pen drive for data upload/download (optional)

Multi Biometric Identification Time Attendance and Access Control Terminal AP Face201 is advanced DSP technology processing & matching face on the device. Standalone application as Attendance & Access control system. Standard Time office software GTOMSYS absolutely free.   CPU Multi-Bio CPU - 800 Mhz Memory 256 MB Flash, 64 MB RAM Camera High Resolution Infrared Camera LCD Display 4.3" TFT Touch color Screen Face Capacity Upto 1200 (1:N), 3000 (1:1) ID Card Capacity 10,000 Identification Speed Less than 2 second Transaction Capacity 1,00,000 Identification Speed Less than 2 second Algorithm Face 7.0 version Communication TCP/IP, RS232/485, USB-Host Access Control Support EM Lock, Exit Button Weigand Signal Output Power Supply 12V DC, 3A Operating Temperature 0'C - 45'C Operating Humidity 20% - 80% Installation Method Wall Mounting Size (L x W x T) 193.6 x 146.8 x 111 mm *Disclaimer: Due to continuous product enhancements, specifications are subject to change without notice

Computerized Bell System AP-Bel105 is ideally suited for Schools, Offices and Factories. Activates Electrical Bell, Siren, Hooter as per User Defined Schedule. Comes with user-friendly Windows based Software.

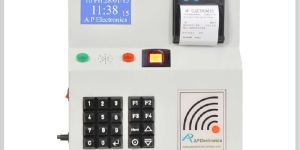

We provide customized solution (HARDWARE and SOFTWARE) for Canteen application as Canteen requirement varies from company to company. It is observed that coupons are misused in many companies. The coupons management is expensive as it involves manpower – distributing / collecting / managing / counting etc. Our solution eliminates coupons and reduces manpower. Items in CANTEEN can be fixed like breakfast / lunch / snacks / dinner or it can be ala carte like vegetable / rice / cold drink / sandwich / tea / coffee Fix items are served during Time Zone. We provide Time Zone facility which can be maintained easily.   Cashless and Paperless Canteen, saves coupon cost Reduces wastage Reconciliation of used material and consumed material Reduces manpower of coupon management

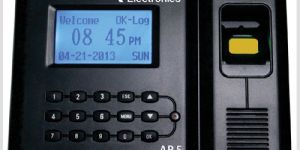

Mono Screen Time Attendance Recorder having a fingerprint scanner which provide reliable and low-cost solution against proxy punching and unauthorized entry for Time Attendance System. Standard Time office software GTOMSYS absolutely free.   Authentication Fingerprint, Pin,RFID Fingerprint Verification Mode 1:1, 1:N Fingerprint Recognition Speed < 1 second Fingerprint Sensor Area 16 x 14 mm Fingerprint Capacity 2,000 Management Records 2,000 Attendance Records 50,000 Display Screen 128 x 64 Blue Backlight LCD Display Language English Communication USB Link, TCP/IP, USB Disk External Function Electronic Lock/Bell Card EM Card/ MIFARE Card Operation Voltage DC 9V Size 184 x 128 x 55 mm * Due to continuous product enhancements, specifications are subject to change without notice

Computerized Bell System AP-Bel105 is ideally suited for Schools, Offices and Factories. Activates Electrical Bell, Siren, Hooter as per User Defined Schedule. Comes with user-friendly Windows based Software.   Separate Schedule for week days & week-off days Programmable week-offs. Fifty set times for Monday to Friday, Fifty for second week-off and Twenty five for week-off. Schedule can be defined through Keypad and/or Software Choice of four types of bell operation for each set time. Manual activation of bell whenever required Long life Silicon Rubber Keypad Password protection for Software and Keypad Temper proof Zero Maintenance System Non Volatile Memory, supports data for 10 years Connectivity to Computer through Rs 232 Real Time Clock (RTC), Battery back-up for RTC
