EmbSoft Technologies Padra, Vadodara, Gujarat

Process Weighing Indicator(EM131)   Features: 5 Digit Red LED Display 4 Keys keyboard. Retransmission : 0-10VDC/4-20mA Serial Communication : RS 485 (Modbus) (Baud Rate Settable) Two Alarm Relays Peak Hold/Erase Functions Tank weighing option Panel Mountable : 96 Width x 42 Height x 110 Depth

Microprocessor based Industrial Battery charger (Float/Boost) (EM101)   EmbSoft Technologies presents (EM101), a very stable compact Industrial Battery charger with Float & Boost modes based on Industry standard microcontroller Arm Cortex-M0. Any sized thyristors can be driven with it. Features: Arm Cortex-M0 microcontroller 3phase or 1phase input Closed loop system with PID for CV & CC modes maintaining constant voltage with current limit. 16x2 digit backlit LCD Display All parameters settable through 4 keys Keyboard(PGM,UP,DN,ENTER) Soft Start/Stop. All internal faults displayed on LCD display 6 pulse outputs (non-isolated) for 6 thyristors Four Analog Inputs 6 Digital Inputs 8 Digital Outputs Applications: Charging of bulk batteries

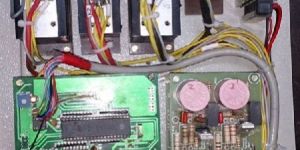

Microprocessor based D.C. Drives (EM100)   EmbSoft Technologies presents (EM100), a very stable compact dc drive controller based on Industry standard microcontroller Arm Cortex-M0. Any sized thyristors can be driven with it.It can accept different inputs such as Digital pushbuttons, 0-10v, 4-20ma. Features: Arm Cortex-M0 microcontroller Closed loop system with PID for CV & CC modes maintaining constant voltage with current limit. 16x2 digit backlit LCD Display All parameters settable through 4 keys Keyboard(PGM,UP,DN,ENTER) Soft Start/Stop. All internal faults displayed on LCD display 6 pulse outputs (non-isolated) for 6 thyristors Four Analog Inputs 6 Digital Inputs 8 Digital Outputs Over Voltage/Over Current protection with trip signal. Applications: Winders, Packaging Machines, Textile Machines, Pharmaceuticals

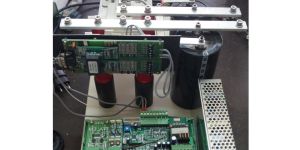

Microprocessor based Chopper controller (EM103)   EmbSoft Technologies presents (EM103), a very stable Chopper controller which can be used to control the DC Link voltage of a medium frequency Induction furnace to improve power factor based on Industry standard microcontroller Arm Cortex-M0. Features: Arm Cortex-M0 microcontroller INFINEON IGBT with Scale2 CONCEPT drivers. Closed loop system with PID for PWM control of chopper,maintaining Required power. 16x2 digit backlit LCD Display All parameters settable through 4 keys Keyboard(PGM,UP,DN,ENTER) Soft Start/Stop. All internal faults displayed on LCD display Four Analog Inputs 6 Digital Inputs 8 Digital Outputs

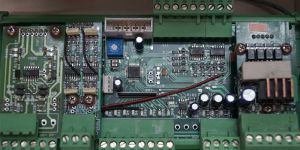

Microprocessor based AVR controller (EM102)   EmbSoft Technologies presents (EM102), a very stable compact Automatic Voltage Regulator with auto/manual modes based on Industry standard microcontroller Arm Cortex-M0. Features: Arm Cortex-M0 microcontroller Closed loop system with PID for Automatic Voltage Regulator for generators in generating stations. Maintaining constant voltage with current limit as well as constant power factor in parallel mode. 16x2 digit backlit LCD Display All parameters settable through 4 keys Keyboard(PGM,UP,DN,ENTER) Soft Start/Stop. All internal faults displayed on LCD display 6 pulse outputs (non-isolated) for 6 thyristors Four Analog Inputs 6 Digital Inputs 8 Digital Outputs

Features: 2”, 2.8”, 4” Red Led Display Master clock synchronized with IST using GPS. Wired as well as Wireless Master/Slave network.

Features: Digital output signal(RS-485 Half duplex) Baud Rate 9600 Nominal load 10t-50t Dual-shear Beam Easy to install Alloysteel Hermetically sealed

Number Of Flower : Digital Load Cell

Power Source : Elecrtric

Rated Load : 10T-50T

Country of Origin : India

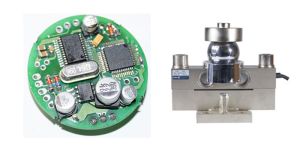

Features: Digital output signal(RS-485 Half duplex) Baud Rate 9600 Nominal load 10t-50t Self-restoring rocker pin Easy to install Stainless steel Hermetically sealed Over voltage protection

Bag Making PLC TFT Color Display-Touch Screen (EM- 120)   EmbSoft Technologies presents (EM120), a very stable compact controller for Bag Making machines based on Industry standard microcontroller Arm7 with TFT colour display & touch screen. Features: Arm-7 Microcontroller 7 Inch TFT color display with Touch screen. 16 Digital Inputs 5 Relay outputs 5 Mosfet outputs 1 Analog input Controls Servo motor as per speed received from AC drive & set Length. Automatic Slope adjustment to increase/decrease speed of servo in synchronism with AC motor. One Analog output to drive Unwinder ac motor. All internal faults displayed on the TFT display USB pen drive interface for records. Software up-gradation through USB pen drive
