Features…….  Package consists of heat exchanger, interconnecting piping, control instrumentation, pumping traps & required valves and buffer tank.  Total system is skid mounted and compact thereby requiring significantly lesser space than traditional tank based hot water systems.  Buffer tank provided enables the system to be used online in recirculating type hot water circuits.  Efficiently designed heat exchangers and temperature based control instrumentation including control valves enable the availability of hot water instantenously, continuously and at accurate temperatures as required.  Temperature based PID control enables variable temperature settings and stability of settings at variable loads.  For non critical applications, economic versions with on/off control valves & thermodynamic steam trap at condensate outlet can also be provided. MWHS can be provided with both plate heat exchangers or shell & tube type heat exchangers based on customer preference.  Package includes pumping trap provided at the condensate outlet of the heat exchanger thereby ensuring zero damage to the heat exchanger under stalling conditions and long working life of the heat exchangers.  MWHS is a High energy efficient solution for hot water generation. 100% energy utilisation takes place as system is provided complete with steam operated condensate return pump.  A consolidated experience of more than 30 years in the field of heat transfer technology provides you the MWHS- the modular hot water heating systems.

APPLICATIONS: Vent silencers are used in areas where it is necessary: • To reduce work place noise levels to a desired occupational limit. • To cut the intrusion of industrial noise into residential areas. Vent silencers are used to suppress the noise generated by safety relief valves, process vents, dumping gas to atmosphere during compressor or boiler set-up sequences, de-pressurizing lines for maintenance, ejector discharges and steam exhausts, and the blowdown of pipelines for cleaning purposes.   CONSTRUCTIONAL DETAIL: Available Sizes: 15NB TO 100NB, ASA 150# Available in both MS and SS Body construction. Other flange ratings can be provided on request. Limiting Conditions: Max. Op. Pr. = 10 bar. Max Op. Temp. = 1800C Where the standard range does not meet your requirements, special tailor-made designs can be offered. Accessories: Common Header for Multi vent points, Flexible hose with Quick connection arrangement and Cone Strainer screen can be provided additional

THERMAL RECOVERY PACKAGE SYSTEM- is a turnkey solution designed and manufactured by IndoAnushka for heat recovery and condensate handling for any plant. The TRPS is designed and tailor made based on the amount and pressure of condensate available with the user. The TRPS is supplied complete with flash vessels for recovery of low pressure flash steam from condensate, interconnecting piping, steam trap systems, trap monitoring systems and pumps for pumping condensate after total recovery of heat at 100 oC by using requisite pumps. In TRPS an option is available for using either electrical driven pumps or steam driven pumps based on the choice of the customer. The whole system is assembled, preinstalled and supplied on a skid and thereby is easy to install and commission at the plant level. The IndoAnushka make TRPS is an ideal kind of a consolidated solution for flash recovery and condensate return, all designed and fitted into a single package for maximum utilization of heat from the steam used in your plant. The TRPS package is tailor made therefore sizes of components and overall dimensions are changed as per the requirement. For the feasibility of designing and installation of TRPS and affecting savings in lakhs in terms of energy conservation for your plant, contact us for a free survey

Description: IA make MUTINY is a STEAM OPERATED CONDENSATE PUMP. Simple in construction and operated by steam, these are highly economical and energy efficient pumps for pumping of hot condensate practically at 100° C. The pump is available as a complete package with condensate collection tank, interconnecting piping with strainer, isolating valve, disc check NRV at inlet and disc check valve at outlet. It is also provided with the motive steam inlet connections complete with isolating valve, steam trap and piping. Condensate inlet to tanks and the condensate outlet of the pump are provided with flanged connections. Available Sizes : 25NB, 40NB, 50NB and 80 x 50NB.

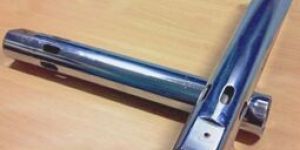

Traditionally a sparge pipe is used whenever steam is required to be directly purged into a process fluid for heating. This process fluid may be water for hot water generation or any other chemicals, dyes, etc. This gives rise to two kinds of challenges. 1. High noise due to vibration as steam comes out from a number of small holes and at a high velocity. 2. As steam comes out at high velocities, a sizable percentage of this steam actually escapes and gets wasted without condensing and mixing with the process fluid. THERMOJECT - The Indoanushka make steam injector is an apt substitute for such sparge pipes.
The THERMOJECT is a venturi type nozzle provided inside a concentric cylindrical housing with elliptical slots in the low pressure zone. When steam flows out at a high velocity through his convergent divergent nozzle, a differential pressure is created in the low pressure zone above the nozzle due to displacement of fluid by the steam velocity.
As a result fresh cold process fluid is sucked in through the pre-designed slots and this gets mixed with the steam inside the mixing chamber provided in the injector housing. As a result what flows out of the injector is hot fluid and there is no scope of steam escaping without condensing.
Also as the injector remains dipped inside the water, the water body itself acts as a silencer by hindering the flow of the high velocity steam coming out of the nozzle. This results into negligible or no sound during the mixing process. THERMOJECT helps in reducing steam consumption in such applications by 100% utilization of steam and 0 loss due to escaping of uncondensed steam THERMOJECT helps in reducing steam consumption in such applications by 100% utilization of steam and 0 loss due to escaping of uncondensed steam THERMOJECT capacities in kg/h of injected steam when heating tanks vented to atmosphere

in the process industry double window sight glass are used as an accessory in the pipeline or inlet or outlet of equipments to view the process or utility fluid flow. Traditional double window sight glasses have the glass fitted between two flanges. This results into breakage during fitting or reduced life due to thermal expansion on an already stressed glass. Also in the traditional way of holding the glass, the process fluid leaks out to atmosphere on the instant of the inside gasket failure. Due to these reasons the failure rate of traditional double window sight glasses remain very high and does not serve as a efficient tool for monitoring flow. traditional double window sight glasses have the glass fitted between two flanges. Due to the inherent principle of tightening of flanges (opposite bolts are tightened one after the other), the glass by default remains stressed by unbalanced tightening torque from the fitting stage itself. This results into breakage during fitting or reduced life due to thermal expansion on an already stressed glass. In the traditional double window sight glass, both the soft gaskets on both sides of the glass remains exposed to atmosphere resulting into the process fluid leaking out to atmosphere on the instant of the inside gasket failure. Glass gets dirty due to settling of dirt particles from inside and therefore after a limited time flow becomes unvisible. multiview has the glass housed in a specially designed “anti torque cap nut housing wherein the tightening is obtained by threading on the cap onto the nut and therefore the glass gets uniformly and gradually tightened resulting into negligible or no prestresses and a life long no glass breaking arrangement. In multiview the inside gasket for the glass soft seating has no scope of getting exposed to atmosphere. Therefore even in situations of the gasket disintegrating it casts itself inside the housing thereby it results into a lifelong leak free situation. Multiview can be provided with clear view (visible diameter of the glass) of equal to or more than the size of the double window sight glass therefore enabling the user to have as much a large view he requires. The deflector plates provided inside the multiview helps to create a vortex in the flow taking place inside the multivew. This helps in viewing the flow even under full bore flow conditions without any moving parts and also self cleans the glass from inside to provide a life long clear view

Indoanushka make MAINTENO is a Y / T - Type Strainer technically designed to specially enable cleaning of the strainer online without the necessity of any opening up and shutdown. Designed based on the principles & laws of fluid dynamics, it enables cleaning of the strainer online by forced flushing and natural backflushing by just an operation of a blow down valve & no instrumentation involved. Strainers traditionally available in the market, Y-type / T-type (basket strainers also in T type) are installed before equipments on supply lines of fluid, gas, steam, etc. and are used for removing (straining) solid particles from the fluid. All strainers gradually get choked due to the straining of the solid particles and collection of the same inside or before the screen All traditional strainers (Y-type, T-type including basket type) are then required to be isolated, opened and cleaned. Choking of these strainers, which is a repeatable and ongoing process, therefore involves shutdown, investment of time or investment in duplex strainers or losses by opening of bypasses. Stand Alone Features The unique feature of flow from inside to outside the screen cylinder helps to collect the solid particles. blowdown the collected solid particles with the help of the flow itself. Flushing and back flushing takes place in one stroke itself. The ratios of screening area to flow area is 2 to 4 which is as per international standards. Therefore pressure drop across the strainer in clean conditions is nearly zero making it very suitable even for installation before pressure sensitive equipments like PHEs Online cleaning results into tremendous savings in terms of total prevention of shutdowns continuous hassle free running of down the line equipments saving of manpower for opening and cleaning of strainers loss due to leakages because of opening of bypasses and saving by eliminating the requirement of installing of any duplex or standby strainers.

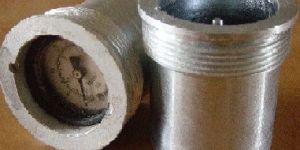

DESCRIPTION : Indo Anushka “NITROPURGE” is an innovative solution for the injection of gas for blanketing in chemical containers. The set consists of an injecting valve assembly for injecting the gas to be used for blanketing and a gauge assembly for monitoring the amount of gas injected based on pressure. The injecting valve is provided with an inbuilt non return valve arrangement for preventing the gas from escaping after blanketing.  SALIENT FEATURES
Use of “NITROPURGE” totally prevents any wastage of blanketing gas and due to monitoring by pressure in a closed container ensures 100% and efficient blanketing.
Outside threading is provided in both the accessories with “O” rings for easy and leak sealed fitting directly into the bungs of the containers.
A common injecting nozzle can be used for injecting the gas through all injecting valves.
Accessories provided in casing made from solid bar stock prevents damage even in transportation. MATERIAL OF CONSTRUCTION
Casing : MS bar stock, Zinc/Chrome plated.
Internals : MS, Chrome plated.
Gauge : Brass internals with plastic casing. Casing and internals can be provided in SS MOC optionally.

Description: IndoAnushka make Moisture separator with drain module is a value added solution for removal of moisture from the steam headers. Moisture separator with drain module consists of M.S. fabricated moisture separator with completely assembled drain assembly consisting of ball float steam trap, IndoAnushka make MAINTENO strainer with inbuilt blowdown valve and IndoAnushka make MULTIVIEW double window sight glass with deflector and 1 no. Isolating valve completely assembled with interconnecting piping and 1 no. Outlet nozzle as provision for bypass. Available Sizes: 15NB ONWARDS upto 300NB. Pipe Connections: ANSI 150, 300 & 600. BS-10 Table-H, J & K Limiting Conditions: For Moisture Seperator – Max. working pressure and temperature as per flange ratings. For Drain module – Max working pressure-13bars, Max working temp – 180 OC. Materials : Body & Baffles – M.S. Fabricated Trap – C.I with ss internals Strainer – CI with ss internals Multiview- M.S Fabricated Valves – CI

“MICROSH” is a shredding machine developed specially to provide an efficient and economically viable solution to the challenge of crushing of plastics and rubber based compounds. The “MICROSH” which was developed with the purpose of achieving size reduction for ABS to below 50 mesh size for better and homogeneous mixing with other compounds to achieve better quality alloys, can be effectively used for the purpose for achieving size reduction and uniformity of different polymers for better and high quality compounding.   The “MICROSH” uses a specially developed revolutionary method of shredding instead of the traditional crushing method and thereby achieves better size reduction at a faster rate. The “MICROSH” uses water as a medium during shredding. This not only enables to facilitate the shredding but also helps to efficiently absorb any heat generated during the process and thereby prevent any effect on the properties of the polymer. The “MICROSH” comes equipped with a PLC backed automated control system enabling a total user oriented flexibility for cycle time, sequence settings and final product size control. “MICROSH” – A first of its kind revolutionary alternative solution for achieving better polymer compounding and plastic alloys.

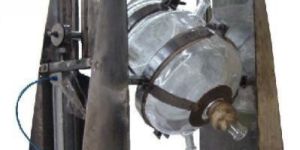

DESCRIPTION : LIFT'O’TILT is a pneumatic cylinder actuated equipment for lifting and lowering any apparatus for any specified height and simultaneously tilt it to the required angle at the bottom of the stroke with the help of specially designed cam guide. CAPACITY :- This equipment is designed to handle glass vessels of various capacities like 5kl, 10kl, 20kl…. in kilo labs but can be designed to handle any apparatus for different applications by modifying its structure support and pneumatic capacities. The system can also be designed as per the available air pressure connection with the user. Modifications in the system can be made for different profiles of lifts, angles of tilts and sequencing of lifting and tilting. CONSTRUCTION AND OPERATION: The main structure of the "LIFT‘O’TILT" consists of the cam guide mechanism with vertically installed pneumatic cylinders and control inter-connections supported by totally enclosed boxed type structure on both sides of the apparatus to be lifted. The apparatus to be lifted and tilted is held in position with the help of two nos. C-clamps bolted at the center, in two places as identified. Felt packings are provided between the clamps and the apparatus to prevent any damage. The "LIFT‘O’TILT" is provided with a control panel with a direction control knob, a regulator and the air inlet nozzle. The internal pneumatic connections comes retrofitted as per requirement. The direction control knob on the control panel is a three position lever used for lifting the vessel, lowering the vessel or holding the vessel at any intermediate position. The regulator is used to control the speed of lifting and lowering down of the vessel. The air supply inlet nozzle is provided with a quick release coupling to enable the supply line to be easily connected and disconnected.     FRAME AND STRUCTURE : SS 316 COVER : SS 316 . CLAMPS : SS 316 CYLINDER BODY : DIECAST AL. CYLINDER INTERNALS : SS CYLINDER BASE : SS 316 CLAMP PACKING : FELT BEARINGS : BEARING STEEL BEARING COVER : SS 316 FASTNERS : SS 316

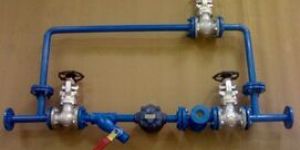

Description: The Indoanushka make Ball Float Steam Trap Module is designed as a complete steam trapping solution for draining of condensate from any kind of process vessels. The module consists of a standard ball float type steam trap for continuous discharge of condensate, fitted with a Y-type strainer with inbuilt blowdown valve before the trap and a double window sight glass with cap nut arrangement after the trap. All assembled and factory fitted with flanged ends. The strainer (MAINTENO) with blowdown valve – a prerequisite for the float trap helps you to have a choke free operation of the steam trap and simultaneously clean the online strainer without shutdowns. The double window sight glass (MULTIVIEW) fitted after the strainer helps you to monitor the functioning of the steam trap by helping you to see the discharge of the trap. The special capnut type arrangement of the DWSG ensures pre-stress free glasses for a longer life. Limiting conditions : For standard supply Max operating pr – 13kgs/cm2 . Max operating temp – 220o C. Cold hydraulic test pr. – 3 bars. Operating pressure as per differential pr.rating of traps. Standard options available as follows. Differential pressure upto a. 4.5 kg/cm2 b. 10 kg/cm2 c. 13 kg/cm

Applications: MAX-FLASH, flash vessels are used for separation of flash steam from high pressure condensate thereby generating useful low pressure steam totally free of cost. IndoAnushka make MAX-FLASH is supplied with all standard accessories like safety valve, pressure gauge, Valve, double window sight glass, steam trap and strainer. Limiting conditions: Maximum Working Pressure: 10.5 kg/cm2 Maximum Working Temperature: 180 o C. Installation: IndoAnushka make MAX-FLASH come totally assembled and mounted on a skid for a ‘fit it and forget it’ installation. Material of Construction: Vessels are of M.S. construction mounted on a M.S. skid.

“BUNG WASHER” is a machine which, as the name suggests, washes the bungs with water and then rinses them before discharge Following shows equipment manufactured for drying the bungs.

DESCRIPTION : indo_ANUSHKA make BULK DENSITY APPARATUS is a simple pneumatically operated apparatus for laboratory use for bulk density measurement. Designed to cost economical, it is provided with an arrangement to hold two cylindrical beakers of holding capacity upto 1.5 ltr volume each, mounted on a floating plate which is subjected to vibrations. It is provided with timer facility to time the vibrations and a frequency modulating knob to change the intensity of vibration if required.  INSTALLATION AND OPERATION: The B.D. apparatus is to be supplied with a normal 240V, 50Hz, AC supply and 5kg/cm2 to 7kg/cm2 air supply. The cylindrical beaker filled with the material is to be clamped on the floating top plate with the help of clamps and wing nuts provided. The timer is to be set as per requirement and the equipment then switched on. The frequency of the vibration can modulated by the frequency modulation knob provided. The vibrations automatically stop as per the timer set. MATERIAL OF CONSTRUCTION : Body - M.S. Powder coated Vibration modulator - Die cast Al. & plastic. Solenoid - Brass , 240V, A.C. rating Vibrator - Casting with MS internals. Springs - Spring Steel Fastners - M.S. plated Timer - 240V,50Hz, 0-60min on/off
