machine guarding Makarpura, Vadodara, Gujarat

we offer superior weld mesh safety fencing solutions designed to provide robust protection and enhance the safety of your industrial environment. Our weld mesh fencing is an ideal choice for securing hazardous areas, protecting machinery, and ensuring the safety of your workforce.

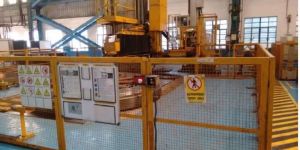

VTL “Vertical Turning Lathe“ machine posses many risk of accidents, IES has designed special VTL machine safety guard that offer excellent protection and usability. Ferndale Safety has designed special vertical turret lathe safety guards These guards are constructed using weld mesh or polycarbonate sheet. Features Modular in nature Light weight with weight indicator sticker Wide variety of access doors with option on mounting of safety interlock switch yellow and black color combination for better visibility Panel and post height as per safety standard requirement ISO 141210:2015

wo hand control requires at least a synchronous action by both hands to release and maintain the operation of a machine or machine elements as long as there are dangerous situations, assuring in this way only the protection of

Features Function of safety Devices Pre-wired cable Thermoplastic enclosure small body Concealed mounting possible

Features  Secure safety gate systems Optoelectronic protective devices Safe camera systems Electronic monitoring relays Programmable safety and control systems Function of safety Devices Industrial communicatio

Features Aluminum casing Powder-coated -30 to +55° C Operating temperature Ideal also in cold storage facilities Protected height up to 2,2 meters Caps Glass reinforced polypropylene Zero-Dead-Zone On one side of the curtain

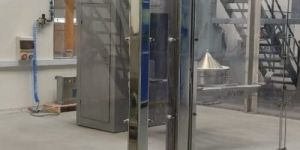

we provide premium Polycarbonate (PC) panel guarding solutions that offer unparalleled protection and visibility for your industrial operations. These panels are designed to ensure maximum safety while allowing clear observation of machinery and processes.

The safety modules CS AR 05 and CS AR 06 refer to specific components or systems used in various applications to enhance safety mea

The mechanical safety switches PSENmech are suitable for safe monitoring of a movable guard. If guards are opened, the safety switches PSENmech are tripped. The hazardous machine movement is then brought to a standstill with the help of the Pilz evaluation device.

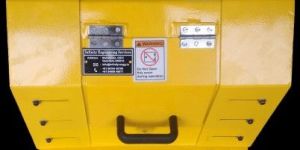

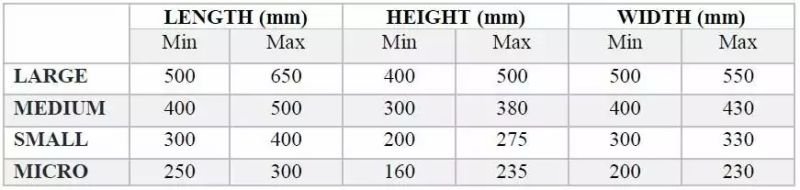

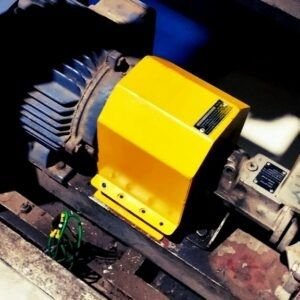

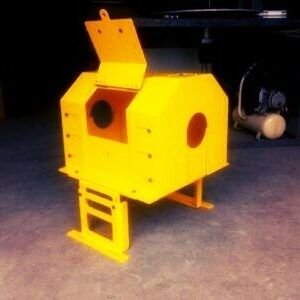

  Pump coupling Guard prevent access to exposed pinch-points around couplings and rotating shaft applications. This guard is designed for the 360 degrees guarding concept. These guards are ANSI/OSHA compliant.   Main Benefits of coupling guard Easy to install Self–supporting, adjustable design Custom-fit for each application As a result, no welding and cutting required Adjustable mounting legs Comply to 360 degree guarding concept for machine safety Built to Last Heavy duty steel construction Available in SS 304 and SS 316 for corrosive environment Increased durability due to powder coating Optional split coupling design Ideal for large coupling In addition, our team will recommend which coupling guard is right for you. COUPLING GUARD SIZE CHART This Coupling guard is available in standard 4 sizes, which can accommodate all the needs from 0.5kW to 200 kW pump sizes.

Milling machine guard features: Spindle Guard: A guard should be in place to cover the rotating spindle and cutter. This prevents operators from accidentally coming into contact with the sharp, fast-moving cutting tool. The guard should be adjustable to accommodate different cutter sizes. Table Guard: A barrier should be installed around the milling machine’s worktable to prevent hands or clothing from getting caught in the moving parts. This guard should not interfere with the workpiece setup. Chip and Coolant Guard: Chips and coolant can be produced during the milling process, and a guard should be in place to contain these materials. This guard should prevent chips from flying out and coolant from splashing onto the operator. Emergency Stop Button: An easily accessible emergency stop button should be available on the machine. This allows operators to quickly shut down the machine in case of an emergency. Machine Interlocks: Some milling machines are equipped with interlock systems that prevent the machine from starting if the guards are not in place or if they are not properly closed. This feature encourages the use of guards. Personal Protective Equipment (PPE): While safety guards are essential, operators should also wear appropriate PPE, such as safety glasses, hearing protection, and gloves, to further protect themselves. Risk Assessment: Perform a risk assessment to identify potential hazards associated with your specific milling machine and work processes. This assessment can help determine the necessary safety measures and guard configurations.

Increase operator safety by machine perimeter guarding with the highest quality and visual appalling safety fence

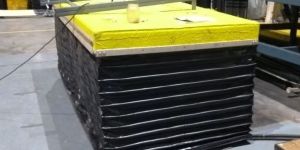

A safety lift table bellow guards (also known as lift table bellow, accordion skirting, or scissor lift table guard) comply with the OSHA specifications to keep operators safe and prevent injuries as well as hydraulics free from debris. This means less maintenance and more productivity. Mounting of lift table bellow guard Accordion lift table bellow guards typically mount on the outside of the platform, however, the convolutions/folds would fall either under the lift or outside.  When quoting we ask if you are requiring an inside or outside mount, however, we are really asking if you want the folds to fall under that platform of the lift table or outside the platform. Internal mounting or beveled toe mounting is typically for lifts operated in a pit or limited space around lift table.  For inside mount the base of the lift table must be smaller than platform size allowing clearance for table to freely raise and collapse without pinching or hitting skirting. All our Table lift bellow guards are designed to safety standard EN 1570-2:2016

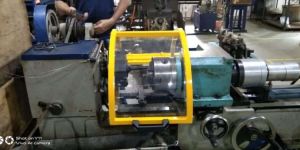

Airborne material pieces, material kickbacks, and rotating parts are some of the lathe hazards to watch out for. Machine guards can help reduce such hazards alongside engineering controls. Fitting guards on metal lathes as well as other kinds of machine shop lathe gear can help protect clothing and hands from the parts in motion By choosing our products, you’re guaranteeing that your equipment not only meets but exceeds local safety regulations and standards. Protect your team and optimize your operations with our high-quality, dependable safety guards designed for every lathe machine out there.   Specification of lathe machine safety guard Built of steel material so very rugged in nature Transparent polycarbonate sheet for high visibility and durability Easy replaceable transparent window sheet for maintenance purpose Yellow powder coated frame for distinguish from lathe machine Hazard/warning sign sticker on the guard ergonomically designed handle for easy operation. Easy to install and removal of guard Available as slide guard on linear bearing for large lathe and As cover/hood for small lathe machines Available as per customized size and with electrical interlocking switch Guards with electrical interlocking switch are upto SIL cat 2 Design, Supply and Installation service available on added cost.

Application area of Working Platforms For use in the warehouse, stockroom, plant or office environments Access to trailer mounted refrigeration units Access to controls and/or gauges Elevated platform for supervisors Bring elevated areas into reach

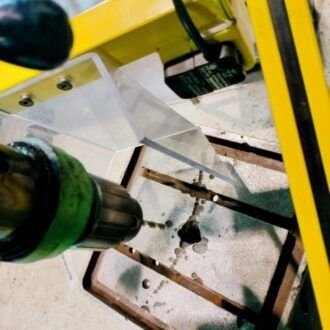

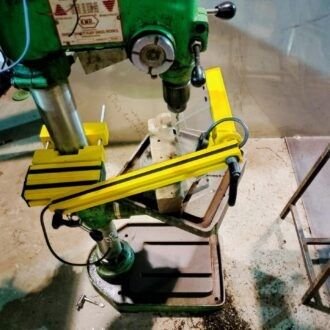

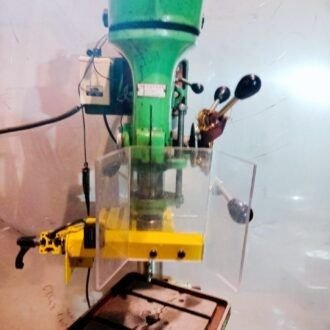

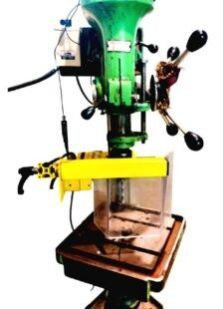

We provide safety guards for machine tool rooms. Drilling machine guard is for prevention of accidents while operating drilling machines. Our drilling machine guards are as per safety standards. Ensuring safety while operating a drilling machine is crucial to prevent accidents and injuries. A safety guard for a drilling machine is an essential component designed to protect the operator from flying debris, accidental contact with the rotating drill bit, and other potential hazards. Here are some key aspects and features of an effective drilling machine safety guard   Features of Drilling Machine Guard Easy to install on any drilling machine guard Window made of polycarbonate sheet Adjustable in Height Stroke length of 150 mm standard , More stroke available on request Optional Microswitch is available

Conveyor injuries typically cost billions to the company . Most of accidental injurie’s caused by material spilling off of the belt or workers getting parts of their bodies caught in pinch or nip points, as well as burns and abrasions. That’s why it is necessary to guard conveyor belts. We are happy to help you to offer our conveyor belt guarding solutions Advantages of our conveyor belt guarding solutions Modular in design for easy handling and installation Lightweight aluminum weld mesh for long life As per safety standard of conveyor belt OSHA 1910 , MSHA 30 CFR 56/57, and Indian Standard IS7155-2.1986 Code of recommend practice for conveyor safety Built to last, Available in heavy-duty steel and powder coated for long durability handles, weight stickers are provided for east removal. Service/inspection door: As per custom need door is provided so no need to remove the complete door Access Door: As per need full access door is provided to key areas Visibility: Allows for inspection without removing the guard due to increased visibility through the guard.

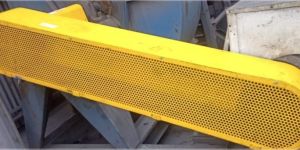

V Belt/Chain Drive guards fully enclosed V-Belt Safety Guards, gear drive, and belt drive power transmission system to prevent access to the pinch points around the conveyor belts, fan drives, blower drives, compressor, grinder, and crusher equipment. It helps to keep safe worker/ operator around the drive from entanglements Advantages of V Belt/ Chain drive Guards   Easy to install custom fit for each application requirement Modular design for large drives Guards parts can be carried out by one person weight label on each part MS powder coated for long life Available in SS 304 and SS 316L for corrosive environments Additional Features Handles : Ergonomically friendly handles for easy removal of the guard Wedge Clamps: Eliminate the repetitive motion of tightening and loosening fasteners Modular design : lighter and smaller guard , As a result it is more managble to remove guard without need of any lifting equipment’s Drainage Slots: Ground panels has slots so material built up is less in guard. Removable front guard: for easy belt and pully removable without dismantling whole guard Visibility: Weldmesh with appropriate mesh dimension and color increase the visibility inside belt chain guards

Safely Provide Access with IES Cage Ladders IES Cage Fixed Ladders are available in a variety of kits to suit different applications. Various options are available for these access ladder systems to ensure every need or safety standard can be met. Constructed of aluminum or steel, these cage fixed ladders are lightweight, sturdy. As with all of our products, Caged Fixed Ladders meet OSHA, BIS and ANSI standards as applicable, but they are also ergonomically designed for user comfort as well as safety.   Specifications of cage Ladder Made of mild steel pipe of OD 40 mm Cage is in modular form, cage can be assembled on site by simple nut bolts Long length caged ladder available in parts so transportation of the caged ladder can be easy Horizontal bends of the caged ladder always less then 4 feet Vertical bars spacing which will always less then 9″ 1/2 Cages will be between 27 and 30 inches away from the centerline of a ladder’s rungs and will not be any less than 27 inches wide All cage ladder are compliant to IS 16809 (Part 3): 2018 Safety of machinery — Permanent means of access to machinery — Part 3: Stairs, stepladders and guard-rails

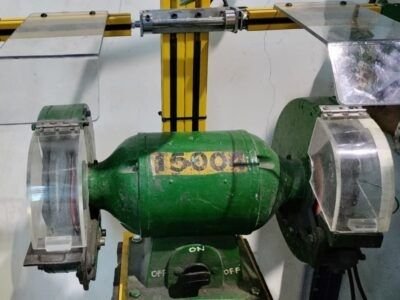

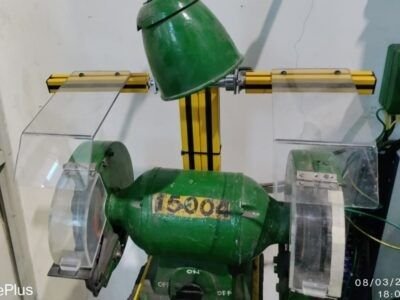

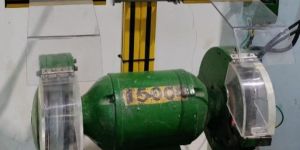

A bench grinder machine guard is a safety enclosure designed to protect the operator and surrounding individuals from potential hazards associated with using a bench grinder. The guard serves as a barrier between the operator and the rotating grinding wheels, providing protection against sparks, debris, and accidental contact with the wheels. Bench grinders come with adjustable tool rests that work in conjunction with the guard to provide support for the workpiece. Ensure that the tool rests are properly adjusted for the specific task.   features and considerations related to bench grinder machine guards: Material: Guards are commonly made of durable materials such as metal or impact-resistant plastics. The material should be sturdy enough to withstand potential impacts and provide effective protection. Adjustability: Some guards are adjustable to accommodate different wheel sizes or to allow for varying grinding angles. This flexibility ensures that the guard can be customized to suit the specific requirements of the grinding application. Visibility: A good guard design allows for clear visibility of the grinding wheels and the workpiece. This visibility is crucial for the operator to monitor the grinding process and make adjustments as needed. Easy Access: The guard should be designed to allow easy access to the grinding wheels for changing or adjusting them. However, it should provide adequate protection during normal operation to prevent accidental contact. Secure Installation: Proper installation of the guard is essential. It should be securely attached to the bench grinder to ensure stability during operation. Follow the manufacturer’s instructions for installation.

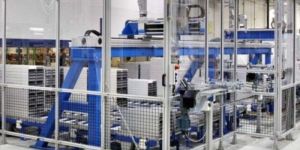

we offer premium aluminum safety fencing solutions designed to provide optimal protection and durability. Ideal for a wide range of industrial applications, our aluminum safety fencing ensures that your workspace remains secure and compliant with safety regulations.
