Natraj Insulation Alkapuri, Vadodara, Gujarat

We are offering reusable insulation jackets for turbines & equipments.

Brand Name : JARTAN

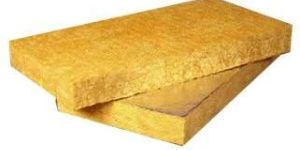

NATARAJ INSULATION is a prominent name in the arena of Manufacturing and Supplying Resin Bonded Slabs that can be used at continuous operating temperatures of up to 850ºC. Our Resin Bonded Slabs are available in rigid and semi rigid slabs that are known for their Non-combustible Class I Fire Index quality. Features : Rot-proof Odorless Does not sustain vermin Does not encourage the growth of fungi, mould or bacteria Does not settle under vibration Dimensionally stable under varying conditions of temperature and humidity Applications : Domestic appliances Structural uses Industries Specifications : Size Density.(kg/m3) Thickness (mm) 1000 x 500 mm 48 - 40 50 75 100 - 64 25 40 50 75 100 - 96 25 40 50 75 100

Application : Insulation of flat or slightly curved surfaces,Kitchen Top, Flooring

Densities : 48, 64

Form : Slab

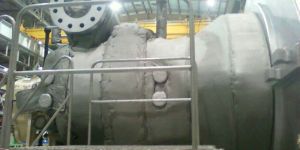

These are reusable type insulation jackets-ijt for turbines and equipments.

Brand Name : JARTAN

NATARAJ INSULATION offers Removable Insulation Jacket that is ideal to be used as insulation blankets for Pipes, Barrels, Steam traps, heat exchangers, flex , valves, flanges, elbows and strainers. Our range of Removable Insulation Jacket proves to an effective way to save energy if it is used on the parts of hot piping and steam lines which the permanent insulators leave open. Workforce Safety : Asbestos Free Non Flammable Reduces Ambient Temperatures Can reduce temperatures as high as 600ºC to tolerable. Maintenance and Inspection Savings : Specifically designed for easy maintenance and inspection Can be removed and re-installed in minutes Can be handled even with inexperienced personnel Reusable No need for new insulation every time

Application : Industrial Use

Feature : Attractive Designs, Comfortable, Comfortable And Soft, Easy Washable, Inner Pockets, Quick Dry, Skin-Friendly, Waterproof

Technics : Attractive Pattern

Fabric : Insulation Jacket

Opening Style : Zipper

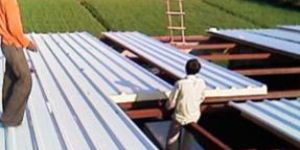

NATARAJ INSULATION is one of the leading Manufacturers and Service Providers of Polyurethane Coating System that is especially designed for significant energy savings. Generally the finish coating on a urethane system is bright white to obtain the best Reflect ability factor; however there are several different finish colors to choose from. Ideal for : Surfaces with sky lights A/c condensing unit Various types of roof mounted equipment How it works? The Polyurethane Foam or "PUF" System is spray applied as a hot liquid that actually bonds with the surface it's being sprayed to. The urethane expands and hardens after it's been sprayed down giving you a completely seamless surface. The urethane is then coated with at least two layers of electrometric coating to protect it from the ultra-violet rays of the sun. Surfaces it can be Applied to : BUR Metal Tiles Advantages : Stops leaks Provides insulation value Eliminating the need for costly removal Self flashing

Number Of Flower : Foam

Feature : Anti Bacterial, Anti Wrinkle, Existable, Flexible, High Strength, Light Weight, Long Lasting, Soft Structure

Our range of Thermal & Acoustic Insulation Roll is a reflective insulation material that is available in Roll form. The surface of our Insulation Roll is coated with Aluminum foil for giving maximum low admittance and high Reflectance. The use of aluminum foil in our Insulation Roll also gives it mechanical strength. Features : Easy to install Maintenance free Aim to save energy User friendly and cost effective Non Toxic Aims to block 97% of radiation heat Aim to last for many yrs (not affected by water or humidity) Durable and water resistance Designed for Hot and Humid climate

Thickness : 1-3 mm

Packaging Type : Yelow

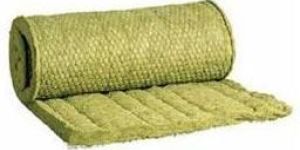

NATARAJ INSULATION Manufactures and Supplies Insulation Mattress that is LRB wired mattresses conforming to IS 8183, ASTM C - 553, C - 592 and BS- 3958 part 3. Our range of Insulation Mattress has service temperature as high as 750° C when tested in accordance with IS 8183. Fire-Safety : Non-combustible when tested in accordance with BS - 476 part - 4 and ASTM E � 136 Class1 when tested in accordance with BS - 476 parts 7, (ASTM E- 84) Facing : LRB wired mattresses available with wired mesh on one or both sides in SS or GI. Moisture : On-hygroscopic Non-capillary Does not absorb any moisture from the air Moisture has no effect on the stability of the mattresses Packing : LRB mattresses packed in HDPE bags Used in : Thermal insulation of large vessels, boilers, small machinery, equipment, ducts, flanges, valves Plants operating at high temperatures Specifications : Size Density.(kg/m3) Thickness (mm) 1220 x 1650 mm. 100 25 40 50 65 75 100 - 120 25 40 50 65 75 100 - 150 25 40 50 65 75 100

Size : 72x36inch, 75x37inch

Thickness : 0-2inch, 2-4inch

Application : Bed Mattress, Home Use, Hotel Use

Pattern : Plain

Total Carbohydrate : 5years
