Purification System Dealers in Vadodara

We are a quality-oriented Manufacturer, Supplier and Exporter of Biogas Purification System. Biogas Purification System is fully automatic and offers low capital & running cost. Biogas Purification System does not require fuel to run.   Working Principle As raw gas enter in through composite bed of twin tower PSA module packed with special grade molecular sieves and activated alumina, which has a 5+5 minute time cycle. One tower is switched on to adsorption while the other is simultaneously regenerated by Vacuumed Pump. The cycle is repeated from tower which is in adsorption is now comes in regeneration and tower which is in regeneration which comes in adsorption and continuous Product Bio Gas will come out from the system.   The entire operation, which is totally automatic, is controlled by a sequence programmer and quick change over valves. Bio gas of purity CH4 95 to 97% and CO2 Percentage 3 to 5 % & H2S approximately nil or traces level at 3000mmWc pressure. The produced by the PSA unit and it flows to a surge vessel to balance the fluctuations in pressure and concentration.   Details Capacity : 10Nm3/hr to 500Nm3/hr Purity :  CH4 :   97%   CO2 :  3% & H2S :  Nil. Pressure : Up to 200 Bar with Booster

We design and develop Helium Purification System with VPSA/TSA technology for high purity Helium. Helium recovery is around 90-95% . We can also design and develop the Helium separation system for your feeds/mixtures of gases. Please contact our engineers/ expertise. Membrane Gas generators We do supply Membrane type Nitrogen, Oxygen and Hydrogen generators for compact and lab scale application. SF6 gas filling station, compact UnitFilling, recovery, and purification of SF6 gas from tanks, ideally suited up to 69 kV (25 kg SF6 gas) or for the laboratories having high voltage Electron gun set ups. This provides highest gas recovery in this type of units (up to 98%). This unit provides complete array of filling and evacuation services for SF6 equipment. This cart is ideally suited for servicing small volume SF6 equipment and consolidating partially used SF6 bottles. The flow rate is around 100mg/min. On-board vacuum pump evacuates equipment to less than1.3 mbar / 1 Torr and features a special valve preventing gas path reversal. Also additional storage capacity can be provided with unit.

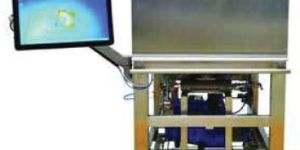

Three buffer inlets. One inlet can be used to feed sample. All of valve is membrane valves. The inlet line can be added by customer’s requirements. Display and record the flow rate of system. One is in main flow path, the other one is in branch flow path. One automated bubble trap equipped with by!pass, purge. One specific block of 5 membrane valves to ensure by!pass and backflush functionality.

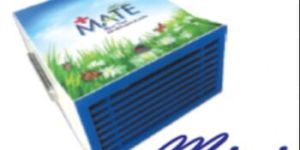

Air Purification Syste
