Reva Pharma Machinery Makarpura, Vadodara, Gujarat

GMP Model For accurate filling of variety of liquids into vials, bottles, canes or any odd container Three different speeds can be obtained as 8, 16 & 24 strokes per/min. S.S. syringes of any size on either side can be easily fitted on the machine Two Bottles guides and nozzles with adjustable are provided Motor : 0.5 H.P., 440 Volts S.S. 316 SYRINGES for above machine as per your Requirements (optional)

The machine is suitable for sifting the granules and powder. The machine is provided with a stainless steel screen. The screen frame is made out of S.S.316 qlty. The screen frame is made out of S.S.316 qlty. The unit is supplied complete with one S.S. sieve of any mesh. (To be specified while ordering) All contact parts are made out of S.S. 316 quality and M.S. body covered by S.S. 304 Sheet. Stainless Steel parts polished as matt finish. Complete unit as per our standard. Size: 20" Dia., 30" Dia.

Also called Scramble / Unscramble or Accumulator GMP Model 5 to 10 RPM 0.5 HP 440 volts Motor Speed Variation by AC Drive (optional)

Multi - Directional Motion Mixer is a novel material mixer extensively used in Pharmaceutical, Chemical, Metallurgical food. Light and Agricultural industries. This machine can carry out highly even mixing of powders of granules. So that the mixed material can reach their best effectiveness. The Mixing Barrel is supported by the driving and driven shafts which are crossed in space and also vertical to each other. And are respectively connected by Y-type universal joint. So that the Mixing Barrel makes unique translational, turning, roking and rolling motions in a solid 3-dimensional space. Thereby speeds up the flow and diffusion of the materials being mixed. While avoid the specific gravity segregation of materials due to the action of centrifugal force in an ordinary mixer. And ensures the materials to reach an ideal mixing within a short time.

GMP Model Hand Operated / Motorized Suitable to fill tubes and cones 0.5 HP 440 volts Motor 5 gm 90 gm per stroke

TUBE CRIMPING MACHINE - Hand Operated (STD. MODEL) STD Model Hand Operated The unit is suitable for closing and embossing the ends of the tube while also making the batch numbers and manufacturing dates etc. Tube size ⅜” to 1½” Dia

GMP Model Suitable for grinding ointment, paste, paints, and printer’s Ink etc Output 35 kegs. Approximately The roller size 86mm Dia. x 300 mm long. S.S.316 M.S. stand cladded by S.S. 304 sheet 1.5 HP 440 volts Motor

    Transfer Pump (Centrifugal Type)   GMP Model   Size   :   1" X 1" N.B. Motor   :   2.0 H.P., 440 volts connected with pump directly by coupling Shaft Seal   :   Mechanical seal TC to TC Output   :   2500 Liters/hr Pressure   :   20-PSI approx

GMP Model S.S. 316 Quality Top Loose Lid S.S. Pipe Legs with Castor Wheels for making vessel mobile unit Mirror finish from Inside Matt Finish from Outside Available in 50 Liters to 2000 Liters Capacity

Capacity : 50-2000 L

Material : Stainless Steel

Industrial model Motorized incorporating rotating, threading, sealing rollers, two rollers type, one for sealing other for threading with 22 dia., 25 Dia. and 28 Dia. cap size socket. Machine for sealing of 22 mm to 38 mm cap size The machine works on 0.5 H.P. 440 volt motor drive with Acrylic Shield, Belt Guard, 'V' Belt pulley and ON-OFF Switch. All M.S. parts are Chrome plated and body cladded by S.S. 304 sheet. Foot Paddle Model   :  Bottle lifted by operator with foot Base Lifting Model   :   Bottle lifted by came mechanism. Semi Automatic Model   :   Sealing head up & down mechanism.

GMP Model S.S. 316 Quality suitable for filtration of sterile liquids TWO silicon gaskets & support screen Size: 142 & 293 model With bubble test arrangement

The star-wheel moves ' P.V.C. Flip Off Cap ' to the direction of Chute No.1 that dispatches Aluminum Cap downward to Star-wheel. That rides on the previously come P.V.C. Flip Off Cap' and the couple is moved by star-wheel to the hammering head that presses both caps and centre dot of 'P.V.C. Flip Off Cap' affixes into the centre hole of Aluminum Cap and is moved to heating & sealing punch that melts & seals the centre dot of' P.V.C. Flip Off Cap '.

We are the leading manufacturers, exporters and supplier of this products.

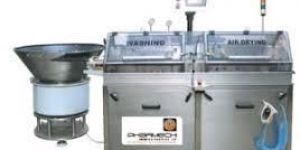

Capacity : 5000 or 10000 bungs for 20 mm Size

Material : Stainless Steel

Pressure : 8 Cfm

Material Grade : SS304

Designed to clean vials, bottles or similar containers by subjecting each to series of distinct processing operation. Independent line connections for various processing systems are provided. The machine is also equipped with the additional connection for washing or rinsing the outside of the container. The diving mechanism is arranged in the bottom part and is provided with a Geneva Mechanism. The rotation speed in one round per minute with capacity to wash 100 vials per minute. Maximum dia of vial 50 mm. It is provided with individual solenoid valves for each Wash controlled by a panel board. The machine is provided with five stations including one for spraying on top of the bottle for outside cleaning depending on requirement of the client. The remaining four stations can be connected to jets of detergent, steam / hot water, distilled D.I. Water and air. The machine works on A.C. 440 Volts, 0.5 H.P. 3 phase motor. The machine is supplied with two tanks of S.S. 316 qlty.75 Ltrs. each, one for detergent and other for hot water, fitted with thermostatically controlled 6 K.W. heater and other for fresh water/D.M. water provided with S.S. float. The machine is fitted with higher capacity. Centrifugal Pumps (2 Nos.) with 1 H.P. Motor for sufficient water and pressure required to wash bigger sized bottles. The specially designed cups are provided on the platform to accommodate any size of bottle from 100 ml. to 500 ml. All contact parts are made out of S.S. 316 Quality and body cladded with S.S. 304, 18 Gauge sheet. Stainless Steel parts polished as matt finish by 120 grit. The machine requires two operators, one for loading the vials and the other for unloading.

Single Head / Four Head GMP Model Output : 40-90 Bottles per Minute (Depending on Bottle Size) Capping Attachment for PVC Cap (optional) Speed Variation by AC Drive (optional)

GMP Model Suitable to mix dry wet material Capacity: 50, 100, 150, 200 kg. Uniform Mixing Drum tilt able by hand All contact parts are made out of S.S. 316 quality and Body cladded with S.S. 304 sheet

GMP Model Double walled construction, inner & outer made out of S. S. 316 / 304 sheet 2" Thick fibber glass insulation A manually operated Damper is provided Temperature up to 150°c. Tray Size: 32”L. x 16”W. x 1¼”H. S. S. TRAYS Size: 32" x 16" x 1 1/4" height.

GMP Model Suitable for mechanical mixing of ointments, dry powder or wet hard mass etc. The unit is provided with stainless steel bowl of suitable capacity with Stainless Steel slow speed mixing stirrer/beater having twin speed (i.e. the stirrer shaft will be moving on its axis as well as it will be rotating round the bowl) for giving efficient mixing The bowl is provided with castor wheels for easy handling The machine works on 2 speed 440 volt motor with reduction gear fitted with V' belt pulley drive to give bellow mentioned RPM Contact Parts are made out of S.S. 316 Quality

GMP Model 9” PVC Endless Belt Motor : 1 H.P., 440 Volts Table Size: 12'-0” long x 2’-9” wide x 2’-6” height. S.S. 304 S.S. 304 Pipe Stand Speed Variation by AC Drive (optional)

GMP Model suitable for dry granulation Oscillating / Vertical Capacity 200 kg/hr for Dry Granules Capacity 30 to 50 kg/hr for Wet Granules 1.5 HP 440 volts Motor All contact parts are made out of S.S. 316 quality and Body cladded with S.S. 304 sheet

GMP Model Jacketed Vessel S.S. 316 Anchor Type Mixing Stirrer S.S. 316 M.S. stand cladded by S.S. 304 sheet

GMP Model Multi-Mill is useful for various purposes like granulation, shredding, pulverization etc Capacity 200 kg/hr for Dry Granules 3.0 HP 440 volts Motor The rotor has 12 Nos. swinging type knife-blades and 2 Nos. scraper-blades All contact parts are made out of S.S. 316 quality and Body cladded with S.S. 304 sheet Speed Variation by AC Drive (optional)

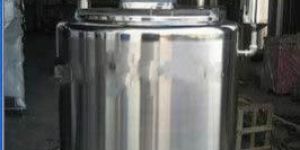

GMP Model Cylindrical with slop bottom Inner Vessel   :   16 Gauge S.S. 316 Sheet Outer Jacket   :   10 Gauge M.S. Sheet Insulation   :   40 m.m. thick Fiber Glass Insulation with S.S. 20 Gauge Sheet Cover Lid   :   Loosed Lid 18 Gauge S.S. 304 Sheet Heater   :   Water Heater with Thermostat Controller, Contactor and Indicating Lamp Connections   :   Side outlet Ball valve, Jacketed provided with water inlet drain, air vent etc. on Jacket. Vessel mounting on four S.S. legs with Castor Wheel to make unit movable
