Sealing System Corporation Sultanpura, Vadodara, Gujarat

Body : CI  /WCB / SS-304 / SS-316 Disc    : DI / SS-304 / SS-316 Seat   :  Nitrile / EPDM / PTFE          Mountings : Suitable to mount in between flanges. Pressure Rating : PN 16 / Class # 150 Manufacturing Std : API 6D Leakage : 100% Tight Shut off. Class VI Leakage. Size : 25 MM to 1000 MM

Super finished anodized aluminum square tube & Polyurethane rod seal ensure Long & trouble free life, Cylinder in Compact & Streamlined construction with range of mountings.

  Type   : ‘Y’ Type / Pot Type and ‘T’ Type Body  : CI / CS / Brass Screen : SS- 304 Ends     : Screwed / Flanged Pressure : PN 10 Size : 15MM to 200MM

These modular spool valves are sturdy in construction and are time tested for their wide Applications and ruggedness, Subbase type gang manifolding available.

Solenoid Valves are offered to change position of the Actuator. According to application and requirements, these valves can have below options.   Mounted directly on Actuator / Separate Mountings 5/2 , 3/2, 5/3 Valves can be supplied as per application Valves can be supplied with Single / Double Coil. Standard Coil Protection IP:67 / Explosion Prof Optional Coil Voltage 230 VAC / 110VAC / 24 VDC Manual Over ride as Standard.

  Body : CI to IS: 210 FG: 200/ 220 Trim: 13% Cr / SS -304 Design: OS&Y type, Bolted Bonnet Type : Rising Stem / Non – Rising Stem Pressure Rating : PN 10 / PN 16 Manufacturing Std : IS: 780 / IS:14846 End Connection : Flanged Ends Size : 50 MM to 500 MM

  Body : CI to IS: 210 FG: 200/ 220 Trim : 13% Cr / SS -304 Design : Bolted Bonnet Pressure Rating : PN 10 / PN 16 Manufacturing Std : IS: 5312 End Connection : Flanged Ends Size : 50 MM to 500 MM

We have three ware houses in Baroda to maintain sufficient inventory to serve regular requirement of our valued customers. Our company has been patronized by leading industries for their requirement of above products.

Application : Water, Compressed Air, HVAC, etc Maximum Inlet Pressure : 25kg/Sqcm Out Let Pressure : 0.5 to 7 kg/sqcm Mounting  : Horizontal / Vertical / Oblique Maximum Temperature : 130 Degree Centigrade Pressure Gauge : 1/4” Port Connection Size : 15MM to 50MM

  Positioner Cylinder has capability to achieve any intermediate position of pneumatic Cylinder depending on input signal given to the positioner. Positioner cylinders are Available with bore dia between 40mm to 200mm and 1-1/2” to 14” and upto 1000 mm Stroke   Following 3 basic models are available with different accessories:   Pneumatic Positioner : Model SDPP1200R Electro Pneumatic Positioner : Model SDEP100R Smart positioner : Model SDSP 2300R (Electronic with HART Protocol)   Schrader Positioners are   Compact with sleek feed back mechanism & mounting Works effectively under demanding environmental conditions. Economical due to low air consumption Available with positioner transmitter, limit switches, lock-up valves etc.   For details, following data sheets are available:- Pneumatic Positioner                      : PMA-06 Electro pneumatic Positioner          : PMA -07 Smart Positioner                            : PMA-08

These Poppet valves are designed to give long & trouble free services under the most Arduous conditions.The design of face sealing on poppet makes the valve “Self Cleaning” under Adverse air conditions, Long life of seals achieved by metal to metal contact during traverse and metal to rubber contact for face sealing.

Compact and beautiful design Mini-type aluminum die-casting cover and housing Standard Weather Proof Housing and Explosion Proof available as optional."Quick-Set" cam with spring loaded splinted cam, no need to adjust again after initial setting and easy setting without tool.

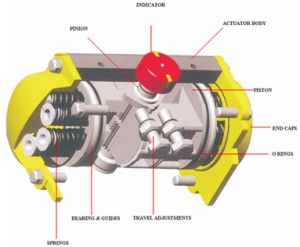

‘Flowell’ offers complete range of Double Acting and fail safe Single Acting Spring Return Actuators. These can be used for automation of quarter turn valves such as Ball, Butterfly, Plug Valves, dampers and other parts requiring 90 Degree Actuation.   Rack & Pinion Design with Anti Blow out Proof Pinion Both Double Acting and Spring Return Fail Safe Actuator available. Hard Anodised Aluminum Body. Pinion Made of Nickle plated alloy steel. Trouble Free Life for more than 5,00,000 Operations Double acting can be converted to Single Acting by just adding Springs. Actuator Factory Lubricated for Normal Life. Actuator Sizing for Inlet Air Supply from 2.5 Bar to 8 Bar. Standard Temperature Range -20 oC to 80 oC. Can also be supplied with Viton Seals for temperature 150oC Namur Mountings for mounting of Solenoid Valve, Limit Switch ISO Drilling Suitable for Direct Mounting on ISO Pad CCW As shown in the Figure CCW the compressed air is given from the Port A, the left and right plungers move reversely, the output pinion rotates counter-clockwise, and the air at the sides of the both plungers exhausts from B.   CW As shown in the Figure CCW the compressed air is given from the Port B, the left and right plungers move to the center, the output pinion rotates clockwise, and the air between the two plungers exhausts from A.   2. Travel Adjustment Have adjustment range of ±5°for the rotation at 0°and 90°

  Low investments, compatibility with other automation technologies such as P.L.C.s, Simple maintenance demands, inexhaustible air as its working medium are some of The unique features of a Pneumatic Automation System, making it the ready choice In a wide variety of automation needs, be it textile machinery, machine tools, Packaging & printing machines, assembly lines, material handling etc. Pneumatic System provides a range of automation, offering enormous saving in time, energy and costs   For several decades Schrader has been engaged in offering Pneumatic Systems for a Wide section of the industry. Equipped with a highly qualified and experienced team And computer aided design tools; we undertake to provide automation solutions from Design to execution   Some of our notable projects are: Valve stands for steel mills. Systems for tyre processing machinery Material Handling systems Collating and Packaging systems. Machine tool automation Liquid and solid filling and packing equipment Animation models Education and training  kit Customised products.

Meets VDMA 24562 and ISO 6431 Standard specifications. Available in 32, 40, 50, 63, 80 & 100 bore Dia Cylinder in Compact & Streamlined construction with range of mountings. Option of reed switch design also available. Super finished anodized aluminum square tube & Polyurethane rod seal ensure Long & trouble free life For details, following data sheets are available   VDMA/ISO Square tube Cyl (DA): PMC-21 Magnetic Reed Switches : PMA-13 VDMA/ISO Square tube reed switch Cyl : PMC-22

For details, following data sheet is available Banjo Flow Control Valve – PMA-02 In-Line Flow Control Valve – PMA-03

  Body : SS-304 / SS-316 Disc    : SS-304 / SS-316 Seat   :  Metal to Metal           Mountings : Suitable to mount in between flanges. Pressure Rating : PN 16 / PN 25 / PN 40 Size : 15 MM to 50 MM

  Body : SS-304 / SS-316 Pressure Rating : 1000psig / 6000psig Ends : Screwed Female / Male Ends. Size : 6MM to 25MM

These modular spool valves are sturdy in construction and are time tested for their wide Applications and ruggedness, Available in 52 & 53 Versions.

Compact and beautiful design Mini-type aluminum die-casting cover and housing Standard Weather Proof Housing and Explosion Proof available as optional. "Quick-Set" cam with spring loaded splinted cam, no need to adjust again after initial setting and easy setting without tool. Multipoint terminal strip Standard 8 points and enough strips for connection. Dual cable entries 2xG1/2 (Standard); 2-M20x1.5 or 2x1/2NPT(Option).  Captive cover bolts. No worry to loose bolts while cover opens. Easy mounting NAMUR standard steel shaft and bracket.

Knife Gate Valve operated with with Double Acting Spring Return Fail Safe Linear Actuator, Solenoid Valve, Limit Switch.
