PatternStraight Type / Right Angle / Standard Pattern
DiscRenewable Disc
OperatorHand Wheel Operated
Body (MOC)Bronze (Gun Metal) / Forged Brass / Cast Iron
Pressure RatingPN-10 / PN-16
IBR / Non-IBRIBR & Non-IBR Both Available
Dimension StandardBS 5152 (DIN 86251)
End ConnectionScrewed end / Flanged end
Stop valve is any sort of valve type that completely stops the flow of liquid flow through a pipe. Stop valves is mainly used in plumbing or industrial applications to shut off the flow of (hot or cold) water to a plumbing fixture, such as an icemaker, toilet, faucet, dishwasher etc.

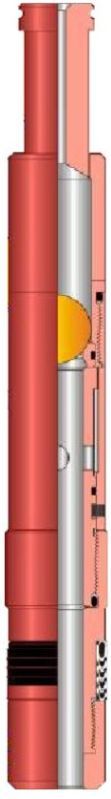

The Max MFB 2 Standing Valve is designed for use with 'MF' Landing Nipples and 'ML' Sliding Sleeves. It holds pressure from above only and is seated on the top of a 'MF' Nipple Profile. The valve can be equalized before retrieval by shifting open the Equalizing Mandrel Ports.Key Features:
Used with: 'MF' Nipples and 'ML' Sliding Sleeves
Top NoGo profile for secure seating
Equalizing Mandrel Ports for pressure equalization
Compatible with standard pulling tools
Advantages:
Ensures reliable pressure retention in highpressure environments
Allows equalization before retrieval
Easy to retrieve with standard pulling tools
Applications:
Used as a plug for tubing pressure testing
Ideal for gas lift operations and setting hydraulic packers
Suitable for ESP installations
