Swastik Tar Industries Nandesari, Vadodara, Gujarat

We are recognized as one of the eminent Manufacturers and Suppliers of Bitumen Felt Roll in the country. Our Bitumen Felt Roll are made of the finest grade material that assures longevity. Made as per the IS: 1322: 1993. Our tough Bitumen Felt Roll offers maximum performance for a longer period of time. In conformation with the IS standard, we also customize Bitumen Felt Roll in varied dimensions and weight as per the customers requirement. We are manufacture of Swastik ISI Felt Roll as per IS: 1322: 1993 Salient Features : Tough Durable Cost effective Less prone to damage Coated with unusual Bituminous Compound Uses: Terraces and Basements Water-proofing Damp-proofing of roofs Weight : 46 kgs Size : 1mtr x 20 mtr Available In : Rolls with dimensions : 1 x 20 meter Each Felt (ISI Grade): 46kgs Each Felt (Std. grade) : 34kgs (approx) Also Available with dimensions in 1 x 15 meter : 21 kg (approx)

Country of Origin : India

Swastik Pipe Wrapping Tape is a hot applied bituminous tape for corrosion protection as per IS: 10221, it is specially formulated corrosion resistant bitumen compound provides high penetration and high resistance to ageing. Swastik Pipe Wrapping Tape comprises of high tensile strength thermo-fusible HMHDPE film on both the sides. 2 mm Pipe Wrapping Tape is five layer without fiber glass inner core, whereas, 3 / 4 mm thick Pipe Wrapping Tape is seven layer tape with two inner cores; top core is of tough 45 gsm fiber glass and the bottom core is of 15 micron high tensile strength HMHDPE.   APPLICATION : Coating material for drinking water pipelines, fire fighting pipelines, raw water pipelines in thermal plants etc. Applied on buried and immersed pipes, fittings and appurtenances to protect them from high corrosive environment   ADVANTAGES : Coating material for drinking water pipelines, fire fighting pipelines, raw water pipelines in thermal plants etc. Applied on buried and immersed pipes, fittings and appurtenances to protect them from high corrosive environment Application   APPLICATION METHODLOGY : Remove dust, flakes, oil, grease or other loose foreign particles by blasting, wire brush or compressed air. Leave 200 mm from pipe ends for welding joints. Coat and wrap such left over part of pipe at site after welding and hydro testing. Apply Primer on cleaned surface at 0.30 L/m2 to get DFT of 30 microns. • Allow the primed surface to touch dry, which may take 5 - 15 minutes. show the flame of butane gas torch on to the surfaces till it becomes glossy-smooth. Apply SWASTIK PIPE WRAPPING TAPE on the primed surface. Provide overlap of 25 mm between two adjoining layers.  Wrap spirally and apply sufficient tension to ensure good adhesion and avoid pockets and bridging to meet holiday detection requirement. Tape joint shall face downward on outside of lap joint. Complete necessary welding and testing of the joint before coating. Recommend to apply at the time of pipe erection and lowering inside trenches to avoid any damage.   HEALTH AND SAFETY : Use goggles and hand gloves during application  Clean hands with warm water after application.   STORAGE : Keep under shed away from heat. Do not stack more than three rolls in one column.

Packaging Type : Corrugated Box

Form : Liquid

Uses : Asbestos

Expansion Joint Filler Board is a soft fiber board impregnated with bituminous material to render it durable and water proof. It is compressible and possesses high degree of recovery after compression load is released, thereby ensuring that no free space exist in between joint space. Expansion Joint Filler Board is manufactured as per IS-1838:1961 standards.   Salient Features : Contain bituminous material High degree of recovery after compression Made up of soft fiber Durable Water proof Cost effective   Size : 4 x 4 boards of length x breadth: 1.22mtr x 1.22mtr (1.49 sq. meter)   Available In (Thickness) : 12mm 18 mm 25 mm   Used As Concert Board In : Roads Runways Buildings Bridges Decks Canals

Country of Origin : 220V

Bitumen Primer that is manufactured using superior quality basic bitumen both steam refined and air blown. Moreover, these Bitumen primers can easily be diluted with water for various other applications. Bitumen kote emulsions are stable clay emulsions produced from a wide range of basic bitumen, both steam-refined and air blown. They have no common characteristic of smoothly and creamy consistency. They can be diluted easily with water to any consistency required for applications.   Features : Crack proof, Durable & Quick Dry.   Variety : Water based primer (Kote) Oil based primer   Uses : Protecting boiler insulations Water proofing of roofs Protecting against corrosion Protects vibration in vehicles Insulation binder Undercoating on the asbestos, cement, concrete and on the walls before making the finishing coats.   Packing : 20 kgs ( tin) & 200 kgs ( drum)   Send your Enquiry on : swastiktarinds@yahoo.co.in

Packaging Type : Can

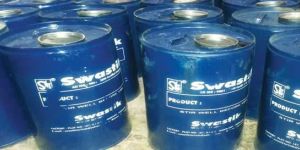

Bitumen Plast is a cold applied bituminous with mineral fillers in volatile solvent to retain its plasticity. It is ideal for use in conditions where a certain degree of expansions, contractions and vibrations are expected. It is Uses for application on vertical or sloping surfaces for caulking purpose.   Uses : Road Construction maintenance Manufacturing of Dry Batteries Manufacturing of paints Cold Storage Houses   Packing : 20 kgs (tin) & 200 kgs (drums)   Send your Enquiry on: swastiktarinds@yahoo.co.in

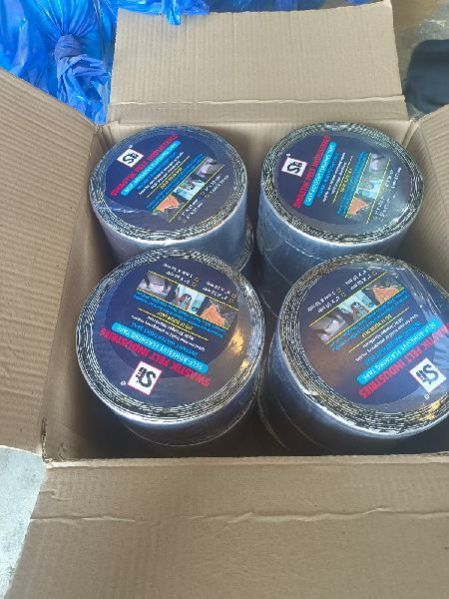

Bitumen Based Flashing Tapes / Strip are cold applied self- adhesive tapes with one side bitumen adhesive protected by release film and other side is re-enforced aluminium foil. Aluminium surfaced self adhesive sealing bitumen strip which bonds instantly to provide a permanent watertight seal in all climates. Flashing tape is easily applied using hand pressure and steam roller, with no requirement for special equipment for cutting, forming or fixing.   FEATURES : Superior high temperature performance characteristics Quick and easy application Bonds to a wide range of building materials Cost effective method of flashing, sealing and repair Provides lasting protection in all climates Safe in application, storage and transport   USAGE : Flash Tape is used for flashing, sealing and repair against ingress of water for mobile homes, small commercial roofs, residential porches and dormers, from building, roof and gutter patching and on profile sheets. It can also be used as flashing on up stands   APPLICATION INSTRUCTION : The application temperature should be between 5°C to 55°C. Application procedure may vary slightly depending upon site condition. The general recommended guideline for the application of the self adhesive waterproofing system is as follows:   SURFACE PREPARATION : Surface must be smooth, clean, and free from oil/grease and defects. Gaps, deep hallows and depression greater than 3mm should be filled with an appropriate filler For improved adhesion on porous or uneven surfaces, apply Swastik Oil Base Primer. Using a dampened brush, apply Swastik Oil Base Primer Do not leave the Swastik Oil Base Primer for more than 24 hrs. Prime only the area which will be covered by the membrane in a particular working day Surfaces such as textured brick may require two coats, apply the second coat when the first coat has dried   METHOD OF APPLICATION : Unroll only the required length and cut the pieces to the desired shapes and size. Place the pieces of membrane on the area to be covered and check whether they match profile of the marked substrate. Peel off the release film from the self adhesive side and start unrolling the membrane and press it to the surface. Smoothen the membrane from the center to the edges with a wooden press in order to remove any entrapped air. Further more on iron roller can be used for rolling on top of the applied membrane to ensure a proper and strong adhesion of the bitumen compound with the base surface ensure a minimum of 50mm overlap.   PACKAGING : Roll Length : 10 Meter Roll Width : 50mm,100mm,150mm,200mm (2”Inch, 4”Inch, 6”Inch & 1 Meter Thickness : 1.2mm, 1.5mm.   STORAGE & SHELF LIFE : Stored under cover, out of direct sunlight and protect from extreme temperature. In tropical climates the product must be stored in an air-condition environment. Shelf life is up to 12months when stored as per recommended storage condition.   HEALTH & SAFETY : FLASH TAPE contain sticky compound and can stick to human skin. In such cases use a soft cloth dipped in a suitable cleaner to remove the membrane.

Design : Plain

Hessian Based Bitumen Felt Roll is made of the finest grade material that assures longevity. Made as per the IS: 1322:1993. Our tough Bitumen Felt Roll offers maximum performance for a longer period of time. In conformation with the IS standard, we also customize Bitumen Felt Roll in varied dimensions and weight as per the customers requirement.   We are manufacture of Swastik ISI Felt Roll as per IS: 1322: 1993    Salient Features : Tough Durable Cost effective Less prone to damage Coated with unusual Bituminous Compound   Uses : Terraces and Basements Water-proofing Damp-proofing of roofs Weight : 46 kgs Size : 1mtr x 20 mtr   Available In : Rolls with dimensions : 1 x 20 meter Each Felt (ISI Grade): 46kgs

Number Of Flower : Waterproofing And Damp-proofing Material

Material : Hessian Based, Coated With Bituminous Compound

Feature : Tough,Durable,Cost Effective,Less Prone To Damage

Packaging Type : Roll

Storage Type : Keep In Dry And Cool Place

Application : Terraces And Basements,Water-proofing,Damp-proofing Of Roofs

Size : 1 Meter X 20 Meters

Bitumen Bond is an adhesive of semi-liquid consistency, creamy in appearance and is ready to use just as it comes in the container. It is recommended for sticking roofing felts on metal, timber, tiles, asbestos and concrete masonry surfaces. It is ideally suited for sticking waterproofing felts to roofs of buses, railway carriages etc.   Description  Bitumen Bond is a rubber based Bituminous Adhesive of brushable consistency.   Uses : Can use in all weather condition Repairs on roads, motor ways, bridges, pavements Easy and environmentally friendly repairs   Application  : Bitumen Bond is recommended for the fixing of expanded/extruded Polystyrene, insulex soft boards and fibre glass insulation slabs for all type of structures where bituminous adhesive is acceptable.  It may be used to stick insulation sheets on to concrete, timber, metal or other insulation sheets.  It is particularly suitable for use in cold storage to ensure good adhesion to walls and ceilings and may also be used for sticking thermocole for insulation of refrigeration pipe work site.    Health & Safety : Bitumen Bond is a non toxic rubber based bituminous adhesive.  Not harmful if inhaled.  Use goggles and hand gloves during application.  Clean hands with warm soap water after application   Packing : Available in 20 Ltr (Tin) & 200 Ltr (Drum)   Send your Enquiry on : swastiktarinds@yahoo.co.in

Form : Liquid

Swastik Bitumen Shield is a APP Modified glassfiber reinforced bituminous Membrane sheet for excellent waterproofing application. Itexhibitssuperiortensilestrength,tearstrength,punctureresistanceand dimensionalstability. The torch side of the membrane is covered with polyethylene film for protection of the membrane. Polyethylene Film on top and bottom side of sheet   uses : Can Apply Swastik Bitumen ShieldAPPMembranein horizontal and vertical applications for protection of various substrates like concrete, masonry, GI, aluminum, wood etc. in wide range of uses:       Bridges & Tunnels       SwimmingPools       RoofGardens       Basement Slabs & UGcarparking       Mediumtolargeroofslabsindomestic,commercialandindustrialconstruction etc  Features :       Hightensilestrength,tearandpunctureresistance       High temperatureresistancetocoldandwarmtemperatures       Excellent Flexibility & water tightness       Durable in comparison to conventional lowend   waterproofing systems   Technical Properties: Polyethylene protection film for protection, it consist of a center core of non woven Fiber glass mat for extra mechanical strength. The center core is protected on both sides with Polymeric Asphaltic mix, which has high penetration, high heat resistance and high softening point. With high tensile strength, the membrane is still extremely flexible and pliable to adapt to contours. For this reason this membrane makes an ideal waterproofer.   Sr no Properties Specification 1 Softening Point, ºC, Min 150 2 Penetration @ 25ºC, 100g, 5 sec, dmm 20-35 3 Reinforcement ( > 50 g/m2 ) Fibre Glass Mat 4 Pliability 2 º C to -5 º C Does Not Break 5 Water Absorption, % < 0.15 6 Tensile Strength Lengthwise, N/5 cm Crosswise, N/5 cm   > 350 > 300 7 Elongation Lengthwise, % Crosswise, %   > 20 > 20 8 Tear Strength Lengthwise, N Crosswise, N   > 60 > 80   AlltechnicaldatastatedinthisProductDataSheetarebasedonlaboratorytests.Actualmeasureddatamayvaryduetocircumstancesbeyondourcontroland different testmethods Tolerance:- Thickness:+/- 10%, Longitudinal Tensile Strength: * 150 N/5cm Transversal Tensile Strength: * 150 N/5cm   APPLICATION & SURFACE PREPARATIONS : Application of Swastik Bitumen Shield APPMembraneis fast and easy. Smooth surface with minimum slope is required to apply the membrane. The surface is first cleaned to eliminate all sharp projections. Suitable Swastik OB Primer / Swastik Blown Bitumen is then coated on the surface. Swastik Bitumen Shield APPMembraneis to be unrolled over the surface with torch application (with overlaps of 10cm) and bonded to the substrate. The overlaps are to be sealed by flame torch. Special care is to be taken at singularities such as drains, expansion joints, etc.   Swastik Bitumen Shield APPMembranecan be topped with topping such as cement screed or tiles on accessible roofs with a chicken wire mesh reinforcement. Inaccessible roofs can be topped with a layer of Swastik Blown Bitumen and Aluminium Paint     Packing size Available:         1mm (1 Meter x 20 Meter Roll)       1.5 mm (1 Meter x 20 Meter Roll)                                      2mm (1 Meter x 15 Meter Roll)            3mm (1 Meter x 10 Meter Roll)                           4mm (1 Meter x 10 Meter Roll)

Country of Origin : India

Number Of Flower : App Membrane

Brand Name : SWASTIK BITUMEN SHIELD

Material : Fiberglass

Thickness : 1.5mm 2mm 3mm

Application : Construction Use

Feature : High Strength,Long Life,Waterproof

Condition : Waterproof

Width : 1mtr
