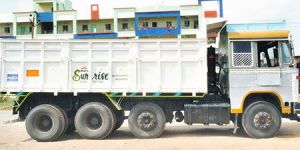

Tata FC Model Tipper Truck
Get Price Quote
Vehicle Model : Tata 3118 FC Model Tipper
•
Volumetric Capacity : 20 cm
•
Overall Dimension of Body : 5700 x 2275 x 1500
•
Tipping Angle : 90 Degree
•
Carrying Material : Stone
•
Side Panels : 4 mm Thick Steel Plate Reinforced by front, rear and intermediate stiffeners With provision of Rock Breakers.
•
Canopy : Full Coverage to the Hoist Of adequate strength.
•
Floor :
• 6 mm thick steel plate reinforced by the cross bearers with body. • The floor plate is reinforced by 5 Nos. 32 x 32 sq. bar • They assist in softening the effect of heavy rocks on the floor • Hence increasing life of the body.
•
Tail Door : 4 mm thick steel, reinforced with intermediate stiffeners.
•
Hoist : HYVA make cylinder - FE 129 P03H106428 or equivalent, oil tank. Air control valve, Necessary hoses and fittings, Body Clamp.
•
Other Features : Ladder pipe, Mud Guard, mud flap, tail lamp guards.
•
Painting : Painted with one coat of zinc chromate primer and two coats of quick drying Enamel paint of Costumer choice.
