Unitech Instruments Sayajigunj, Vadodara, Gujarat

0.8 Inch display size in compact housing. Universal Input TC, RTD, Linear Input selection. Potential Free Relay contact output up to 2 Nos.

The Instrument can be configured to work on Super heated or saturated steam.

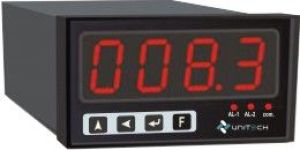

Supplemented with 1, 2, 3, 4 isolated outputs for one input option. AC DC volt, AC DC current, milliamp, millivolt, RTD, Thermocouple, High bright 4 Led seven segments display. in dinrail housing. 1.5 KV 3 Port Isolation. & 0.25% Accuracy of FSD Design make as per requirements of IEC Standards & CE standards 24VDC220VAC110VAC, 4 wire type isolation.

Accepts pulses form of PNP NPN proximity ,encoder, limit switch Programmable multiplication and division factor.(pulsesrevolution) Resolution is of max. 4 digits with auto decimal point switching. Can operate with max frequency up to 25kHz.

Flow Indicator Totaliser UT-1201 is compact and easy to use, designed for monitoring the continuous flow rate and total flow. The flow rate along with engineering units is displayed on the upper line of LCDLED display and the totalised flow is displayed on 810 digits on the second line. The microcontroller based design makes it more flexible and powerful compared to conventional flow totaliser. The unit is suitable for use with any flow transmitter giving pulse or analog current output. The display has floating decimal point position, which is programmable from the front panel. The unit has inbuilt relay outputs for Flow rate and Totaliser of alarm or control application. Unitech flow totaliser are available for liquid and gas duties and are available as field wall mounting or alternatively in an explosion proof housing to the latest international standards and will work with orifice any type of flowmeter. Options include pulse andor 4-20mA retransmission or communications outputs to printers or SCADA control systems.

Fully Auto tune felicity for errors free operations. Universal Input TC, RTD, Linear Input selection. high degree of functionality and reliability at a competitive Price

µP Based Power, full & highly reliable controller. Universal Input (Rtd , tc, 4-20 mA ,0-10 v dc. 46812162024 channel Indicator available. RS-485232 communication is available for option.

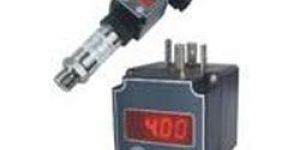

4-20 mA loop current input, 5 digit flow rate and 8 digit Totalizer with nonvolatile RAM,Linear or square root input selection,Weather proof or Flame proof housing, Fully programmable range with decimal point,Loop voltage drop less than volt

4-20 mA loop current input. 810 digit Flow Totaliser with password protected resetting. Liner or Square root input selections with 0.1% Accuracy.

4-20 mA loop current input Fast display update rate and bright LED display. Linear or square root input selection Weather proof or Flame proof housing Fully programmable range with decimal point Loop voltage drop less than 2 volt

IP-55 and IP-65 housing available. Hanging Rackwallpanel mounting options. Universal Input TC, RTD, Linear input selection.

The Instrument can be configured to work on any gas. Calculates Flow rates in NM3Hr. or SM3Hr. – as selected. 810 digit Flow Totaliser with password protected resetting. Weather proof or flame proof housing.

The Instrument can be configured to work on Steam Natural gas or any gas. Accepts up to three inputs– FLOW(mA), PRESSURE(mA), TEMPERATURES ( RTD) Gives efficient Pressure and Temp. Compensations for Mass Flow calculations.

These are Synchronized Digital ClocksStandalone Clocks working on RS-485 ModbusWireless Communication Protocol. The slave clocks (up to 120 Nos.) can be connected to the master clock via a 2 core communication cable in multidrop network & the master clock time is synchronized with all the slaves. All the clocks in the synchronized clock network show the exact right time into the seconds. Time is accurately maintained even in the case of power cut. The master clock is a 1" 2”4” High Super Bright 7 Segment display Panel (Optionally with Wireless or RS-485 Modbus Communication) with 6 displays for Hours, Minutes & seconds. The slave clocks have a 4" high super bright 7 segment red LED Display with exceptional depth & clarity for visibility over a long distance. The slave clocks can be at a maximum distance of upto 1200 mtr (1.2 Km) & yet show accurate synchronized time, same as the master clock. The slaves are also available with Wireless RF Communication as an option.

Full & highly reliable controller. 2 nos Input(4-20 Ma0-10v dc 0 to 2v dc 0- 5v dc)

Advanced embedded micro controller based design Available in panel type, field type, and Flame proof and IP version Automatic Or Manuals Temperature Compensation Multi parameter display by a key press.

FDA 21 CFR part 11 - GAMP-4 compatible. Indicator with inbuilt Temp. + RH measurement in single enclosure. Incorporates highly stable built-in or Remote Temp.+ RH sensor. Process parameter Hi and Low LEDs. Status indi. For both channel. Inbuilt buzzer to audible process value violation.

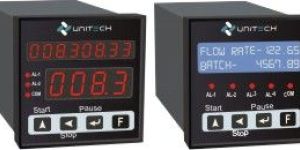

Accepts Universal inputs 4-20 mA or 0-10 V or pulse(2 or 3 wire). Maximum 4 CO on Batch values generated. Liner or Square root input selections with 0.1% Accuracy.

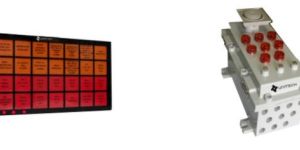

Single chip micro controller technology, Individual legends for each window, replaceable from the front,Potential free contact or 230V AC input optional,Wide range up to 64 windows,Standards operating systems with Test, Accept and Rest keys,Highly communicative serial interface facility (RS 232RS 485), Photo negative or photo positive legends.

Individual legends for each window, replaceable from the front. Potential free contact or 230V AC input optional. Wide range 4681216243240 windows. Standards operating systems with Test, Accept and Rest keys. NONC type of faults selectable at site

Accepts Universal inputs 4-20 mA or 0-10 V or pulse(2 or 3 wire). Non-volatile memory to retain Totaliser flow, Liner or Square root input selections with 0.1% Accuracy. 810 digit Flow Totaliser with password protected resetting.

GEMP-5 21 CFR Part 11 compliance system ServerClient Connectivity Multiple Level of Security for users with access rights & password Audit Trail report and electronic report.

Server base Enterprises solution. Multiple Level of Security for users with access rights & password Flexible System Can add as many monitoring nodes. GSM ,GPRS connectivity base wireless remote data logging.

Microcontroller based Slim & Compact design (22.5 mm width). Different type input like Milliamp, Volt, RTD, Tc. Supplemented with 1, 2, Isolated outputs for one input option. Frequency or load cell inputs available.
