Sharp Techno Products Vapi, Gujarat

Double walled construction fully made of stainless steel. Gap between the two walls is filled with glass wool insulation, provided with S.S shelves. Temperature is controlled by Digital PID controller. Temp range 50°C to 250°C, accuracy +/-2°C..

Mainly used for observing TLC plates and spots the are visible only under UV rays. It can be used to check fluorescent impurities under UV rays. Provided with 3 tubes to be worked on 230 Volt AC only. Special glass is fitted on the viewing window to protect eyes from UV rays. ndividual switches are provided for each tube. Magnetic lock provided on th e doo r. A properly enclosed viewing chamber, which eliminates external light Interference. Body is made of black acrylic plastic, to protect from rusting and other chemical oxidations, also to avoid any electric shock while working inside the chamber. Technical Specification • Wattage : 100 watt • Color : Black • Wavelength of light : 254 nm and 366 nms.

This is made as specified by IP-15, ASTM-D-97-57 & IS 1448-1970. The pour point is the lowest temperature at which the oil will just fall to flow. The apparatus consists of a main cooling bath made of stainless steel sheet and stand unit with drain plug and cover with provision for fitting thermometer and a filling aperture for adding freezing mixture. A glass jar for containing oils, jacket, disc and gasket is standard scope of supply. Technical Specification • MODEL : SM-35US C• TANK SIZE :9" X 6" X 4" ( L X W X H )C• OUTER SIZE : 12" X 9.8" X 11.6" ( L X W X H ) • TANK : SS 304 (16G)• ENCLOSURE :SS 304 (18 / 20 G)• TANK CAPACITY : 3.5 LITER'S• ULTRASONIC POWER : 100 WATTS.• HEATER POWER : 150 WATTS• ULTRASONIC FREQUENCY : 33KHz ± 3Khz.• TIMER : 0 TO 99 MINUTES.• POWER INPUT : 230VAC.• TRANSDUCERS : PZT TYPE BONDED AT THE BOTTOM OF THE TANK(MORGAN UK MAKE )• ULTRASONIC GENERATOR : ADVANCE LATEST MOSFET / IGBT BASED SMPS.• ACCESSORIES : LID, BASKET, POWERCORD• OPTIONAL FEATURES : ALSO AVAILABLE IN SUPERMICRO MODEL(WITH DIGITAL TEMPERATURE CONTROLLER)

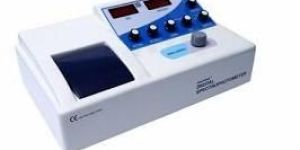

This is the most economical, reliable, rugged and accurate instrument for Microprocessor Visible Spectrophotometer analysis of any concentration. It operates at a wavelength range of 340 nm to 960 nm. The output is available on a 16 x 2 line alphanumeric backlit LCD display in terms of %Transmission (%T), Absorbance (Abs.), Concentration (Conc.) and K Factor. It is the type of Laboratory Spectrophotometer. Other Technical Specifications: • Wavelength Range 340 - 960 nm• Resolution %T: 0.1,• Abs: 0.001,• Conc.: 1• Output %T: 0 - 100,• Abs: 0 - 1.999• Conc.: 0 - 1999• Detector Silicon Photodiode Light Source 6 V, 10 W, Tungsten Halogen Lamp Monochromator 600 line/mm • Diffraction grating Sample Holder 10 mm Glass Cuvettes (50mm & 100mm Optional) • Spectral Bandwidth Less than 5 nm Wavelength Resolution 1 nm• Wavelength Accuracy ± 1 nm • Repeatability ± 2 nm • Display 16 x 2 line alphanumeric backlit LCD display• Operating Temp. Range 5°C - 45°C • Power Supply : 230 VAC• Power 230 V ± 10% AC, 50Hz • Dimensions (L x B x H) 475 x 285 x 130 mm (Approx.) • Weight 8 Kg (Approx.) Accessories Matched Cuvettes: 1 Set, • Operation Manual and Dust Cover

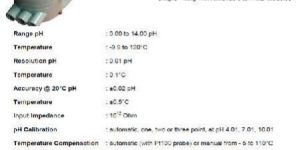

It is a pH electrode with plastic body used to measure pH value of the solution .The sensing bulb is protected by covering the bulb . It can measure from 0-14 pH Value . It has BNC Connector with one meter wire length.

STP-02-b Digital pH Meter is having three point calibration at 4 , 7 pH and 9.2 value. It has auto temperature compensation . It has 9 VDC adaptore. It is bench top model used in laboratory purpose. Technical Specification • pH Range : 0 to 14.00 • Resolution : 0.01 • Accuracy : ±0.02 • Temperature range : 0 to 100°C • Calibration User selectable : Automatic calibration at 4,7,9 pH • Power : 9 VDC Adaptors • Typical Size (l x w x d) : 175 x 75 x 35mm • Weight : 250g   Technical Specification • Electrode stand • Temperature Sensor • pH Electrode • pH Electrode

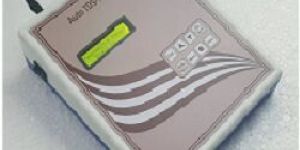

The Micro Controller based Conductivity meter is a portable bench top model for measuring conductivity having facility of automatic temperature compensation using RTD ( Pt100). Technical Specification • Range Selection : Automatic• Range : 0-20,0-200 uS,0-2mS,:0-20mS , 0-200mS• Accuracy : ± 0.5 % FS ± 1 Digit• Resolution : 0.01 uS• Cell Constant : Adjustable ( 0.05-10.5)• Temp. Compensation : Auto / Manual (0-50 0C )• Temp. Coefficient : Adjustable (0.1-4%)• Display : 16 x 2 Alphanumeric• Power Supply : 230 VAC   Accessory • Electrode stand• Conductivity sensor • Temperature Sensor

Top plate is made of cast iron/S.S and rest casing of G.I sheet powder coated.

Hot Air Oven is laboratory tools used for various application. Basic principle of the hot air oven is that the fresh air from the outside is blown trough the hot wire or heated metal or ceramic material . The air gets heated and enter into the insulated chamber . The design of the hot air released area is in such a way that the hot air can reach to the every corner of the air oven . During this process, the oxygen from air touches the hot filament and it oxidizes the red hot wire . The wire resistance changes . At the end the heater gets break . Our design of hot air oven is designed to handle even this type of the environment. Technical Specification • Ovens are double walled. • Inner chamber made of either M.S. or S.S.304. • Gap between the two walled filled with ceramic insulation to avoid heat of loses with insulation of 150 mm. • Heating element are made of special type air heater of S.S.‘U’ Type tubular heater. • With special type of wiring connection from out side body • Supplied with air draft motorized blower to circulate uniform temp. Thought out chamber temp. range 50°C to 250°C with accuracy of ± 2°C controlled by digital temp.Controller cum indicator

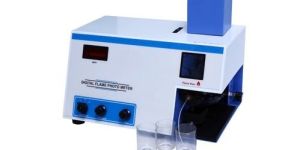

Digital Flame Photometer manufactured by us boast of top-notch quality. Supreme quality raw materials and properly updated technology is utilized for manufacturing them. Durability, longevity, strength, perfect designs are their highlights. Our top notch quality experts, R&;D team and engineers, are responsible for developing products, with the latest trend in sight. Specification: Model S-931 Range Na : 0-100 ppm, k : 0-100 ppm, ca : 15-100 ppm (optional) li : 10-100 ppm (optional) Sensitivity sodium (na) : 5 ppm, potassium (k) : 5 ppm, calcium (ca) : 10 ppm (optional), lithium (li) : 10 ppm (optional) Readout 2 ½ digit bright red led display Accuracy ± 2 % up to 40 ppm ± 5 % above 40 ppm Ignition system with external lgniter Dimensions 355 w x 245 h x 230 d mm (approx. ) Weight 7. 5 kg. (approx. ) Measurement system measures one element at a time Repeatability ± 2 counts Detector silicon photodiode Filters narrow band interference glass filters Nebulizer black bakelite, axial flow type Flame system lpg and dry oil free air Warm up time 10 minutes Power 230 v± 10? ,50 hz Compressor unit S-930: Air supply by oil free mini compressor unit with pressure regulator Combustion gas LPG controlled by precision regulator Power 230 v± 10 ,50 hz Dimension 275 w x192 h x 240 d mm Weight 6. 25 kg. (approx) Accessories *instrument with na & k filters *sample holders *instruction manual *dust cover *mains lead *air and gas tubing along with end clamps *chimney *capability tubes *cleaning wires.

STP-02-a Digital pH Meter is having two point calibration at 4 and 7 pH value. It has manual temperature compensation . It has two meter wire cable with three pin socket. It is bench top model used in laboratory purpose Technical Specification • PH Range : 0 to 14.00 • Resolution : 0.01 • Accuracy : ±0.02 • Temperature range : 0 to 100°C • Calibration User selectable: Automatic calibration at 4, 7, 9 pH • Power : 9 VDC Adaptors • Typical Size (l x w x d) : 175 x 75 x 35mm • Weight : 250g Accessory • Electrode stand • pH Electrode

STP-02-d Digital Conductivity Meter is bench top model having manual auto temperature compensation . Digital conductivity meter is supplied along with Conductivity sensor ,stand and temperature sensor .   Technical Specification • Readout : 4 digit LED display• Unit of meas. : a) Conductivity : MHO b) Temp. : deg. Celcius (oC)• Measurement range : 0.01 μ to 200 m in six ranges• Six ranges : 2μ, 20 μ, 200 μ, 2 m, 20 m & 200m• Accuracy : ± 1% ± last 2 digits• Alpha (a) : 0 - 3• Temp. comp : 0 to 60oC ATC • Weight : 230 V AC ± 10%, 50 Hz, 7 VA • Warming period : 5 minutes • Weight : 1.2 Kg (approx.) • Body : ABS • Dimension : 95 mm (H) x 155mm (W) x 285 mm (L) • Electrode : Cell K = 1 - PVC sleeved & Temp probe • Accessories : Stand set, Screwdriver and Dust    Accessory • Electrode stand• Conductivity sensor • Temperature Sensor

COD Digester is the most accepted Thermo reactor for Determination of Chemical Oxygen Demand in Various Substances. Chemical Oxygen Demand (COD) is a Measure of the Capacity of Water to Consume Oxygen during the Decomposition of Organic Matter and the Oxidation of Inorganic Chemicals such as Ammonia and Nitrite. COD Measurements are commonly made on Samples of Waste Waters or of Natural Waters Contaminated by Domestic or Industrial Wastes. Chemical Oxygen Demand is measured as a Standardized Laboratory assay in which a closed Water Sample is incubated with a Strong Chemical Oxidant under Specific Conditions of Temperature and for a Particular Period of Time. Our cod Digester is specially designed as per IS & ASTM standard suitable for 6- tubes or 9 tubes. COD digester is used for chemical oxygen demand method for monitoring waste water influent and industrial process water. Digester block made out of high quality Alluminium . The Cod Digester is provided with highly insulated between block & exterior which is made out of G.I powder coated or M.S powder coated finish. The COD Digester is equipped with microprocessor based PID controller with dual display seven segments four digit digital controller cum indicator with timer of 120 minute with alarm. The digester block is suitable for 38 mm diameter tubes and 600 mm height air condenser.   APPLICATIONS:- • Chemical Oxygen Demand Digester Designed for digestion of COD test samples and multi-function dry bath heating.C• Precise temperature control from ambient +5 °C to 150 °C with ±1 °C accuracy.• User’s self compensation functions for temperature to counter for difference between block temperature and sample temperature.• Fitted with Microprocessor Based Digital Temperature• Indicator cum Controller for auto control with respect to time and temperature and is also fitted with in-built buzzer timer for auto time control to indicate cycle end.• Microprocessor Based Digital Temperature Indicator cum Controller having dual four digit seven segment digital display for set value and process value.• Recessed well/cavity accommodates aluminium or S.S insert block.• Samples after being digested for 2 hours can be analyzed using calorimeter or conventional titration method.   TEMPERATURE CONTROL / RANGE: • Temperature Range: +5°C form ambient to 150 °C/ 250°C• Temperature Sensitivity: +/- 1° c or better.• Resolution: 0.1° C

This is made as specified by IP-15, ASTM-D-97-57 & IS 1448-1970. The pour point is the lowest temperature at which the oil will just fall to flow. The apparatus consists of a main cooling bath made of stainless steel sheet and stand unit with drain plug and cover with provision for fitting thermometer and a filling aperture for adding freezing mixture. A glass jar for containing oils, jacket, disc and gasket is standard scope of supply. Technical Specification • Temperature Range : Up to -170 C• Resolution :0.10 C• Controlled Accuracy : ± 20 C • Controller : Microprocessor based with PT 100 Sensor• Outer Body :CRCA Powder Coated • Inner Chamber : Stainless Steel• Cooling : Hermetically sealed compressor with fin & tube type air cooled condenser • Insulation : High Dense PUF

Double walled construction inner chamber made of stainless steel / M.S and exterior made of G.I powder coated. Gap between the two walls is filled with glass wool insulation, provided with S.S shelves. Temperature is controlled by Digital PID controller. Temp range 5°C to 60°C, accuracy 0.5°C. Technical Specification • Incubators are sturdy double walled units • Inner Chamber made of S.S. and outer made of Mild Steel with Powder coating. • Gap between the walls fitted with glass wool insulation to avoid heat loses. • Heating elements are made of high grade chrome plated nichrome wire. Temperature is controlled by thermostat. • Temperature range 5°C above ambient to 600°C and Accuracy: ± 2°C • Air Ventilations is provided on the top of the unit to remove the hot gases I fumes. • In Lab type oven heaters are placed in the bottom oldest the unit. • All the control switches & pilot lamps are fitted on the front panel. • Trays should be supplied with G.I. wire mesh.
