Stech Engineers Virar East, Maharashtra

Yarn Tension Tester is manufactured in an easy to handle design light weight, highly precision, more accurate, getting direct reading of tension from the dial instead of doing calculations after getting indirect readings as in some other meters. The Instruments is suitable to check the tension of Yarn when high speed spinning & windings are being done.   Common Range of Tension Meter     Low Ranges High Ranges     2 – 25 gms. 50 – 500gms. 5 – 50 gms. 100 – 1000 gms. 10 – 100 gms. 250 – 2500 gms. 20 – 200 gms. 500 – 5000 gms. 30 – 300 gms. 1000 – 10000 gms.

The Tubular Impact Tester evaluates the coating resistance to impact. The procedure of Testing Methods briefly described in the International Standards. Stech Engineers Tubular Impact Tester is made with sturdy and heavy duty frame for base and easy clamping and depth adjustment.

Country of Origin : Made in India

Availability : 8.5 kg

Stech Engineers manufacturing various types of thickness gauge to check the thickness of Rubber, Paper, Fabric, Card Board, Films etc. as per IS 3400 ( Part I ) 1977 in various range, throat and accuracy. Most suitable for checking the thickness of Rubber sheet, Fabrics, Leather, Rexine, Paper, Thin Films and all other flexible materils. It provides a maximum compressive load on the specimen to get exact reading as per IS specification. Hand held thickness gauges are also available in different range and throats.

Material : Mild Steel

Country of Origin : 230 V

Country of Origin : Made in India

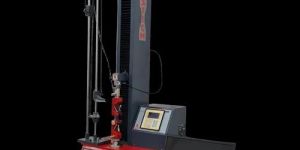

Load Capacity : 50kg to 10ton. Measuring Unit : Selectable in kgN. Elongation Measurement : 0 to 900mm in 0.1mm resolution. Load Accuracy : 0.5% of full scale. Automatic result calculation as per the given formula of test parameter’s. Complete test details can be taken through the printer. Eg : Load, Elongation, Batch no, Time & Date, Percentage of Elongation, Tensile Strength etc. Exclusive range of grips and accessories to meet various test requirements. Peak Load hold in memory upto 20 tests. All operations are through feather touch buttons. Variable Speed of any range from 50mm to 500mm can be select and control by the speed drive switch. Dual Load cell system for low and high range test requirements. Safety for over drive is provided in upward and downward direction.

The Tester is constructed in rigid MS body with double screws, plated parts and duly Powder Coated. Tester can carry our different tests upto specified load. The test result will be showed in the display of the Controller and PC will be attached to the controller and graph will be plotted in Computer with the software provided, the result including a set of data can be stored or can take print out by attaching a printer to PC.

STECH tearing strength Tester Determines the Tearing Strength of fabrics, papers, plastic films or other similar materials is determined by measurement of the work done in tearing through a fixed length of the test specimen using of Elmendorf Tear Tester. The Elmendorf Tearing Strength Tester consist a brass sector pendulum pivoted on anti-friction ball bearings on a vertical bracket fixed on a rigid metallic base. The test specimen in shape of a rectangular piece held between two clamps, one of which is mounted on the pendulum and the other is mounted on the vertical bracket. The clamps are mounted in such a manner that their holding faces are aligned with each other when the pendulum is locked in its raised position. The pendulum is released by lifting a release lever. This action causes the test specimen to tear right through. The tearing strength is indicated on a scale fitted on the pendulum against a low friction pointer pivoted on the axis of the pendulum. An adjustable knife is also mounted on the bracket on which the pendulum and the fixed clamp is mounted. It is centered between the two clamps and is used for making the initial Cut  in the test specimen. The apparatus is finished in metallic painting and bright chrome plating to give it corrosion resistant finish. Augmenting weights for increasing the range of the tester for testing high strength materials are available as optional accessories. Low strength materials can be tested by mounting multiple specimens at the same time.

Availability : 10 kg Approx

Country of Origin : 240 V

Country of Origin : Made in India

Specially designed Stands are used to improve the accuracy and reproducibility of both analog and digital durometer hardness tester readings by ensuring that the presser foot is exactly parallel to the specimen table. Any analog or digital durometer can be mounted on an applicable operating stand. The operating stand is primarily intended for use on a test specimen with parallel sides. Irregularly shaped objects may be tested in a nest or a fixture to make the given surface parallel to the durometer presser foot. ASTM D 2240 specifies three categories of operating stands:  Type 1 are basic, manual operating stands. Type 2 is stands capable of controlling the rate of descent. Type 3 are hydraulically, pneumatically or electromechanical driven. Stands that fall into all three categories. For assistance in selecting the proper operating stand to fit your durometer.

STECH ENGINEERS Digital Spring Testing Machine is designed to test the compression load vs. length and tension load vs. length in kgf.  The extension and compression length is monitored in the digital display in mm by 0.01mm and the force is displayed in kgf the machine can also use for tensile and elongation of various materials and other force related test can also done with specified fixtures.   Display unit: The display unit shows the force in kg and linear measurement in millimeters by 0.01mm   Technical Details:     1. Test capability: Load Cell 2. Maximum Load 50kgf 3. Maximum Extension: 300mm 4. Test feature: Compression and Extension. 6. Motor: ¼ HP DC 7. Drive: DC variable controller 8. Power: 220 – 230V AC

A Pneumatic Specimen Press(cutter) for cutting flat and soft paper, rubber, plastic materials into samples or standard shape specimen. Testing Machine of Pneumatic Specimen Press is able to coordinate with various cutters to cut them into samples or into standard shape specimen. Ready for tensile resistant test, tearing test, elongation, aging, sample, and other tester. This tester is suitable for soft material such as paper, rubber, soft plastic, polyfoam, etc.. Pneumatic specimen press takes advantage of pneumentic compress to provides an automated media force to give a easy and clean cutting enviroment foe specimen preparation v. This test product can meet your testing requirement and supply solutions of problems.     Specification :   Suitable Material: Rubber, soft plastic, leather, etc.   Area of Pressing Plate: dia. 148mm Stroke : 100 mm Output : 1000 kg Power Source : Air compressor, about 7 kg/cm² Attachment: Cushion board one piece. Safety shield provided to eliminate accidents Pressure Gauge with filter and solenoid valve is provided Electric Power for safety shield operation : 220-230VAC. Dimension: 30×40×60(h)cm Weight: 50 kg Feature: Easy to operate, energy saving, time saving.

STECH direct reading Specific Gravity Balance provides a simple and quick mean to read directly the specific gravity of rubber and other elastomers. Thus reducing labour and eliminating calculations. The time taken to find out specific gravity of a sample is only about half a minute. The balance consists of a rigid scale with specific gravity (SG) printed on standing vertically on a heavy base plate. To the center point at the scale, through jewel bearings to minimize the friction, a balancing arm is pivoted. At one end of the arm two stainless steel pins are hanging with yarns. One of the pin is attached with glass jar kept on the base. A guard is provided to avoid accidental falling of the jar during use. At the other and of the balancing arm a pointer is fixed which indicates the specific gravity of materials under test. A sliding weight is also provided for initial balancing of the sample of different weight a leveling of the base plate.

Country of Origin : Made In India

Durometer Hardness is used to determine the relative hardness of soft materials, usually plastic or rubber. The test measures the penetration of a specified indentor into the material under specified conditions of force and time. The hardness value is often used to identify or specify a particular hardness of elastomers or as a quality control measure on lots of material. STECH ENGINEERS manufacturing various model of Hardness Testers for the accurate measurement of Hardness of the vulcanized rubber, plastic, ebonite, fiber and all other soft and hard elastomers as per lates American standard ASTM D 2240 and German standard DIN 53505 and other International standards.   Simple and easy to use key lock to avoid accidental calibration. Inhouse calibration facility provided Separate hand probe with extended cable for easy and comfortable testing. Peak value hold and store in memory upto 9 test or more Large LED display for clear vision. Very light weight probe for quick and accurate application on specimen. Battery and power operated to use inhouse and outdoor test requirements. Standard carry-bag with all test and guarantee certificates.

Automation Grade : Manual

Abrasion Tester electrically operated with single phase motor, reduction gearbox. The machine is used to determining abrasion resistance of a cylindrical rubber specimen against abrasive cloth mounted on a cylindrical drum. The machine is made according to German Standard DIN 53516.

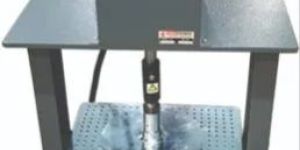

A measure of the indentation resistance of elastomeric or rubber materials based on the depth of penetration of a ball indentor. An initial contact force is applied to an indentor and the penetration is set to zero. The force is increased to a specified total load and the depth of penetration is measured. The IRHD value is related to the depth of indentor penetration. For highly elastic materials, IRHD and Shore A are comparable. An IRHD value of 0 represents a material with an Young's Modulus of zero and an IRHD value of 100 represents a material with an infinite Young's Modulus. The relationship between the depth of penetration (hardness) and the IRHD number is based on: FE=0.0038r0.65*D1.35

STECH ENGINEERS Ross Flexing Machine allows one end of the test specimen to be clamped firmly to a holder arm while the pierced end is placed between two rollers that must permit a free bending movement of the test specimen during the test.  During each cycle, the pierced area of the test specimen is bent freely over a 10mm ( 0.4in. ) diameter rod through a 90o angle.  The machine operates at 1.7 + 0.08 Hz (100 + 5cpm ).    Introduction   A pierced strip test specimen is bent freely over a rod to a 90o angle and the cut length is measured at frequent intervals, to determine the cut growth rate.  The cut is initiated by a special shaped piercing tool. The test gives an estimate of the ability of rubber vulcanized to resist crack growth of a pierced specimen when subjected to bend flexing.  No exact correlation between these test results and service is implied due to the varied nature of service conditions.   Procedure   Measure and record the median thickness of the test specimen taken at three points across the width at the point of the cut.  With the holder arm of the flexing machine in a horizontal position, clamp side by side the test specimens of the same making sure that the cuts are at the center point of the are of the rods.  Lower the adjustable top rollers until they just touch the test specimen and lock in this position by means of the wing nuts.  Permitting free travel of the test specimens between the rollers during the bending movement.  Start the machine and record the number of cycles by the use of a counter.  Make frequent observations, recording the number of cycles and the increase in cut length measured to the nearest 0.5mm for the purpose of determining the rate of increase in cut length.  When observing cut growth, the holder arm shall be at an angle approximately 45o from the vertical.  The test shall be continued until the cut length has increased 500%, that is, until the combined length of the cut and crack has increased to a total of 15.0mm ( 0.60in. ) or when 250kilocycles has been reached with slow cracking samples.  In some cases the cut growth is not in a straight line as a continuation of the cut made by the piercing tool, and "star – shaped " cracking may develop.  In this event, the cut growth shall be measured as the length of the longest continuous crack, regardless of its direction.  When it is necessary to stop operation of the machine temporarily, the holder arm shall be in a horizontal position, so that the test specimens remain horizontal while not being flexed.   Report   Sample identification, Specimen medium thickness, Test temperature if other than 23 + 2oC ( 73 + 3.6oF ), and The average number of cycles for each 100% increase in cut growth above the initial pierce of 2.5mm ( 0.10in. ) of the tested specimens, upto and including 500%, where possible.

Availability : 7.7 kg (17 lb.)

Material : Mild Steel

Packaging Type : Wooden Box

Country of Origin : Made in India

Automation Grade : Manual

Country of Origin : Made in India

Country of Origin : 240 V

The direct reading balance ( TSP, TSPS & TS series ) are employing the principle of constant load balance at one end of the beam, pan and ring weights are there for weighing the object and in the other end there is a balance weight ( load ).

Country of Origin : Made in India

Display Type : Digital

Frequency : 60 Hz

Country of Origin : 230 V

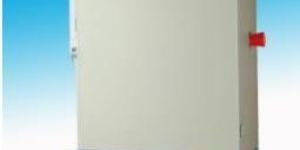

Humidity range : 45% Rh to 90% Rh

Accuracy : +/- 1 Degree Celsius

Country of Origin : Made in India
