Compaqinternational Khajuri Road, Yamunanagar, Haryana

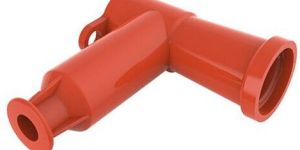

Product Code: CUSCThis insulated adapter provides perfect sealing, electrical insulation and an electrical connection between all Compaq terminations and SF6-insulated switchgear up to 24 kV. It is designed to fit bushing profiles according to EN 50181 type C. Compaq elastomeric CUSC adapters are moulded parts which fit over the connection between the cable lug and the right-angled bushing of a gas insulated switchgear, where the air clearances are insufficient for normal operation. The non-tracking elastomeric housing has excellent track and erosion resistance, dielectric properties and environmental resistance, giving superb performance in areas of high humidity and electrical stress.FEATURES & BENEFITSFor Voltage Range 6/10(12)kV up to 12/20(24)kVQuick and easy to install, Works in combination with all Compaq cable terminationsCan easily be removed and reinstalled without the need for additional material or toolingOne size is suitable for all cable types from 70 -300mm2The adapters are water-tight and guarantee uninterrupted operation, even under extreme environmental conditions with severe pollutionThe adapters conform to CENELEC HD 629.1 specifications

Material : Elastomeric

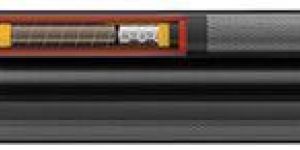

CABLES UP TO 36KVProduct Code: CHPJCompaq CHPJ Joint kits are designed for either single or three core cable designed with paper insulation (PILC) and can be used with both compression and mechanical type connectors.Field proven technologySimple installation, no special tools requiredWide range and possible to tailor for any cable typeExcellent perfomance & reliabilityReliable operations, proven in practice

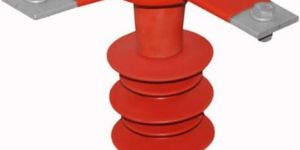

Compaq Polymeric Tee-Connector (Tap Off) has been designed to facilitate loop-in & loop-out connection for HT AB Cable lines. Installation can be made quickly & easily in the field by giving connection which is simple of bolted type. Compaq Tap-Off (Tap-Off) allows complete insulation of connections so that no bare conductors are exposed.FEATURES & BENEFITSDesigned and tested in accordance to IEC 61109Suitable with Aluminium Bus-Bar Confirming to IS/IECSimple and Easy InstallationHigh Creepage Polymer Insulator

Application : Loop-in & Loop-out Connection For HT AB Cable Lines

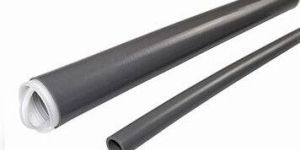

Product Code: CSSTCompaq CSST range of Cold Shrinkable tubing is made from silicon rubber material and can be used for several applications such as core or connector insulation in low voltage cable joints, moisture sealing, diameter build up or outer joint protection. The tubes are pre-expanded onto a plastic spiral core and can be easily shrunk onto cables / pipes etc. by simply pulling out the spiral cord.Product Code: CSSTCompaq CSST range of Cold Shrinkable tubing is made from silicon rubber material and can be used for several applications such as core or connector insulation in low voltage cable joints, moisture sealing, diameter build up or outer joint protection. The tubes are pre-expanded onto a plastic spiral core and can be easily shrunk onto cables / pipes etc. by simply pulling out the spiral cord.FEATURES & BENEFITSSuitable for indoor and outdoor applicationsGood mechanical strengthWaterproofExcellent electrical insulation propertiesOzone and UV resistantGood Thermal stability – Operating range of -50°C to 250°CResistant to acids and alkalisResists fire – will not support flameRange covers application diameters from 13mm to 140mmFEATURES & BENEFITSSuitable for indoor and outdoor applicationsGood mechanical strengthWaterproofExcellent electrical insulation propertiesOzone and UV resistantGood Thermal stability – Operating range of -50°C to 250°CResistant to acids and alkalisResists fire – will not support flameRange covers application diameters from 13mm to 140mm

Application : Core Or Connector Insulation, Moisture Sealing

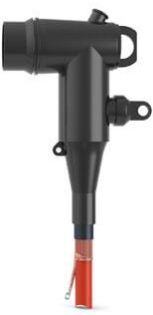

Product Code: CSSCCompaq Screened Separable Connectors or we can say Touch proof terminations are designed to connect single and three core polymeric cables to medium voltage switchgear, RMU and other equipment using bushings type "A" (according to EN 50180/EN 50181) specified for 250A up to 24kV. Separable Connectors are made of a highly modified EPDM rubber and protected by a touch proof outer conductive screen connected to earth. Supporting a wide application range of Touch proof terminations, the design incorporates one body and stress cone adapters to cover all cross section from 25 - 150 sq.mm.SALIENT FEATURESProvides fully screened and submersible separable connection.Mating with A - type bushings and plugs complying with EN 50180 & EN 50181.One of the most Compact designs.100% factory tested.Unlimited shelf life at normal storage temperatures.No minimum phase clearance requirements.Reduced installation time and errors.

Material : EPDM Rubber

Voltage Rating : Up To 24kV

Current Rating : 250A

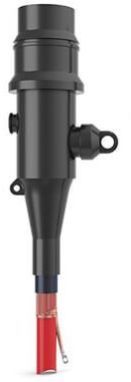

Product Code: CSECCompaq Screened Separable Connectors or we can say Touch proof terminations are designed to connect single and three core polymeric cables to medium voltage switchgear, RMU and other equipment using bushings type "A" (according to EN 50180/EN 50181) specified for 250A up to 24kV. Separable Connectors are made of a highly modified EPDM rubber and protected by a touch proof outer conductive screen connected to earth. Supporting a wide application range of Touch proof terminations, the design incorporates one body and stress cone adapters to cover all cross section from 25 - 150 sq.mm.SALIENT FEATURESProvides fully screened and submersible separable connection.Mating with A - type bushings and plugs complying with EN 50180 & EN 50181.One of the most Compact designs.100% factory tested.Unlimited shelf life at normal storage temperatures.No minimum phase clearance requirements.Reduced installation time and errors.

Material : EPDM Rubber

Voltage Rating : Up To 24kV

Current Rating : 250A

THROUGH CABLE JOINTS FOR TRANSITION BETWEEN PAPER INSULATED CABLES AND POLYMERIC CABLES UP TO 36KVProduct Code: CHTJCompaq CHTJ Joint kits are designed for jointing either single or three core PILC cables with polymeric (XLPE or EPR) insulation and can be used with both compression and mechanical type connectors.FEATURES & BENEFITSField proven technologySimple installation, no special tools requiredWide range and possible to tailor for any cable typeExcellent perfomance & reliabilityReliable operations, proven in practice

Application : Transition Between Paper Insulated Cables

Compaq Polymer Surge Arrestors are manufactured to offer optimum protection to distribution equipment such as transformers and similar assets against the damaging lightning effects and similar operational conditions. These arrestors perform their task with high-end improvement and fidelity towards surge switching and medium voltage networks. Maintenance of service safety for both underground and overheard setups is offered without any trouble on exposure in the outdoors for long durations. Going through precision tests have made Compaq arrestors more durable & reliable.FEATURES & BENEFITSDirect moulded housing to prevent moisture ingressLow residual voltagesExcellent cantilever performanceHydrophobic Silicone HousingMaintenance freeQuality Design and Manufacturing meeting International Standards

Rated Voltage : Up To 36kV

Compaq maintains the highest level of IEC standards in their diversified selection of polymerized Insulators Drop/Cut Out fuses. Raw material of the highest quality is used by us for fuse unit manufacturing. Silicone rubber is used for designing Compaq fuse cutouts as these insulators are able to withstand extreme cold, stressful environments, and heat present in heavily polluted locations or sea coasts. These fuses help stopping faults and are highly useful as secondary backup units for protecting the system. Our Drop out expulsion type cut out fuses is well-suited for distribution systems from 11-33 kV and also for protecting transformer Centre Tap lines and H.T. lines.FEATURES & BENEFITSNo maintenance requiredEasy and quick for installationLong term surface hydrophobic Properties.Manufacturing at IS0 9001 & 14001 certified plantsSuitable for polluted environments and salty atmospheres

Country of Origin : Up To 36kV

Application : Protecting Distribution Systems, Transformer Centre Tap Lines, H.T. Lines

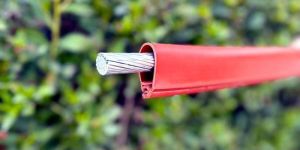

Material: Non tracking cross linked Polyolefin materialCompaq overhead line cover is wraparound cover that provides insulation protection for overhead bare conductor and busbar. retrofit insulation for overhead conductors to help prevent electrical outages caused by trees or wildlife coming into the contact with distribution lines. COLC is designed to insulate existing bare lines without costly conductor replacement expenditure or additional line hardware.Material: Non tracking cross linked Polyolefin material.FEATURES & BENEFITSSimple and fast wraparound installationExcellent UV stabilized & weather resistantHalogen free, Flame RetardantShrink ration 3:1

Material : Non Tracking Cross Linked Polyolefin Material

Usage : Insulation Protection For Overhead Bare Conductor And Busbar

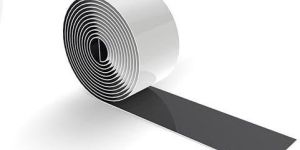

Product Code: CIBMCompaq Insulating mastic sealing tape is used in LV & MV terminations and joints to protect the heat shrink material by covering the sharp edges of metallic parts. It is a self-fusing mastic and is used for filling voids and irregular shapes. It also acts as an environmental seal to prevent ingress of water and other environmental contaminants.

Application : LV & MV Terminations And Joints

Feature : Self-fusing,Fills Voids And Irregular Shapes,Acts As An Environmental Seal

Packaging Type : Standard Packaging

Product Code: CPITCompaq CPIT are designed to connect polymeric insulated cables into gas insulated switchgear, ring main units, circuit breakers and sealing boxes. Compaq Inner cone plug in terminations are designed for both aluminium or copper conductors in accordance with IEC 60228 and are compatible with inner cone bushings size 1, size 2, size 3 as per EN 50180/EN 5018. The inner cone termination incorporates a high-quality contact system which ensures reliable current transmission from the cable conductor to the busbar.SALIENT FEATURES100% Factory TestedEasy, safe and quick installation, helps to prevent errorsRobust with high mechanical propertiesThe plug-in termination system is metal-enclosedFast installation due to the termination being integrated, and reduction in any mistake in installation

Product Code: CMWT 5xCOMPAQ High-Shrink ratio Tubing (CMWT 5x) is a premium solution designed with advanced cross-linked polyolefin material. Featuring an impressive shrink ratio of up to 5:1, it provides seamless adaptability for large dimensional transitions between cables, connectors, and backshells. This versatile tubing simplifies cable repairs and ensures reliable sealing, making it ideal for demanding applications.KEY APPLICATIONS Dimensional Versatility: Perfect for covering significant size differences between cables, connectors, and components.Simplified RepairsEnables quick and effective restoration of damaged cables.Comprehensive Sealing: Protects the back ends of connectors and transitions with robust sealing properties.

Material : Cross-linked Polyolefin

Application : Covering Size Differences, Cable Repairs, Sealing Connectors

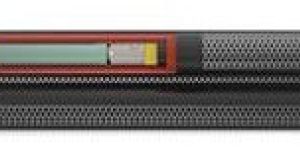

SINGLE CORE POLYMERIC CABLES UP TO 36KVProduct Code: CHTXJCompaq CHTXJ Joint kits are designed for joining three Core polymeric (XLPE/EPR) insulated cables to three individual single core cables. They can be used with both compression and mechanical type connectors.FEATURES & BENEFITSField proven technologySimple installation, no special tools requiredWide range and possible to tailor for any cable typeExcellent perfomance & reliabilityReliable operations, proven in practice

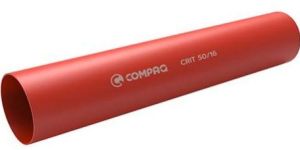

Product Code: CRITThe COMPAQ Red Insulation Tube is designed for use in power cable joints for medium voltage (MV) and high voltage (HV) applications. These tubes are crafted from high-quality cross-linked polyolefin material, ensuring exceptional performance and durability. The COMPAQ Red Insulation Tube, also referred to as CRIT, is typically used as an integral component in cable joints up to 66kV, providing protection and insulation. It restores the original insulation level of cables while ensuring long-lasting reliability.KEY FEATURESExcellent Dielectric Properties: Provides superior electrical insulation.Standards Compliance: Conforms to IEC 60684-3-247 standards.Environmentally Friendly: Halogen-free and RoHS compliant.Customizable Options: Dimensions, thickness, length, and colours can be tailored to meet specific requirements.Heat-Shrink Technology: Shrinks to a pre-determined size upon heat application above 125°C, offering a perfect fit and enhanced insulation.

Application : Power Cable Joints For Medium Voltage (

Rated Voltage : Up To 66kV

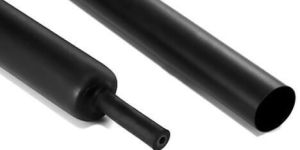

Product Code: CMWCompaq Heat Shrinkable Medium wall and Heavy Wall tubing’s are used for environmental protection of low voltage cable termination and insulating the connectors for low voltage straight through joints rated up to 3.3KV. The insulating tubes are made from thermally stabilized, cross linked, weather resistant polymeric material.FEATURES & BENEFITSExcellent resistance to weather, UV, chemical and solventsAvailable inline coated with hot melt adhesive or uncoatedHigh electrical characteristics and mechanical strength for low voltage applicationsCustom dimensions, thickness, length available on requestShrink ratio 3:1Operating temperature ranges from -500C to +1250C

Material : Thermally Stabilized, Cross-linked Polymeric Material

Application : Environmental Protection Of Low Voltage Cable Termination

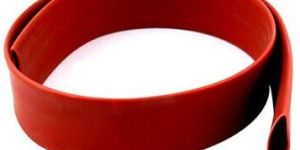

Compaq Heat Shrink Busbar Tubing is designed to insulate busbar systems up to 36KV & to protect against accidental flashover. The tubes are manufactured from high quality non tracking crosslinked polyolefin material. Meets ANSI C37.20.2 standards for MV switchgear application up to 36 KV.FEATURES & BENEFITSReduce Busbar clearancePrevent Busbar from chemical corrosion effected by strong acid, alkali, salt etcSolve the problem of insulation among Busbar in Bus DuctHalogen free, flame retardantHigh dielectric strengthHighly Flexible for use on straight or angled bars without creasing

Packaging Type : Assorted

Application : Insulate Busbar Systems Up To 36KV

Feature : Halogen Free,Flame Retardant

Product Code: CWRSCompaq CWRS are designed to repair damaged cable sheath, also suitable for use for rejecting of cable Joints. These sleeves are also used for providing corrosion protection to the metallic parts of the cables that are exposed to polluted environment and for making telecommunication cable joints. The Wrap-Around Sleeves are made from thermally stabilised, cross linked, weather resistant, polymeric material and is halogen free.The Sleeves are coated internally with hot melt adhesive.FEATURES & BENEFITSProvides watertight seal upon recoveryHotmelt adhesive provides complete environmental sealing and insulationHigh resistance to UV rays, chemicals, corrosion, fungus, etcTemperature sensitive paint changes colour when heat shrinking process is completeSleeve can be cut to suit shorter application requirement on siteStainless steel channel provides permanent closer system

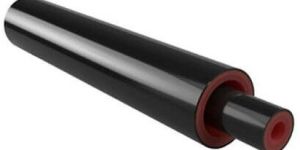

Product Code: CTWTThe tubing is manufactured with technology very suitable for application in Power Cable Joints up to 36kV. The tubes are made from thermally stabilized, cross linked polymeric material and have a nominal shrink ratio of 3:1 and an unlimited shelf life when stored at normal warehouse temperatures.Standard Color: Black/Red/RedFEATURES & BENEFITSSemi Conductive/Insulation double layer/Elastomer Triple layerExtra heavy wall of Insulation layerCo-extruded Triple layerShrink ration 3:1Min. full recovery temp.: 130°C

Feature : Semi Conductive,Insulation Double Layer,Elastomer Triple Layer

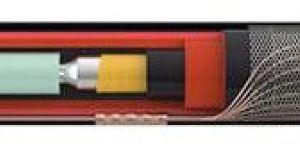

Product Code: CHXSJCompaq CHXSJ Joint kits are designed for jointing either single core cables designed with polymeric (XLPE or EPR) insulation and can be used with both compression and mechanical type connectors.FEATURES & BENEFITSField proven technologySimple installation, No special tools requiredWide range and possible to tailor for any cable typeExcellent performance & reliabilityReliable operations, proven in practice

Material : Polymeric (XLPE Or EPR)

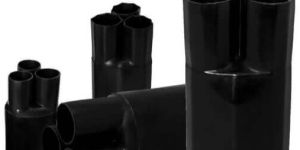

Product Code: CCBThe conductive breakouts provide a semi conductive screen and sealing over the crutch of multi-core cables. The mastic sealant provides a watertight environmental seal to the cable. The conductive cable breakouts are normally used as an integral part of 3 core cable terminations up to 36 kV and also in 3 core cable joints up to 36 kV. The breakouts are made from high quality thermally stabilized cross-linked semi conductive polyolefin material. The breakouts are internally coated with water resistant red mastic.FEATURES & BENEFITSUV and weather resistanceContinuous Operating Temperature: -55°C to 100°CResistant to common fluids and solventsThermoplastic adhesive inside provides complete environmental protection & insulation

Material : Thermally Stabilized Cross-linked Semi Conductive Polyolefin

Voltage Rating : Up To 36 KV

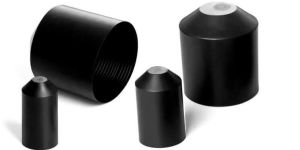

Product Code: ECCCompaq Conductive End Caps perform the same function as a standard Heat Shrinkable End Cap, but with added feature of neutralising any potential induced voltages from nearby live power cables or static charges within the cable cores. The caps are lined with a hot melt adhesive to provide a moisture tight seal and have a conductive mastic coating in the base of the cap to ensure contact with the cable metallic parts. The end caps are made from thermally stabilised, cross linked conductive polymer and is s suitable for use in temperatures between -30°C and +110°C, and internal pressures up to 0.05MPa. They can be fitted over all types of plastic, metal and other materials Resistant to moisture.FEATURES & BENEFITSUV resistant – unlimited shelf lifeQuick and easy installationStandard colour :blackConforms to specification : IEC 62329-3, ENATS 09-11

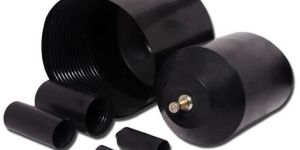

Product Code: CCSBCompaq Cable End Caps CEC are used to provide a moisture tight seal on all types of cables or cylindrical pipes. The end cap is made from thermally stabilised, cross linked polymer and are suitable for use in temperatures between -30°C and +110°C. The end caps are pre-coated on the machine in film form or spiral form, with a hot melt adhesive to provide a moisture tight seal.FEATURES & BENEFITSCan be fitted over all types of plastic, metal and other materialsResistant to moistureUV resistant - Unlimited Shelf lifeQuick and easy installationStandard Colour: Black

Material : Thermally Stabilised, Cross Linked Polymer

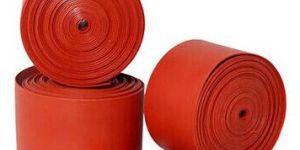

Product Code: CWRSCompaq Heat Shrink Bus Bar Tapes specifically designed for insulating and protecting medium voltage copper or aluminium Bus Bar Connections. It waterproof tape with special adhesive coating which bonds well to most surfaces over a wide range of temperature. The shrinking action achieves exceptional conformation to contours, squeezing the adhesive into all surface irregularities, forming an effective seal.FEATURES & BENEFITSMeets ANSI C37.20.2 standards for MV switchgear application up to 36 KVReduces Bus Bar clearance requirementsIt is mainly used for insulating, anti-corrosive and mending purposes at the bending partProtects against accidental flash-overHalogen free & anti-tracking

Material : Waterproof Tape With Special Adhesive Coating

Application : Insulating And Protecting Medium Voltage Copper
