Tubular Heaters Dealers in Thane (14 products available)

• Voltage: Upto 250V
• Watt Density: Max. 15 W/sq. cm or 100 W/sq. inch
• Section: 3.3 , 4 , 3 x 3 , 4 x 4 , 2.2 x 4.2 , 4 x 6 , 4.6 x 8.6
• Surface Temp.: Max. 750° C / 1380° F
• Thermocouple: Available with inbuilt J or K type
• High Voltage Test: 800V (AC)
• Wattage: ± 10 %
• Max. Sheath Temperature: 750 ° C / 1380 ° F
• Insulation Resistance: ≥ 5 MΏ at 500V (DC)
• Length Tolerance: ± 5%
• Thermocouple: Type J / K
• Diameter Tolerance: ± 0.15 mm
• Max. Voltage: 250 V
• High Voltage Test: 800 V (AC)
• Max. Surface Load: 15 W/sq. cm or 100 W/sq. inch
• Max. Straight Length: 2500 mm

We bring forth for our clients Tubular Direct Immersion Heaters that are specifically designed for direct contact heating of water, oils, viscous liquids, solvents, process solutions and gases. As all heat is generated within the liquid or process, virtually 100% energy ratio is achieved. Further, various options permit very tight process temperature control. The basic mounting options of these heaters like threaded screw plug connections, flanges or simple over-the-side designs help our clients with easy installation of the heaters.

Coil Heaters: The versatile Lakshmiheaters Coil Heaters Micro tubular heaters can be formed into a variety of shapes to fit into many applications. Lakshmiheaters Manufacturers & Exports Coil Heaters, Injection molding heaters, Injection molding heating Elements, Coil heater elements, Mould heaters, Runner Heaters, Mini coil heaters, Cable heaters, Coil Heating Elements, Sprue Coil heater and Nozzle coil heaters.

application heaters are used in various applications, due to their being intrinsically reliable and highly versatile. They were first designed for a very specific application, the differential heating of plastic injection nozzles, and later become invaluable in the most diverse and demanding applications. Aerospace, railway, chemical, metalworking and food industry, glass and paper indus-try, automotive, packing, medical industry.. All have taken advantage from the use of heaters, with their wide range of possible shapes and their fitness to an unlimited number of applications. construction microtubular coiled heaters are manufactured to a revolutionary design, which makes them the best choice in the most demanding conditions. The resistive wire is uniformly distributed in a compacted mgo insulation, with a crni-steel outer protection sheath. The heaters are annealed after manufacturing, thus acquiring a high malleability that allows their being subsequently bent into any complex shape, with extremely narrow bending radius. features   a very wide contact surface results in exceptionally high levels of thermal conductivity towards the body that needs to be heated. optimal insulation results in very long life duration heavy-duty construction results in very high resistance to mechanical shocks operation temperature up to 700°c (1300°f) very low mass results in extremely low thermic inertia optional built-in thermocouple for high-resolution temperature measuring (j-type standard; k-type on request) unlimited range of possible shapes obtained from the straight heater heaters can be incorporated into brass or aluminium castings available in cross section 2.4mm x 4.2mm & 3.3mm x 3.3mm.

Tubular (sealed element) is a fine coil of Nickel chrome wire in an insulating binder (MgO, alumina powder), sealed inside a tube made of stainless steel or brass. These can be a straight rods (as in toaster ovens) or curved to fit in a smaller space (such as in electric stoves, ovens, and coffee makers). Tubular heaters during recent years are widely accepted as a mode of heating due to their flexibility with which these can be formed into any shapes and sizes depending on the applications. Due to their versatility, flexibility and relative insensitivity to mechanical damage, the tubular heaters have often provided ideal solution to difficult problems encountered in heating. Our range of tubular heaters are designed and manufactured with state-of-the-art technology which are very compact in construction, easy and economical in operation and consume less electricity. We offer tubular heaters that are practically hassle-free and maintenance free. Our tubular heaters are known for their reliability, durability and higher efficiency. We ensure that our tubular heaters are manufactured for optimum performance. Our tubular heaters are manufactured using best quality raw materials. We offer these tubular heaters at very economical industrial prices. We also customize these tubular heaters as per our clients' requirements and specifications.

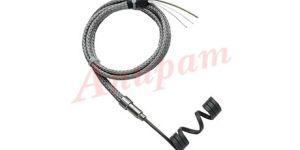

Anupam Electroheat’s Micro Tubular Coil Heater is a small, linear heating element that can be formed into different shapes and configurations. Also known as a Hot Runner Heater for its extensive use in Hot Runner Systems, the Micro Tubular Coil Heater is a high performance heater which allows high wattage in a limited space. The ability to shape a Hot Runner Heater when cold enables to heat up parts with different shapes. During coiling, the gap between turns of coil can be modified to compensate for the heat losses at each end of the coil or to insert the heating element into slots. Micro Tubular Coil Heater has a larger cross-sectional area and is thus capable of greater power than Micro Coil Heaters. For this reason the Hot Runner Heater is used in hot runners with adequate space and where high heat densities are required. Micro Tubular Coil Heater can accommodate type “J” or “K” thermocouple sensors. Since the measurement point of a built-in thermocouple is situated in the Hot Runner Heater and never where the heat is actually required, our Micro Tubular Coil Heater with a thermocouple makes particular sense where the application allows the use of larger processing temperature or where the installation location or the design requires protection against overheating. The standard connection for our Micro Tubular Coil Heater is a 1000 mm PTFE-insulated lead wire with Fiberglass sleeve with protective earth conductor lead.

  Introduction :   We offer special type S S Tubular heater with & without fins made of superior quality material. Competitively priced, it is one of the products that ensure high efficiency and superior performance.   Applications : Radiators , convectors IR radiators Heating curtains Sterilizers Ovens

• Lenght L (mm) ± 3%: 250
• Heated Lenght (mm) ± 5%: 205

Microtubular coiled heaters are manufactured to a revolutionary design, which makes them the best choice in the most demanding conditions. The resistive wire is uniformly distributed in a compacted MgO insulation, with a CrNi-steel outer protection sheath. The heaters are annealed after manufacturing, thus acquiring a high malleability that allows their being subsequently bent into any complex shape, with extremely narrow bending radius. heaters are used in various applications, due to their being intrinsically reliable and highly versatile. They were first designed for a very specific application, the differential heating of plastic injection nozzles, and later become invaluable in the most diverse and demanding applications. Aerospace, railway, chemical, metalworking and food industry, glass and paper industry, automotive, packing, medical industry... all have taken advantage from the use of heaters, with their wide range of possible shapes and their fitness to an unlimited number of applications.

Ceramic Heaters, mica heaters., oil heaters, Mica Heaters

Micro Tubular Heater, Infrared Heating Panel, Brass Base Laundry Irons

Ceramic Heaters, Mica Heaters

Micro Tubular Coil Heater, Straight Rod Heater, Pencil Heater
