Strip Heaters Dealers in Thane

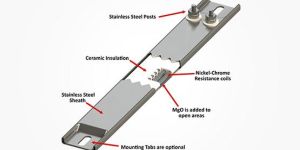

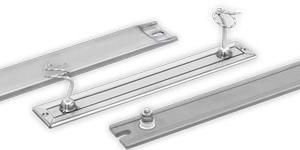

Anupam's Ceramic Strip heater provides the ability to withstand higher temperatures . Anupam's Strip heaters, often considered component heaters, are a simple way of using surface area to transfer heat effectively. A fairly inexpensive way of heating surfaces or small areas, strip heaters are an excellent solution to meet any budget. If strip heaters are used as a radiant heater, they have can have fins to maximize surface area and heat transfer to the air. Our Ceramic Strip Heaters are dependable and reliable flat heating elements – designed to provide efficient heat to flat surfaces from common to industrial applications. The seamless sheath design of Ceramic Strip Heaters makes them ‘dimensionally’ stable in milled slots. Construction Ceramic Strip Heaters are constructed with ceramic insulation that quickly conducts heat from the resistance wire to the sheath resulting in low internal temperatures and long heater life in the most demanding applications. Precise placement of the resistance wire provides uniform sheath temperature across the width and along the entire heated length. This is an extremely rugged construction capable of high temperatures and high watt densities. The inner construction consists of wound nichrome resistance coil. The inner flexible wire is strung through ceramic insulator pieces. The coils are attached to the screw terminals, or high temperature lead wires, for a positive connection. MgO (magnesium oxide) is used to fill and pack open areas surrounding the coils. The MgO material helps increase the elements thermal conductivity and dielectric strength. FEATURES High heat transfer rates and fast heat up Ceramic construction for higher temperatures Long life Large selection of lengths, sizes and terminations Low expansion characteristics Distributed wattage available MOUNTING SUGGESTIONS Ceramic Strip heaters must be clamped securely along a smooth metal surface (along their complete length). When a Ceramic Strip Heater is supported by mounting tabs, ensure that the terminal is secured firmly, and that the opposite end remains loose to allow for expansion. Do not over-tighten nuts when installing, as over-torquing terminals will create internal heater damage. Ovens Hot Plates Dropping resistors Dies Molds Drying Melting Baking Incubators Platens Food Warmers Welding Preheating Air Heating Sealing Bars Thermoforming

APPLICATION In rubber & bakelite mouldings presses, cutting & sealing machines or where temperature upto 300° C is required. CONSTRUCTION Rust resistant steel sheathed, nichrome ribbin wire wound heating elements, insulated with mica, complete with rigid terminal. Connections were ever required. STANDARD SIZES & CAPACITIES Length - 10" to 30" Width - 1", 13/8", 11/2", 17/8", 21/2", 4" etc. Volts - 250 Watts - 250 to 1250

Ceramic Refractory insulated Strip heaters are sheathed in rust-resistance steel or in stainless steel sheath as it provide physical strength and good thermal conductivity. Specially selected and designed ceramic insulator houses the resistance wire insulating it from the outer sheath. Finned strip heaters are used for both forced (mounted in ducts) and natural convection air heating (mounted at the bottom of cabinet type oven). The fins provide maximum surface contact for good heat dissipation into the finned cross section thus resulting in rapid heat transfer to the air.

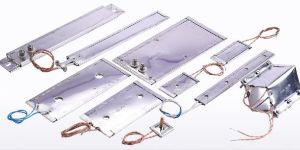

MICA STRIP / PLATE HEATER Nichrome ribbon wound on mica former & insulated with mica sheet. which is then sheathed in MS Plated or SS sheet. CERAMIC/REFRACTORY PLATE/STRIP HEATER Heating coil supported in Fluted Refractory insulaters & sheathed in SS/MS Plated sheets. FINNED STRIP HEATERS Basically Finns are fitted tightly on the Heavy Duty Strip Heaters for fast transfer of heat to flowing air.   Application : Dies, Molds, Plastic Forming and Sealing, Tank and Kettle Heating

We Manufacture and Export strip Heaters of High Quality. the Strip Heaters are Available in Ss Sheathed Design with a Working Temperature of 350c. the Strip Heaters have a " U" Type Design. These Heaters have a Long Life. We Offer Strip Heaters E in Various Sizes. Spark Enterprise also Offers Elements Type Heaters and Refectory.

Finned Strip Heater, Ceramic Band Heaters, Nozzle Heater

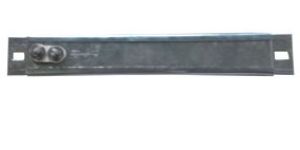

Finned strip heaters are with locked on finns for fast heat transfer to air by larger heating surface area. It is required for convection heating..

Finned Strip Heater, MS Welding Work, Electric Water Heater

Mica Strip Heaters, RTD PT100 Thermocouple
