Suitable for Contaminated liquids, as well liquids containing air or gas, for sumps, gullies and many other applications where a suction lift is required Features Excellent self-priming ability No non-return valve required in the inlet Single unbalancedbalanced seals to EN 12756 (DIN 24960) Mechanical seal with dry-running protection through oil bath quench Ideal for handling contaminated liquids Easy maintenance – Back-Pull-Out principle Flanges 32 and 40 threaded connection Flange connection 50 and higher to ISO 7005 PN 16 Flange connection to ISO 7005 PN 20 (ANSI B16.5 150 lbs) optional Greased for life roller bearings Magnetic drive optional Atex certification

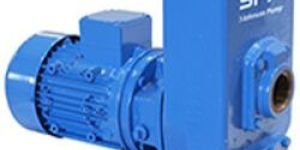

The KGE is a self-priming centrifugal pump with radial (semi-open or closed) impeller, overhung mounted on a bearing pedestal. If a spacer type coupling is used, the pump can easily be dismantled without the necessity of disturbing the pipings or moving the motor. The KGE series is available in different drive possibilities: KGE: pump with bare shaft for clockwise rotation KGEL: pump with bare shaft for counter-clockwise rotation KGEF: pump with flanged motor (close coupled) Suitable for Clean and polluted liquids that are non-corrosive to cast iron, including water, oils, petrol and all kind of chemicals. Draining building excavations, emptying ponds, ditches and swimming pools, water extraction for irrigation and watering, aboard ships as bilge, deck wash and general service pumps. Emptying pits and throughs containing wastewater, handling fuels, condensate extraction pumps.

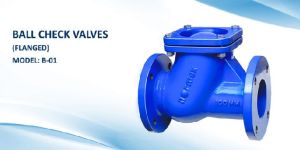

Ball Type Check Valves (NRV) B-01 was the first of the valve at Normex with unique design and technology for the first time in India. A very simple and robust design with no mechanism involved. The heart ofб═ valve is rubber coated ball. The mechanism hinge-pin-disc used in conventional check valves is eliminated

Principal: Ball Type Check Valves (NRV) B-01 was the first of the valve at Normex with unique design and technology for the first time in India. A very simple and robust design with no mechanism involved. The heart ofб═ valve is rubber coated ball. The mechanism hinge-pin-disc used in conventional check valves is eliminated and Normex has put in this rubber coated ball to arrest flow media in return condition. As the pump starts, the ball moves out totally from the flow path when the pumping is on giving a full bore maximum flow/discharge with minimum head losses. (Fig. A). As the pump stops, the ball rolls back and seats perfectly on the rounded valves seat ensuring totally leak proof sealing.(Fig. B) Salient Features: Lowest possible pressure drop across the valves. 100% leak proof sealing years over years. Non-clogging and self cleaning as ball rotates during operation. Virtually no wear and tear, no maintenance and longer service life. Higher solid handling capacity due to full bore and straight internal path. Lower head loss-high discharge, reduced pumping time-All leading to Energy Saving. Applications: Clean water, Raw water, Sewage, Slurry, Waste water, Viscous liquids etc. Used in industries like: Fire fighting, Plumbing, Water distribution, Water/Sewage treatment, Irrigation/agriculture, Sewage plants, Steel mills, Power stations, Chemical/process industries, HVAC, Sugar/food industry, Breweries, Mining and many more.
