Air Operated Diaphragm Pump Dealers in Vatva, Ahmedabad

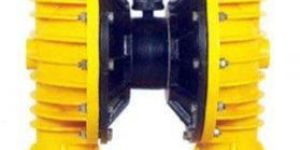

Approx Price: Rs 1.8 Lakh / Piece Minimum Order Quantity: 10 Piece Product Details: Brand Sai With our rich industry experience, we are engaged in manufacturing, trading and supplying an extensive assortment of AOD Bolted Pump. Our offered pump is manufactured with the premium grade components and advanced technology under the surveillance of our experienced professionals. Our provided pump is available in different technical specifications for our clients. Apart from this, the offered pump is tested against varied quality parameters to ensure its optimum quality. Technical Specifications: Max Flow Rate 900Lpm (238gpm) Port Size: Inlet: 76.20mm (3"BSP) Discharge:76.20mm (3"BSP) Air Inlet: 12.70mm (1/2"BSP) Air Exhaust: 19.05mm (3/4"BSP) Suction Lift Dry: 6.09m (20') Wet: 7.62m (25') Teflon Dry: 3.05m (10') Wet: 6.09m (20') Max Particle Size (Dia) 19.10mm (0.750") Additional Information: Item Code: 800-PP

Max Flow Rate: 586 Lpm (155gpm) 2" BSP (50mm) PP / PVDF Port Size: Inlet: 50.80mm (2" BSP) Discharge: 50.80mm (2" BSP) Air Inlet: 12.70mm ( 3/8" BSP) Air Exhaust: 19.05mm ( 3/4" BSP) Suction Lift: Dry: 4.57mm(15') Wet: 7.62mm (25') Teflon: Dry: 3.05mm( 10') Wet: 6.09mm (20') Max Particle Size (Dia.): 6.35mm (0.250")

Chambers A & B are alternatively filled and emptied by drawing liquid in through a common inlet © and out through a common outlet (D). The Diaphragms in each chamber are connected by a common shaft so that they move., backwards together. Compressed dry air is directed by the air valve (E) alternatively behind each diaphragm to power discharge strokes. Pump speed and therefore fluid flow-rate can be infinitely controlled by increasing or decreasing or decreasing air pressure and or volume.

The assistance of our experienced quality analyst guarantees us that we make use of quality raw materials for the production of our entire range. Therefore, our buyers enjoy flawless products. Reckoned as outstanding suppliers of AODD Pumps; we are a reliable choice amidst the customers.

Pumps produced from metals often lack the required chemical resistance to corrosive media. To meet such corrosive resistance requirements, we developed air operated pumps made from Polypropylene, PVDF or PTFE.  Our non metallic pumps deliver the performance of metal pumps, and can be installed in chemically aggressive environments. Virtually all fluids, from water to slurries/pastes can be pumped. Various materials for body, diaphragms, valve seats and valve balls are available so that the pumps can be individually adapted. The pumps are manufactured in 5 or 7 different sizes (types) with connecting flanges in accordance with DIN, ANSI und JIS. For explosion-proof areas, electrically conductive materials are available. In order to avoid electrostatic self-charge of the pumps when discharging insulating fluids, the pumps can be suplied in electrically conductive PP or PTFE.
