Air Operated Diaphragm Pump Dealers in Ahmedabad

Technical Details  Size range: 1/2" Material of construction (with options): body - polypropylene/kynar/aluminum/groundable acetal/stainless steel; diaphragm - neoprene/buna N/santoprene/teflon/hytrel Pressure range:7 bar (maximum) Flow range: 15 l/min Head range: 70 m (maximum)   Applications  Chemical transfer, blending, and filling, solvent cleaning, dewatering, loading and unloading of chemicals   Key Features  Self priming; can run dry Can have variable flow rates and discharge pressure Can operate at dead head Diaphragm can be submerged in the liquid Are shear sensitive

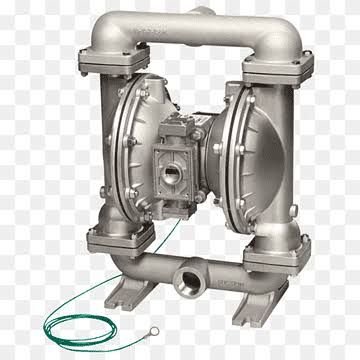

Technical Specifications: Max Flow Rate 586Lpm(155gpm) Port Size: Inlet: 50.80mm (2"BSP) Discharge: 50.80mm (2"BSP) Air Inlet: 12.70mm (1/2'BSP) Air Exhaust: 19.05mm (3/4'BSP) Suction Lift Dry: 4.57m (15') Wet: 7.62m (25') Teflon Dry: 3.05m (10') Wet: 6.09m (20') Max Particle Size (Dia) 6.09m (20') Additional Information: Item Code: 50-PP

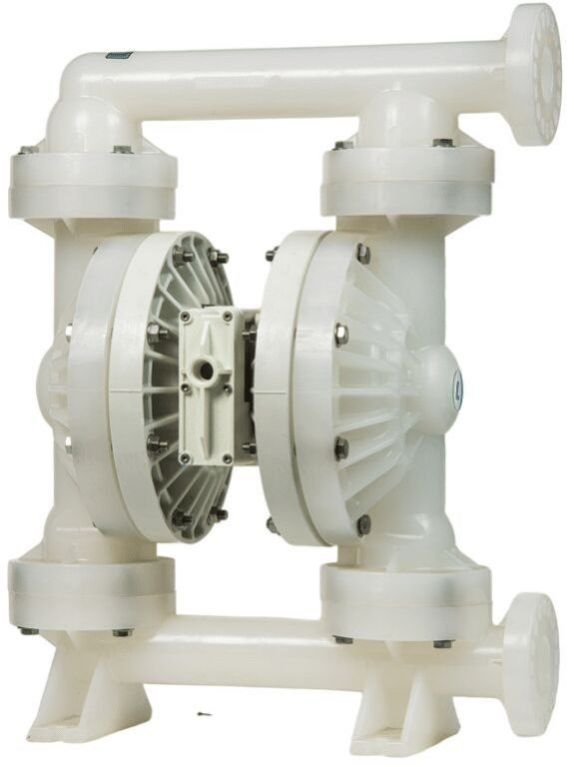

Max Flow Rate: 586 Lpm (155gpm) 2" BSP (50mm) PP / PVDF Port Size: Inlet: 50.80mm (2" BSP) Discharge: 50.80mm (2" BSP) Air Inlet: 12.70mm ( 3/8" BSP) Air Exhaust: 19.05mm ( 3/4" BSP) Suction Lift: Dry: 4.57mm(15') Wet: 7.62mm (25') Teflon: Dry: 3.05mm( 10') Wet: 6.09mm (20') Max Particle Size (Dia.): 6.35mm (0.250")

the aodd pump is double pumps in one. Chambers a & b are alternatively filled and emptied by drawing liquid in through a common inlet © and out through a common outlet (d). The diaphragms in each chamber are connected by a common shaft so that they move., backwards together. Compressed dry air is directed by the air valve (e) alternatively behind each diaphragm to power discharge strokes. Pump speed and therefore fluid flow-rate can be infinitely controlled by increasing or decreasing or decreasing air pressure and or volume.   the media aodd pump can handle a full list of chemicals and recommended elastomers is available on request. Or our sales office advice on the best pump & materials for specific media, we are #1 supplier / manufacturer of air operated double diaphragm pump in india. Contact air-operated double diaphragm (aodd) pump manufacturer, air operated double diaphragm pump supplier in india. typical range of products you can pump. abrasives: – clay slip, titanium dioxide, frit, mill scale. alcohols acids: – all mineral and organic acids. cement: – cement, mortar. cosmetics: – creams, emulsions, detergents. caustics ceramics: – slip glazes, clay. drilling: – mud, grout, lubricants. drinks: – soft drinks, spirits, beer, wine, milk. explosives: – suspensions of gun powder explosive, etc. inks & dyes: – printing inks, driers, dyes, sixes and solvents. foods :- liquid amd semi-solid foods, flavourings. oils :- petrol , diesel , hydraulic and cutting oils , lube oils , animal and vegetables oils and greases. pulps :- paper , wood sizes bleaches resins :- natural and synthetics , water and solvent based,monomeric and polymeric plastics. sludge & waste :- sewage , effluents , coal and lime slurry. solvents :- aromatic and allphatics , ketones , aldehydes, esters and chlorinated hydrocarbons , de-icing fluids. water :- all types. timber preservatives: – creosote, turpentine, copper, napthenate. paint :- emulsions , latexes , pigments , solvent , resins , thinners, pharmaceuticals :- liquids , creams and compounds. plating :- aggressive acids , salts , sludge and effluents. rubber :- natural and synthetic.     operation sequence the blue arrows show the pump cycle. Fluid is being drawn into inlet ( c) by the suction stroke of the diaphragm in chamber b, which opens the ball valve (1) to allow liquid to enter the chamber ,ball valve (3) is closed by the diaphragm suction. in chamber (a) air has been applied to the rear of the diaphragm to force out the liquid in the chamber through the ball valve (4) to the liquid outlet (d). This discharge stroke closes ball valve (2) to prevent further liquid entering the chamber. This cycle is repeated to provide a continuous flow o outlet d. standard aodd pumps are one : one ratio-maximum outlet pressure never exceed air supply pressure.   applications to handle viscous chemicals , slurries. to transfer explosive liquids , solvents , acids. pharmaceutical liquids creams and compounds. semi solid foods , flavours , drinks , wine , beer , alchohols. waste water , sewage effluents , coal and lime slurry. hydrocarbons , petrol diesel , lubrication oil , vegetable oil. paints emulsions , pigments , thinners , resins. ceramics , slip , gazes , clays.     advantages of aodd pump no seal , no leakage, self priming , no need of foot valve, variable flow with same pump. can be submerge. less stock of spare to be maintain. no skill person is needed to operation and repair pump. light weight , handy in use. no rotation , no wear & tear hence low maintenance , no charging. pump can run dry. stop automatic on closing of discharge valve. can handle 2 to 10 mm size solid particles. also can be used upto accuracy 3 to 5% no motor , no fire. in short very simple and versatile pump.   operation principle dry air is given as input to air valve. Air will push both diaphragm alternatively. four ball valves will act as nrv for suction and delivery. as per liquid compatibility moc of diaphragm, valve and wetted part selected.

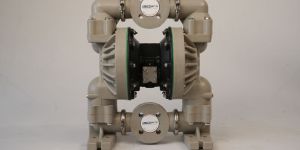

Air Operated Double Diaphragm Pump ( GADP) Solvents, Slurry Transfer, Barrels, Acidic Materials,High Viscous liquid, Abrasive Media Technical Data Head: up to 50 mtr. Flow: up to 45 m3 / hr Temp:up to 120 C M.O.C. :Investment Casting CFBM (SS-316),Aluminum, PP.PVDF Max. Partical Size:6.35 mm Air Pressure :Max. 7 kg/cm2 Air Inlet Size :1/4 to 1/2" Air Exhaust :3/4 to Suction Lift :Dry :4.57 meter/wet :7.6 m Teflon :Dry :3.05 m / wet : 6.09 m

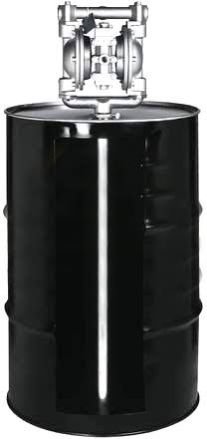

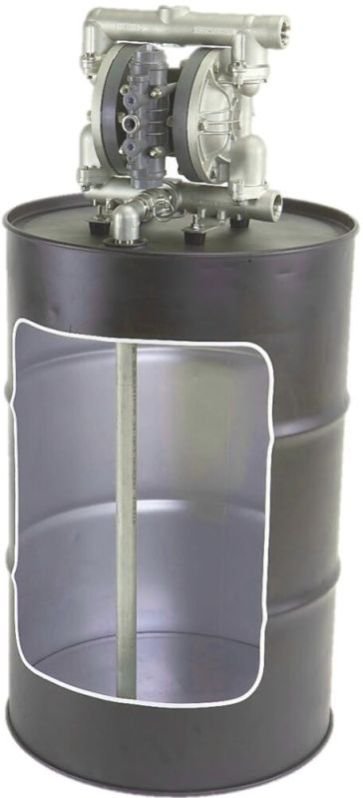

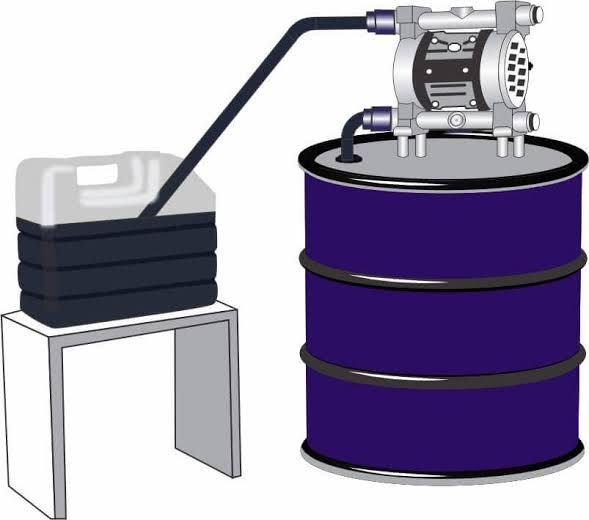

Applications: Solvents. Acids. Caustics. High Viscous Liquids. Abrasive Media. Hazardous & Flammable Liquids. Barrel Loading -Unloading. Filter Press & Transfer Slurry Transfer.

The largest Air-Operated Diaphragm Pump in the world (DP 125) with a flow rate of up to 2400 kg (5291 lb/h) at a bulk weight of 60 g (0.1 lb)/l, was developed and manufactured by Crane in cooperation with process industry partners. Until now, no other pump type has been able to fulfil the specific task settings of the industry in an economical and functional way. All DEPA diaphragm powder pumps are fitted with specially formed suction and discharge manifolds for favorable flow conditions. The high flow rate is achieved by good fluidization of the products. Regarding the discharge of granulates and crystalline media, special requirements have to be met. Various materials for body, diaphragms, valve seats and valve balls are available.

The assistance of our experienced quality analyst guarantees us that we make use of quality raw materials for the production of our entire range. Therefore, our buyers enjoy flawless products. Reckoned as outstanding suppliers of AODD Pumps; we are a reliable choice amidst the customers.

Air Operated Double Diaphragm Pumps, Flexible Impeller Pump

Air Operated Double Diaphragm Pump, Waste Water Management Systems, Pump

Air Operated Diaphragm Pump, Floor Burnisher Machin

AOD Clamped Pump, Basket Strainer, Water Pum
