Axis Vortex Cooler - VC1 is designed to deliver continuous cold air to industrial panel to avoid overheating the system. It is mainly used where electricity resources is a challenge. It is fully mechanical device hence very less maintenance is required. Used in Oil and Gas refinery, power, chemical, pharmaceutical industries, product chilling machine, industrial PC cooling as well as machine control panel. Many features of the VC1 make it ideal for wide range of applications for air cooling. It has main advantage is that it prevents dust and ingress protection of cabinet / panel / Machine hence eliminates down time of the system or machine. Basically it works on vortex tube principle , the hot air produced by the hot end the vortex tube and cold air released at opposite end and enters where cooling is required. hot air released to the atmosphere via vent entry of VC1.

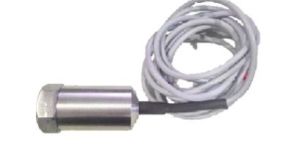

The vibration transducers are intended use for continuous monitoring of rotating machinery for trending or Shut down. The rugged, shielded and electrically case isolated allows application under harsh environmental conditions. The sensors provide a filtered and rectified output signal which is compatible with 4-20 mA current loop. Hence it can be directly connected to standard equipment such as PLCs, panel meters or current relays etc. Additional components/equipment for sensor supply and signal conditioning is not necessary. Vibration Sensor has SS304 casing and hermitically sealed ETFE cable (on request) with protection as per IP 65. So it is fully compatible for harsh environment installation. Optionally It also provides parallel Analog output through BNC M12 connector for analysis purpose. Its compact size allows for installation in tight places.

The Axis Universal Safety Scrubber helps to protect analysers from corrosion due to acidic gas stream components, especially Sulphur Trioxide, hydrochloric acid, sulphuric acid & Hydrofluoric acid. The Universal Safety Scrubber is recommended for coal-fired boiler,waste incinerator, and other applications where acidic gases are common. Universal Safety Scrubber ( USS1 ) protects your analyser from corrosion due to acidic gas stream components. The Universal safety scrubber ( USS1 ) can be used in lime fired boiler, cool fired boiler, waste incinerator and many other applications, where SO3, HF, HCL or H2SO4 in certain limits are presents. This can also be installed after cooler which ensures no carryover of acid and increase the life of the downstream components especially sample cell. USS1 material condition should be checked to ensure the right result of acid removal. Life depends on factors like the presence of aggressive components, flow rate and period till sample pass through the USS1.

Power : 24VDC (18-36VDC)

AXIS Strainers are a means of protecting downstream mechanical components such as Gauges, Analysers, Flowmeters, Back pressure regulator from possible damages due to debris such as rust, pipe scale, sediment, and/or other solid particulates. Machined seats in both body cap align and lock the screen in place to stop sediment bypass. Mesh construction ensures best performance and its right area as well as additional strength of the body of removable plug to increase life and reliability while opening and closing the plug.

Number Of Flower : Strainers

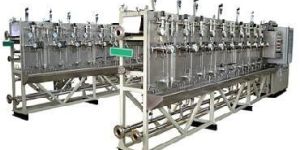

In any Power plant running on steam, the purity of boiler feed water and steam is absolutely crucial; especially to steam turbine, steam boiler, super heater, condenser and other steam equipment. To prevent damage of steam turbine, steam boiler and other equipment due to scaling and corrosion, on-line steam and water analysis of critical parameters such as pH, Conductivity, Dissolved Oxygen, Silica, Sodium, Hydrazine and Phosphate etc is a must. Steam can be as hot as 560°C. Pressures can be as high as 250 bar. To keep the power plant up and running with minimum erosion and corrosion of steam turbine, steam boiler and condenser, we have developed fully integrated Steam and Water Analysis System (SWAS) that provides exact, precise measurements on all these critical parameters.Samples are at high temperature & pressure. Sample conditioning is required to bring down the temperature & pressure at desired level. AXIS has designed SWAS –Steam and Water Analysis System to keep you in power. SWAS PACKAGE HAS TWO TYPES OF PANELS. 1. Wet Panel: Sample coming from different points are fed to this panel. Contains sample conditioning components like Thermal shut off valve (TSV), Cooler, Back pressure regulator(BPR), Pressure regulating valve(PRV), SOV, Temperature switch, Pressure & Temperature gauges, Rotameters etc. Sensor in the same panel, output of sensor goes to dry panel. 2. Dry Panel: It contains Analysers, Transcontrol mitters, Annunciator, indicator etc. All remote signals goes from this panel to control room.

We provide material handling automation solutions and services for the transport and distribution sector and the pharmaceutical, consumer, automotive and food industries, alongside numerous other sectors. Measurement engineering and modern automation technology devices must function properly and be able to be used anywhere. In order to continuously improve the economic efficiency of your plant you need durable , low-were productsand devices that deliver precise measurement results throughout the entire service life, even in rough industrial environments and undercritial loads. To optimise provisioning and storage costs you require simple techniques for fast installation, maintanance and extention of your plants- at all your locations. These are primarily solutions and systems for internal transport and storage such as warehouse & distribution automation, automated guided vehicle systems and in-floor chain conveyors.

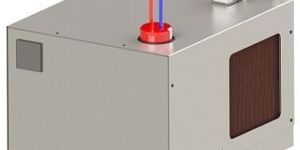

Reliable & Long term operation of an Analyser depends upon efficiency of the Sample conditioning system for which stable dew point of the sample is essential. Axis Sample Gas Cooler is compressor cooler equipped with efficient heat exchangers to provide stable dew point to the sample there by ensuring security with precise performance of the Analyser. Cooling performance is ensured by having very tight control of temperature directly (not mechanical control for temp.) The heat exchangers is either Single Coil or Dual Coil so that two different streams can be catered. Very compact housing design ensures best placement of other components with saving of the cost. Insulation at top of heat exchanger effectively isolates ambient effect.

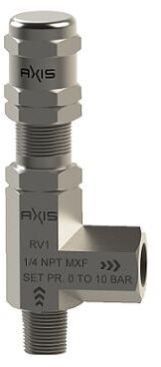

Axis Relief Valve RV1 is designed to deliver continuous Uni-directional flow control to further system and provide Uni-direction safety at predefined level. It is mainly used in instrumentation sample handling system for all type of Gas media application. Used in Oil and Gas, Refinery, power, chemical pharmaceutical, Pulp and any type of process industries. Many features of the RV1 make it ideal for wide range of applications controlling Uni-direction flow control and safety for gas media. It has wide operating range up to 20 bar and up to 220°C media temperature can be sustained.

Material : Steel

Application : Gas Fitting

Brand Name : Axis Solutions Pvt Ltd.

Purging and pressurizing systems is one of the most versatile explosion protection methods. These Systems are based on the principle that in Zone 1 or 2, Division 1 or 2, the gas mixture in the ambient atmosphere, which may ignite under certain circumstances, is removed from the housing by an initial Purge process. After the purge phase, sufficient compressed air or inert gas is supplied to compensate for leaks from the enclosure. This permanent over pressure, achieved using compressed air or inert gas, prevents any potentially explosive atmosphere in the ambient air from entering the enclosure.

Material : Aluminum

Application : Industrial Use

Condition : New

Power Source : AC/DC 120-240 V

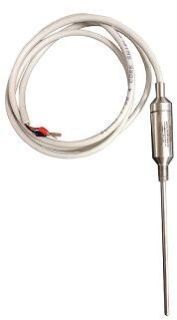

Axis APT1 provides innovative product for easy 4 – 20 mA signal conversion from temperature sensor. It is very user friendly device. It converts Analog energy in to direct measurable signal. It can be used in any industry where temperature sensor convert in to 4 – 20mA control signalling. It is predefined programmable. It is equipped with built in sensor ( PT100 ) and Converter circuit. Hence there is no need of external power source. User has to connect 2 wire of APT1 to their suitable control device. It is suitable for harsh environmental condition.

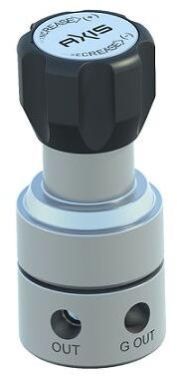

Axis Pressure regulator is designed to deliver continuous & precise control to further system. It is single stage pressure control regulator. It is mainly used in instrumentation sample handling system for all type of Gas media application. Used in Oil and refinery, power, chemical and any type of process industries. Many features of the Pressure regulator  make it ideal for wide range of applications controlling pressures at low to adequate flows in gas media. It has wide operating range up to 413.6 bar and up to 170°C media temperature can be sustained. PRg3 can also be used for water application.

Number Of Flower : Gas Pressure Regulators, Pressure Regulators

Application : Gas, Oil

Brand Name : Axis Solutions Pvt Ltd.

Axis Peltier Air conditioning unit is designed to deliver continuous cooling to industrial panel to avoid overheating the system. It is mainly used where refrigeration based (compressor based) resources is a challenge. It is fully mechanical device hence very less maintenance is required. Used in all type of process industries where small panel / enclosure or switching cabinet want to cool. Many features of the Peltier Air Conditioning Unit make it ideal for wide range of cooling application. Basically it works on Peltier Effect; Peltier blocks are used with electronic circuit. Peltier Air Conditioning Unit can work in the most adverse environment conditions. They are suited for working in high ambient temperatures or heavily polluted ambient air. The warm air inside the switching cabinet is blown into the cold exchanger by a fan and thereby cooled. There are not refrigerant and thus no danger of leakage. In addition, our switching cabinet coolers can therefore be used in moving or accelerating systems.

Brand : Axis

Size : 10\" to 21\"

Brand Name : Axis

Model Number : ACU1085

Tonnage : 390 watt to 3500 watt

Power Supply : 230 VAC, 50 Hz

Country of Origin : Made in India

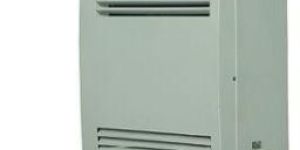

The basic requirements for any Air Conditioning Unit is to perform according to given parameter with trouble free operations. These are mainly remote locations or at very challenging locations or experiencing extreme weather conditions. AXIS brings you the equipment to meet diverse and exacting demand which runs trouble free for 24x7 in Power generation sector, Chemical plants, Steel Plants, Process Automations, Porta Cabins, Drive Panels, PLC Panels, Instruments Panels, Textile Machines, Food Processing machinery etc.

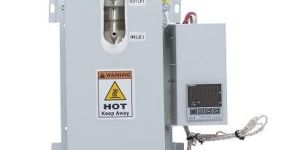

Due to the rising global industrialization the monitoring of exhaust gas is increasingly important. The monitoring of Nitrogen Oxide (NOx) is particular important due to its role in the formation of ground level Ozone and acid rain.The gas converter module allows an easy and cost effective detection of the NOx components (NO & NO2). The module converts almost 100% of the NO2 content of a sample gas to NO by means of the replaceable reactor cartridge. The resulting NO gas is measurable by any commercially available IR-analyzer. The reactor cartridge, designed in cooperation with a research institute, enables the conversion of high NO concentrations at a comparatively low temperature. Interferences from other gases such as CO, CO2, NO are generally not observed. Moreover, a lifetime of over 12 months is possible under normal conditions. This leads to an obvious reduction of maintenance costs. The maintenance effort is further minimized through the special reactor fastener on the front panel allowing the replacement of the cartridge without tools. The temperature of the converter is adjustable through an easy-to-handle microcontroller.

Axis Non Return Valve is designed to deliver continuous Uni-directional flow control to further system. It is mainly used in instrumentation sample handling system for all type of Gas media application. Used in Oil and Gas refinery, power, chemical pharmaceutical, Pulp and any type of process industries. Many features of the NRV1 make it ideal for wide range of applications controlling Uni-direction flow control for gas media. It has wide operating range up to 413.6 bar and up to 170°C media temperature can be sustained.

Number Of Flower : Non Return Valve

Brand Name : Axis Solutions Pvt. Ltd.

S604B is an innovative instrument for measurement and recordings of the electrical parameters. It is particularly suitable for consumption analysis and control, with an excellent qualityprice ratio. For the version with Rogowski coils input, connections are very quick and easy, very useful for retrofitting applications on existing switchboards or for energy audit. Unlike the Energy Plus versions, S604B has 1 MB data memory for recordings where it can record only the average values for active & reactive powers. S604B has no harmonics calculations. On request, the instrument can communicate through the RS485 serial port by ModBUS RTUASCII protocol or through LAN interface by ModBUS TCP protocol.

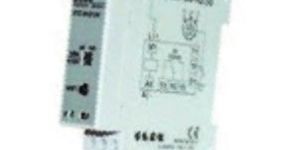

Compact size – 1 module – 17,5mm, 24VACDC or 90-264VAC Power supply DIN rail mounting, Protection relay for motor with PTC sensor Manual or automatic reset, Sensor test (PTC), 1 Output relay 1 pole changeover contact.

ASPL LIU Box consists of many variable like DIN rail mount, 19’’ mounting, 4 Port to 24 port duplex adaptor, duplex connectors - SC, ST, LC and single mode, multi mode along with standard length of 1 meter pigtail cable.Fiber Patch panel (LIU) Light Interface Unit extensively used for wired communication networks. The LIUs are used for routing, terminating and managing optical cable terminations. These light interface units can be wall mounted or rack mounted for easy of use.

The basic requirements for any Air Conditioning Unit is to perform according to given parameter with trouble free operations. These are mainly remote locations or at very challenging locations or experiencing extreme weather conditions. AXIS brings you the equipment to meet diverse and exacting demand which runs trouble free for 24x7 in Power generation sector, Chemical plants, Steel Plants, Process Automations, Porta Cabins, Drive Panels, PLC Panels, Instruments Panels, Textile Machines, Food Processing machinery etc.

The Heatless dryers are ideal for low flow air Drying operations. Dryer operation is fully automatic and outlet dew points as low as (-40°C) can be achieved. Heatless regeneration desiccant dryer is designed to protect Pneumatic equipment, controls and processes, from the harmful and costly effects of moisture in compressed air and natural gas lines. Regenerative desiccant dryers operate on the principle of pressure swing adsorption, where a fraction of dry air or gas is used to regenerate the off-stream tower. No heat or exhaust power is required for desiccant bed regeneration. In natural gas applications, purge exhaust can be diverted to compressor suction or used as fuel. This means wet air is vented without requirement of separate drain or electrical power.
