Bearing & Tool Centre Relief Road, Ahmedabad, Gujarat

Range 1 to 80 Mil, quality product which is not what we put into it, but quality is what the customer gets out of our products.

The core benefit of the Vibration Meter Supplier is you can secure your machinery and workplace from some major problems by measuring the velocity, acceleration and displacement of machinery equipments which are skeptical. You can secure many problems those take place in many types of machinery like foundation damage and broken mounting bolts. The Vibration Meter Supplier provides you 2.5% of precise measurement for desired range and displays the result on Vibration Meter screen. It is the preeminent instrument for troubleshoot industrial machinery parts.

Material : Stainless steel

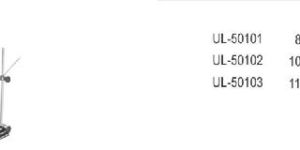

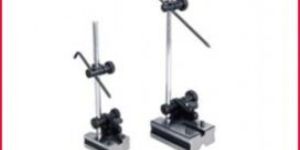

The core benefit of the Universal Surface Gauge Supplier is  you can easily find out the center of any object section. In addition, it is used to scribe corresponding line using scriber on any object section and to make sure the parallelism. Vee groove embedded in the front of the Universal Surface Gauge Supplier lets you adjust the spindle at any of the angle. It means you can use it as a height gauge plus depth gauge. The heavy base of the gauge offers accurate surface reference.

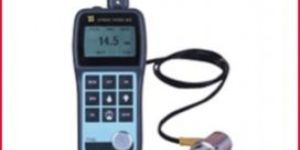

We offer our consumers a wide variety of Ultrasonic Thickness Gauge that helps in inspecting various specification of performing the test in various particles. This product is specially designed for measuring the thickness of metallic and non-metallic materials. It can also be used to monitor all types of pipes and pressure vessels for loss of thickness due to corrosion so this product is manufactured by our company with immense care. These gauges are widely used in engineering applications; our Ultrasonic Thickness Gauge supplier range is available to clients at market leading rates and can be easily custom made to suit the varied demands of our consumers.

• used for marking & transferring measurement. • ground base for accurate reference surfaces. • v groove on the front end which allows the spindle to adjust to any angle above or below the base. • v groove in the base for cylindrical work. • a very positive fine adjustment through a rocker arm that makes smooth & accurate setting. • grooves on the side of the base for a sure & easy grip. • dial indicator can also be used. • two gauge pins facilitate easy linear marking. Sr.no. Cat no. Size height 1. Ul- 50101 80 l x 65 w x 300 h [12"] 300 2. Ul- 50102 100 l x 85 w x 450 h [18"] 450 3. Ul- 50103 110 l x 90 w x 600 h [24"] 600

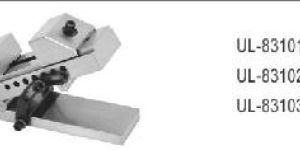

• Produced of high quality steel, carburized to surface hadrdness hrc 58 - 62 • Parallelism 0.008 mm 100 mm squareness 0.015 mm • Available inspecting angle and processing working with angle Sr.No. Cat No. Size (mm) C.D (mm) Opening (mm) 1. UL-83101 175L x 63W x 93H 100 0-85 2. UL-83102 190L x 73W x 104H 100 0-100 3. UL-83103 235L x 88W x 122H 100 0.125

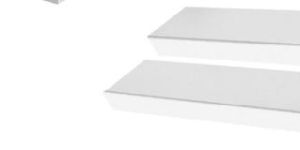

• Used for Precision measurement, setting of angles. • Made from high quality alloy steel. • Accuracy for Squareness, Flatness & Parallelism is within 0.005mm. upto 200mm & 0.010 mm upto 350mm • Centre distance between rollers is within ±0.003mm • Hardness - 60 ± 2 Rc & Tempered • Top surface is provided with magnet • Accuracy as per IS Standards IS 5359-1987 Sr.No. Cat.No. Size (mm) C.D (in mm) 1. UL - 31301 130L x 20W x 40H 100 2. UL - 31302 230L x 30W x 40H 200 3. UL - 31303 345L x 40W x 50H 300

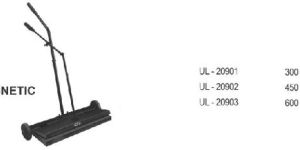

Sr.no. Cat no size (mm) 1. Ul-20901 300 x 150 2. Ul-20902 450 x 150 3. Ul-20903 600 x 150

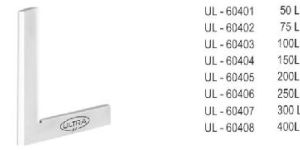

• used to check squareness & straightness. • made from high quality tool steel. • packed in individual box. Cat no beam size (mm) ul-60701 200 l x 50 w x 60 h

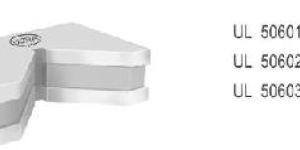

Â�¢ used with boring bar for presetting of cutting tool â�¢ change in setting of the tool measures variation in bore dimension. Â�¢ powerful magnet without on-off facility. Â�¢ â��vâ�� is hardened & ground within 5 micron. Â�¢ the included angle of v is 120âº. Â�¢ hardness 52 - 56 rc. Â�¢ also manufactured as per customer's requirement sr.no. Cat no size (mm) range (mm) 1. Ul - 50601 100 l x 50 h x25 t ã� 20 - ã� 90 2. Ul - 50602 110 l x 45 h x 22 t ã�20 - ã� 75 3. Ul - 50603 90 l x 40 h x 22 t ã� 45 - ã� 100

• easily clean up sharp edged drill chips screw and other metal parts • items are safety ejected by pulling the back side knob • ideal for hard to each space • used in all fabrication shop and machine shop • no requirement of hand contact with scrap to handle, so safe in use sr.no cat no. Size (mm) 1. Ul - 81301 ø1 x 6 inch

• Used for holding flat & round jobs during Inspection, Grinding and Welding • Accuracy for Flatness, Squareness & Parallelism within 0.008mm. • ON-OFF is done by rotation of handle • Provides angle reference of 450, 900 and 1200 • Strong magnetic pull on all ground portions • Hardened strips provided on all working surfaces in hard blocks for wear resistance Cat No. Size (mm) Pull (on "v") Pull (on Plain) UL-20201 Soft 110L X 110W X 140H 100 kg 125 Kg UL-20201 Hard 110L X 110W X 140H 75 kg 100 kg

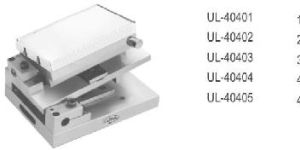

• compound angle facility (is: 5939 - 1970) • used for precision measurement, setting of angles & light machining. • accuracy for square ness, flatness & parallelism within 0.010mm upto 200l & 0.015mm upto 450l. • angle can be set within ±5 seconds. • centre distance between roller is within 0.005mm. • made from high quality alloy steel • hardness - 60 ± 2 rc & tempered. • magnetic table for job holding. • firm hinged clamp to reduce possibility of distortion. • magnetic chuck with fine pitch (1.5 mm) cat.no size (mm) bottom c.d. (mm) top c.d. (mm) inclination ul- 40401 150 l x 120 w x 155 h 100 mm 50 mm 0 - 45º ul- 40402 250 l x 150 w x 155 h 150 mm 100 mm 0 - 45º ul- 40403 300 l x 150 w x 155 h 200 mm 100 mm 0 - 45º ul- 40404 450 l x 150 w x 155 h 300 mm 100 mm 0 - 45º ul- 40405 450 l x 200 w x 155 h 250 mm 150 mm 0 - 45º

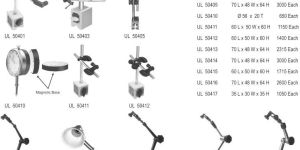

• used as holding device for dial indicator. • base v can be clamped to shaft of ø 20 to ø 120. • fine adjustment for accurate settings • powerful magnetic base holds firmly to ferrous surfaces vertically horizontally, upside - down • on - off facility. Cat no. Base size (mm) overall height (mm) pull ul - 50401 60 l x 50 w x 60 h 250 50 kg

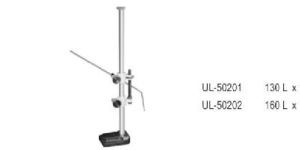

Cat no. Base size (mm) height of column ul - 50201 130 l x 105 w x 35 h 600 mm ul - 50202 160 l x 130 w x 40 h 1000 mm

• used as holding device for dial indicator. • heavy & rigid construction. • column can move to & fro to full base length. • fine adjustment for accurate setting. • both faces of base can be used. Cat no. Base size (mm) height of column (mm) max. Horizontal ext. (mm) ul - 50301 250 l x 45 w 300 350 ul - 50302 300 l x 100 w 300 350 ul - 50303 300 l x 100 w 500 350 ul - 50304 350 l x 100 w 800 350

Used for Grinding, Light Milling, Drilling & Inspection of Round & Square Jobs. • Accuracy for Flatness, Squareness and Parallelism within 0.008mm. • It can be used on the base, ends & sides. • Hardness 60±2 Rc & supply in perfect matched pair. • Clamps has tapping holes at 45° & 90° for clamping the square & round jobs. • Stepped groove design permits clamping of small or large jobs. Cat No. Size (mm) Range (mm) UL-10901 65L X 70W X 50H Ø 5 - Ø 50 round 35 mm square

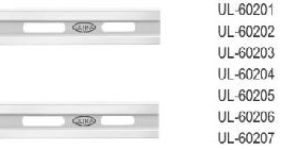

• used for checking flatness & straightness of surfaces. • made from high quality tool steel. • hardness 60 ± 2 rc. • plastic head insulator. • packed in individual wooden box. Sr.no. Cat no size (mm) accuracy micron 1. Ul-60201 100 l x 15 h x 5 t [4"] 6 2. Ul-60202 160 l x 20 h x 8 t [6"] 6 3. Ul-60203 300 l x 35 h x 12 t [12"] 7 4. Ul-60204 500 l x 50 h x 15 t [20"] 7 5. Ul-60205 800 l x 80 h x 20 t [32"] 10 6. Ul-60206 1000 l x 100 h x 20 t [40"] 12 7. ul-60207 1500 l x 100 h x 20 t [60"] 18

• used for checking flatness & straightness of surfaces. • all accuracies as per is : 3512 - 1966. • made from high quality tool steel. • knife edge provides an excellent visual line contact with the work piece. • hardness 60 ± 2 rc. • packed in individual wooden box. Sr.no. Cat no size (mm) 1. Ul-60101 50 l x 30 w x 8 t [ 2” ] 2. Ul-60102 75 l x 35 w x 8 t [ 3” ] 3. Ul-60103 100 l x 40 w x 10 t [ 4” ] 4. Ul-60104 150 l x 40 w x 10 t [ 6” ] 5. Ul-60105 200 l x 50 w x 12 t [ 8” ] 6. Ul-60106 250 l x 50 w x 12 t [ 10” ] 7. Ul-60107 300 l x 60 w x 12 t [ 12” ] 8. Ul-60108 500 l x 60 w x 15 t [ 20” ] 9. Ul-60109 600 l x 60 w x 20 t [ 24” ]

• used to check squareness & straightness. • accuracy for squareness & flatness is within ±0.010 mm. 150h. • made from single piece high quality tool steel. • inside & outside are accurate right angles. • a groove on the inner corner of the stock, aids in the clearance of burr or dirt. • hardness 60 ± 2 rc. • packed in individual wooden box. Sr.no. Cat no beam size (mm) cross section (mm2) 1. Ul-60601 100 x 70 20 x 5 2. Ul-60602 150 x 100 26 x 6 3. Ul-60603 200 x 130 32 x 7 4. Ul-60604 300 x 200 40 x 8

• MAGNETIC SINE-TABLE IS : 5939- 1970 • Used for Precision measurement, setting of angles & Light machining. • Accuracy for Square ness, Flatness & Parallelism within 0.010mm upto 200L & 0.015mm upto 450L. • Angle can be set within ±5 seconds. • Centre Distance between roller is within 0.005mm. • Made from high quality alloy steel • Hardness - 60 ± 2 Rc & Tempered. • Magnetic Table for job holding. • Firm hinged clamp to reduce possibility of distortion. • Magnetic Chuck with fine Pitch (1.5mm) Sr.No Cat.No Size (mm) Center Distance Inclination 1. UL- 40301 150 L x 120 W x 105 H 70 mm 0 - 45º 2. UL- 40302 250 L x 150 W x 105 H 100 mm 0 - 45º 3. UL- 40303 300 L x 150 W x 105 H 100 mm 0 - 45º 4. UL- 40304 450 L x 150 W x 105 H 100 mm 0 - 45º 5. UL- 40305 450 L x 200 W x 105 H 150 mm 0 - 45º

• Used for checking of heavy round & cylindrical jobs. • Supplied in perfectly matched pair having accuracy 0.001mm. • Four hard steel balls on top face provides self- aligning, hard wearing, accurate support. • Ball wearing is even, so accuracy doesn't get affected. • Ball can be replaced and readjusted with minimum effort & cost Cat No. Size (mm) Max. Load Capacity UL - 11001 55 L x 55 W x 35 H 100 Kg UL - 11002 85 L x 85 W x 45 H 300 Kg UL - 11003 120 L x 120 W x 70 H 500 Kg

• used for accurate & quick angle setting during inspection, tool setting & machining • made from special quality alloy steel material • hardness 60 ± 2 rc sr no. cat no. size (mm) range (mm) 1. ul - 30201 75 w x 75 h x 8 t 450 & 900 2. ul - 30202 50 w x 85 h x 8 t 300 & 600.
